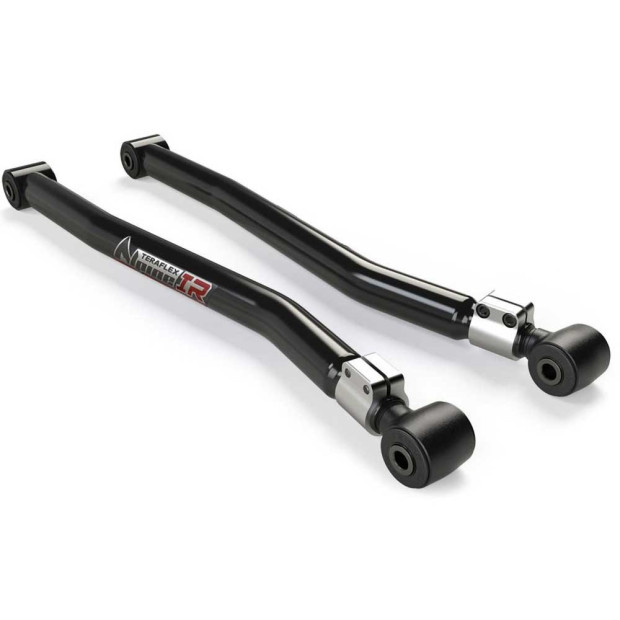

Front lower adjustable long control arms TeraFlex Alpine IR Lift 3-6"

• Adjustable Long Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6” lift kits
• Alpine Long Control Arms are constructed from durable 50mm x 5mm wall DOM tube for maximum strength
• Install and drive simple bolt-on installation – no welding required
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

Dimensions:

• Tube Diameter & Wall = 50 mm x 5 mm
• Factory Length = 24"
• Min. Length = 30-7/8"
• Max. Length = 32"

In the box:

• Front lower left adjustable control arm
• Front lower right adjustable control arm

Notes:

• Require brackets (sold separately):
  • Jeep JL 2 door TX1958002
  • Jeep JL 4 door TX1958000
  • Jeep JT TX1968000
• Require alignment
