Kit suspension Rough Country Diesel +5"

• Proudly made in the USA
• Increased ground clearance
• Maintains factory steering angles
• Control arm drop brackets reduce control arm angle, improving ride quality and driveability
• Track bar bracket keeps the front axle properly centered
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks
• Works with factory 17" and 20" wheels

N3 shocks specs:

• 10-stage variable valving
• High pressure nitrogen charged
• 35mm Piston
• Chromed Hardened 18mm piston rod
• 54mm shock body to dissipate heat faster
• 36kN Tensile Strength
• Spring loaded piston rod seal
• Military spec. fluid rated to –40° C
• Rubber bushings for better absorption
• Metallic silver paint

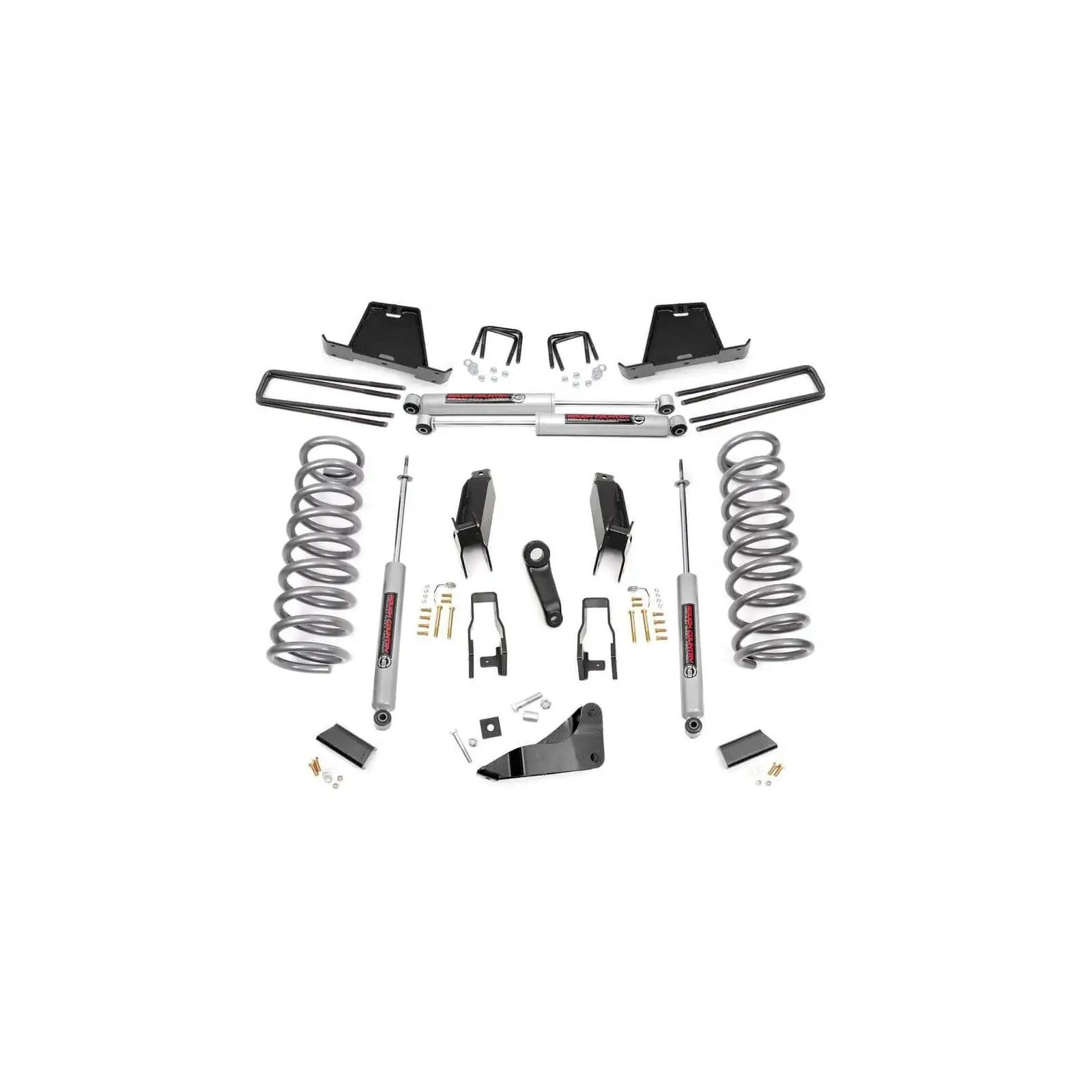

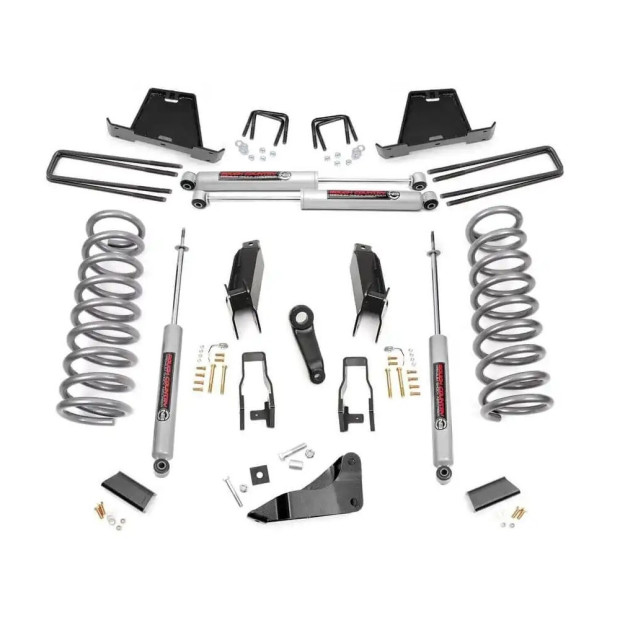

In the box:

• (2) Front Premium N3 Series shock
• (2) Front lifted coil spring
• Front control arm drop brackets
• Front pitman arm
• Front track bar drop bracket
• Front sway bar drop brackets
• Rear lift blocks 4"
• Rear u-bolts
• (2) Rear Premium N3 Series shock
• Hardware

Notes:

• Fits models with diesel engine ONLY
• Fits Mega Cab models ONLY
• Fits 4WD models ONLY
• Does NOT fit dually models
• Does NOT fit "Power Wagon" models
• Requires minor drilling
• On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
