Kit suspension Superior Engineering +1,5" Suzuki Jimny (2018+)

• Professional lift kit, designed to fit your car
• Front additional load up to 30kg
• Rear additional load up to 60kg
• Adjusted to both on-road and off-road environments
• Improves the handling and driving experience of lifted car
• Castor correction bushes return the castor angle of the front wheels to factory specification
• Crossmember drop kit eliminates driveshaft rubbing on the crossmember
• Extended brake lines eliminate the effect of excessive tension the lines on vehicles with a suspension lift applied
• With the headlight adjustment brackets, you can easily adjust the angle of the lamp leveling sensors

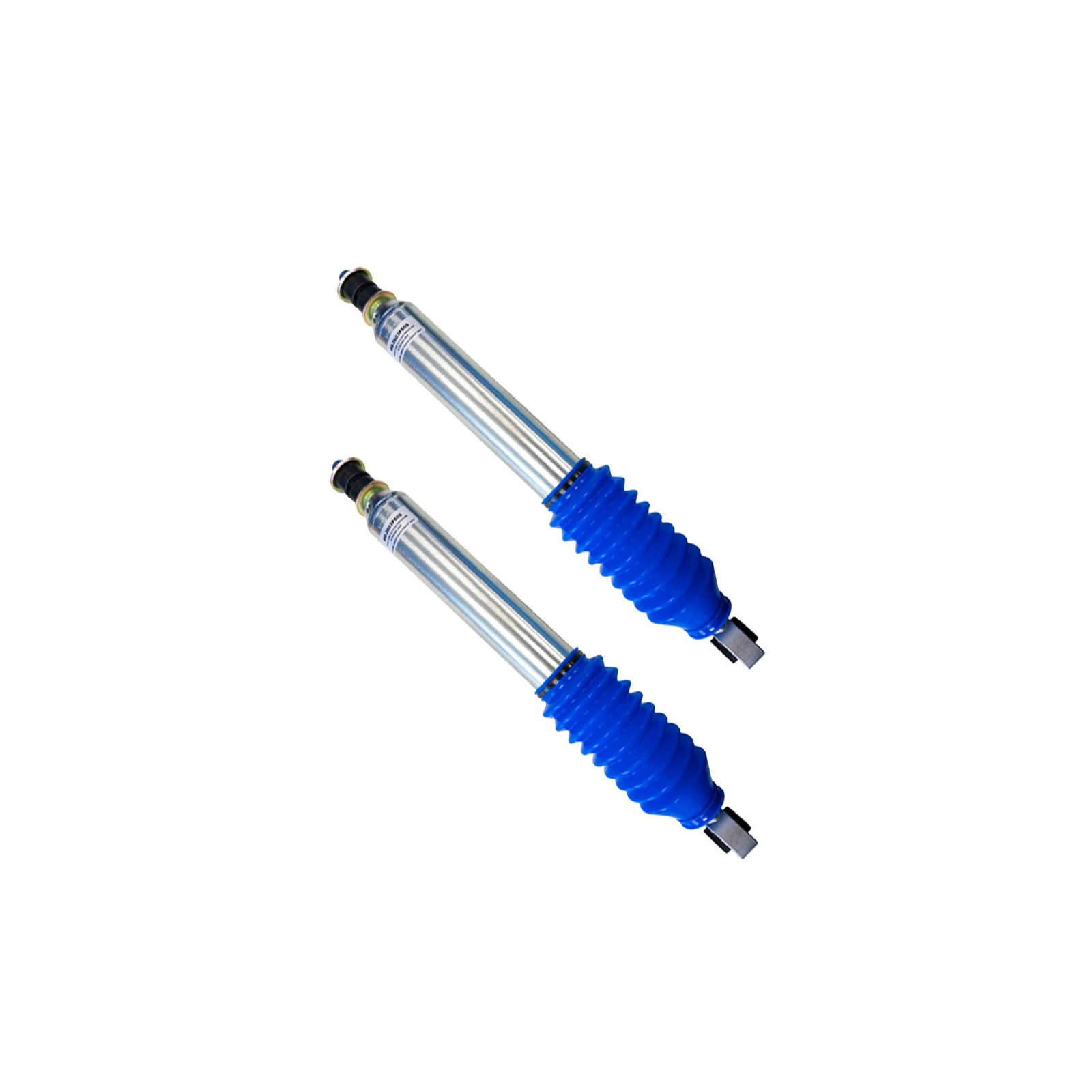

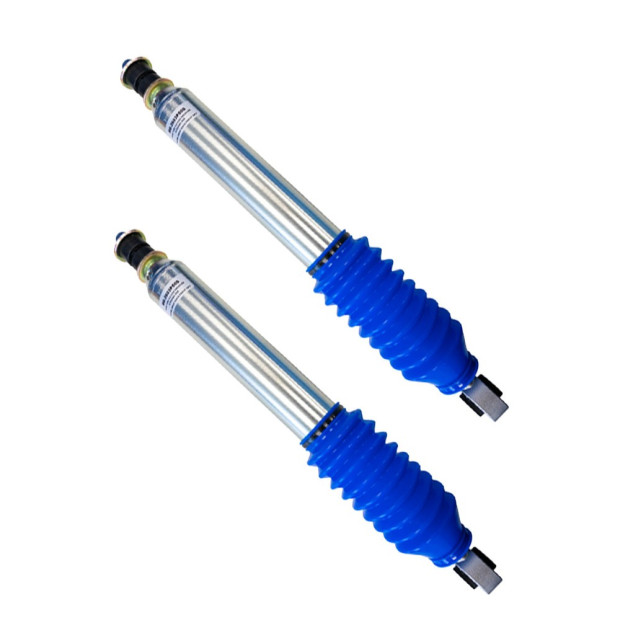

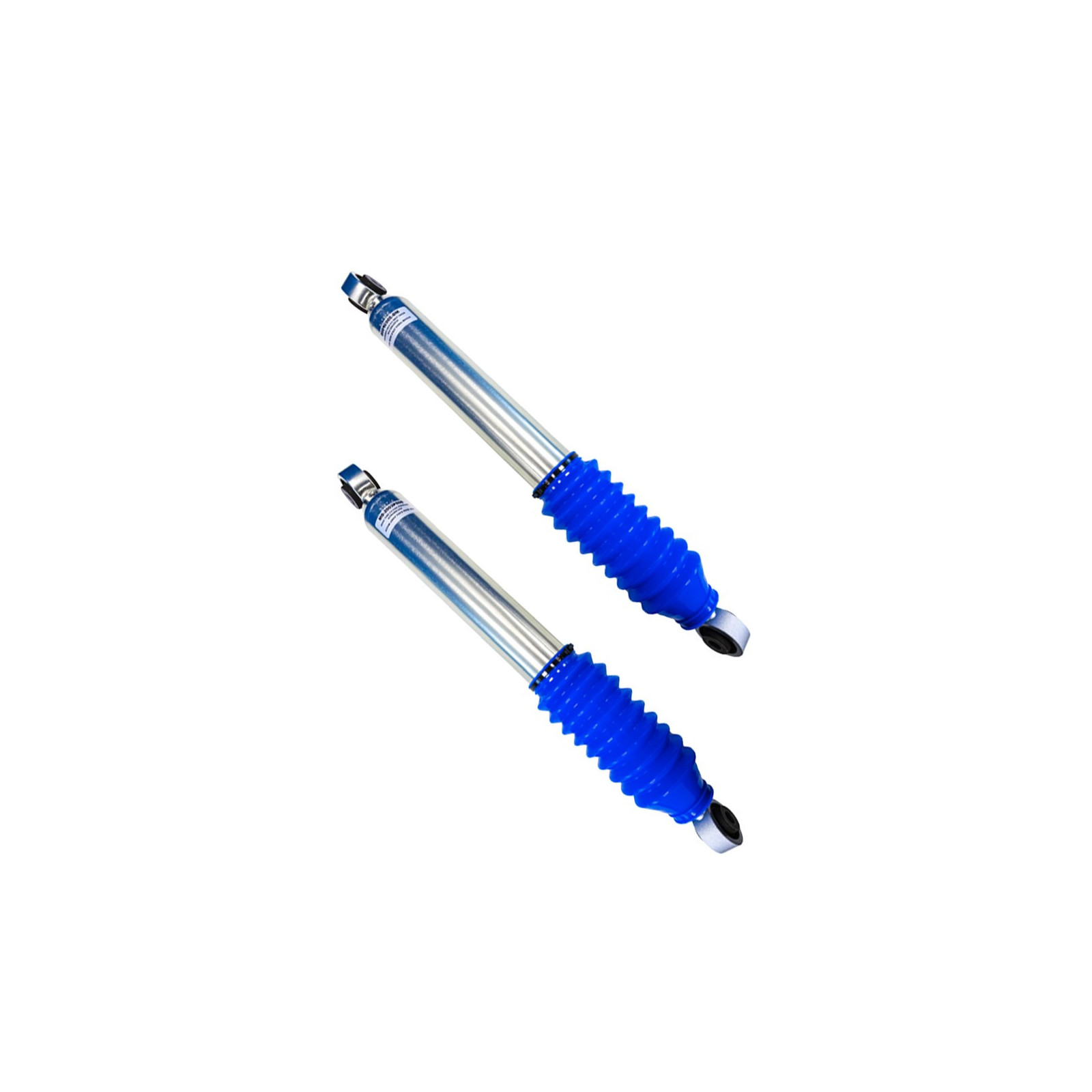

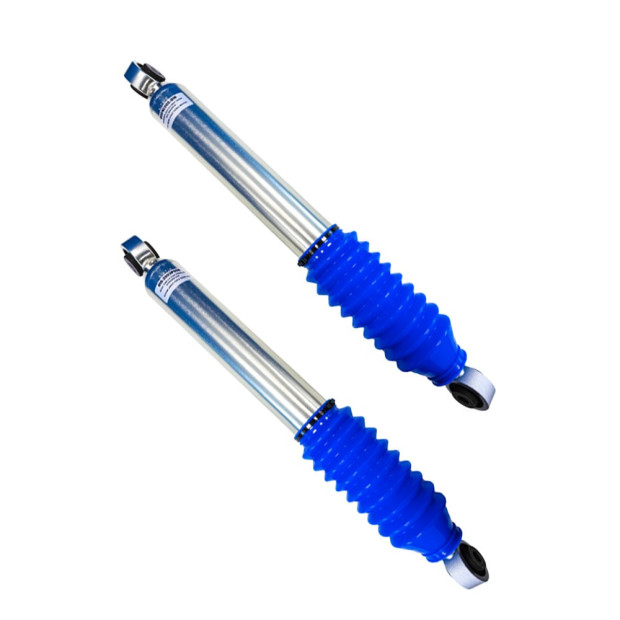

Shocks specs:

• 20 mm diameter polished chrome steel shaft
• Internal IFP piston separates shock oil from the high-pressure nitrogen
• Durable rubber bushes
• Welded pins and eyelets for a strong mounting point
• All 40 mm gas shocks come with a protective rubber boot

Front shocks mounts:

• Top mount: eyelet
• Bottom mount: eyelet

Front shocks dimensions:

• Open: 496 mm
• Closed: 336 mm
• Travel: 160 mm

Rear shocks mounts:

• Top mount: strut
• Bottom mount: eyelet

Rear shocks dimensions:

• Open: 448 mm
• Closed: 303 mm
• Travel: 145 mm

In the box:

• (2) Front coil spring
• (2) Front shock IFP 2.0
• (2) Rear coil spring
• (2) Rear shock IFP 2.0
• Extended rear brake lines
• Castor correction bushes
• Headlight adjustment brackets
• Crossmember drop kit
