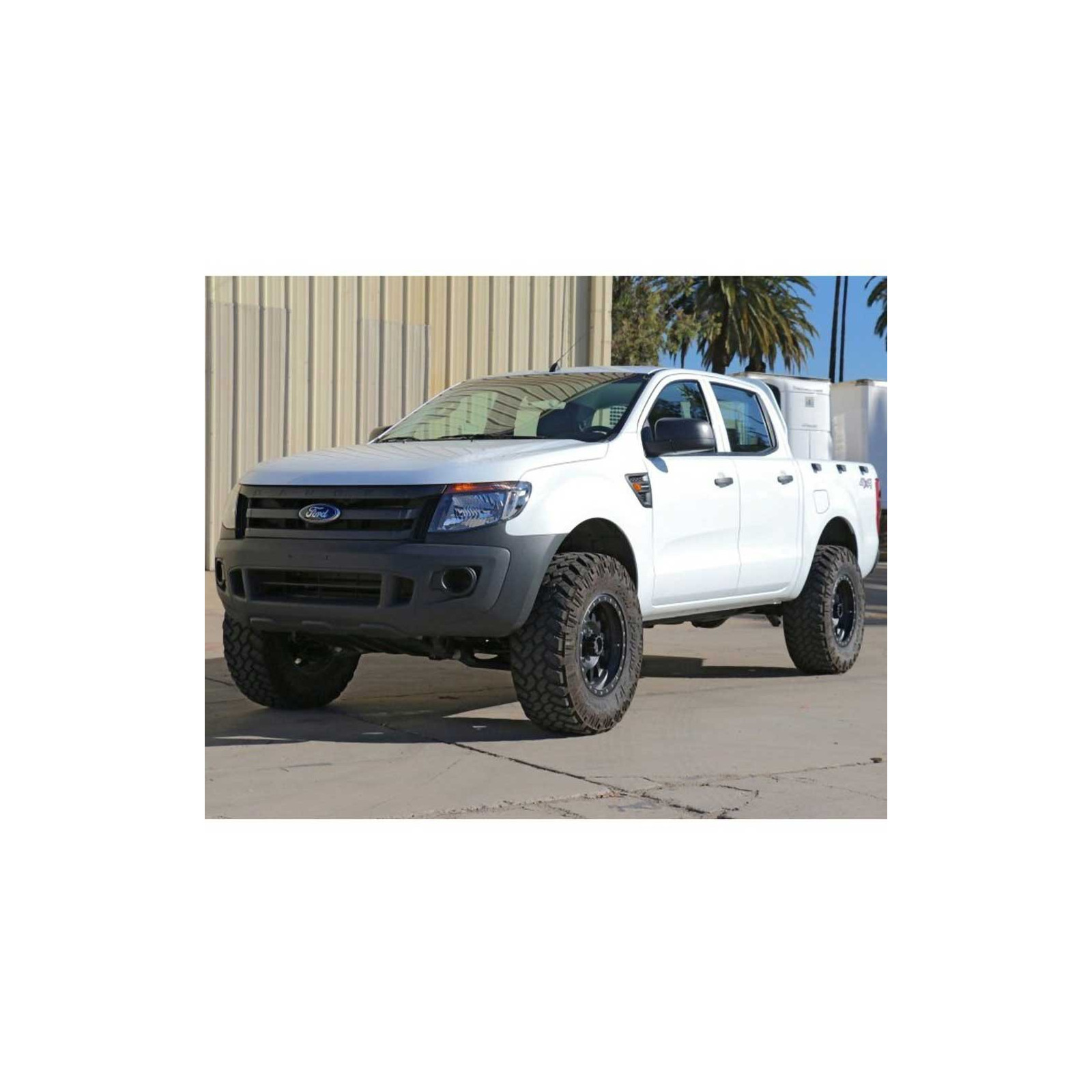

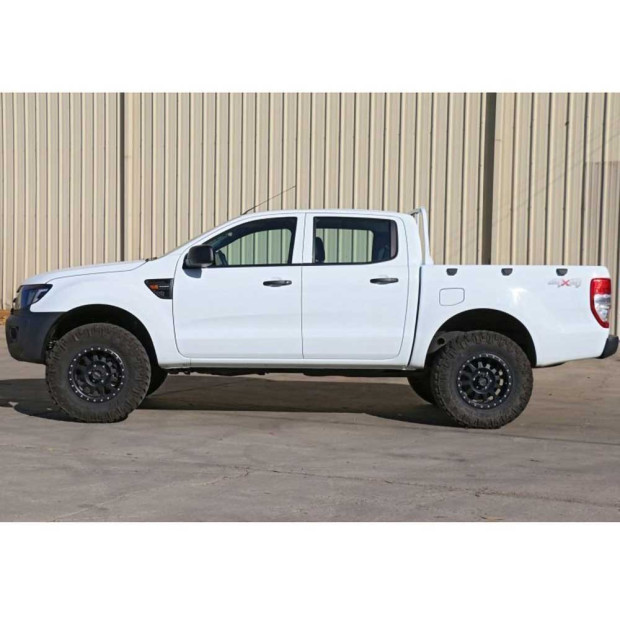

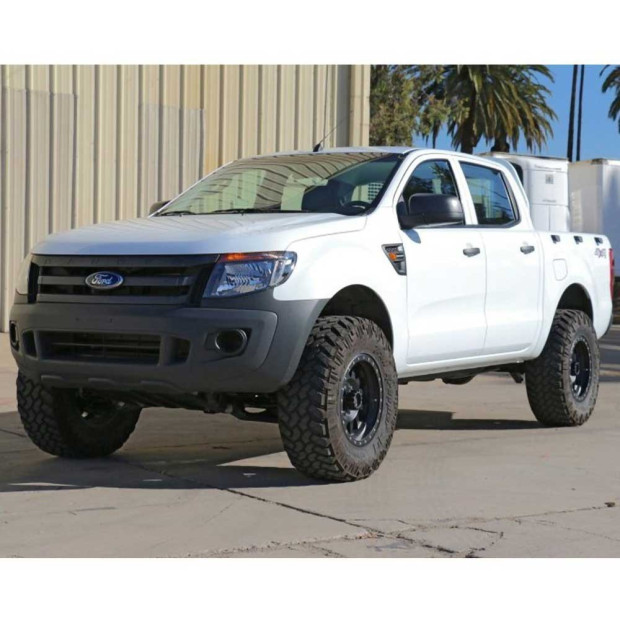

Kit suspension with shocks Fox +2"

• Provides increased ground clearance
• Gives an aggressive character

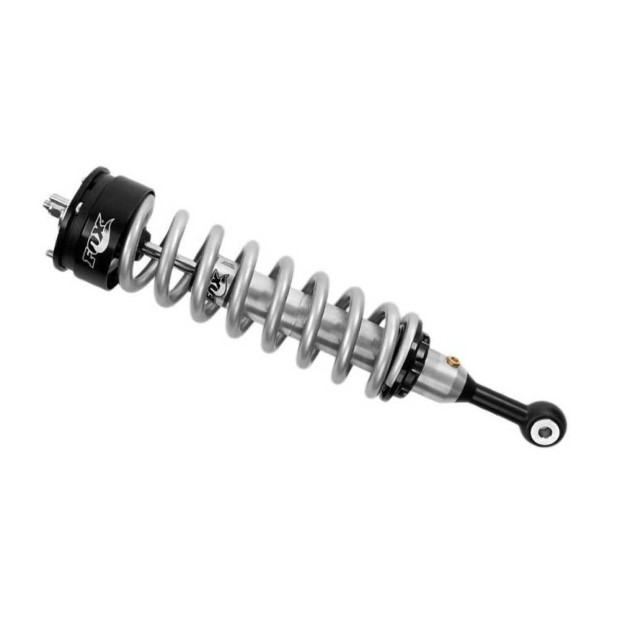

Front shock specs:

• Body: 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Reservoir: Internal IFP mono-tube reservoir design
• Body Plating: Clear-anodized for a durable finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: Large diameter, heavy-duty spherical

Front shock dimensions:

• Extended: 20.14"
• Compressed: 15.00"
• Travel: 5.14"

Front shock mounts:

• Top mount: oem
• Bottom mount: eyelet

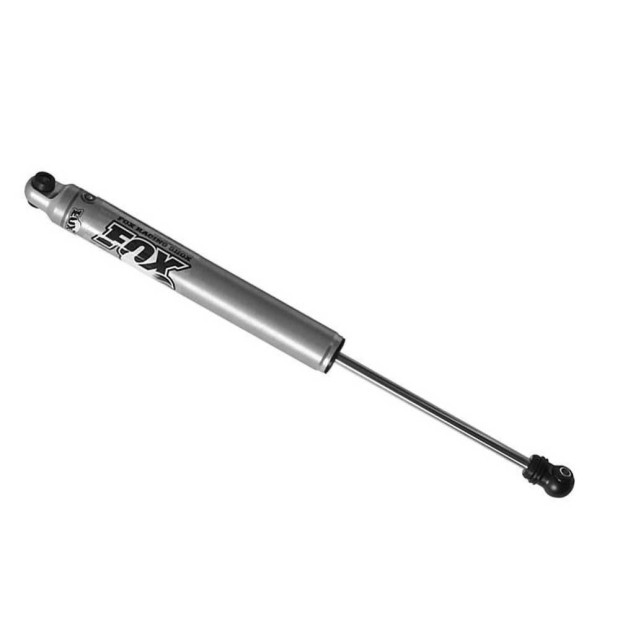

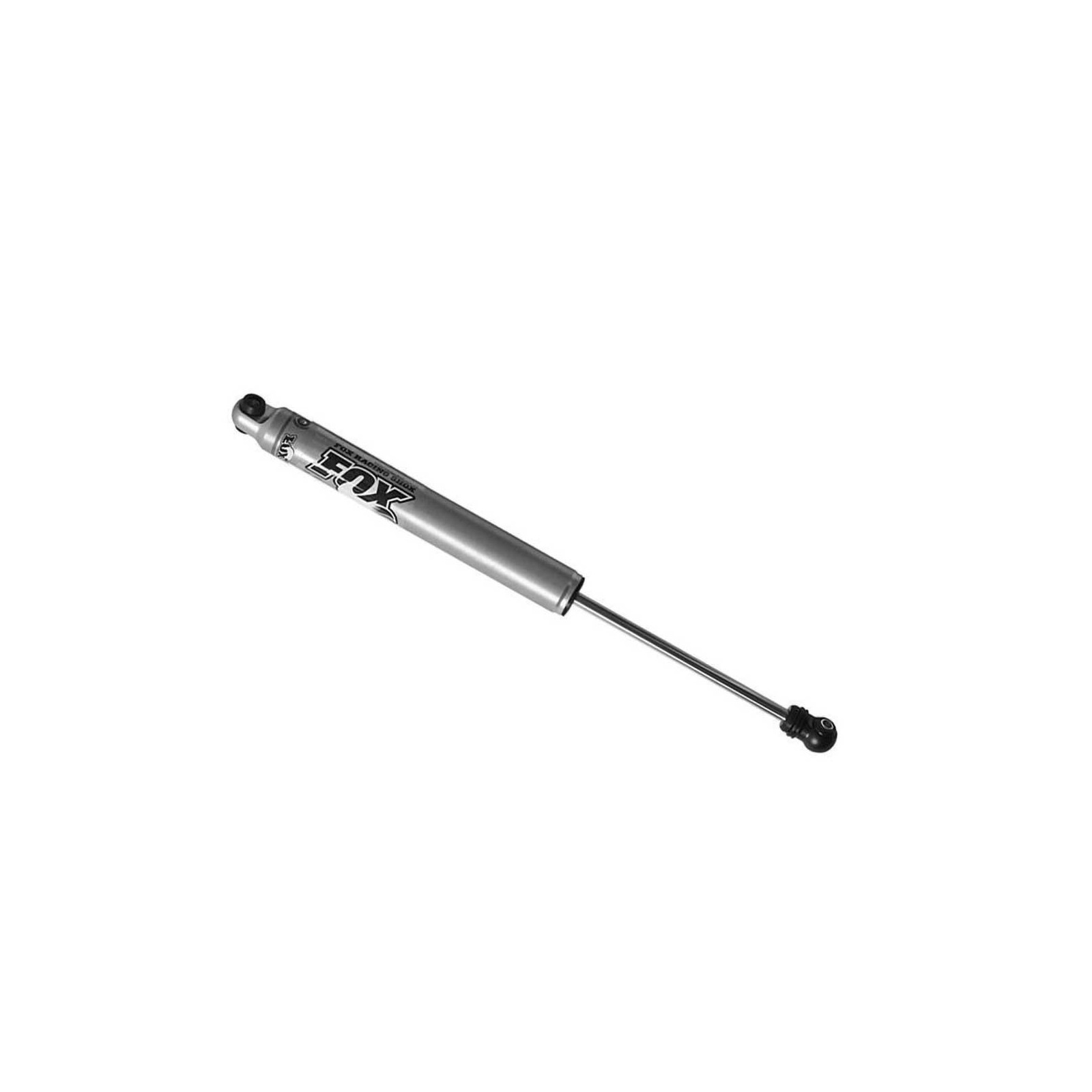

Rear shock specs:

• 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Clear-anodized for a durable finish
• Internal IFP mono-tube reservoir design
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• 5/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow piston design
• Application specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Quiet nitrile rubber allows for increased suspension articulation

Rear shock dimensions:

• Extended: 24.82"
• Compressed: 15.70"
• Travel: 9.12"

Rear shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

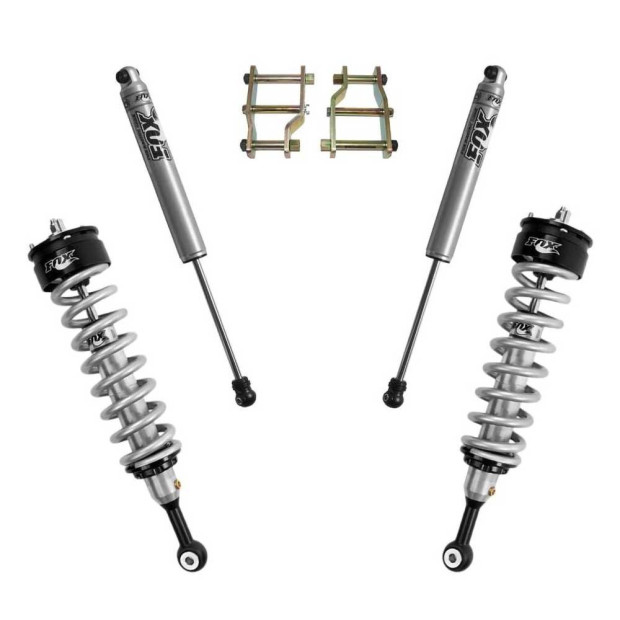

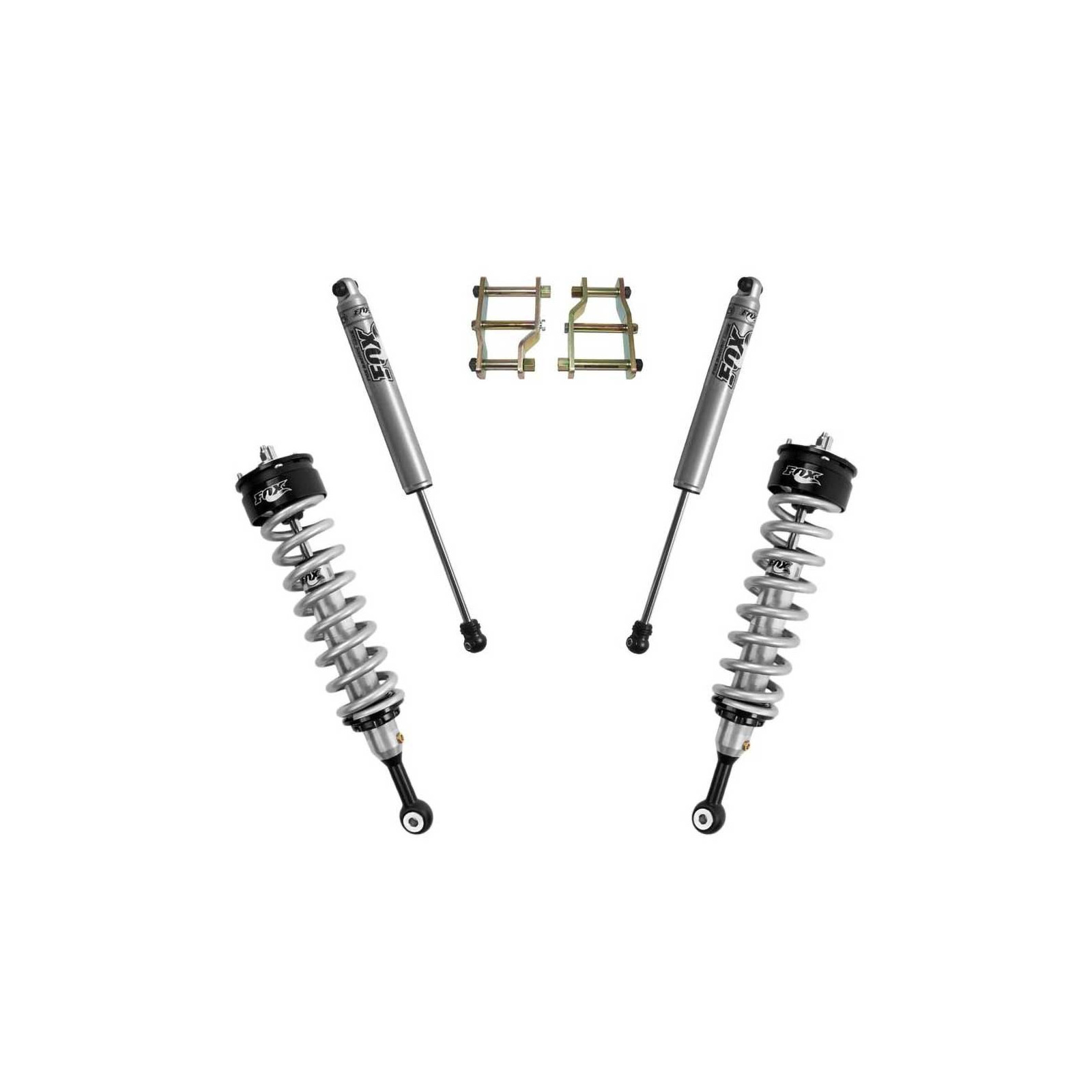

In the box:

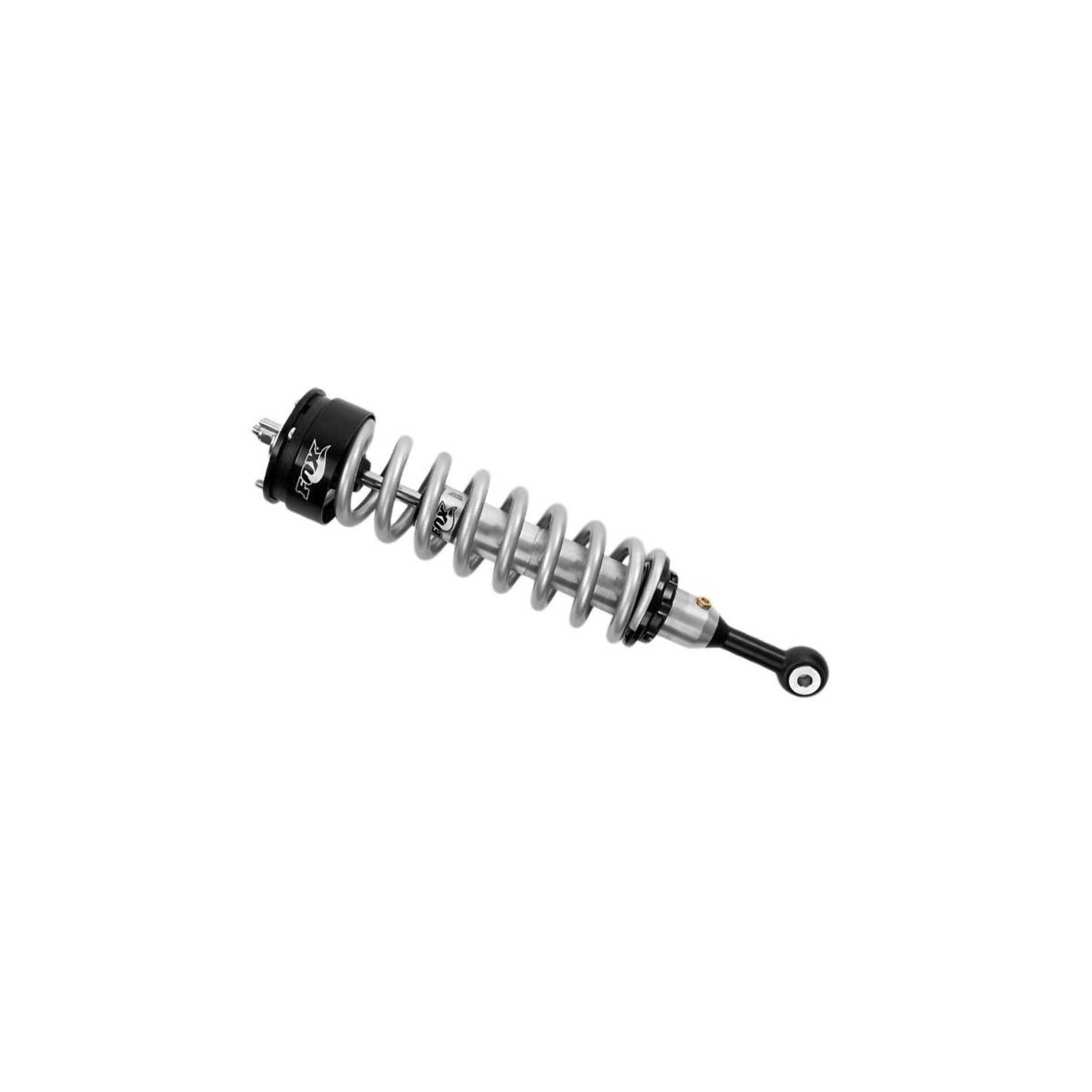

• (2) Front nitro Coilover Fox Performance 2.0 IFP
• (2) Rear nitro shock Fox Performance 2.0 IFP

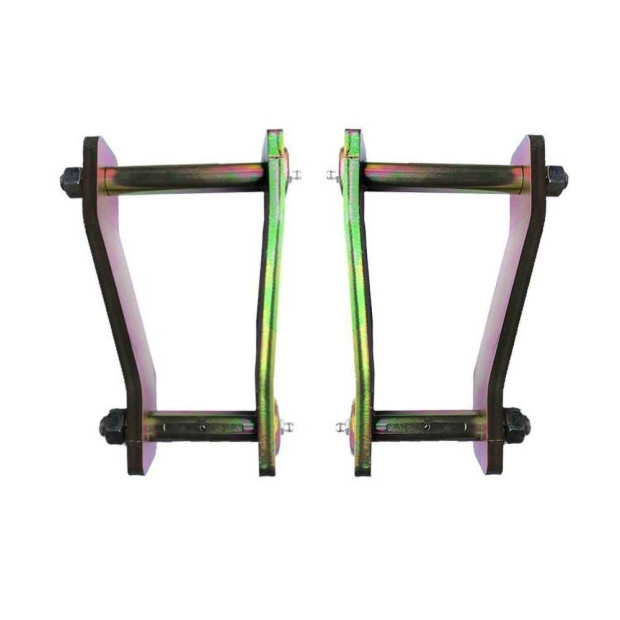

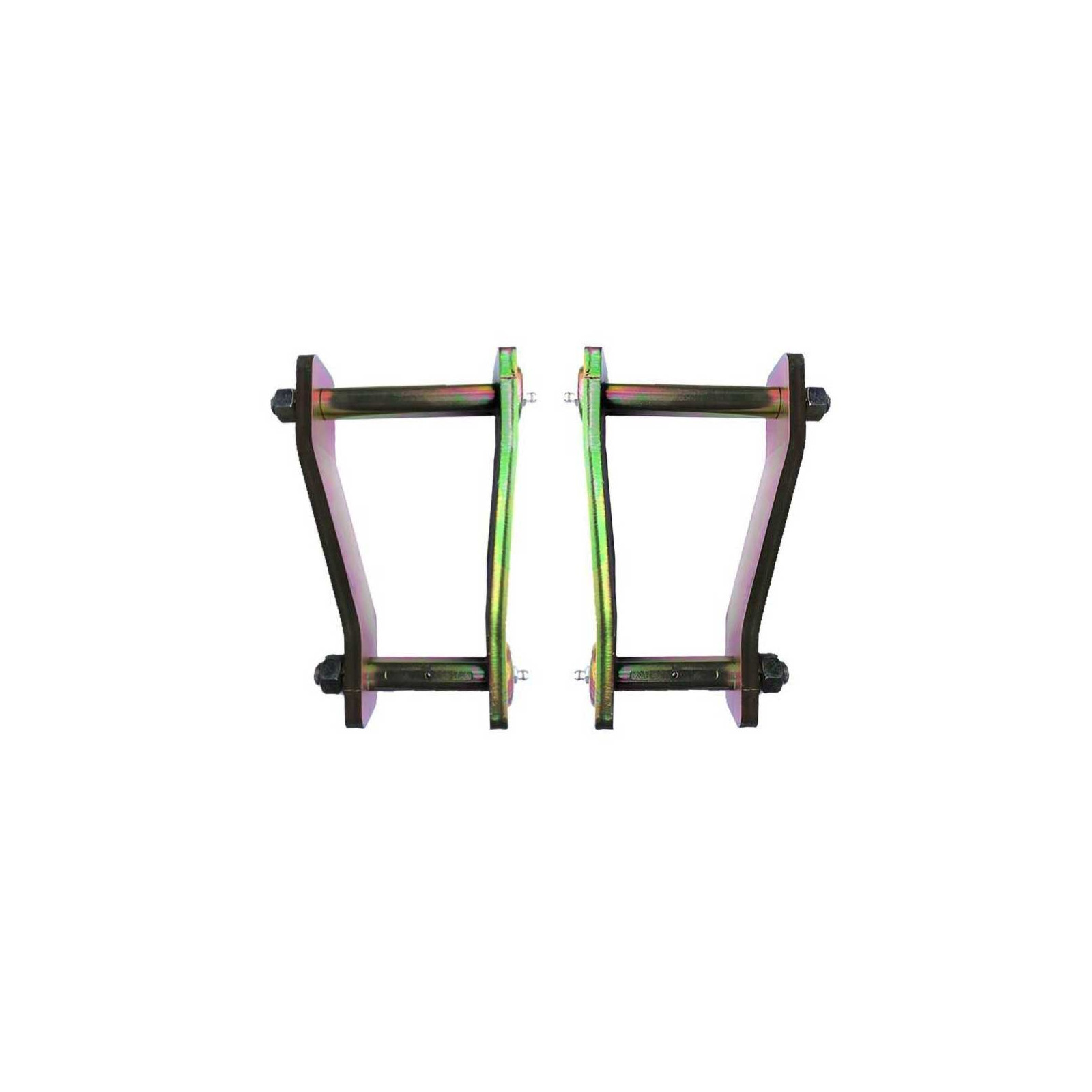

• (2) Extended shackles Superior Engineering

Notes:

• For 4WD models fits T6 models ONLY
• For RWD models fits T6 Hi-Rider models ONLY
