Kit suspension Clayton Off Road Overland+ 392 +3,5"

• Manufactured in the USA
• Extremely durable materials
• Provides smooth and excellent handling on asphalt
• Increases ground clearance, gives an aggressive look
• Easy installation

Control arms specs:

• Overland+ series
• Joint to isolate road noise & vibration
• Upper bent for tyre clearance

Coil spring specs:

• Extremely durable materials
• Powder coated black
• Provide the best in ride quality without sacrificing durability
• Handles well aftermarket bumpers and winches
• Ensures smooth and excellent on and off-road handling
• Designed to deliver trouble-free, consistent performance

Front lower control arm dimensions:

• Center to Center STOCK = 24.000"
• Center to Center MIN = 23.9375"
• Center to Center MAX = 24.880"

Front upper control arm dimensions:

• Center to Center STOCK = 20,1875"
• Center to Center MIN = 19,75"
• Center to Center MAX = 21,125

Rear lower control arm dimensions:

• Center to Center STOCK = 19,764"
• Center to Center MIN = 19,686"
• Center to Center MAX = 20,566"

Rear upper control arm dimensions:

• Center to Center STOCK = 17.425"
• Center to Center MIN = 17.290"
• Center to Center MAX = 18.665"

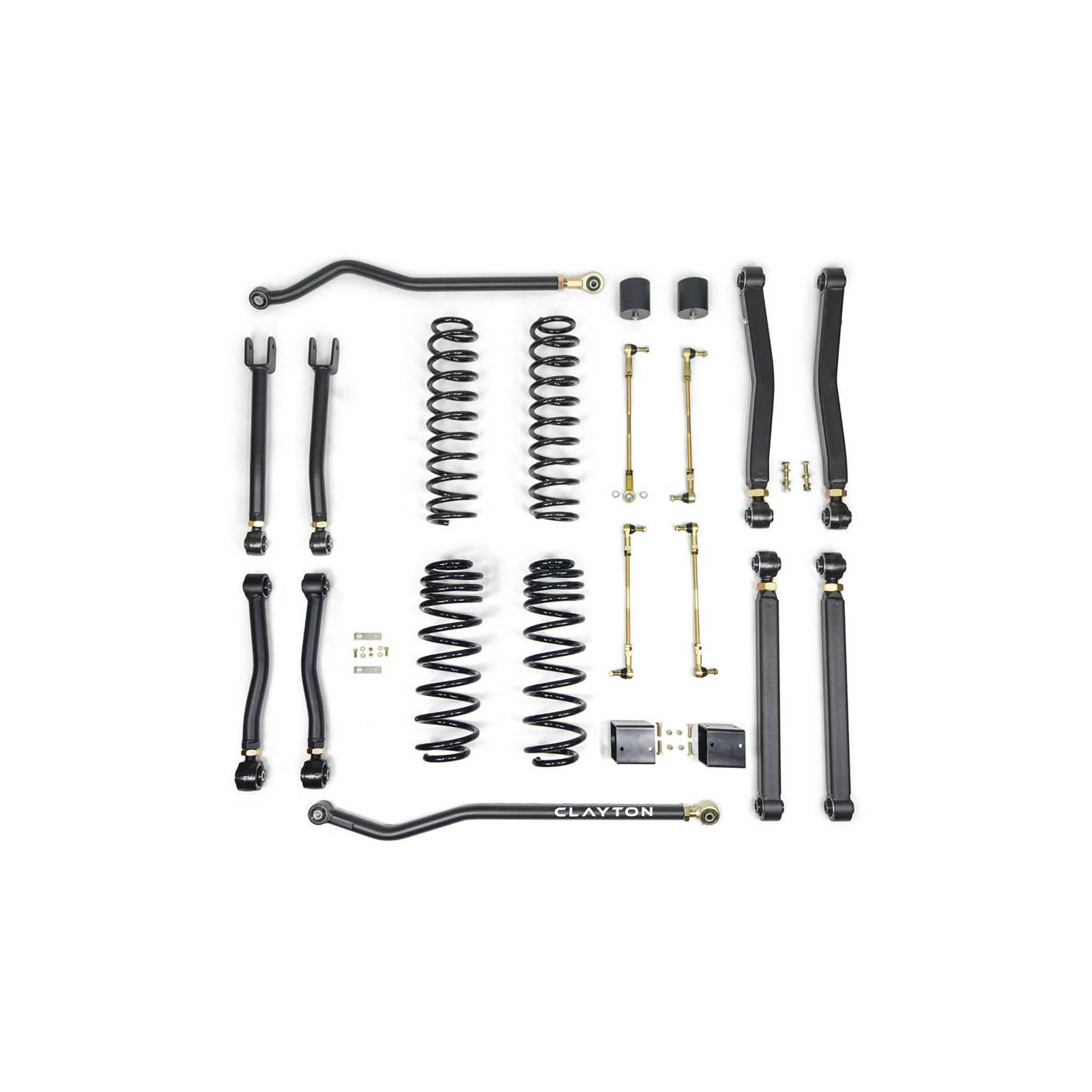

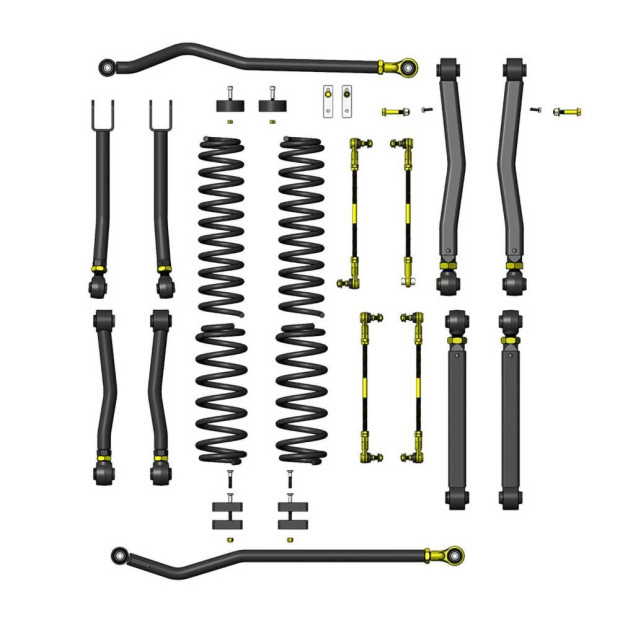

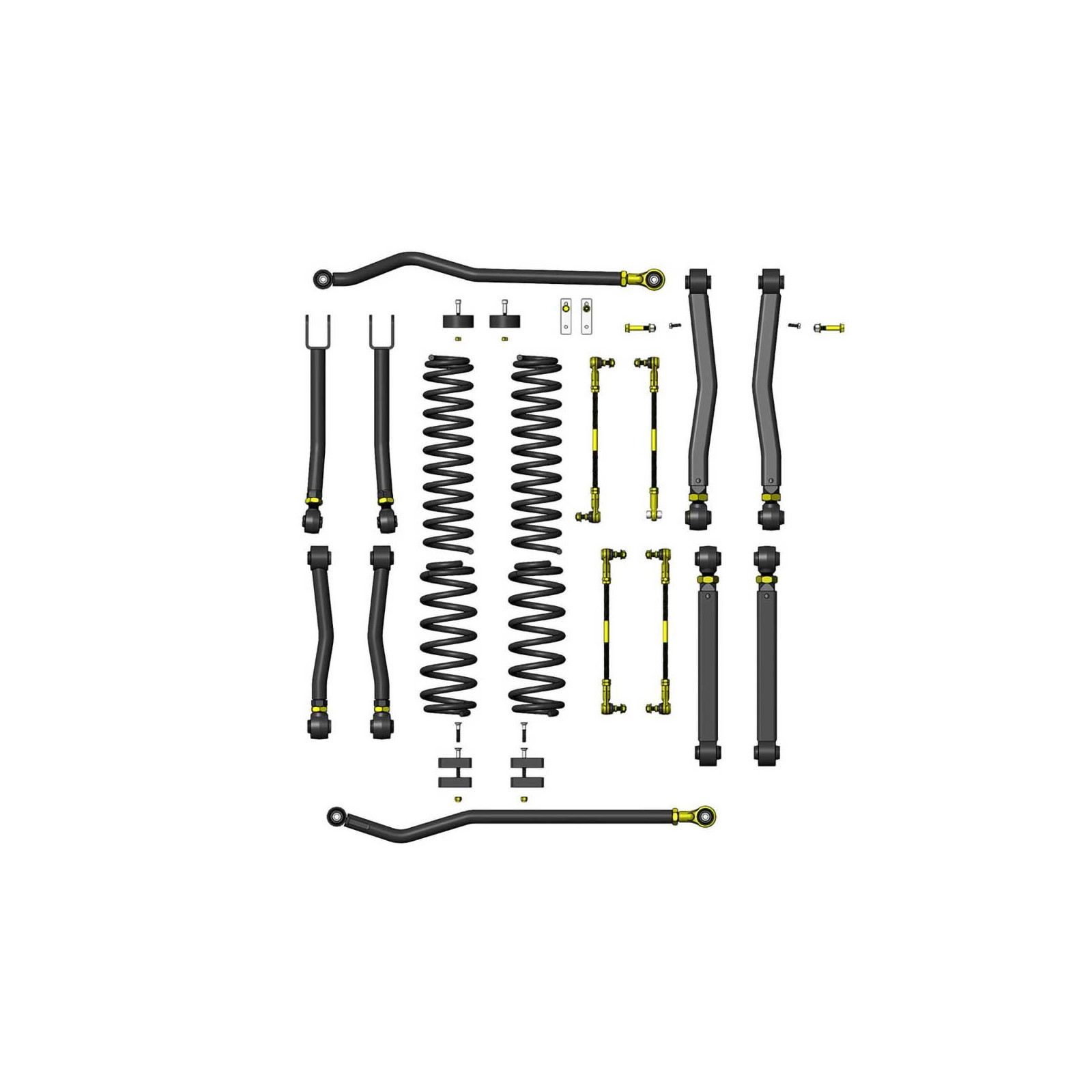

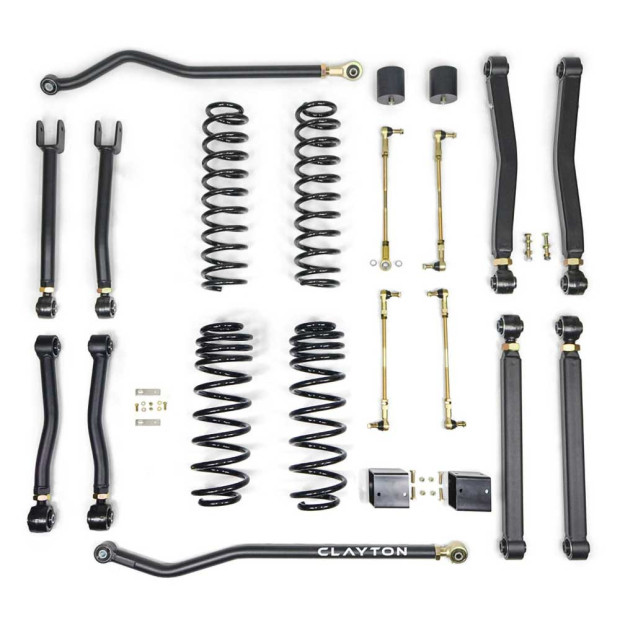

In the box:

• (2) Front upper adjustable control arm
• (2) Front lower adjustable control arm
• (2) Adjustable control arm upper rear
• (2) Adjustable control arm lower rear
• (2) Front spring
• (2) Rear dual rate spring
• (2) Adjustable sway front
• (2) Adjustable sway rear
• (2) Front bump stop
• (2) Rear bump stop
• (2) Front brake line bracket extension
• Adjustable Panhard rod front
• Adjustable Panhard rod rear

Notes:

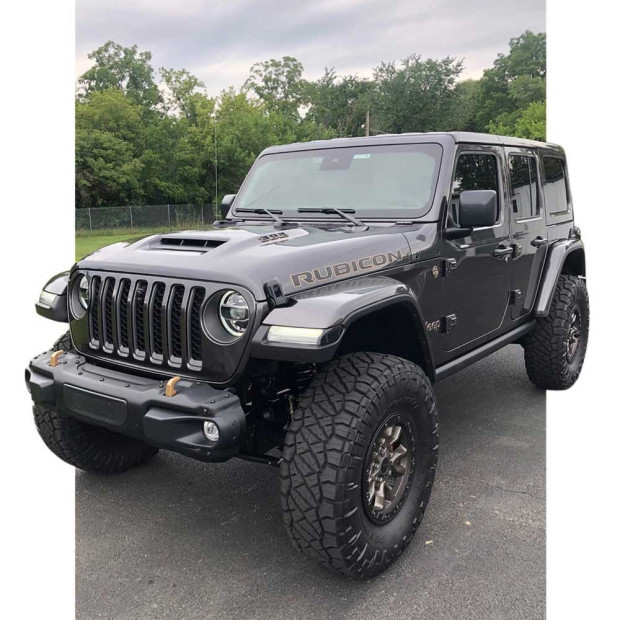

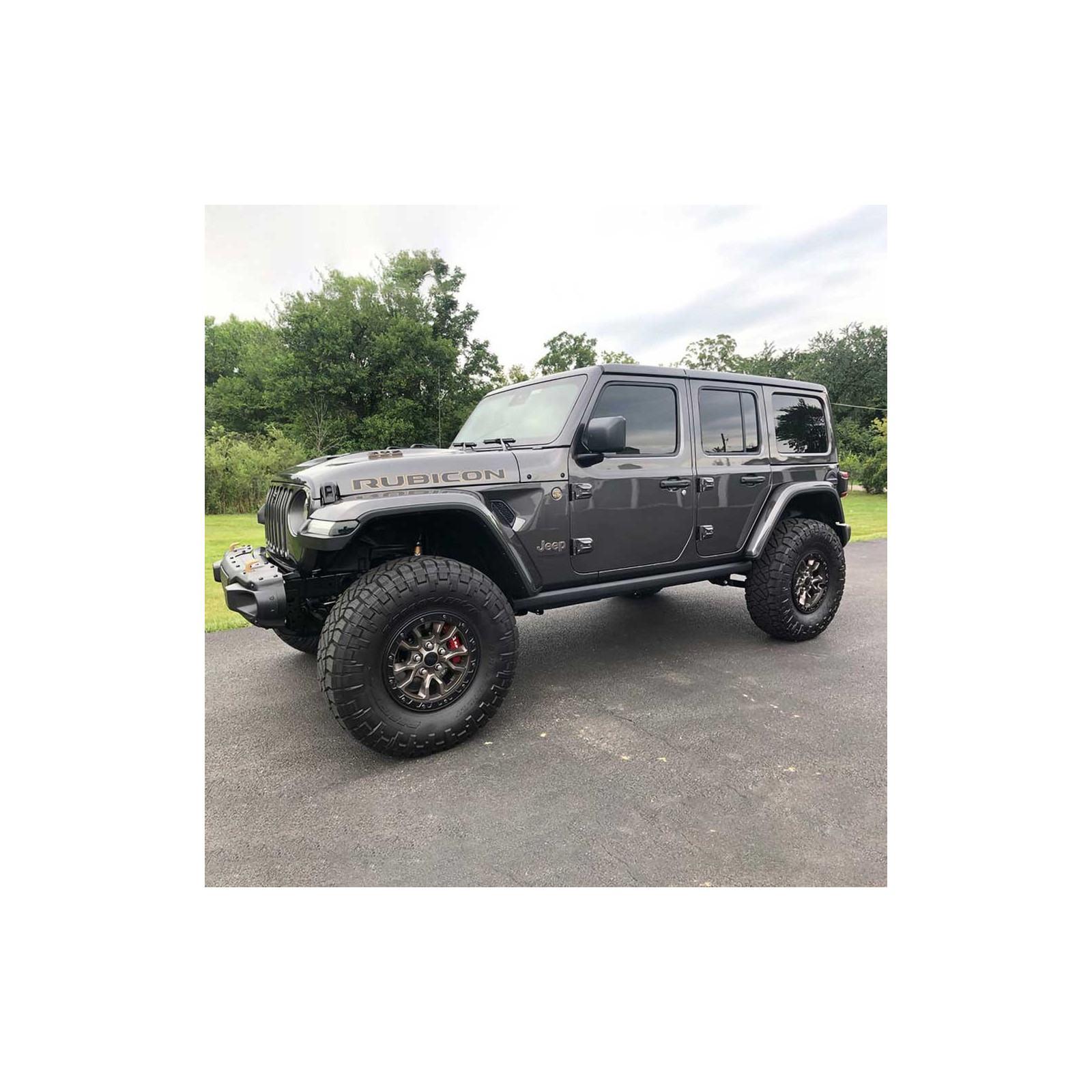

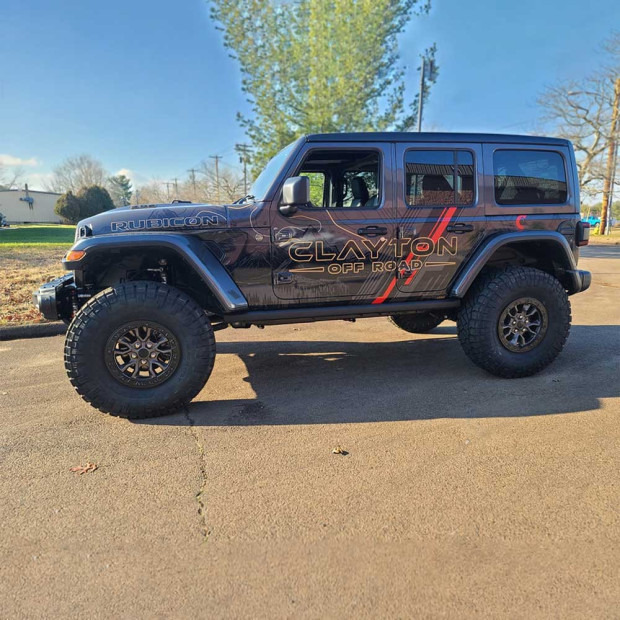

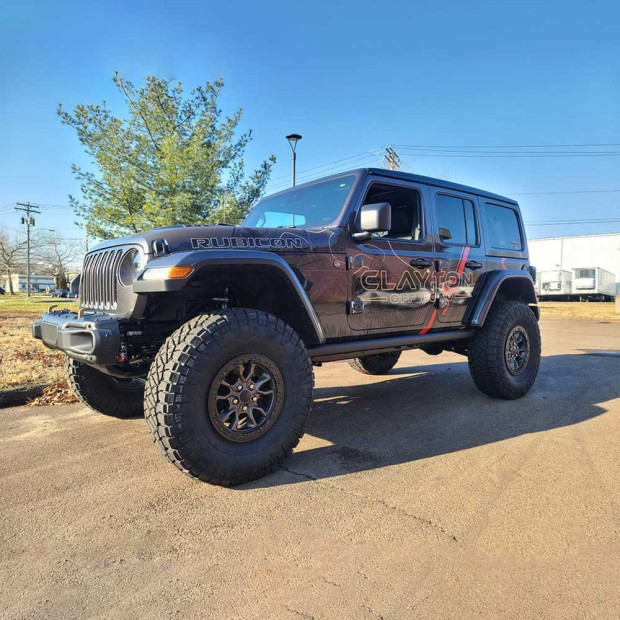

• Fits with Jeep Wrangler JL 392 models ONLY
• The Jeep Wrangler JL 392 has a OEM 2" lift. The kit adds an additional 2"
• 4.75 backspacing recommended
