Kit suspension Clayton Off Road Premium 392 +3,5"

• Extremely durable materials
• Provides smooth and excellent handling on the road
• Increases ground clearance, gives an aggressive look
• Easy to install

Control arms specs:

• Bolt in design
• Johnny joints to provide superior flex
• Joint to isolate road noise & vibration
• Upper bent for tyre clearance

Rear progressive coil spring specs:

• Made in the USA
• Powder coated black
• Handles well aftermarket bumpers and winches
• Ensures smooth and excellent on and off-road handling
• Designed to deliver trouble-free, consistent performance

Coil spring specs:

• Extremely durable materials
• Powder coated black
• Provide the best in ride quality without sacrificing durability
• Handles well aftermarket bumpers and winches
• Ensures smooth and excellent on and off-road handling
• Designed to deliver trouble-free, consistent performance

Front lower control arm dimensions:

• Center to Center STOCK = 24.000"
• Center to Center MIN = 23.9375"
• Center to Center MAX = 24.880"

Front upper control arm dimensions:

• Center to Center STOCK = 20,100"
• Center to Center MIN = 19,130"
• Center to Center MAX = 22,283

Rear lower control arm dimensions:

• Center to Center STOCK = 19,764"
• Center to Center MIN = 19,686"
• Center to Center MAX = 20,566"

Rear upper control arm dimensions:

• Center to Center STOCK = 17.425"
• Center to Center MIN = 17.290"
• Center to Center MAX = 18.665"

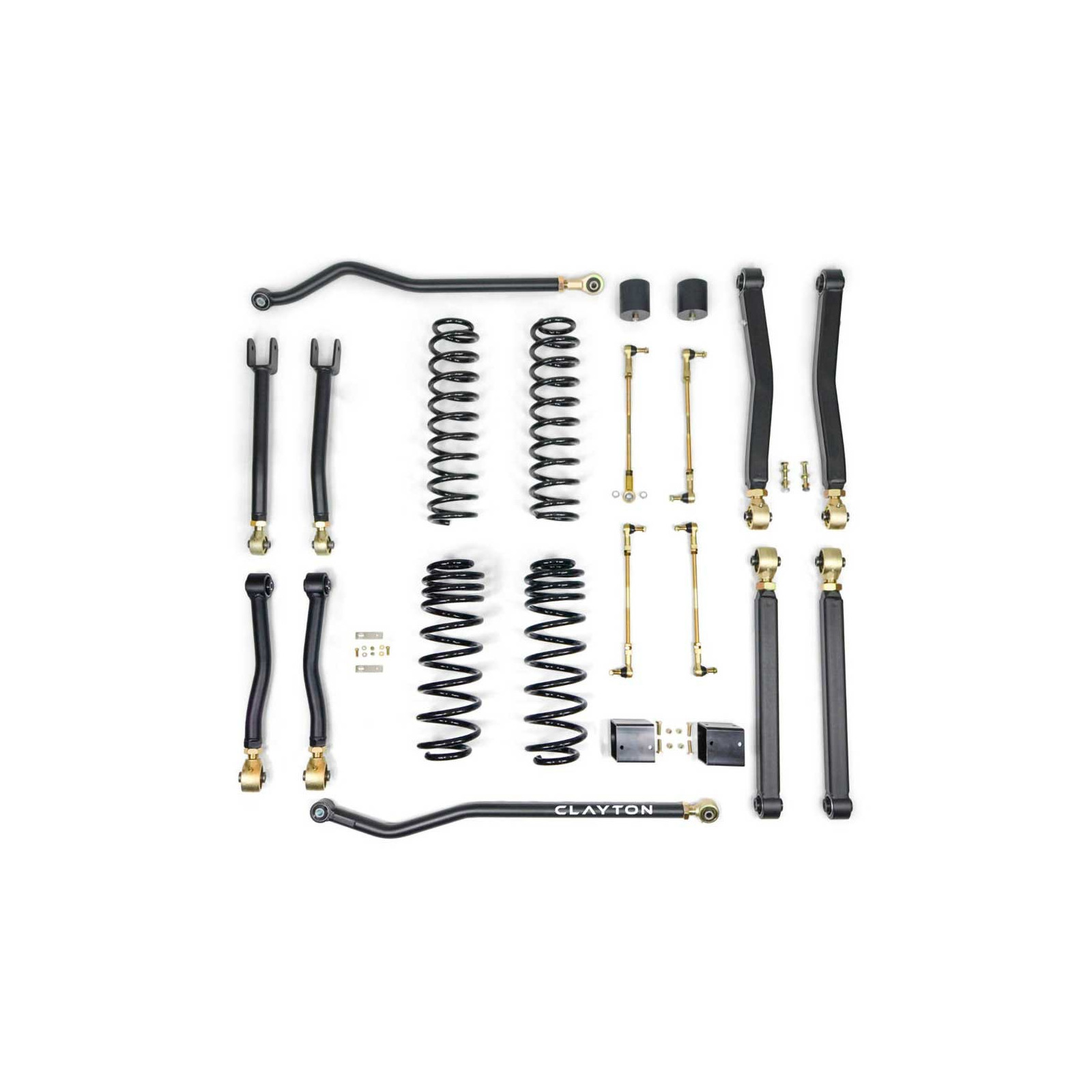

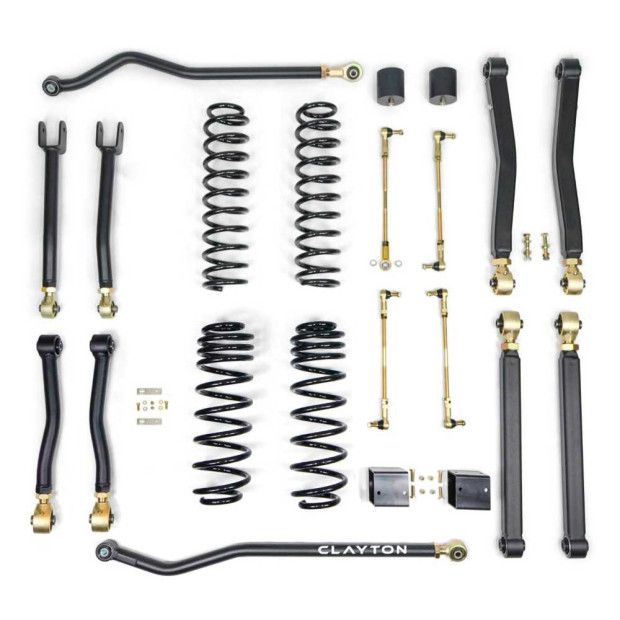

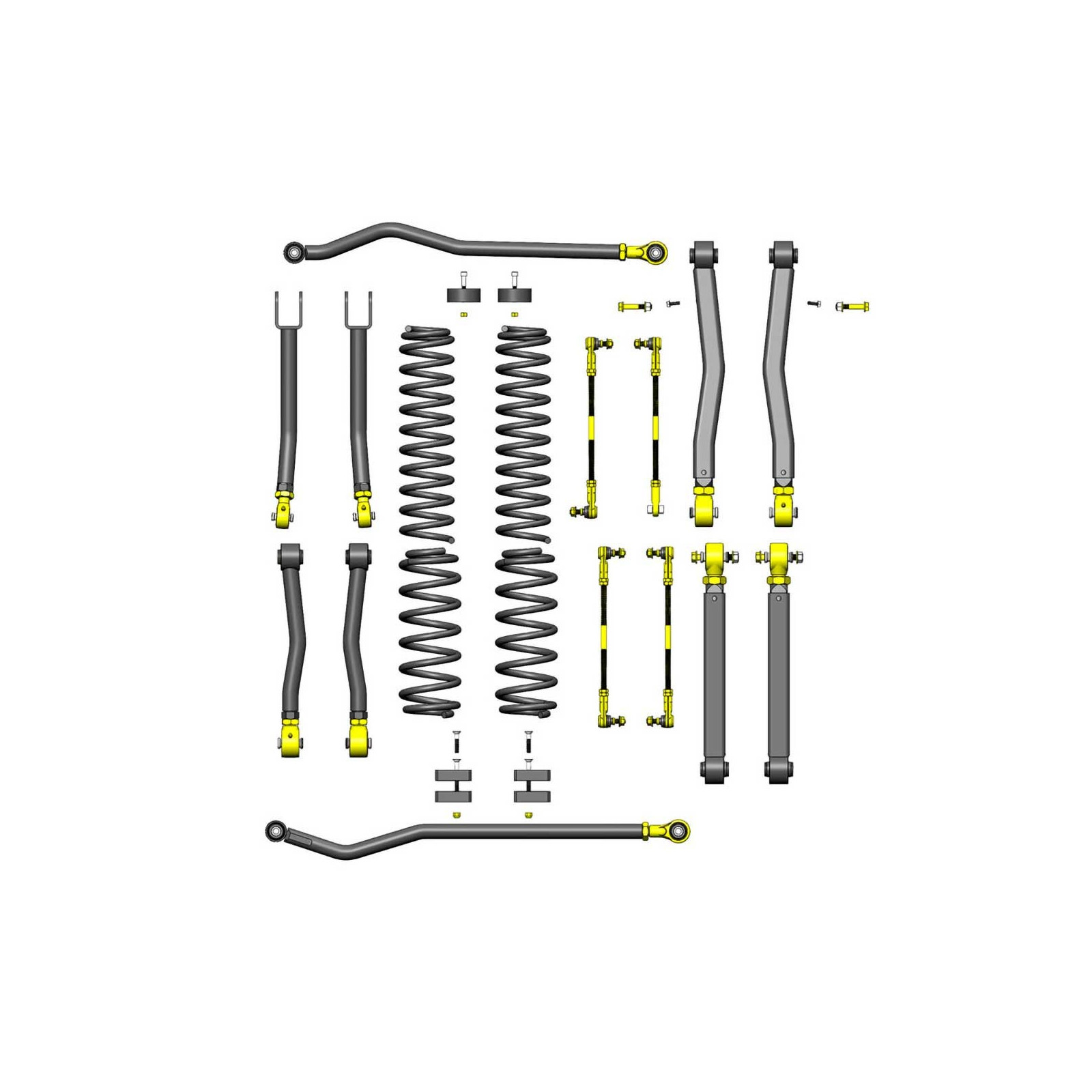

In the box:

• (2) Front coil spring
• (2) Front upper adjustable short arm Premium
• (2) Front lower adjustable short arm Premium
• Front adjustable track bar
• (2) Front adjustable sway bar end link
• (2) Front bump stop
• Front brake line bracket extension
• (2) Rear progressive coil spring
• (2) Rear upper adjustable short arm Premium
• (2) Rear lower adjustable short arm Premium
• Rear adjustable track bar
• (2) Rear adjustable sway bar end link
• (2) Rear bump stop

Notes:

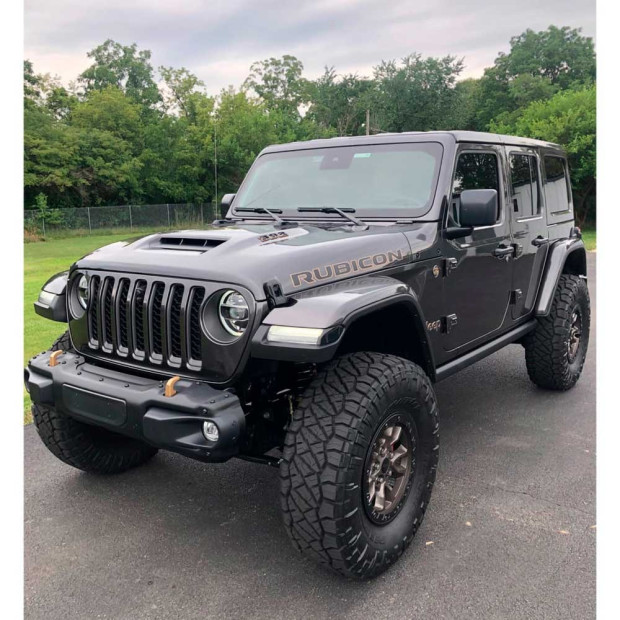

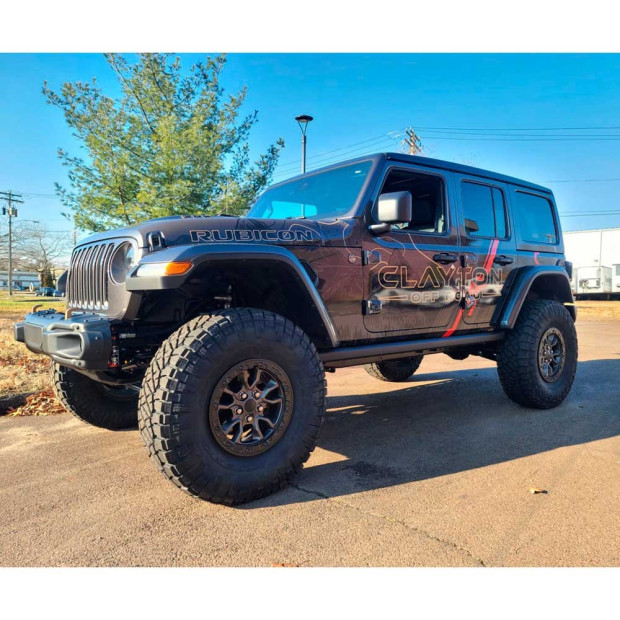

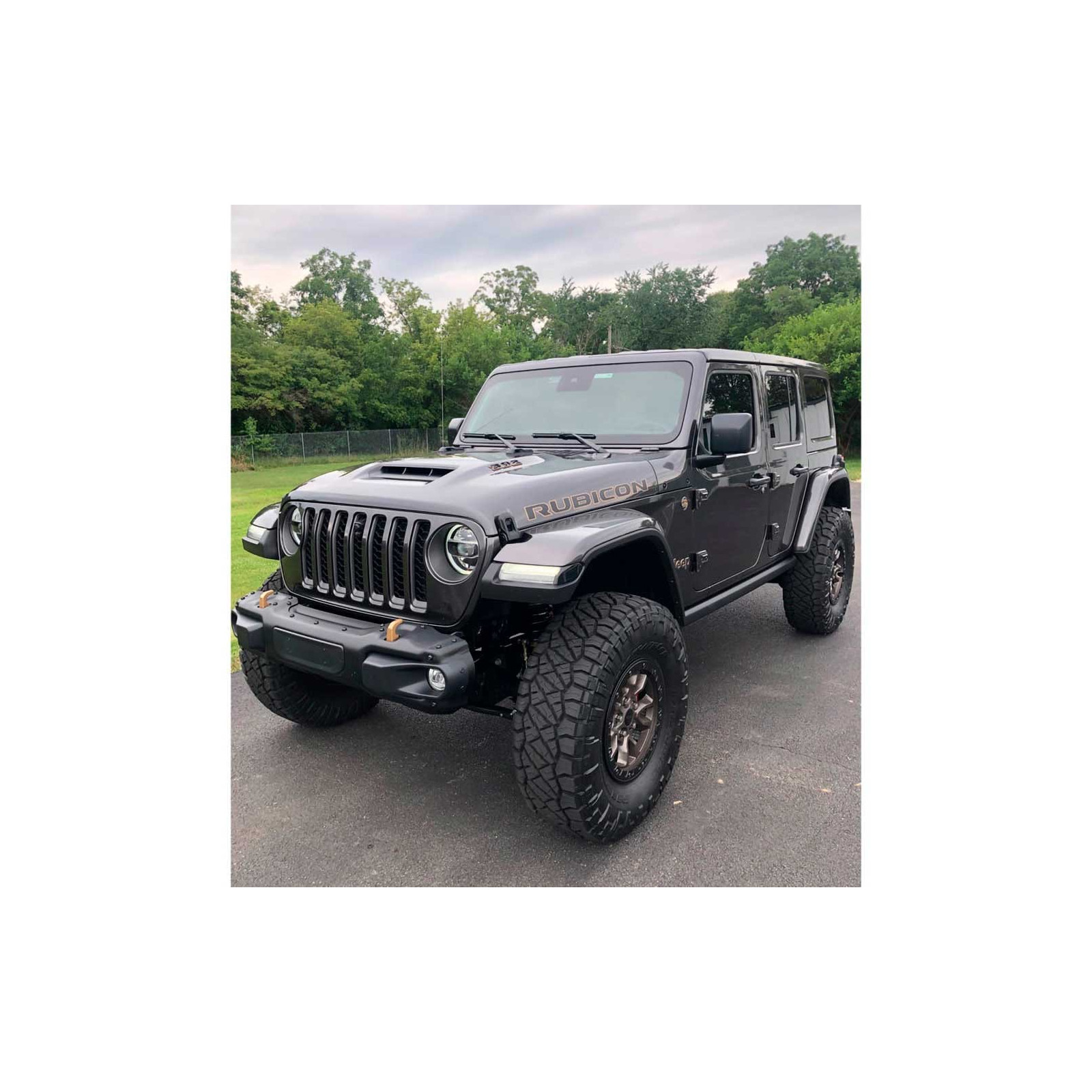

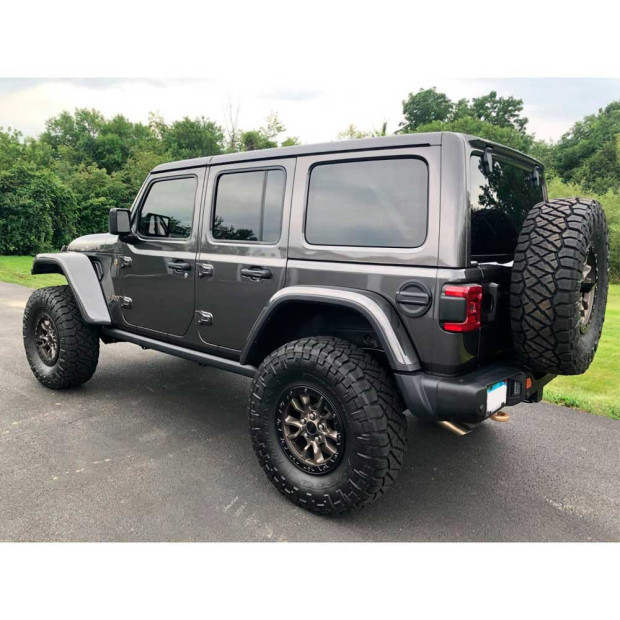

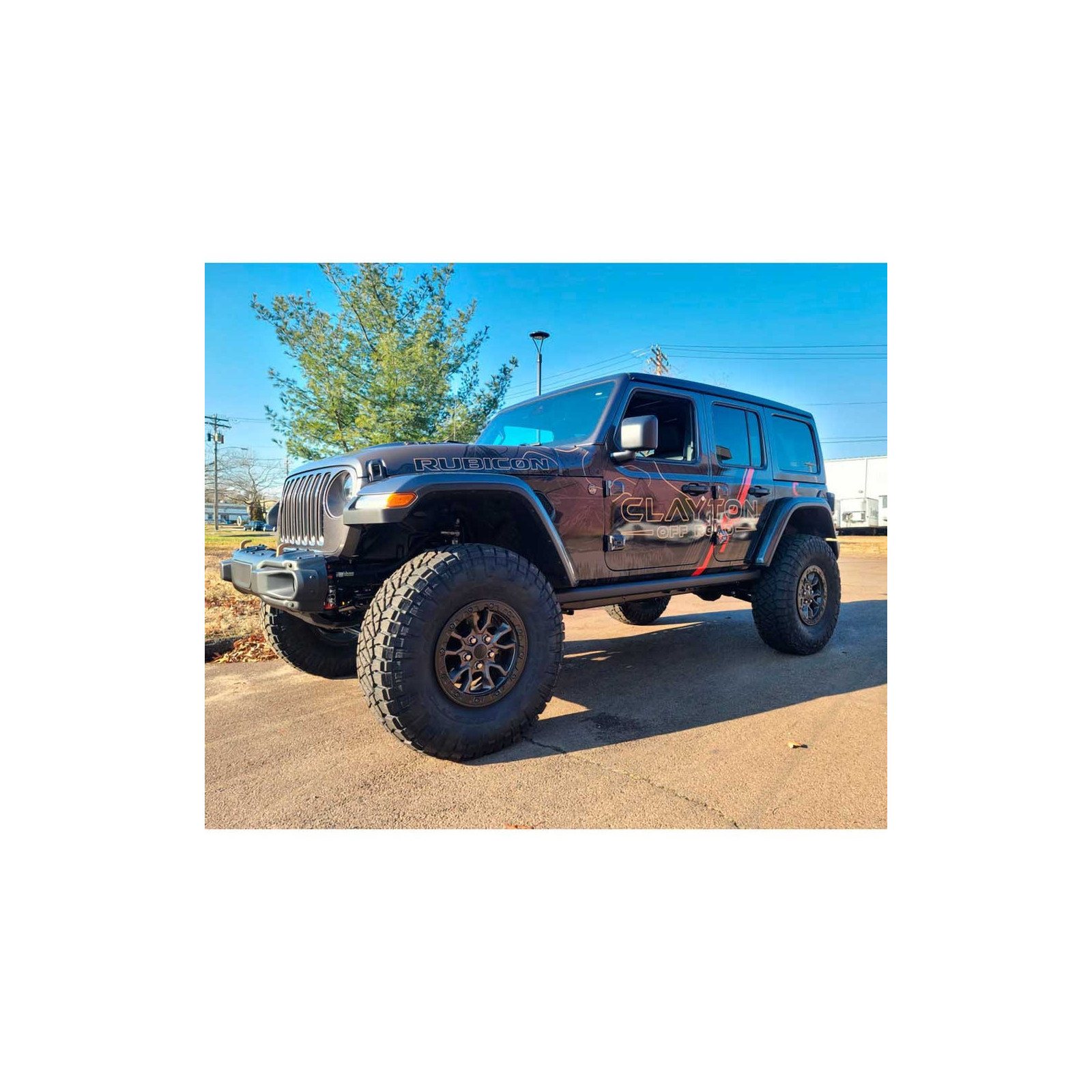

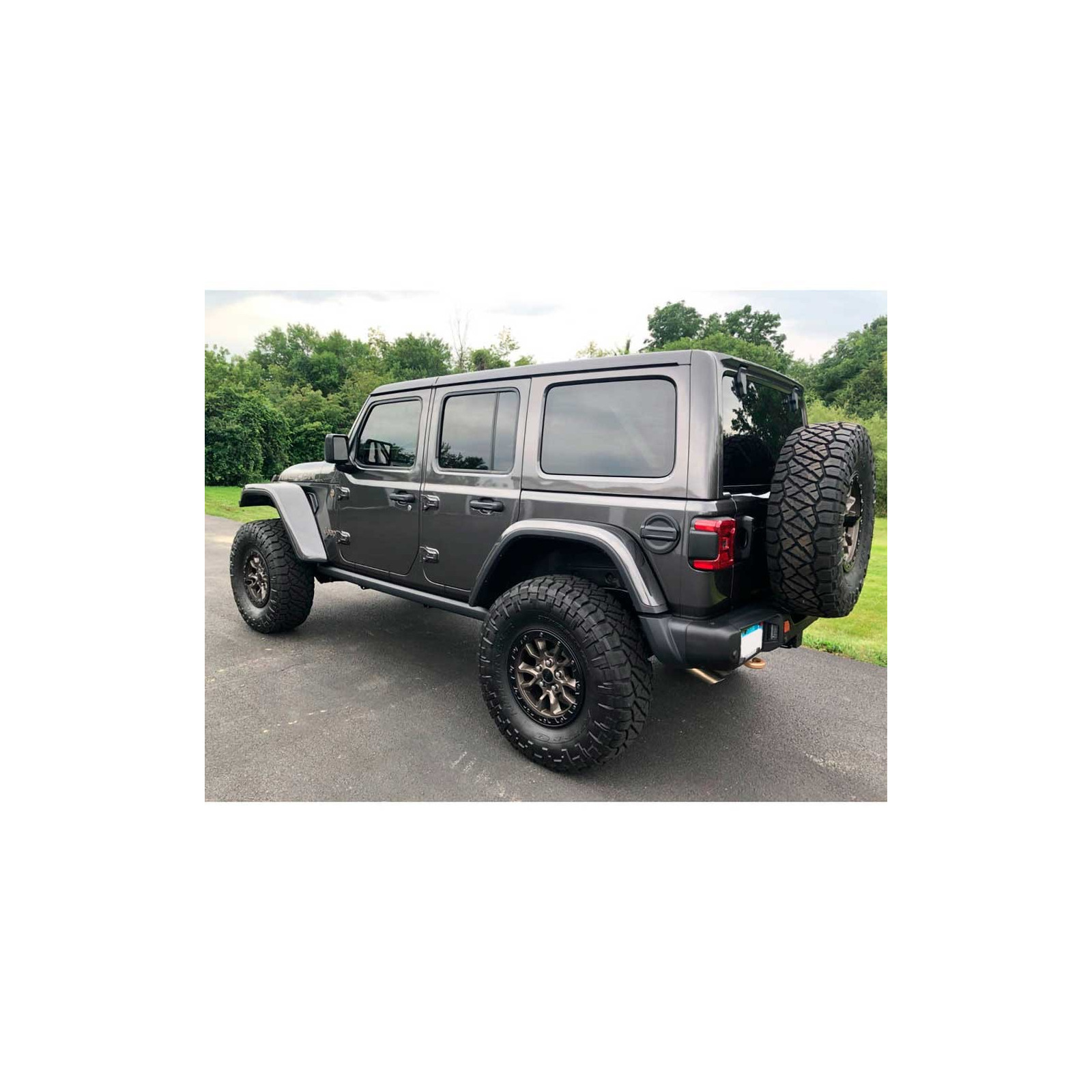

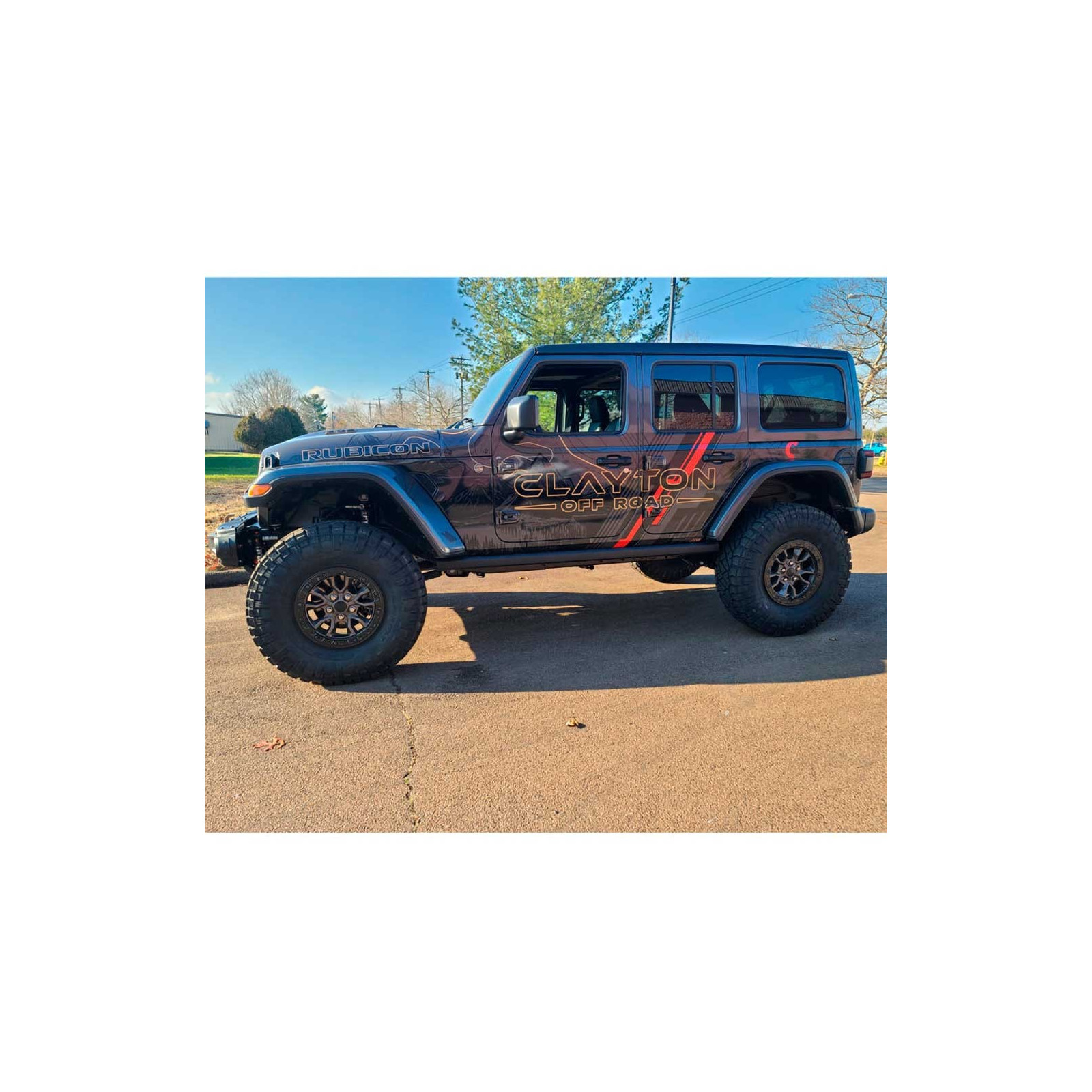

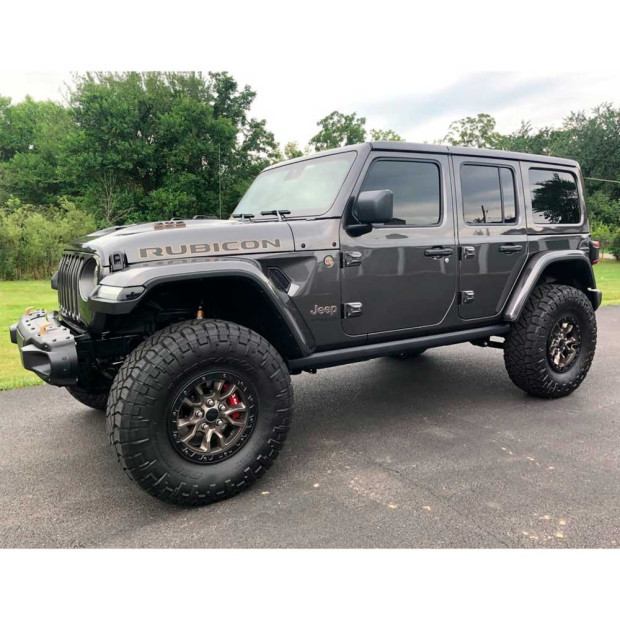

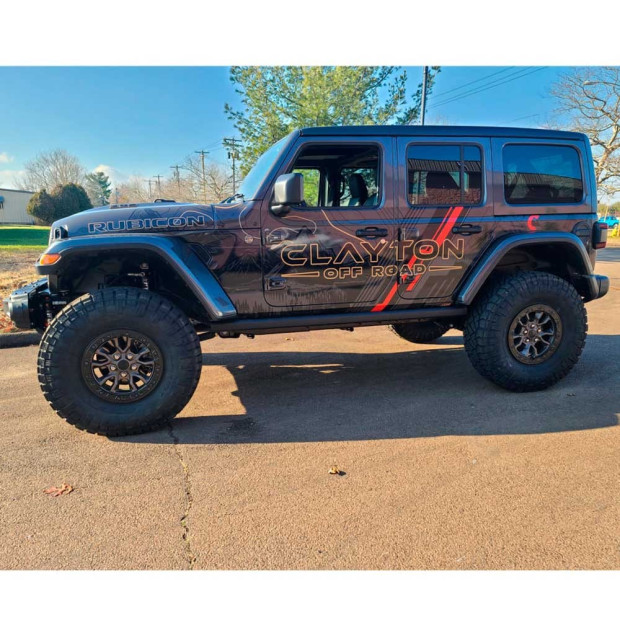

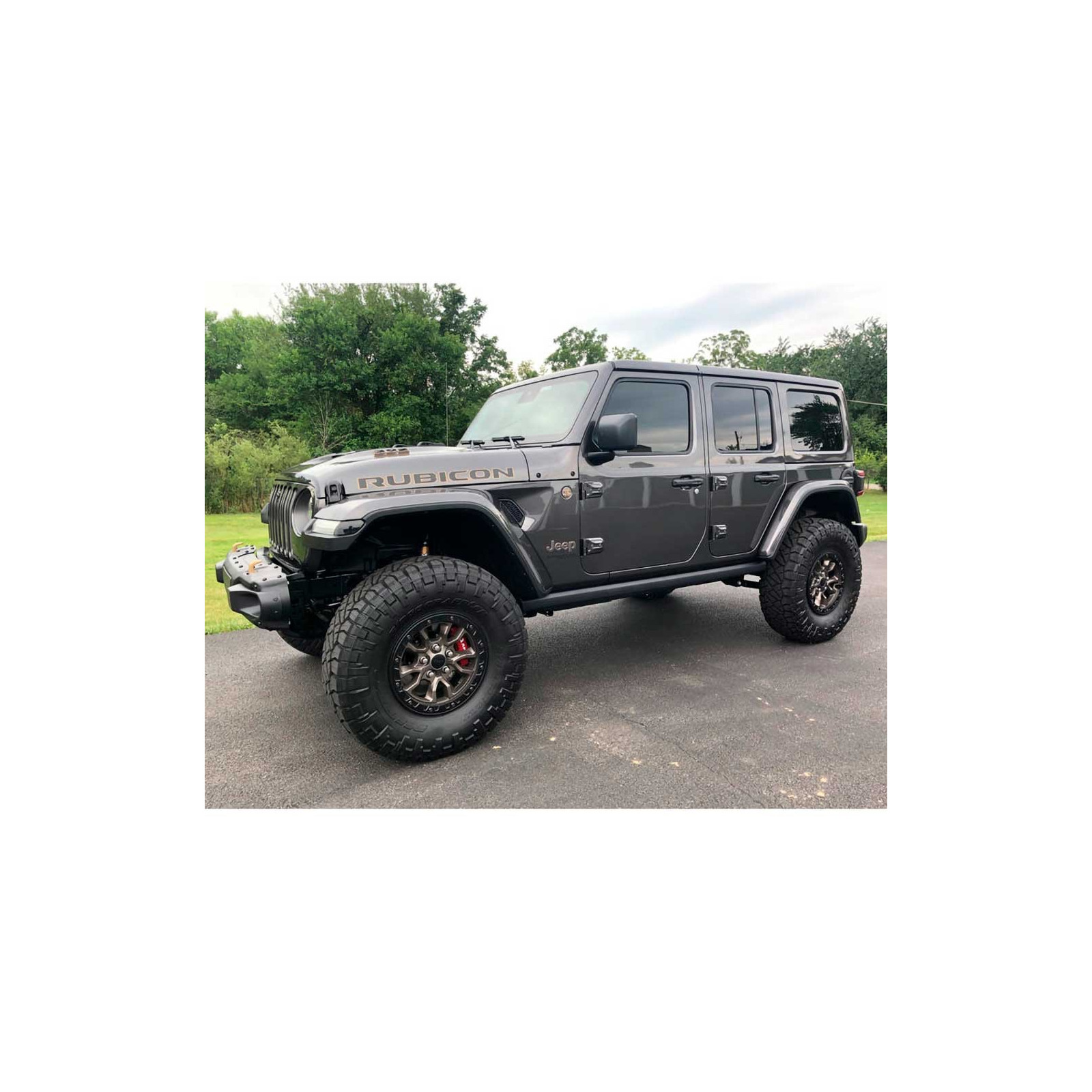

• Fits with Jeep Wrangler JL 392 models ONLY
• The Jeep Wrangler JL 392 has a OEM 2" lift. This kit gives an additional 2".
