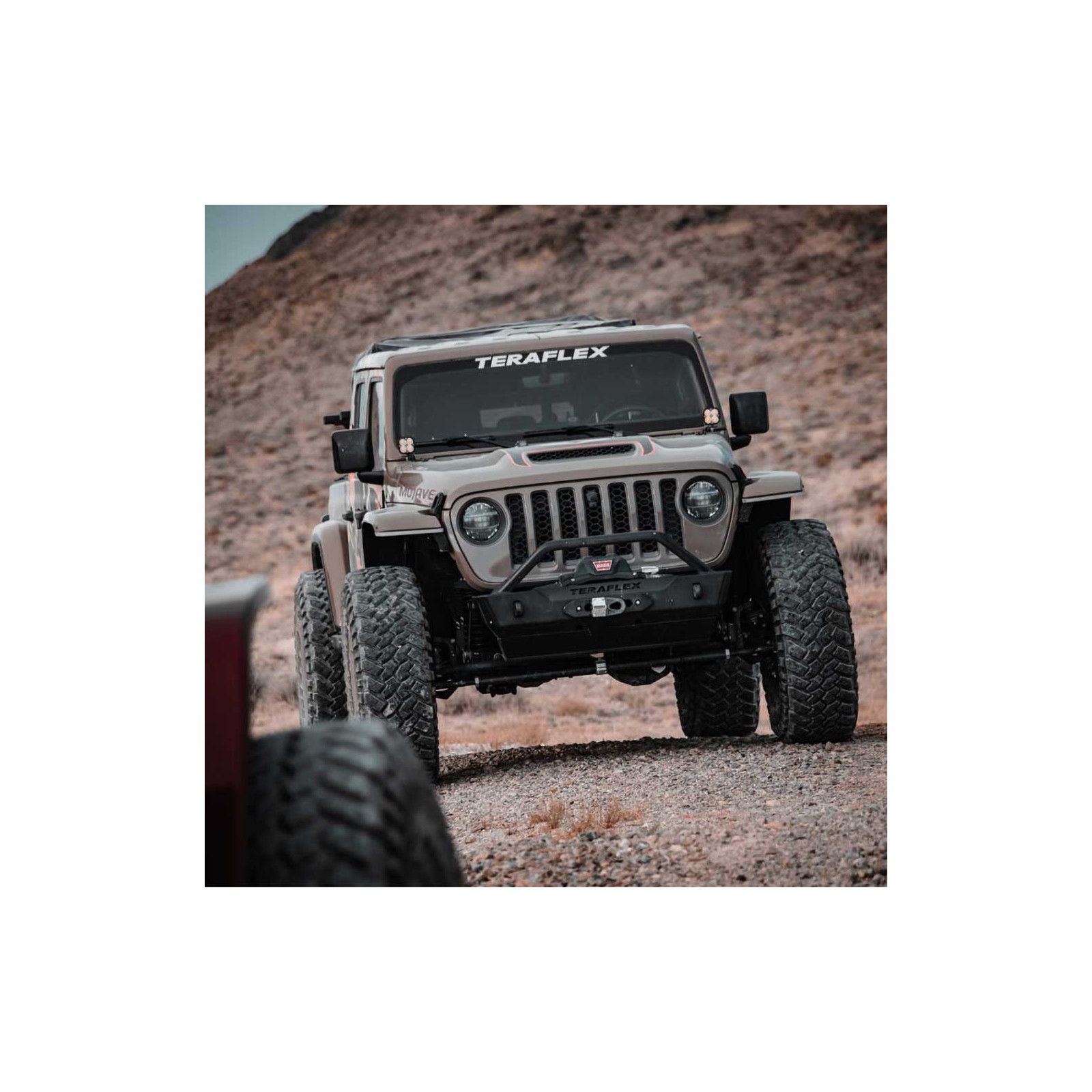

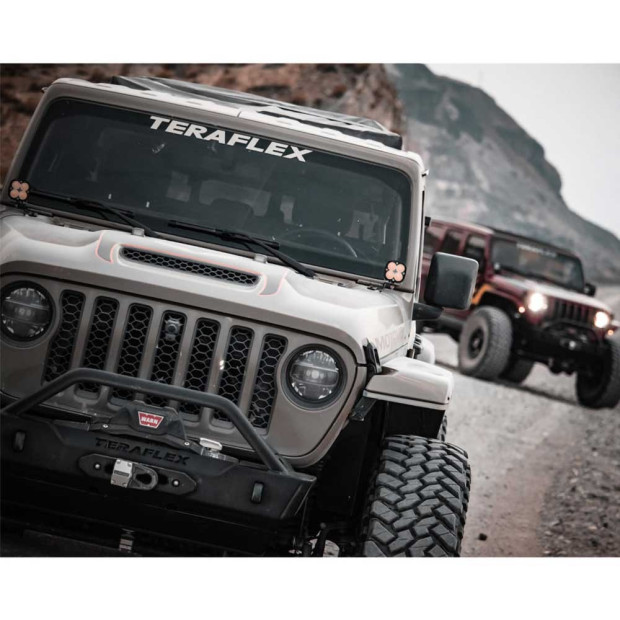

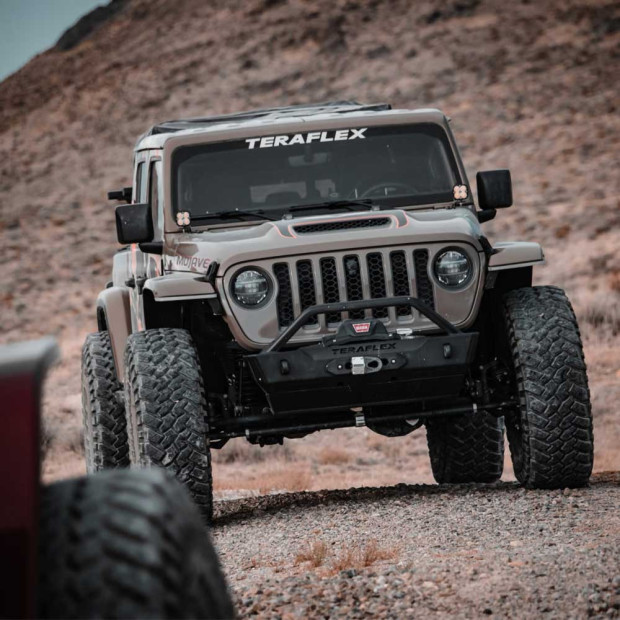

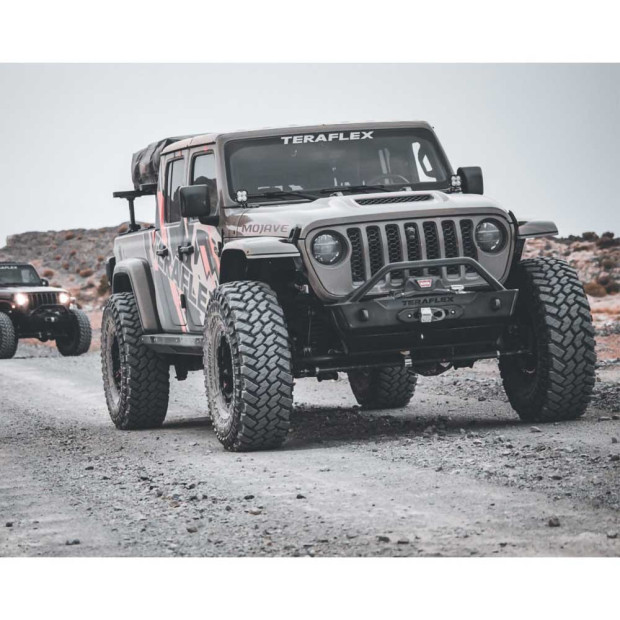

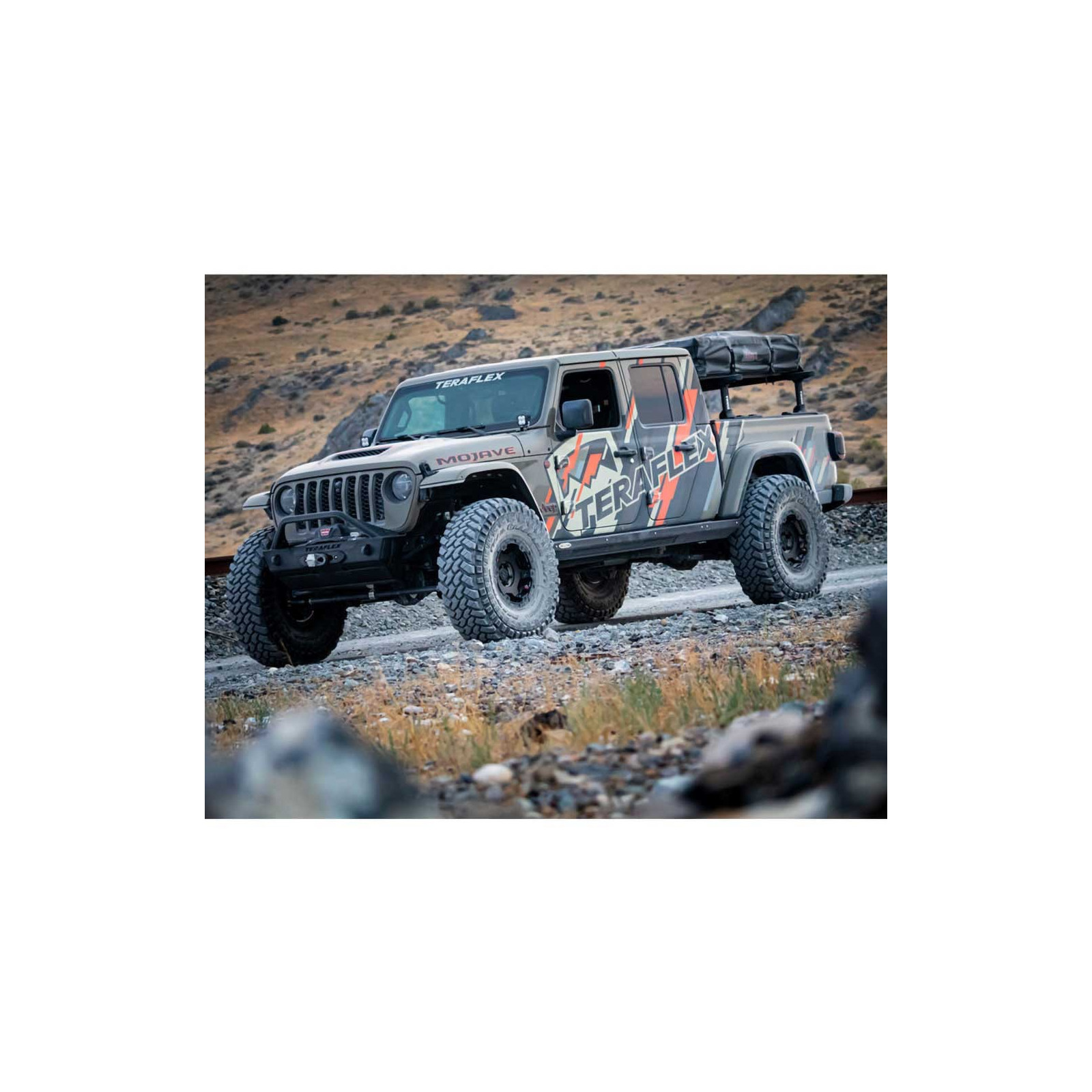

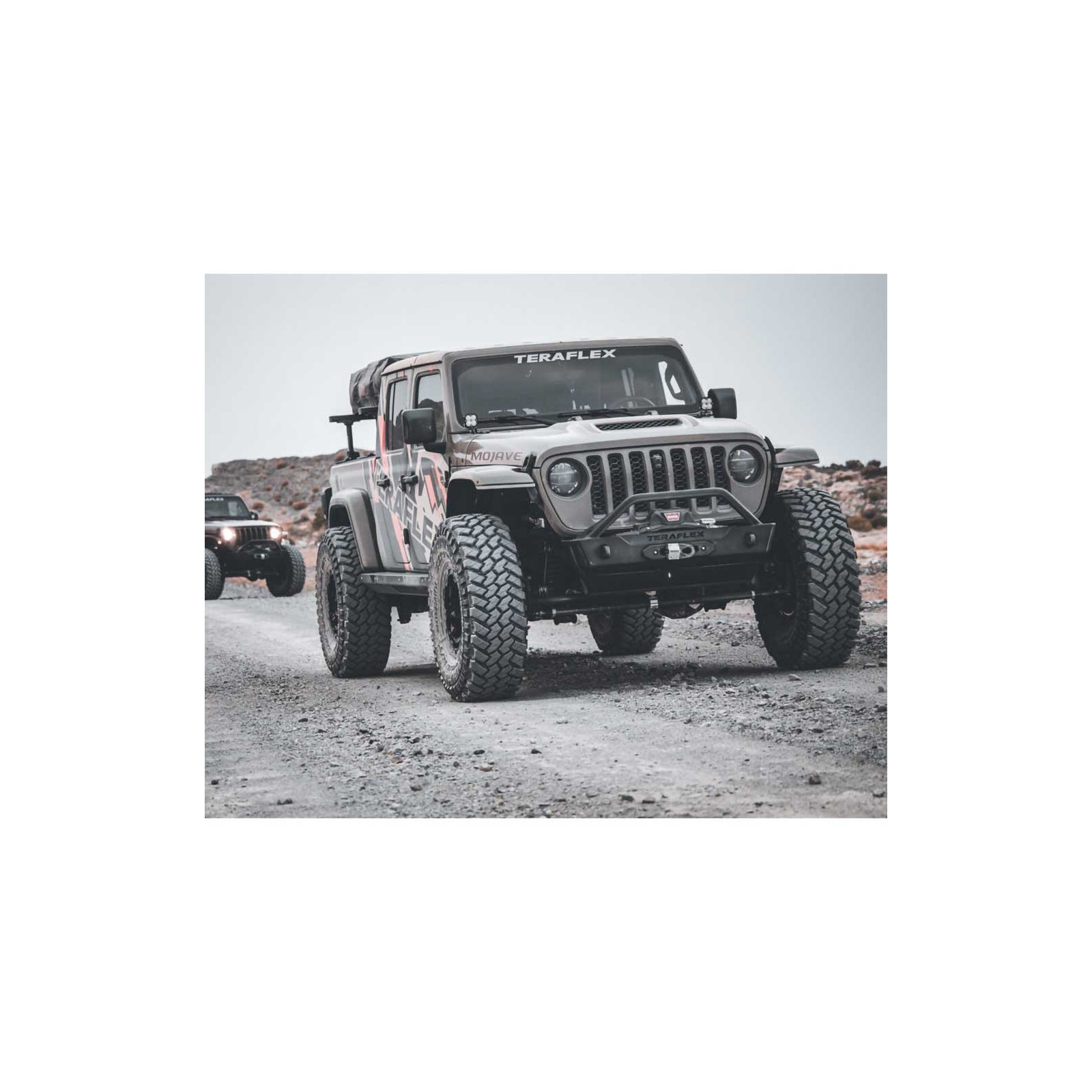

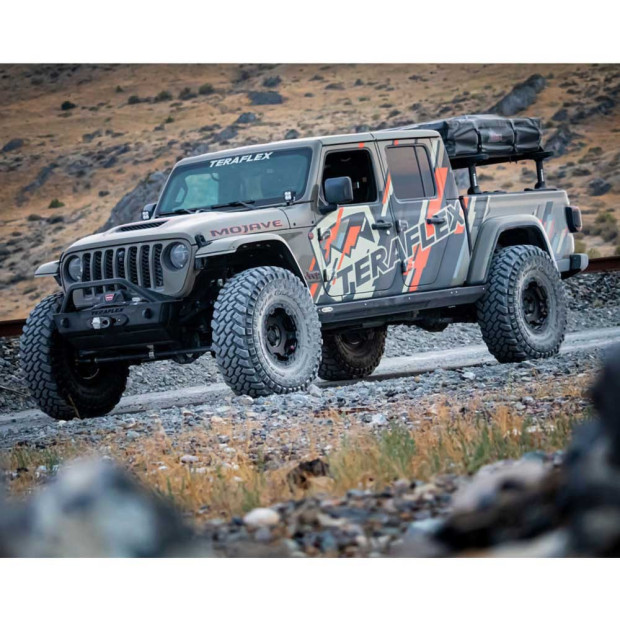

Kit suspension TeraFlex Alpine RT4 Long Arm +4,5"

• Increases ground clearance
• Allows larger wheels to be fitted
• Improves handling, reduces noise and vibration
• Improves steering response
• Provides full range of motion
• Control arms include IR bushings

Max tyre diameter:

• 33": Sport/Overland | (w/ 2" front & 1" rear bump stops)
• 35": Sport/Overland | (w/ 3" front & 2.5" rear bump stops)
• 37": Sport/Overland | (w/ 4" front & 3.5" rear bump stops)
• 35": Rubicon | (w/ 2" front & 1" rear bump stops)
• 37": Rubicon | (w/ 2" front & 2.5" rear bump stops)
• 39": Rubicon | (w/ 4" front & 3" rear bump stops)

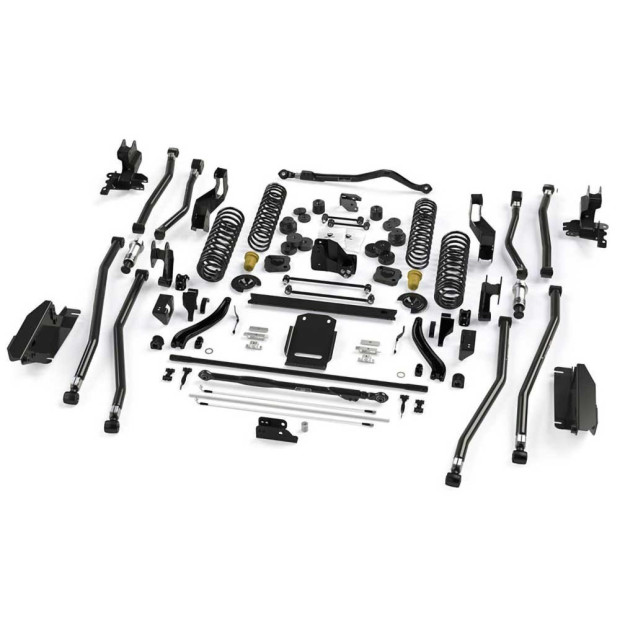

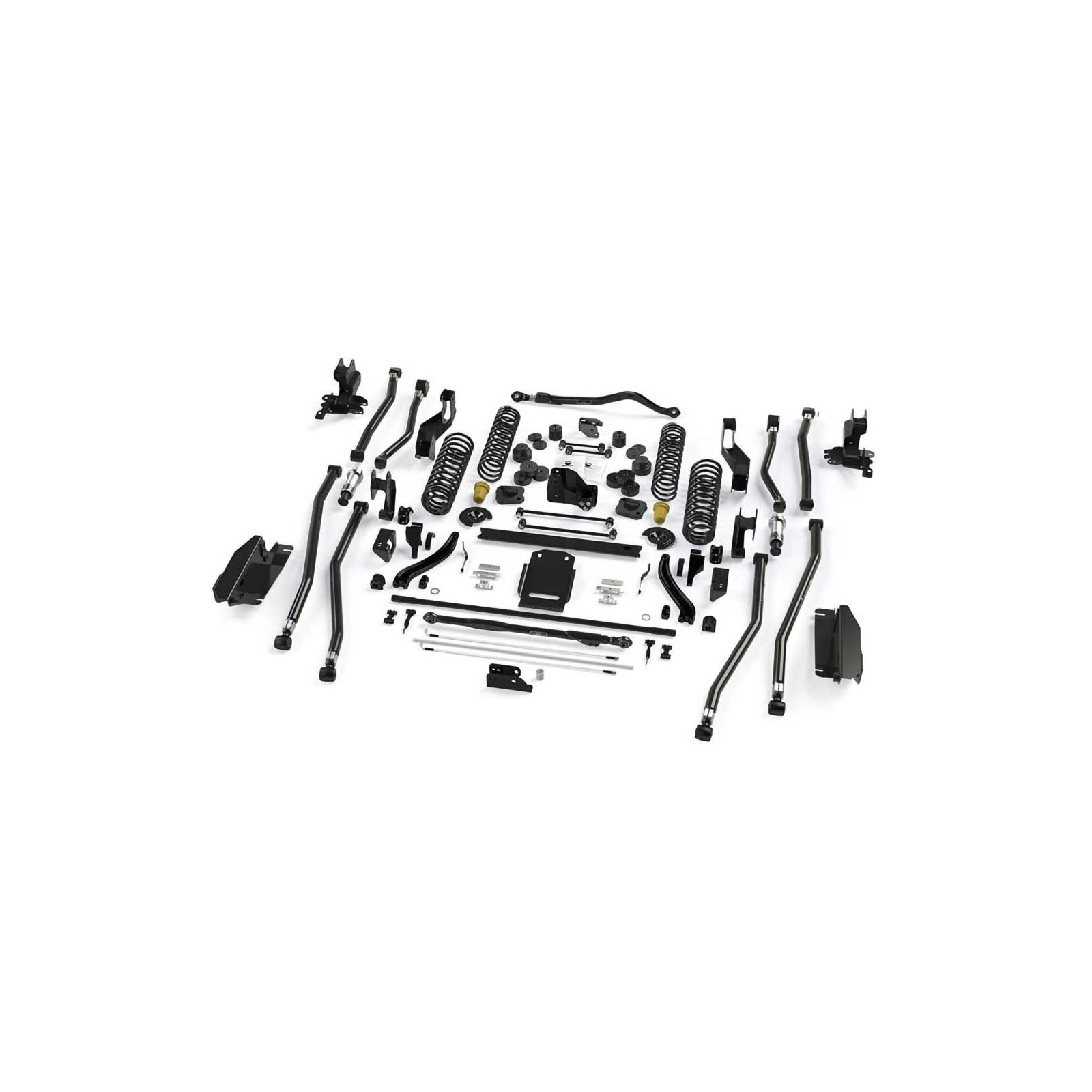

In the box:

• (2) Front coil spring
• Front track bar bracket
• Front control arm bracket
• Front bump stops
• Front quick disconnect sway bar kit
• Front forged adjustable track bar
• (2) Front lower long arm Alpine IR
• (2) Front upper long arm Alpine IR
• (2) Rear lower long arm Alpine IR
• (2) Rear upper long arm Alpine IR
• (2) Rear coil spring
• Rear adjustable track bar
• Rear driveline center support mount lowering spacer kit
• Rear forged sway bar kit ST
• Rear track bar bracket
• Front and rear bump stop strike pad shim kit
• Brake line anchor kit
• Progressive bump stops
• Coil spring retainer kit
• Extended-travel shock accessory kit
• Transmission skid plate and long arm crossmember reinforcement
• Bracket kit for Alpine long arm

Notes:

• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters TX1057000 for stock wheels (sold separately)
• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards to fit 35” or larger tyres
• Alignment required
• Requires longer shocks, we recommended TeraFlex and Fox
• For diesel models front get 1" lift less, we recommend to use front spacer load level kit TX1155100 (sold separately)
• Requires cutting/removal of factory control arm bracketry to install Long Arm Brackets
