Kit suspension TeraFlex Alpine CT3 Long Arm +3,5"

• Increases ground clearance
• Allows larger wheels to be fitted
• Improves handling, reduces noise and vibration
• Improves steering response
• Provides full range of motion

Max tyre diameter:

• 33": Sport/Overland | (w/ 2" front & 1" rear bump stops)
• 35": Sport/Overland | (w/ 3" front & 2,5" rear bump stops)
• 35": Rubicon | (w/ 2" front & 1" rear bump stops)
• 37": Rubicon | (w/ 2" front & 2,5" rear bump stops)

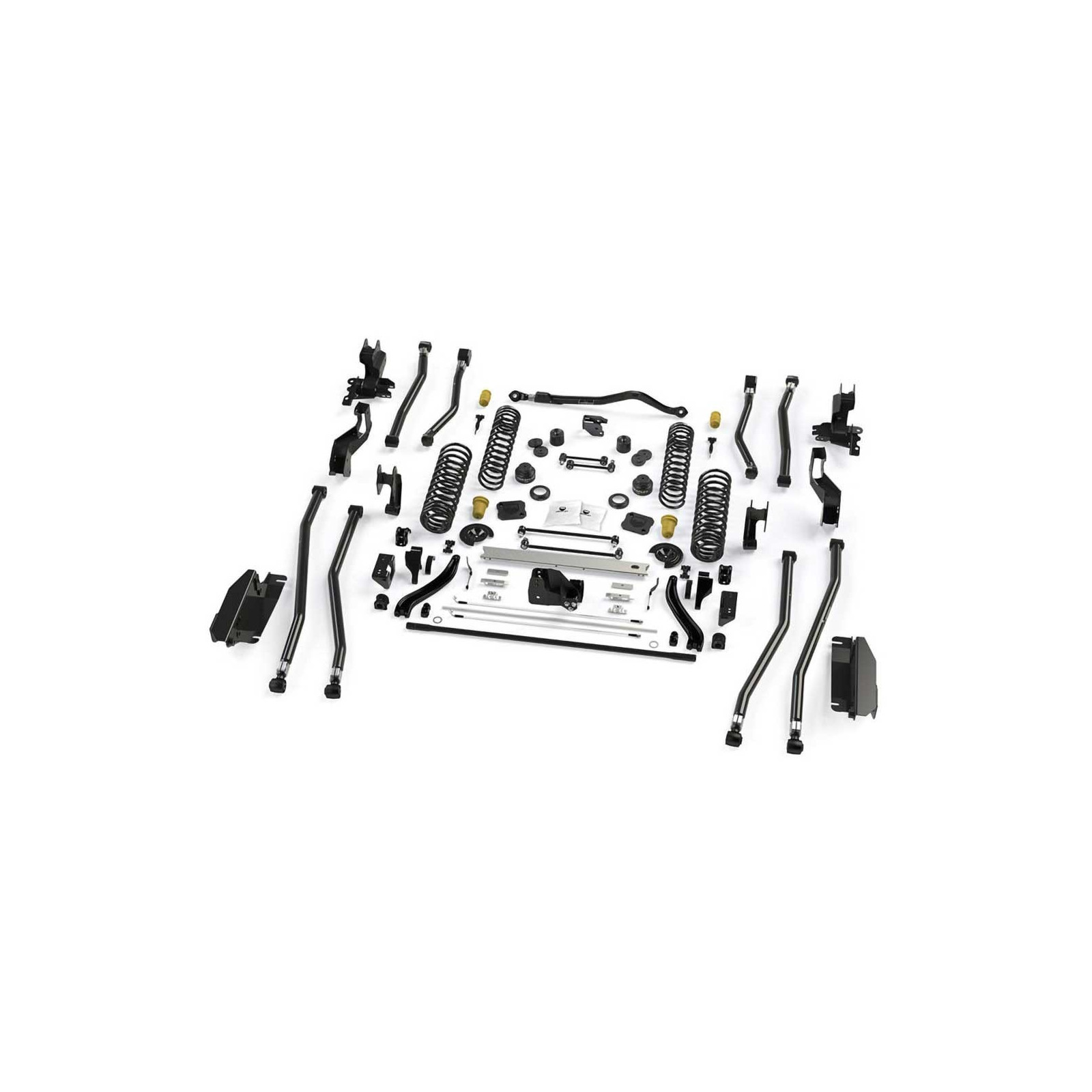

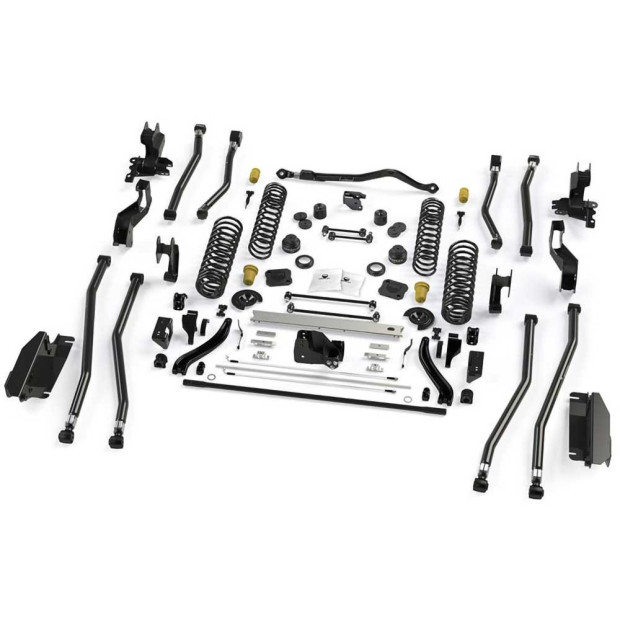

In the box:

• (2) Front upper adjustable long control arm Alpine
• (2) Front lower adjustable long control arm Alpine
• (2) Front coil spring
• Front bump stop spacers
• Front track bar relocation bracket
• Front quick disconnect sway bar kit
• Front adjustable track bar
• (2) Rear coil spring spacer
• Rear bump stop spacers
• (2) Rear upper adjustable long control arm Alpine
• (2) Rear lower adjustable long control arm Alpine
• Rear forged sway bar kit ST
• Rear driveline center support mount lowering spacer kit
• Rear track bar axle bracket kit
• Bracket kit for Alpine long arm
• Extended-travel shock accessory kit
• Coil spring retainer kit
• All necessary hardware

Notes:

• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters TX1057000 for stock wheels (sold separately)
• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards to fit 35” or larger tyres
• Alignment required
• Requires longer shocks, we recommended TeraFlex and Fox
• For diesel models front get 1" lift less, we recommend to use front spacer load level kit TX1155100 (sold separately)
• Requires cutting/removal of factory control arm bracketry to install Long Arm Brackets
