Kit suspension TeraFlex Sport ST3 +3,5"

• Lift height: 3.5”
• Front Sport frame brackets balance front caster and pinion angles
• Track bar axle brackets improve steering response, center axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling
• Coil spring retainers prevent the springs from unseating during full suspension travel
• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced NVH
• Progressive bump stops protect occupants and the vehicle from hard suspension bottoming
• Full range of movement for off-road flex and articulation
• Install and drive, simple bolt-on installation – no welding required

Max tyre diameter:

• Sport/Overland Fenders: 35” (w/ 3” front & 2.5” rear bump stops)
• Rubicon Fenders: 37” (w/ 2” front & 2.5” rear bump stops)

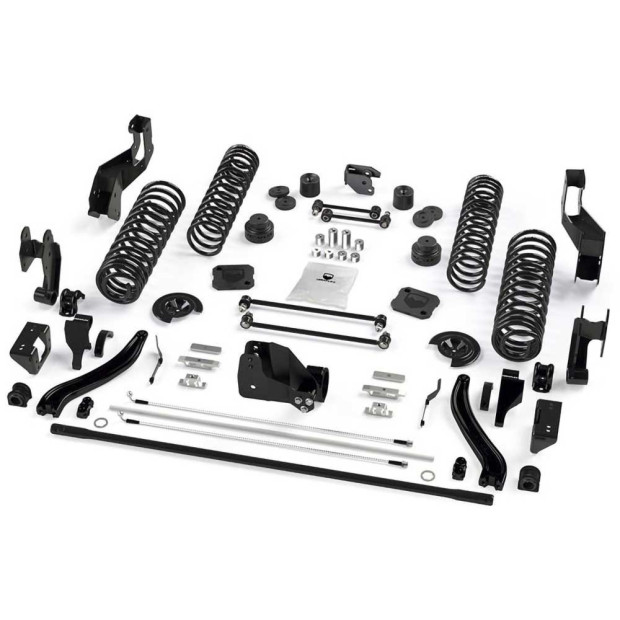

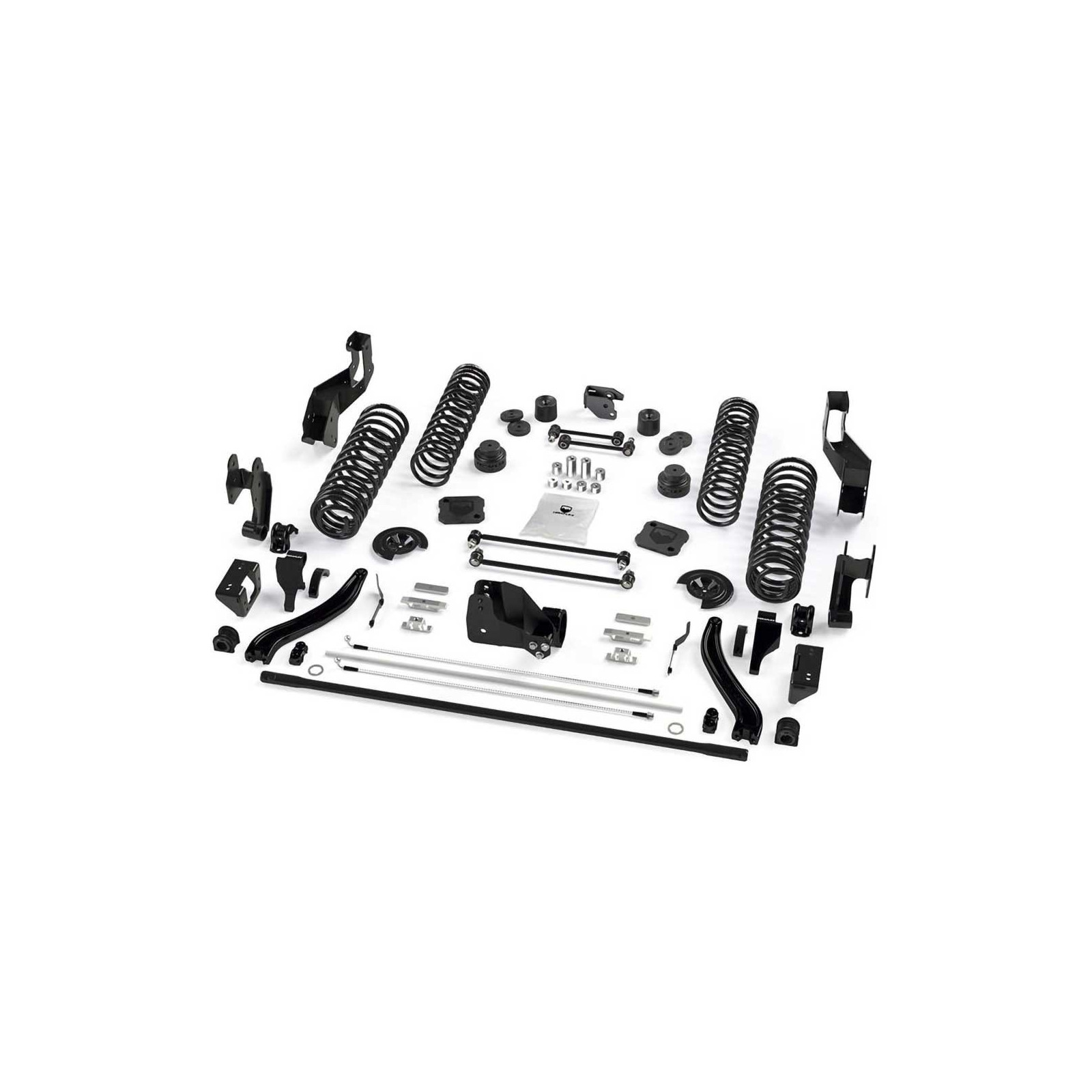

In the box:

• (2) Front coil spring
• Front bump stop spacers
• Front track bar relocation bracket
• (2) Front quick disconnect sway bar
• Front control arm Sport Bracket kit
• Rear track bar axle bracket kit
• Rear driveline center support mount lowering spacer kit
• (2) Rear coil spring spacer
• Rear bump stop spacers
• Coil spring retainer kit
• Extended-travel axle bracket kit rear upper control arms
• Rear forged sway bar kit ST
• Extended-travel shock accessory kit
• All necessary hardware

Notes:

• Requires longer shocks (sold separately)
• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters TX1057000 for stock wheels (sold separately)
• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards in order to fit 35” or larger tyre
• Sport/Overland fenders require 3” Front and 2.5” Rear Bump Stop/Strike Pad Extensions/Shims to fit 35” tyres
• Rubicon fenders require 2” Front and 2.5” Rear Bump Stop/Strike Pad Extensions/Shims to fit 37” tyres
• EcoDiesel models require 1” Lift Front Coil Spring Spacer Kit TX155100 (sold separately)
• Alignment required
