Kit suspension TeraFlex Alpine CT4 Long Arm +4,5"

• Increases ground clearance
• Allows larger wheels to be fitted
• Improves handling, reduces noise and vibration
• Improves steering response
• Full range of movement for off-road flex and articulation

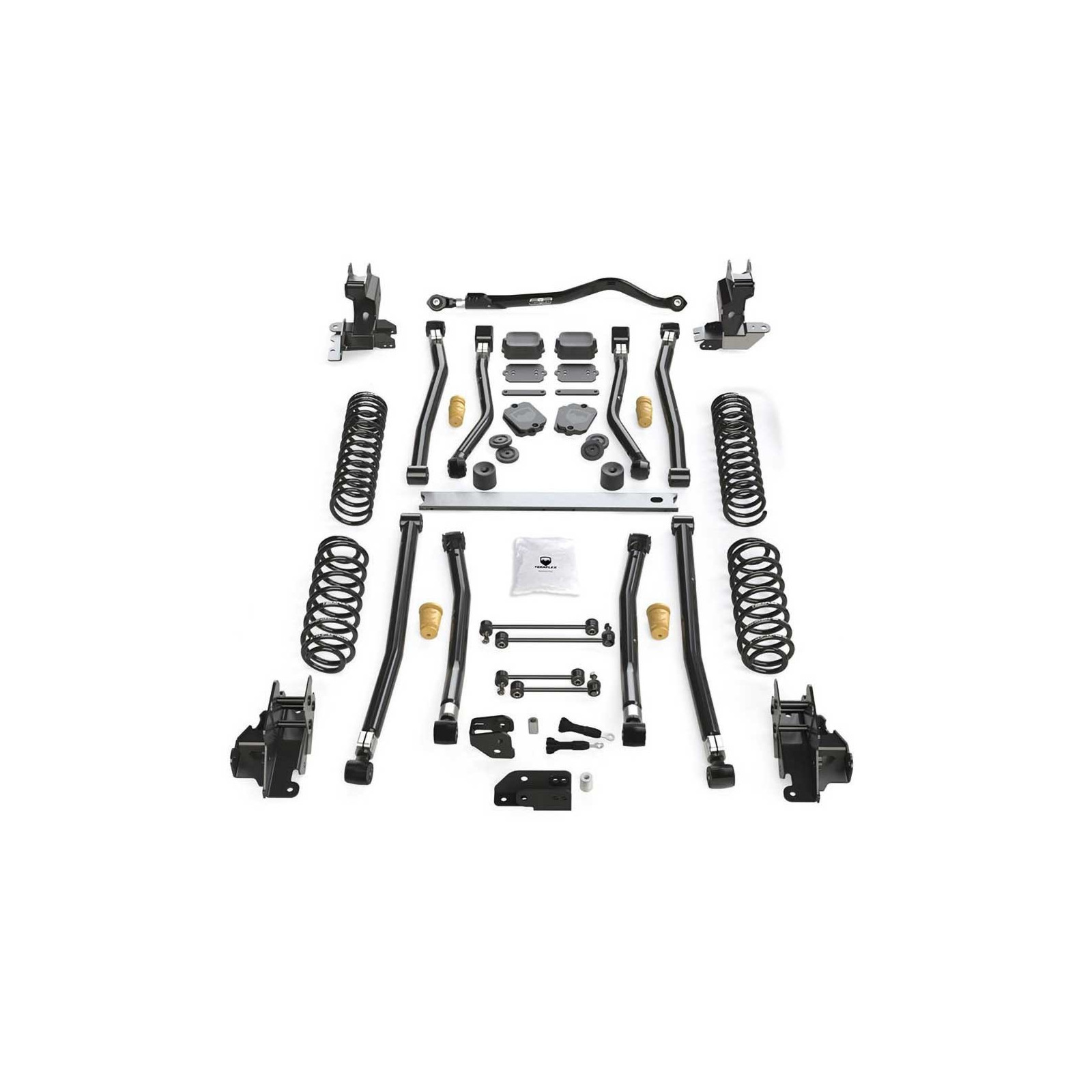

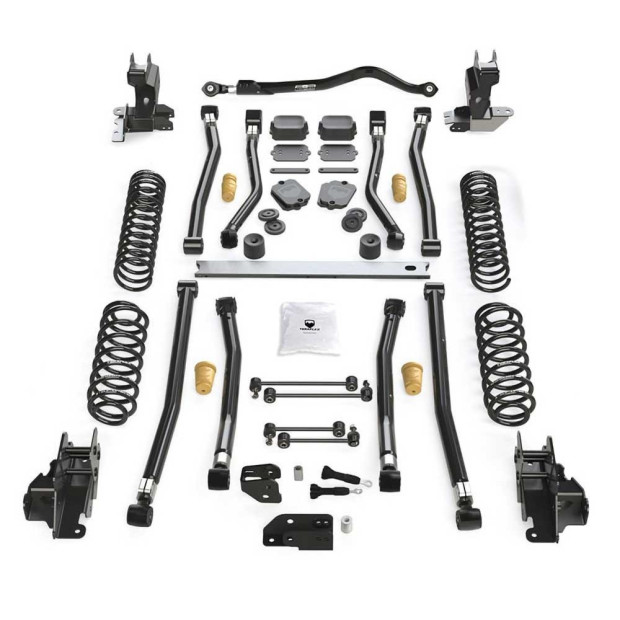

In the box:

• Front adjustable track bar Alpine
• (2) Front coil spring
• Front track bar bracket
• (2) Front brake line anchors
• Bracket kit for Alpine long arm
• (2) Front quick disconnect sway bar kit
• (2) Front upper adjustable long control arms Alpine
• (2) Front lower adjustable long control arms Alpine
• (2) Rear upper adjustable long control arms Alpine
• (2) Rear lower adjustable long control arms Alpine
• (2) Rear coil spring
• Rear track bar bracket
• (2) Rear extended sway bar link
• Front & rear 2" bump stop strike pad kit
• Front & rear 0,5" bump stop strike pad shim kit
• Progressive bump stop kit Falcon
• Hardware

Notes:

• Requires aftermarket wheels w/ 4.75” backspacing or less
• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards in order to fit 35” or larger tyres
• Sport/Sahara Fenders require 3” front and 2.5” rear bump stop extensions and shims (included) in order to fit 35” tyres
• Sport/Sahara Fenders require 3.5” front and 4” rear bump stop extensions and shims (included) in order to fit 37” tyres
• Rubicon Fenders require 2.5” front and 3” rear bump stop extensions and shims (included) in order to fit 37” tyres
• Alignment required
• Requires longer shocks, Falcon Performance Shocks recommended (sold separately)
• Aftermarket High Fenders required to fit 39”+ tires. Bump Stop Extension and Shim requirements will vary based on setup. Installer must check for clearances
• May require an additional 0.5” Bump Stop Strike Pad Shim Kit TX1959300 (sold separately)
• Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets
