Kit suspension Superior Engineering +2" Toyota Hilux Revo (2015-2018) (2018-2021) (2021+)

• Pro kit, fitted to the vehicle
• Enhances driving performance
• Adjusted to both on-road and off-road environments
• Upgrades the handling of the car

Front nitro Coil Over Fox Performance 2.0 IFP specs:

• Body: 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Reservoir: Internal IFP mono-tube reservoir design
• Body Plating: Clear-anodized for a durable finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: Large diameter, heavy-duty spherical

Front nitro Coil Over Fox Performance 2.0 IFP dimensions:

• Travel: 22.26"
• Compressed: 17.63"
• Extended: 4.63"

Front nitro Coil Over Fox Performance 2.0 IFP mounts:

• Top mount: oem
• Bottom mount: eyelet

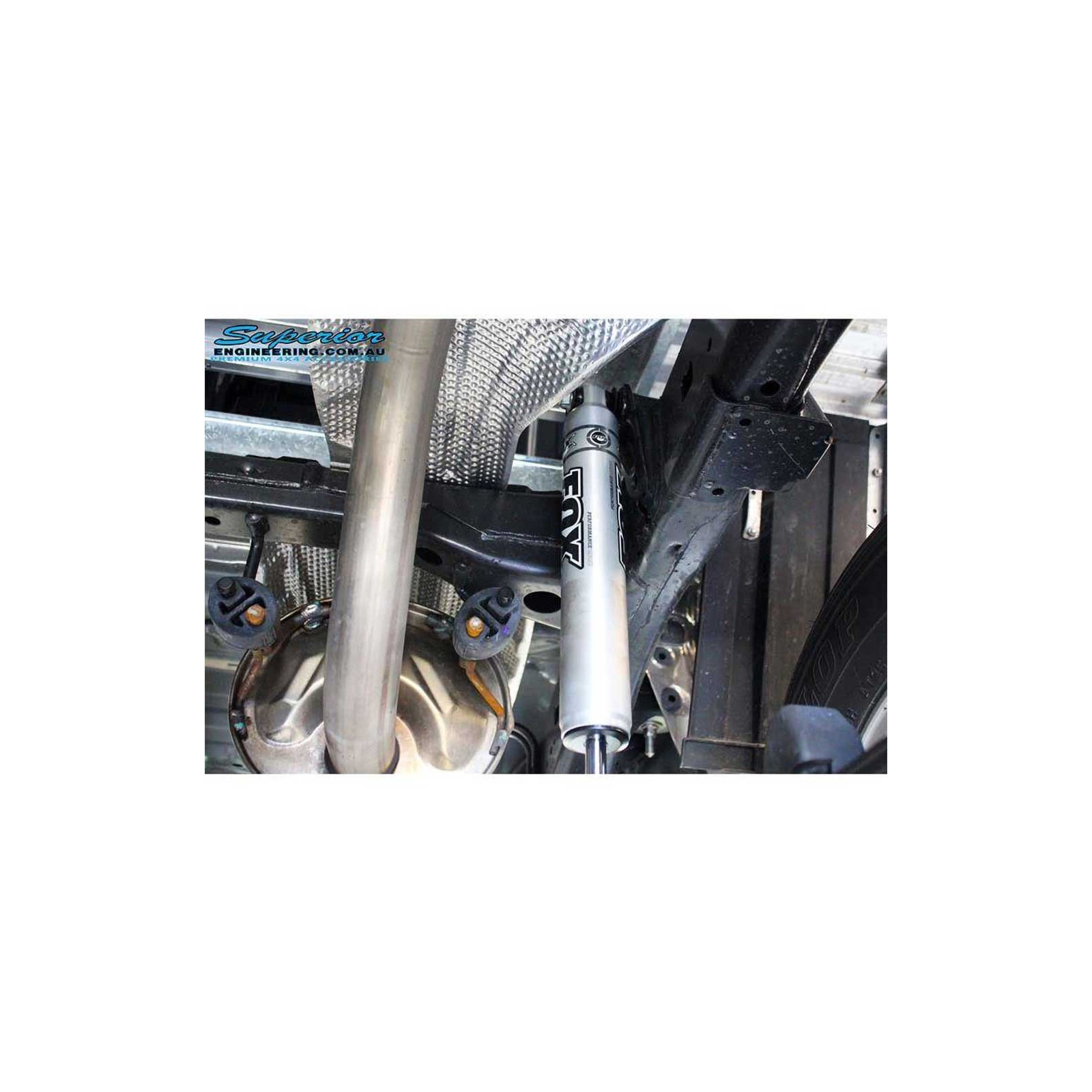

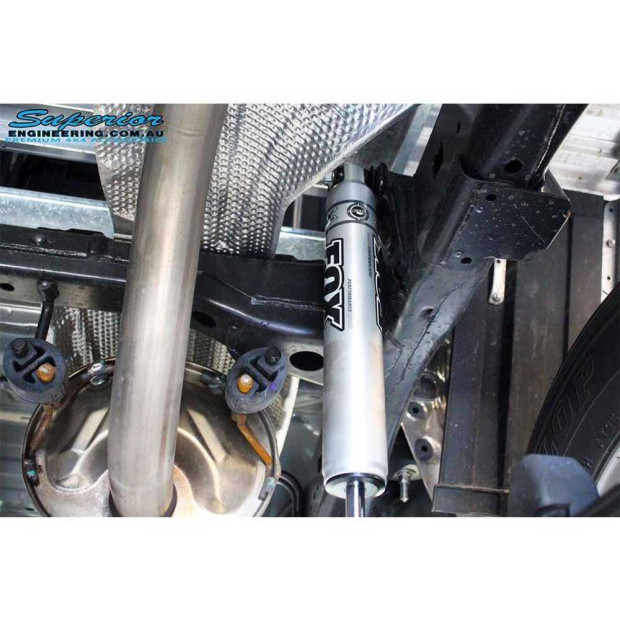

Rear nitro shock Fox Performance 2.0 IFP specs:

• 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Clear-anodized for a durable finish
• Internal IFP mono-tube reservoir design
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• 5/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow piston design
• Application specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Quiet nitrile rubber allows for increased suspension articulation

Rear nitro shock Fox Performance 2.0 IFP dimensions:

• Extended: 24.75"
• Compressed: 15.65"
• Travel: 9.10"

Rear nitro shock Fox Performance 2.0 IFP mounts:

• Top mount: eyelet
• Bottom mount: eyelet

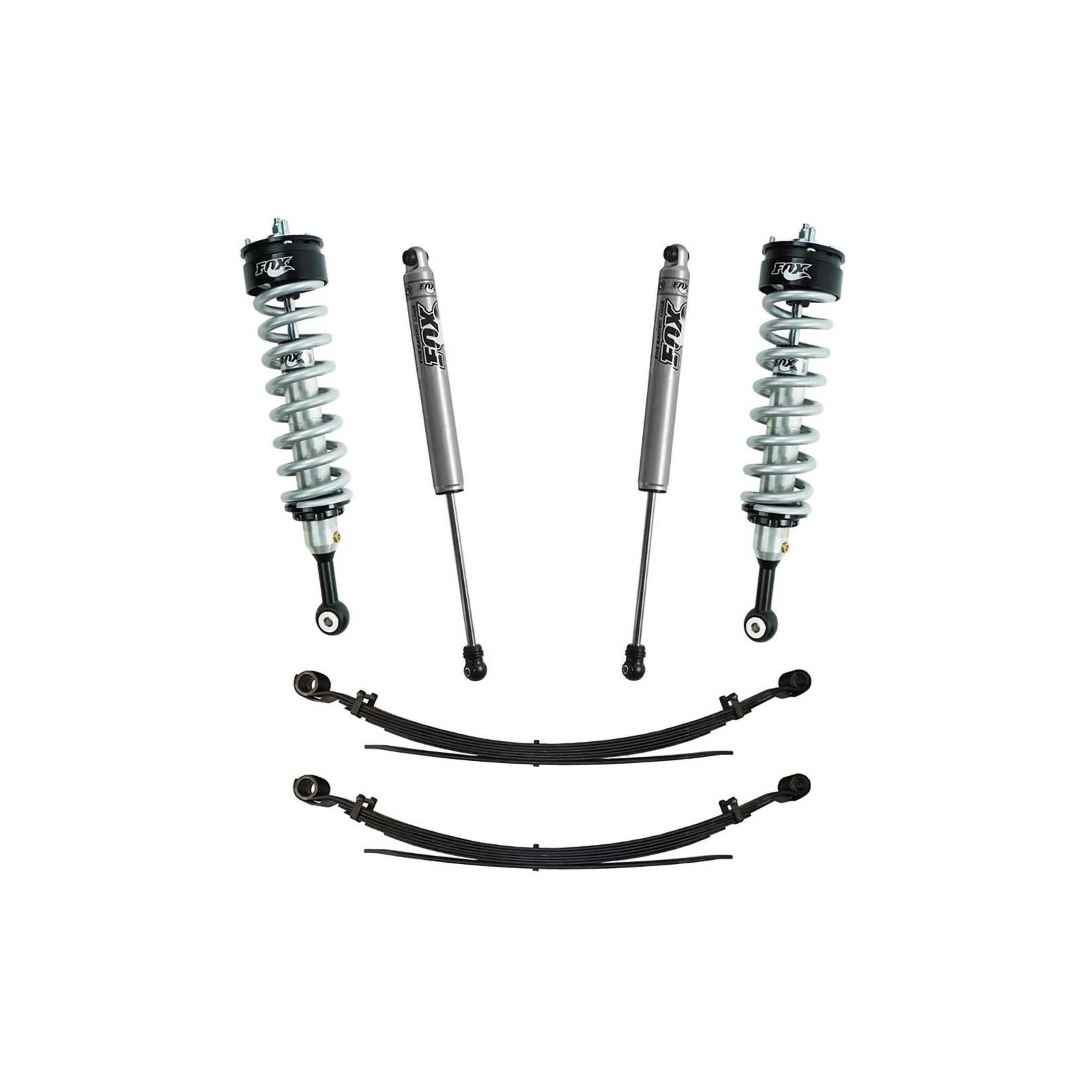

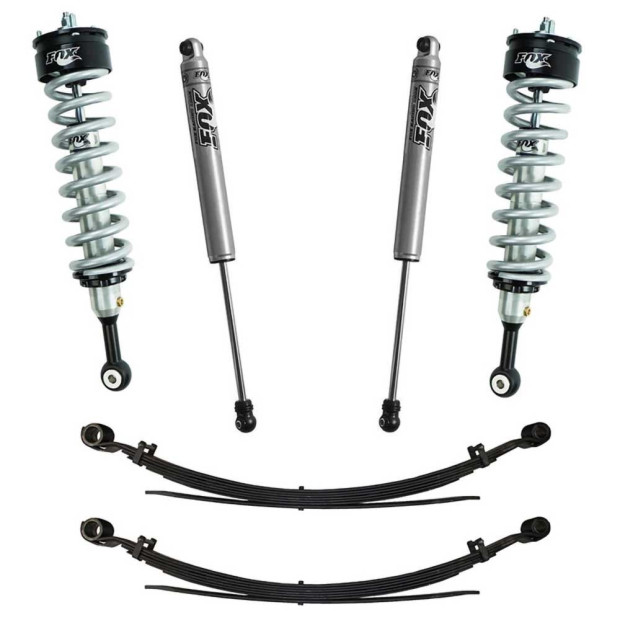

In the box:

• (2) Front nitro Coil Over Fox Performance 2.0 IFP Lift 0-2"
• (2) Rear nitro shock Fox Performance 2.0 IFP Lift 0-1,5"
• (2) Rear leaf spring

Fitment:

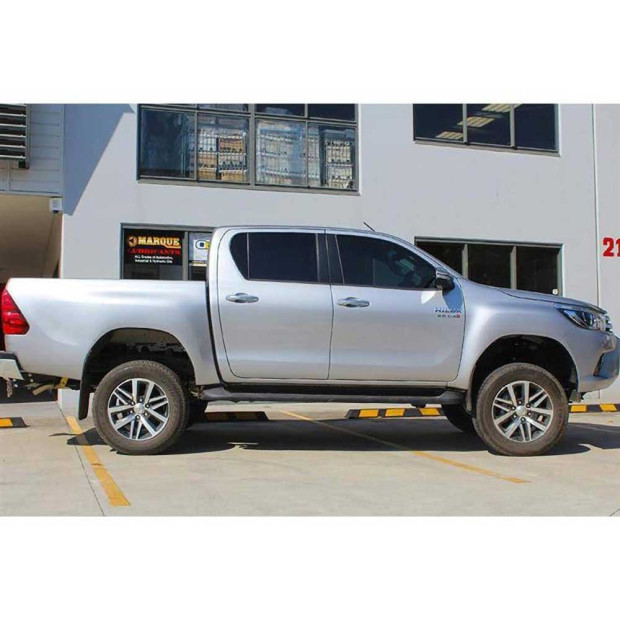

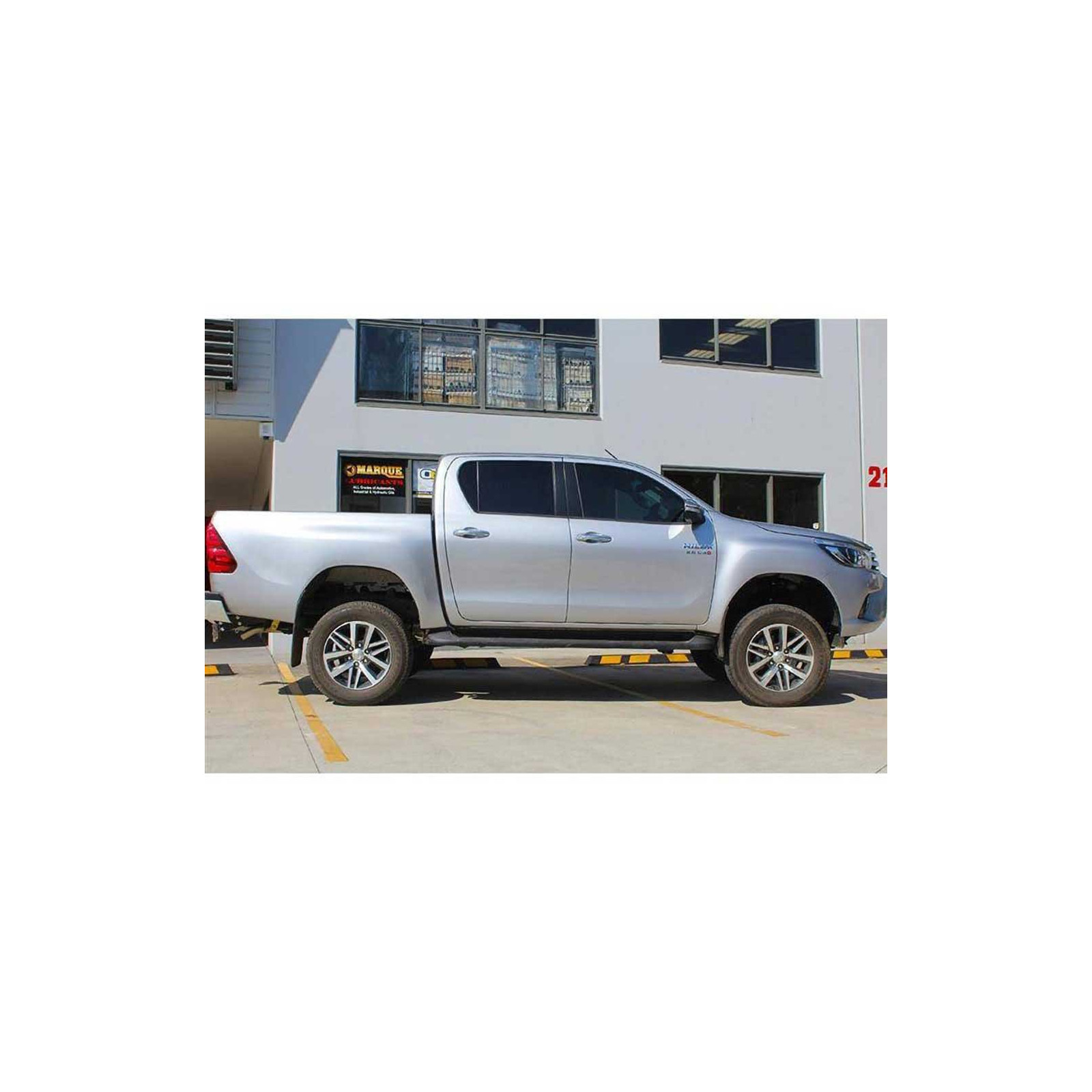

• Toyota Hilux Revo 15-20 | 2.8 Diesel | Front 0-40 kg | Rear 200-300kg | Lift 2"
