Kit suspension Fox +1,5"

• Professional lift kit, designed to fit your car
• Ensures correct driving characteristics on the lift
• Adjusted to both on-road and off-road environments
• Improves the behavior of the lifted car

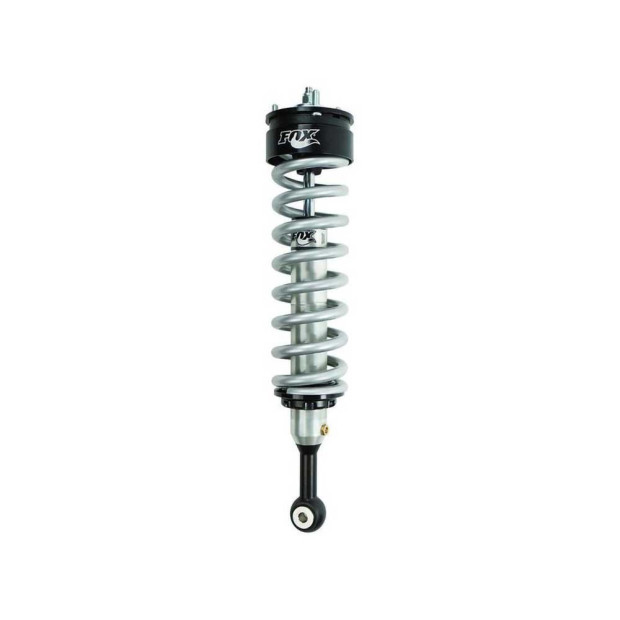

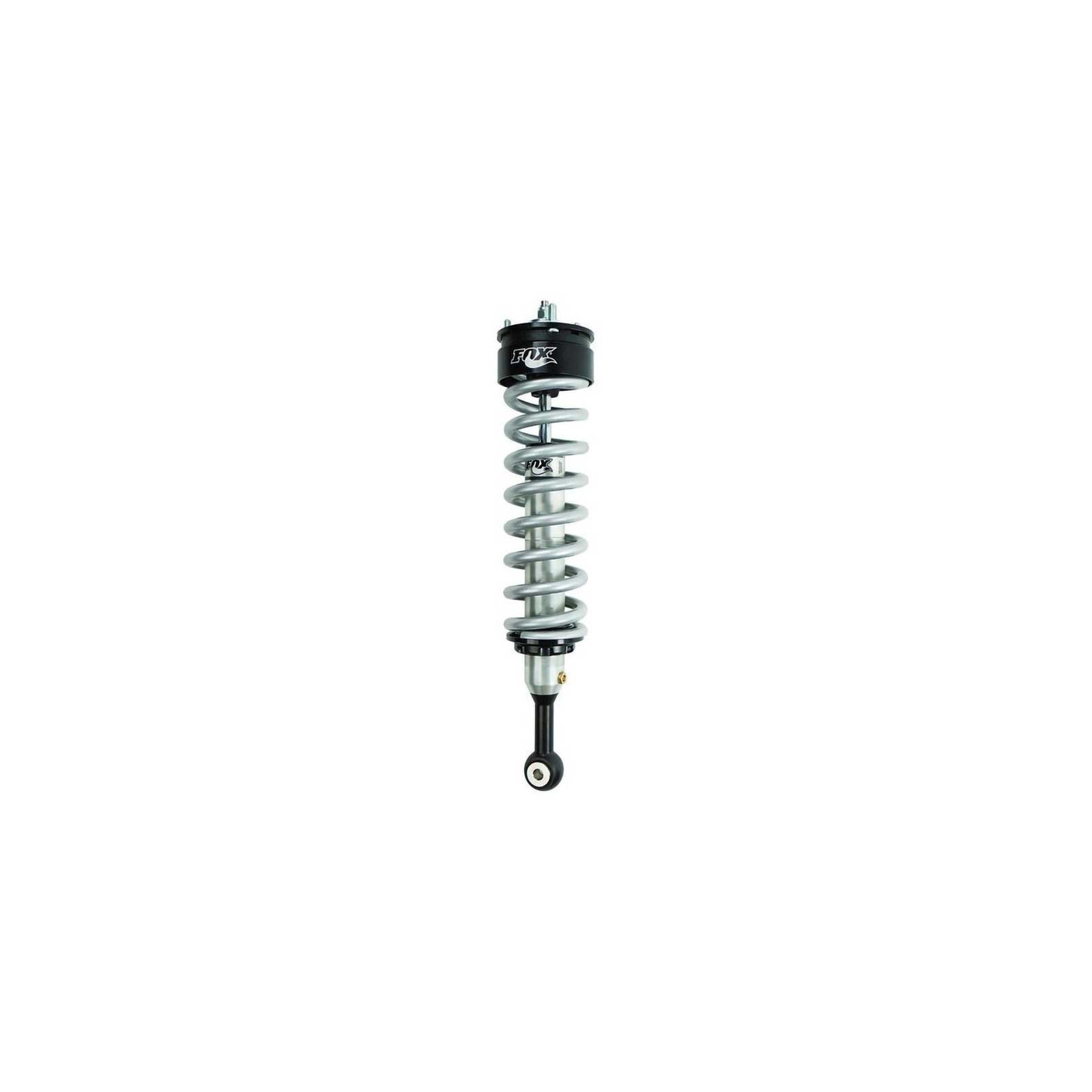

Front shock specs:

• Body: 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Body Plating: Clear-anodized for a durable finish
• Reservoir: Internal IFP mono-tube reservoir design
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: Large diameter, heavy-duty spherical
• Adjustments: Ride height preload ring

Front shock dimensions:

• Extended: 20.46"
• Compressed: 15.06"
• Travel: 5.39"

Front shock mounts:

• Top mount: oem
• Bottom mount: eyelet

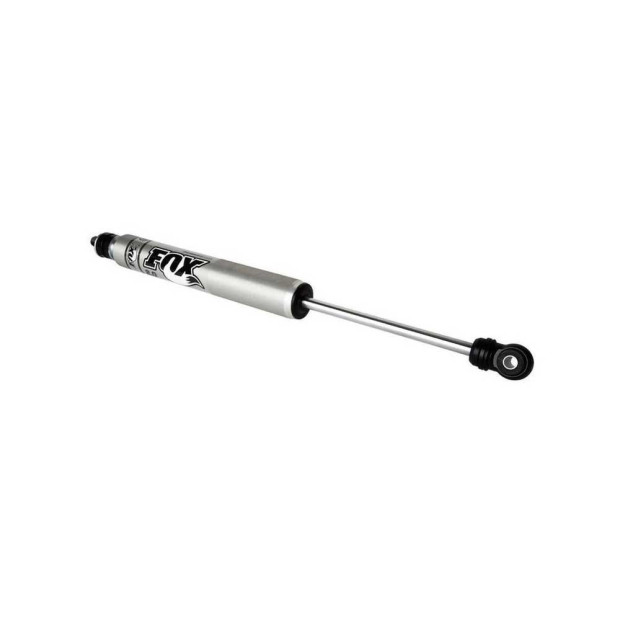

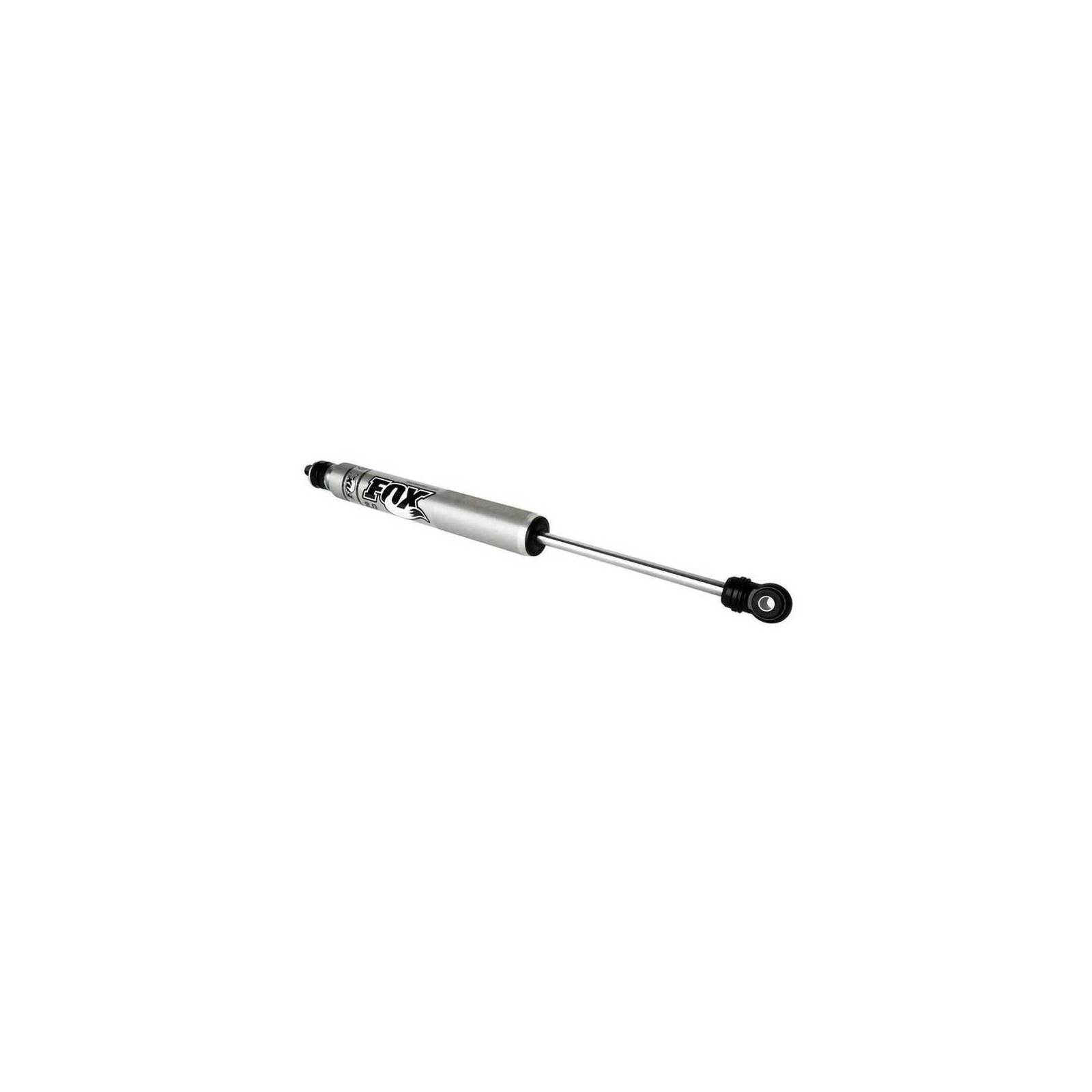

Rear shock specs:

• 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Clear-anodized for a durable finish
• Internal IFP mono-tube reservoir design
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• 5/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow piston design
• Application specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Quiet nitrile rubber allows for increased suspension articulation

Rear shock dimensions:

• Extended: 23.87"
• Compressed: 15.25"
• Travel: 8.62"

Rear shock mounts:

• Top mount: stem top
• Bottom mount: eyelet

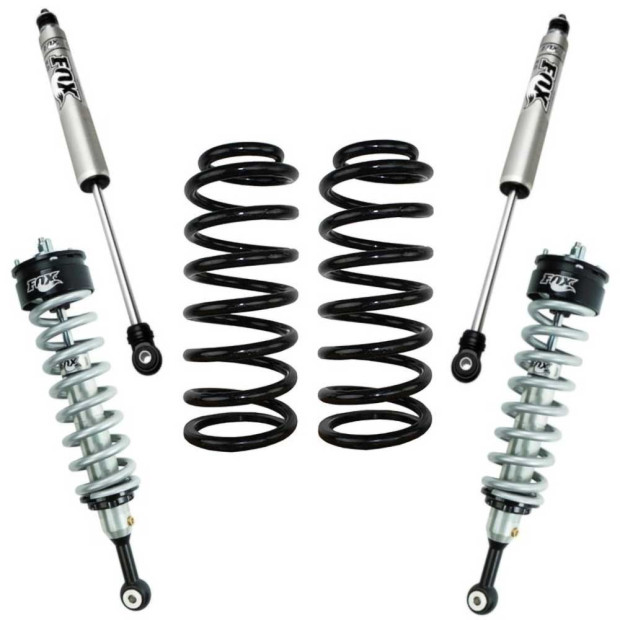

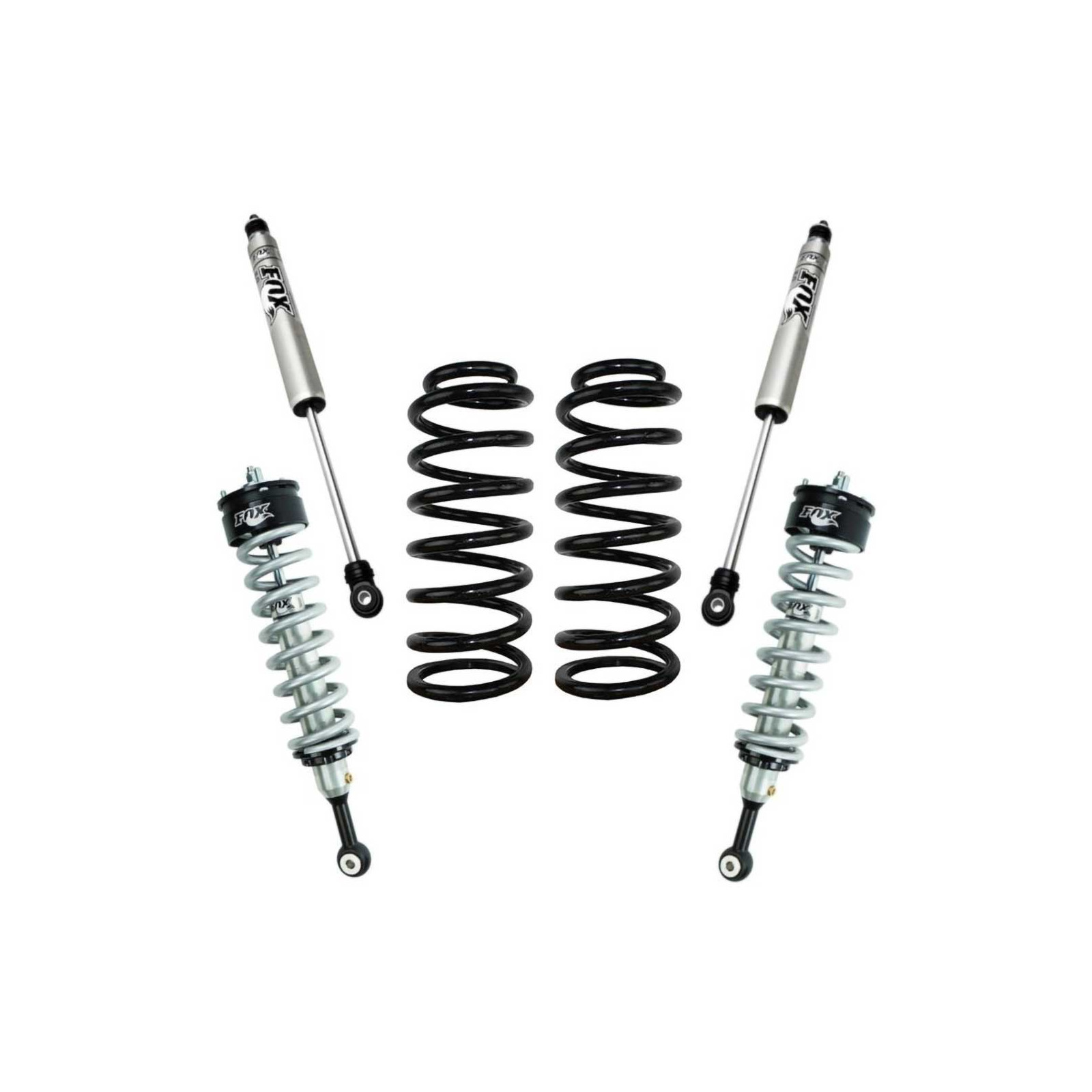

In the box:

• (2) Front Fox shock
• (2) Rear Fox shock

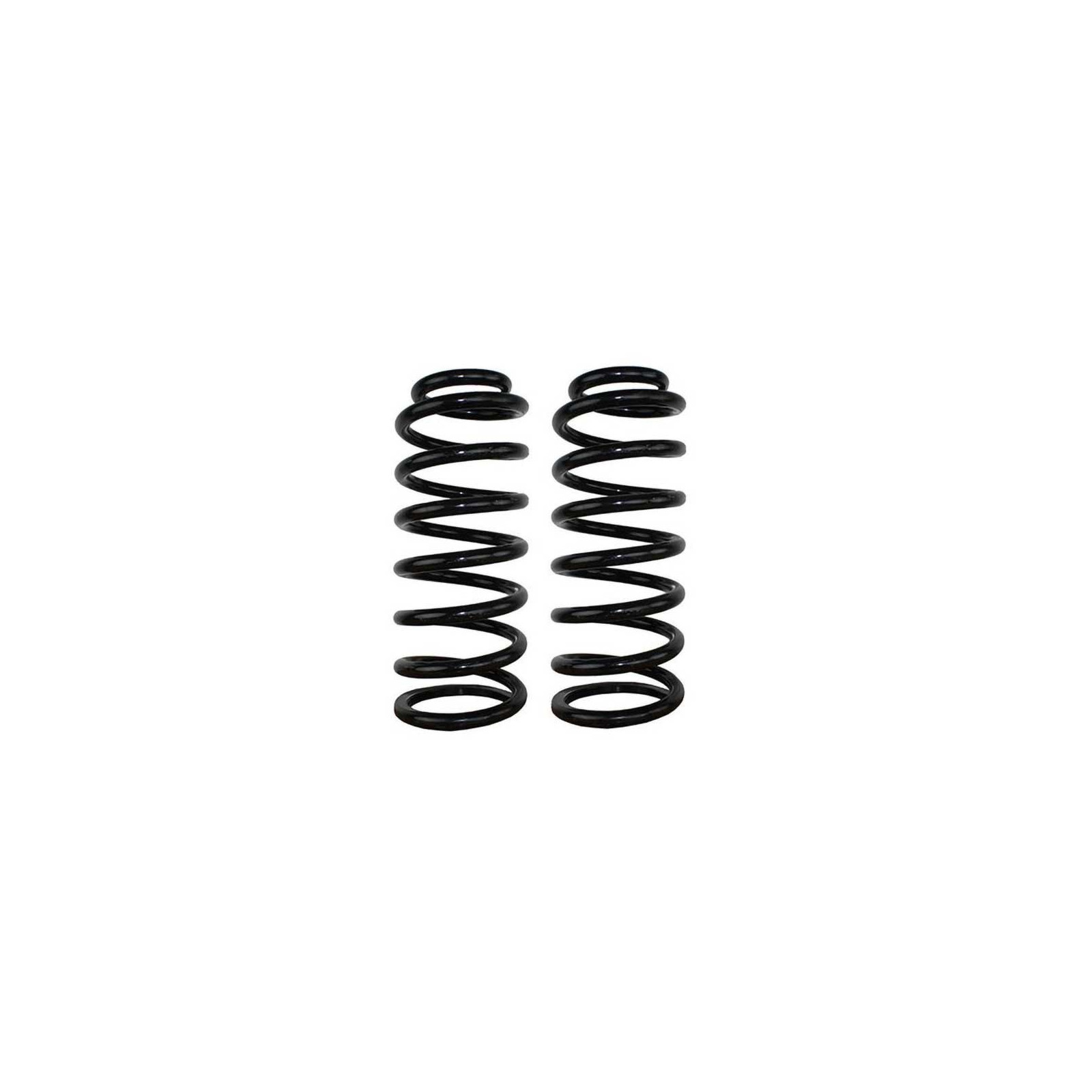

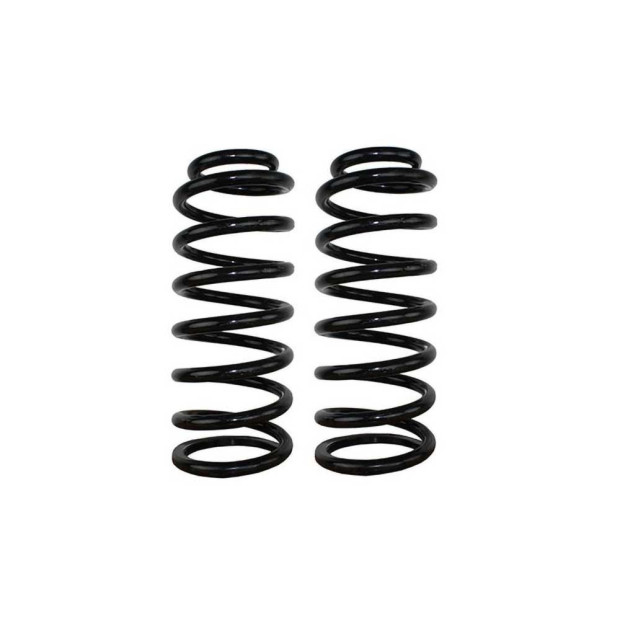

• Rear coil spring

Fitment:

• FJ Cruiser 06-21 | 4.0 V6 Petrol | Front 0-40 kg | Rear 150kg | Lift 1,5"
• 4Runner 03-22 | Front 0-40 kg | Rear 100kg | Lift 1,5"
• Prado J12 02-09 | Front 0-40 kg | Rear 100kg | Lift 1,5"
• Prado J15 09-present | Front 0-40 kg | Rear 100kg | Lift 1,5"

Notes:

• For Prado J15 09-present does NOT fit KDSS models
