Kit suspension Fox +1,5"

• Professional lift kit, designed to fit your car
• Ensures correct driving characteristics on the lift
• Adjusted to both on-road and off-road environments
• Improves the behavior of the lifted car

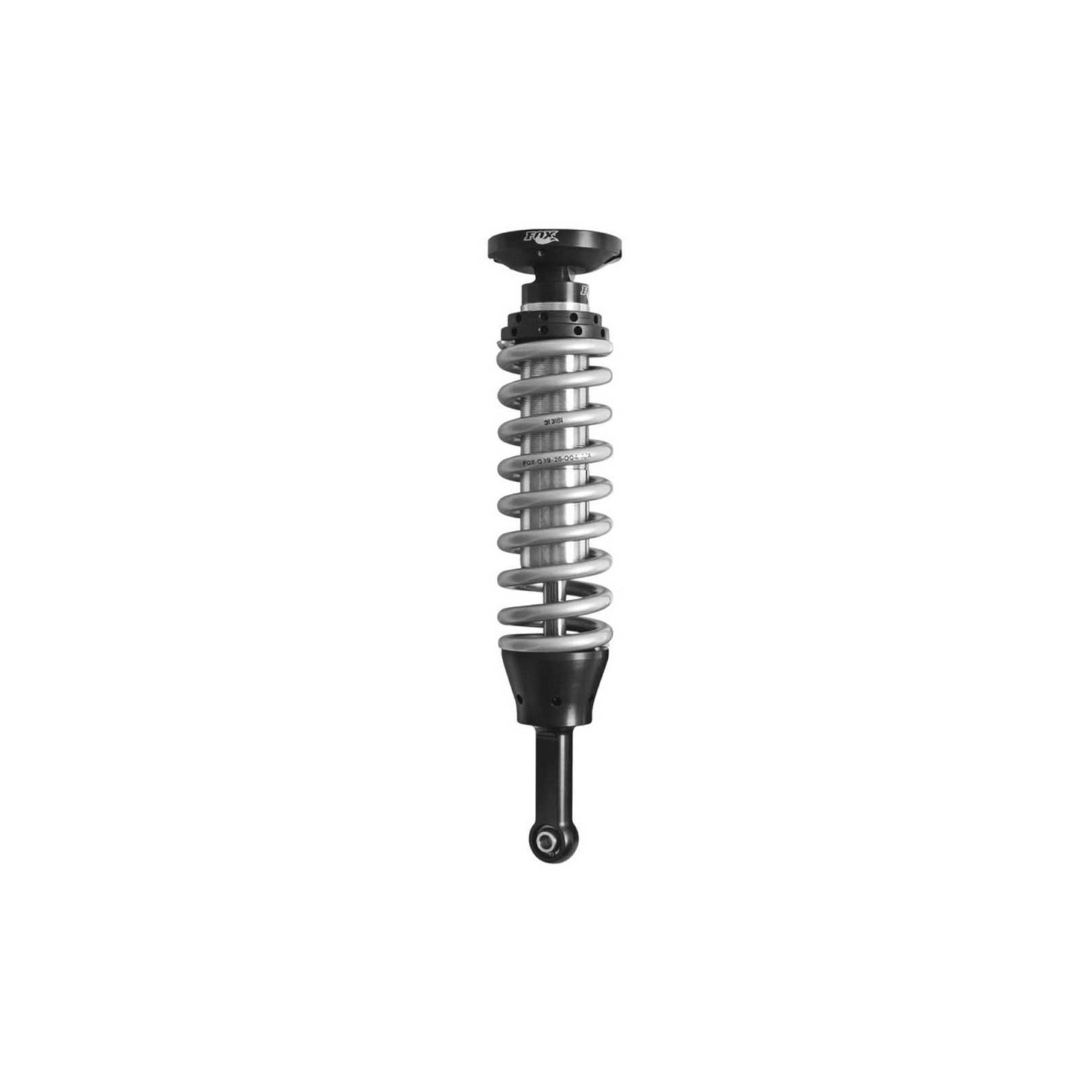

Front shocks specs:

• Body: 2.5" smooth bore zinc plated seamless steel body
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hardened NitroSteel Steel carbon shafts
• Piston: 6061-T6 hard-anodized, high flow aluminum piston
• Valving: Application specific valving to maximize performance
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: PTFE-lined, heat-treated, alloy steel spherical
• Adjuster: Ride height preload ring

Front shocks dimensions:

• Extended: 22.59"
• Compressed: 18.04"
• Travel: 4.55"

Front shocks mounts:

• Top mount: oem
• Bottom mount: eyelet

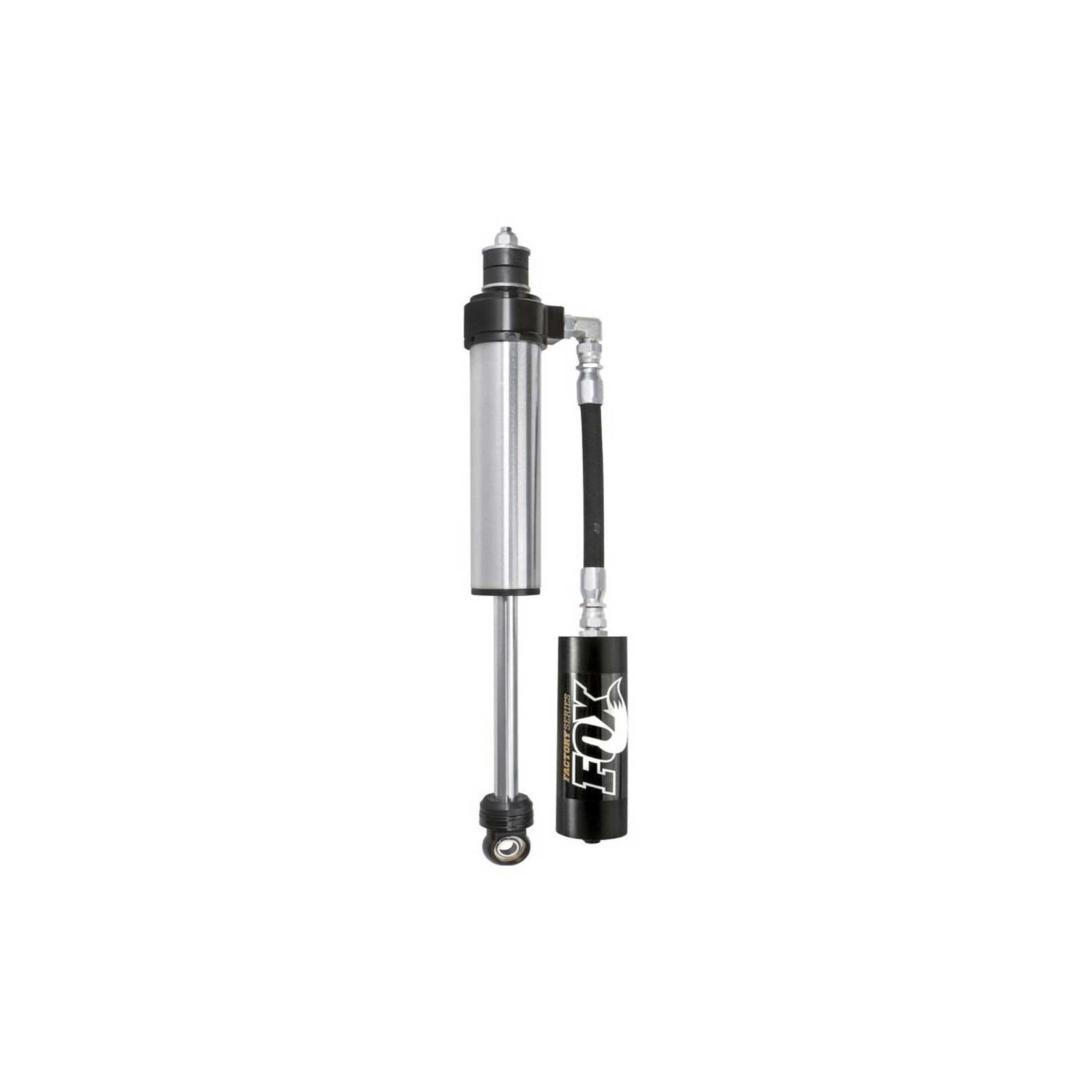

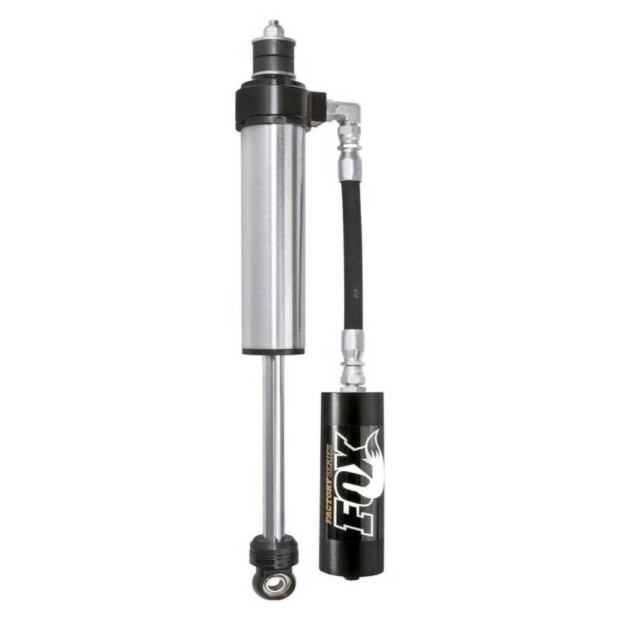

Rear shock specs:

• Body: 2.5" smooth bore zinc plated seamless steel body
• Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: PTFE-lined, heat-treated, alloy steel spherical

Rear shocks dimensions:

• Extended: 23.95"
• Compressed: 15.19"
• Travel: 8.76"

Rear shocks mounts:

• Top mount: stem top
• Bottom mount: eyelet

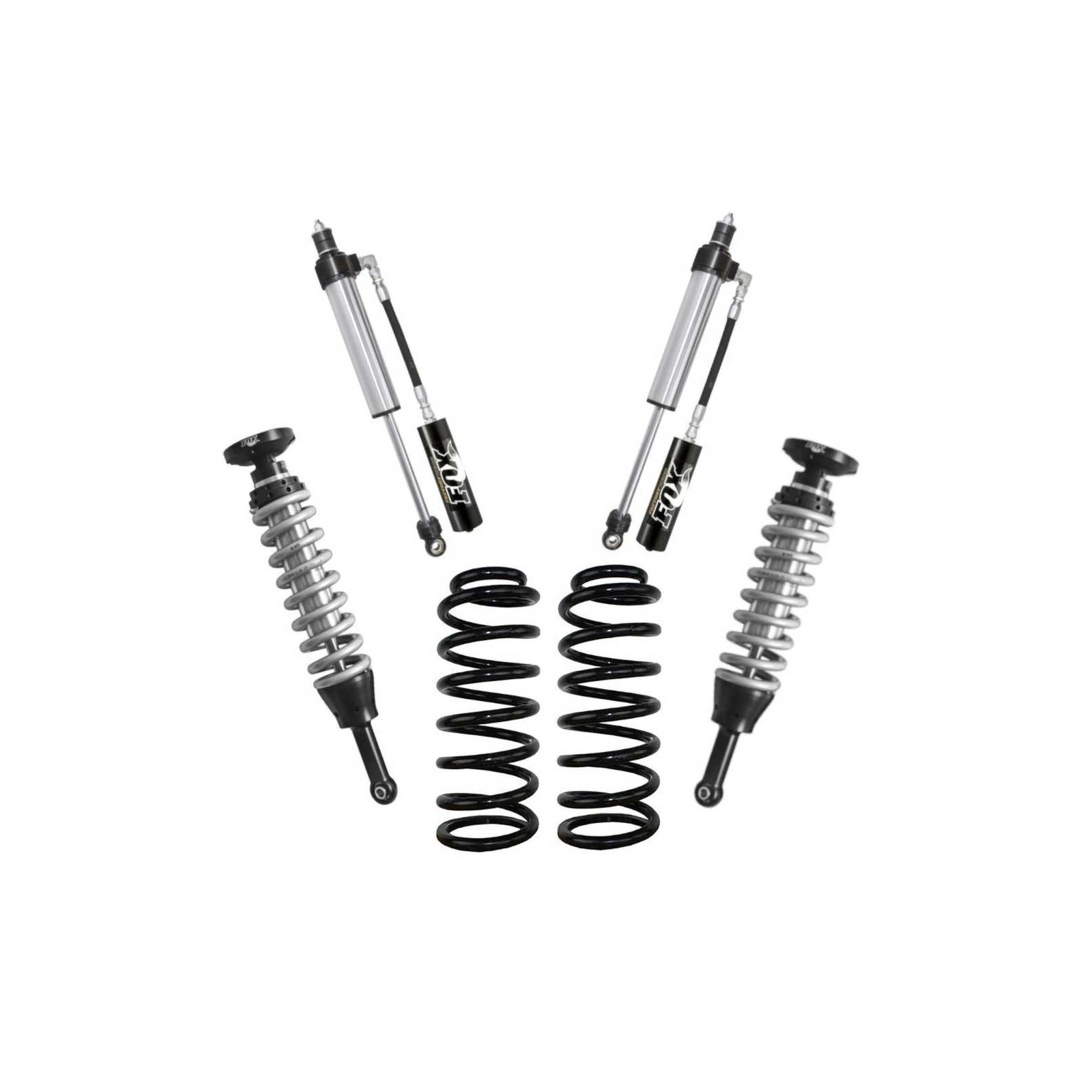

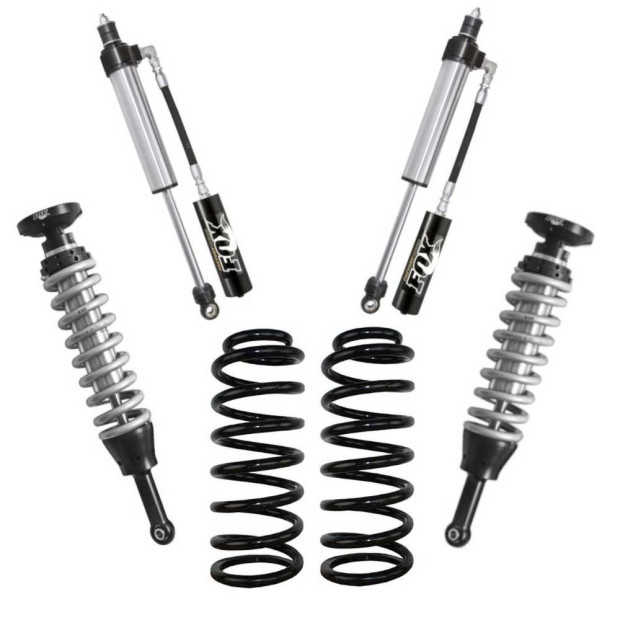

In the box:

• (2) Front Fox shock
• (2) Rear Fox shock

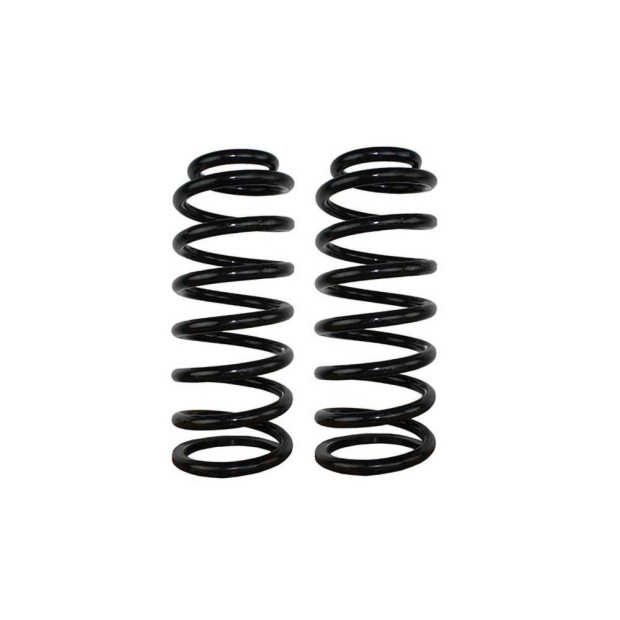

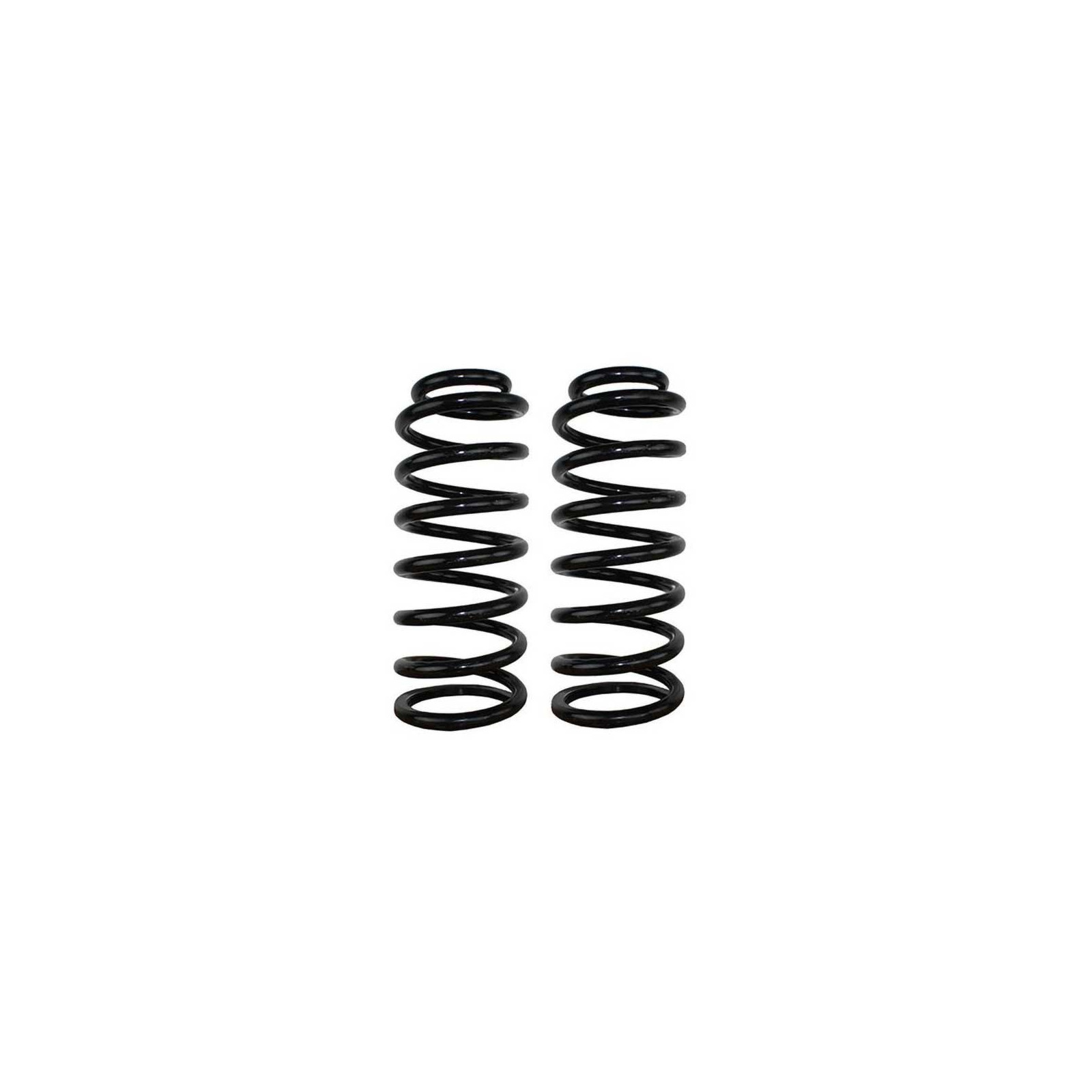

• Rear coil spring

Fitment:

• Prado 02-14 LWB (4 doors) | 3.0 Diesel | Front 0-40 kg | Rear 100kg | Lift 1,5"
• Prado 02-14 LWB (4 doors) | 3.4 Diesel | Front 0-40 kg | Rear 100kg | Lift 1,5"
• FJ Cruiser 06-14 | 4.0 V6 Petrol | Front 0-40 kg | Rear 150kg | Lift 1,5"

Notes:

• Does NOT fit KDSS models
