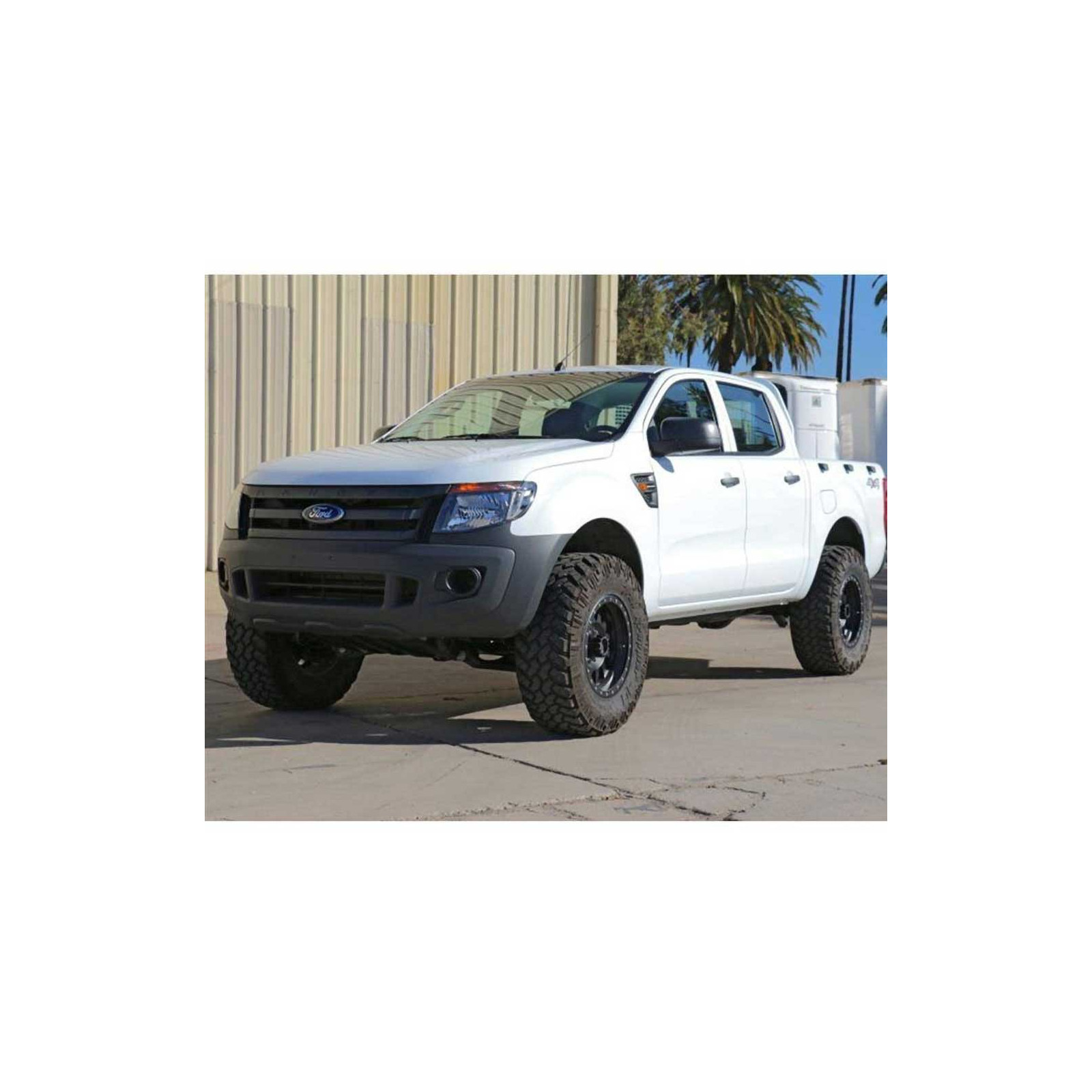

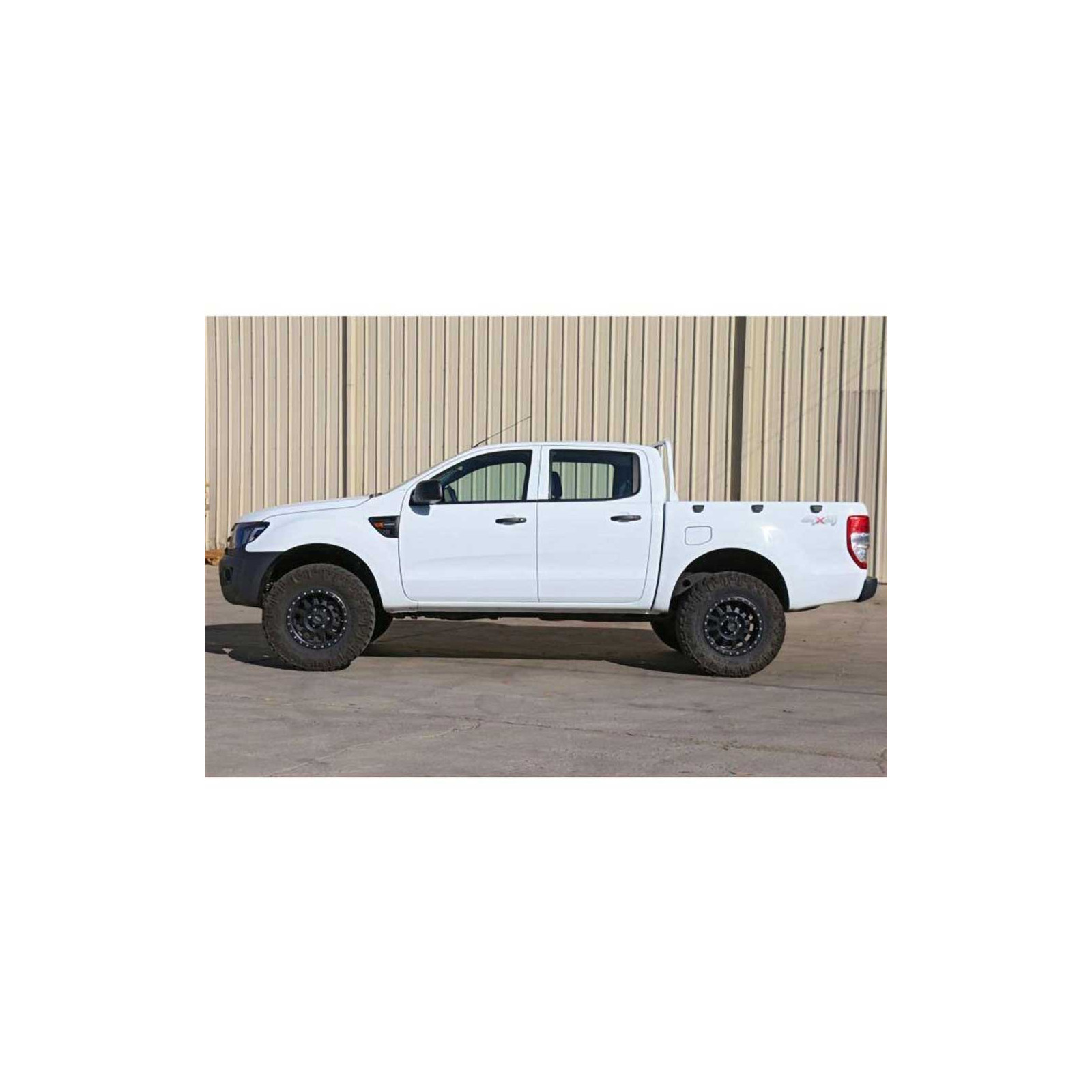

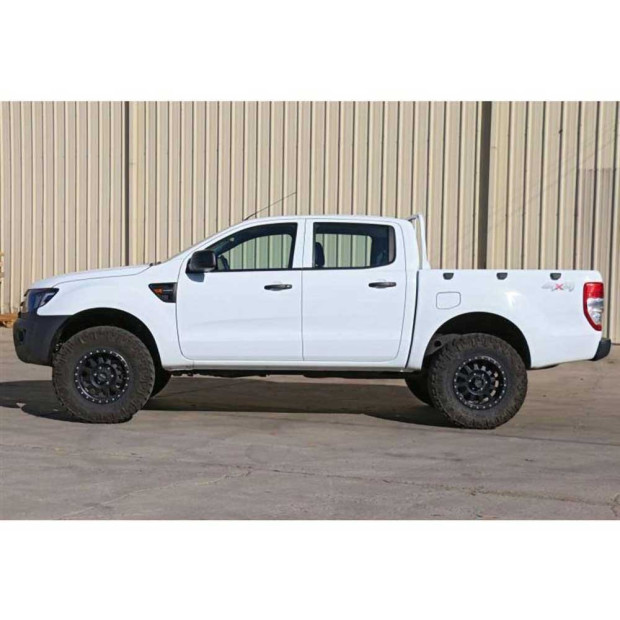

Kit suspension with shock abrosbers Factory Race 2.5 Reservoir DSC Fox +2"

• DSC - Dual Speed Compression
• Professional lift kit, designed to fit your car
• Ensures correct driving characteristics on the lift
• Adjusted to both on-road and off-road environments
• Improves the behavior of the lifted car

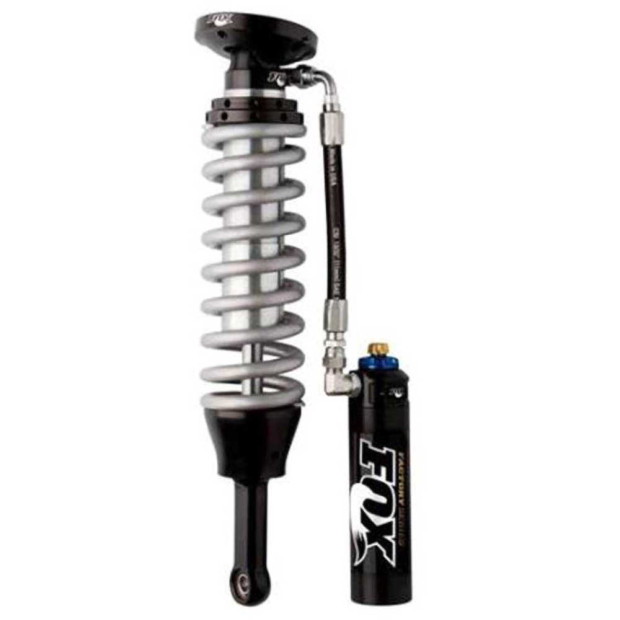

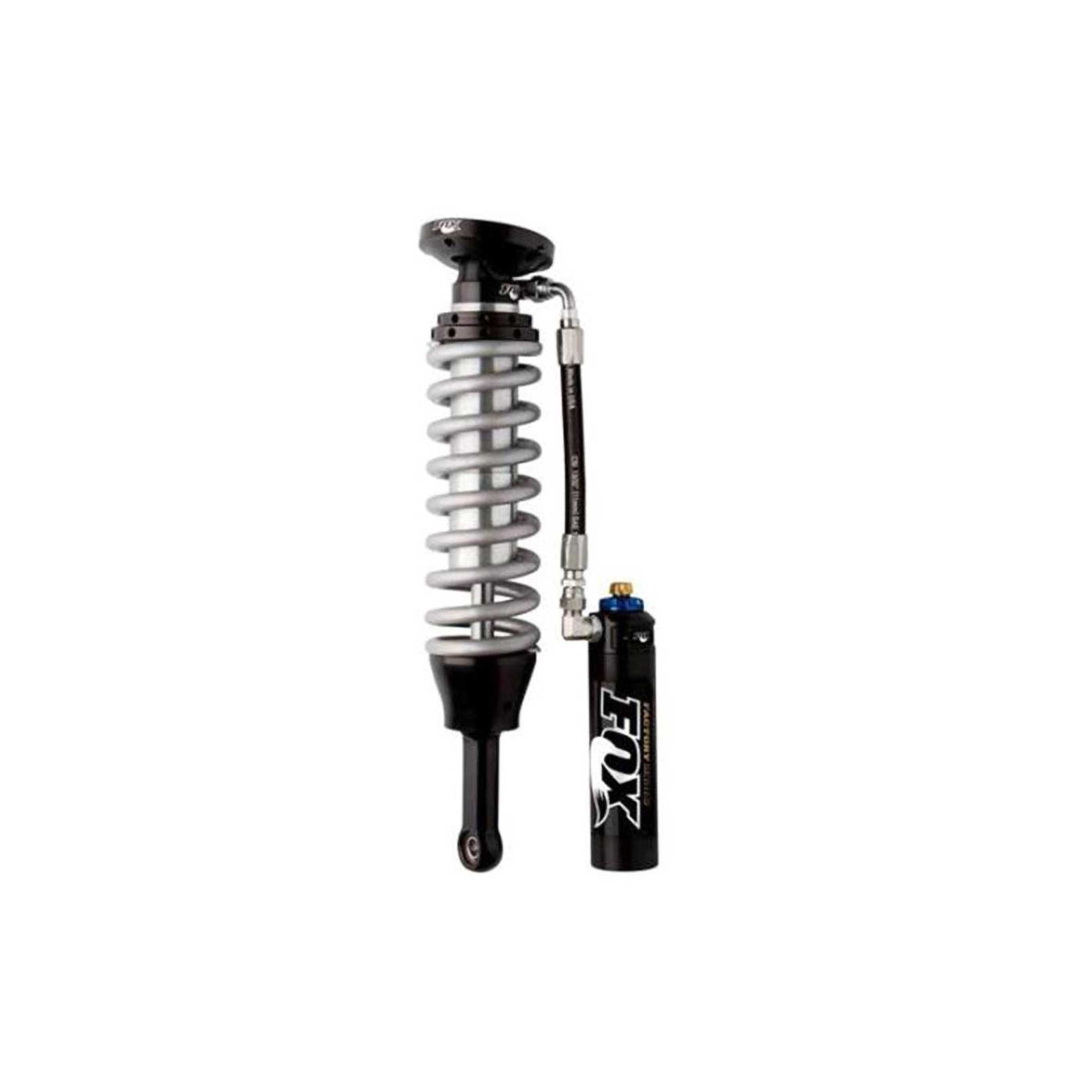

Front Coilover shock specs:

• Body: 2.5" smooth bore zinc plated seamless steel body
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: PTFE-lined, heat-treated, alloy steel spherical
• Adjuster: DSC allows 10 separate low-speed and 12 high-speed compression levels

Front shock dimensions:

• Extended: 20.70"
• Compressed: 15.60"
• Travel: 5.10"

Front shock mounts:

• Top mount: oem
• Bottom mount: eyelet

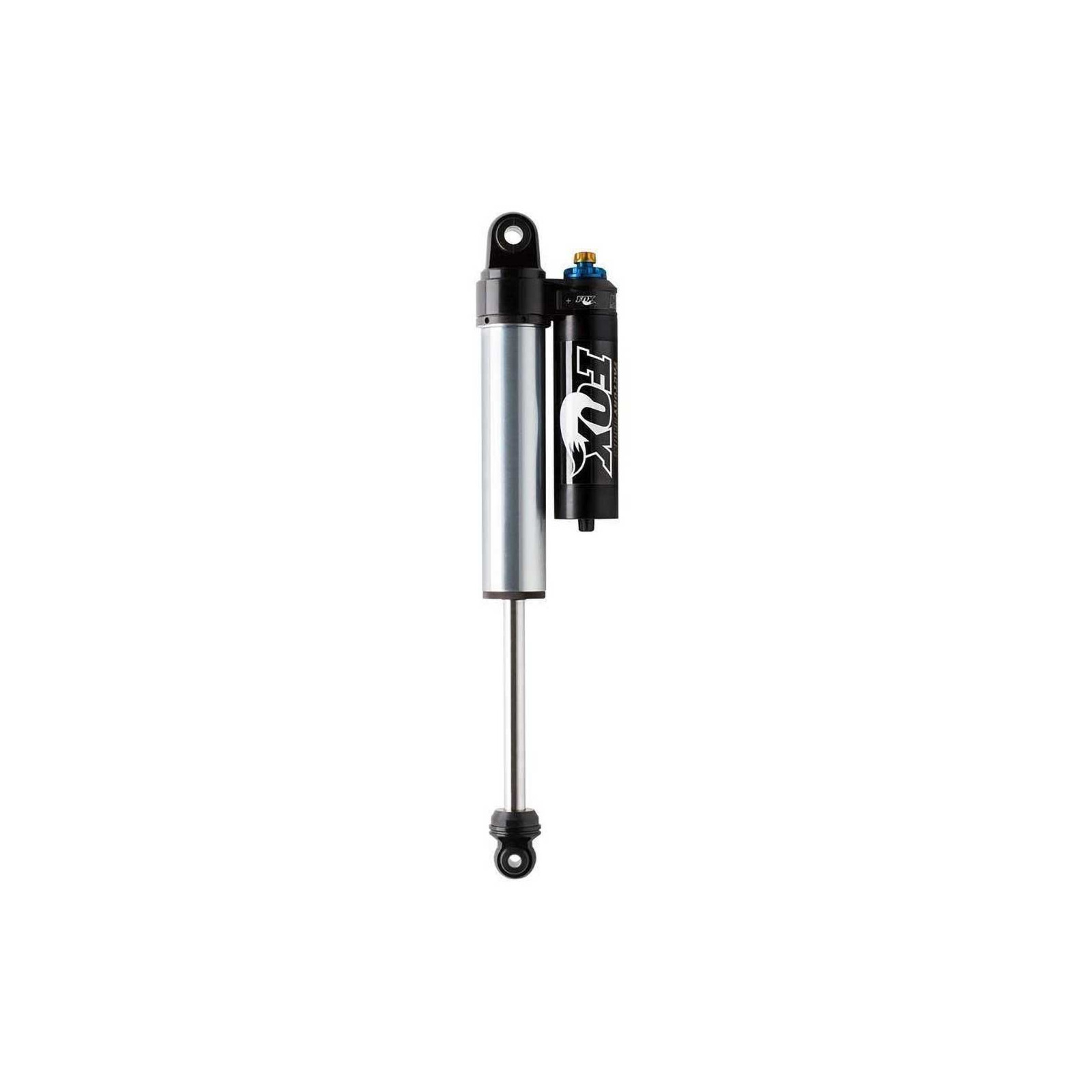

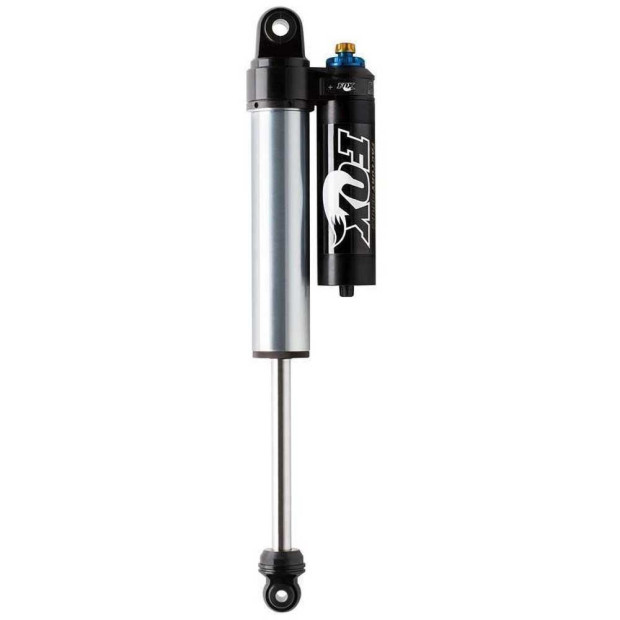

Rear shock specs:

• Body: 2.5" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Reservoir: 2,5" Smooth bore and honed seamless alloy reservoir
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Adjuster: DSC allows 10 separate low-speed and 12 high-speed compression levels

Rear shock dimensions:

• Extended: 24.66"
• Compressed: 15.70"
• Travel: 8.96"

Rear shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

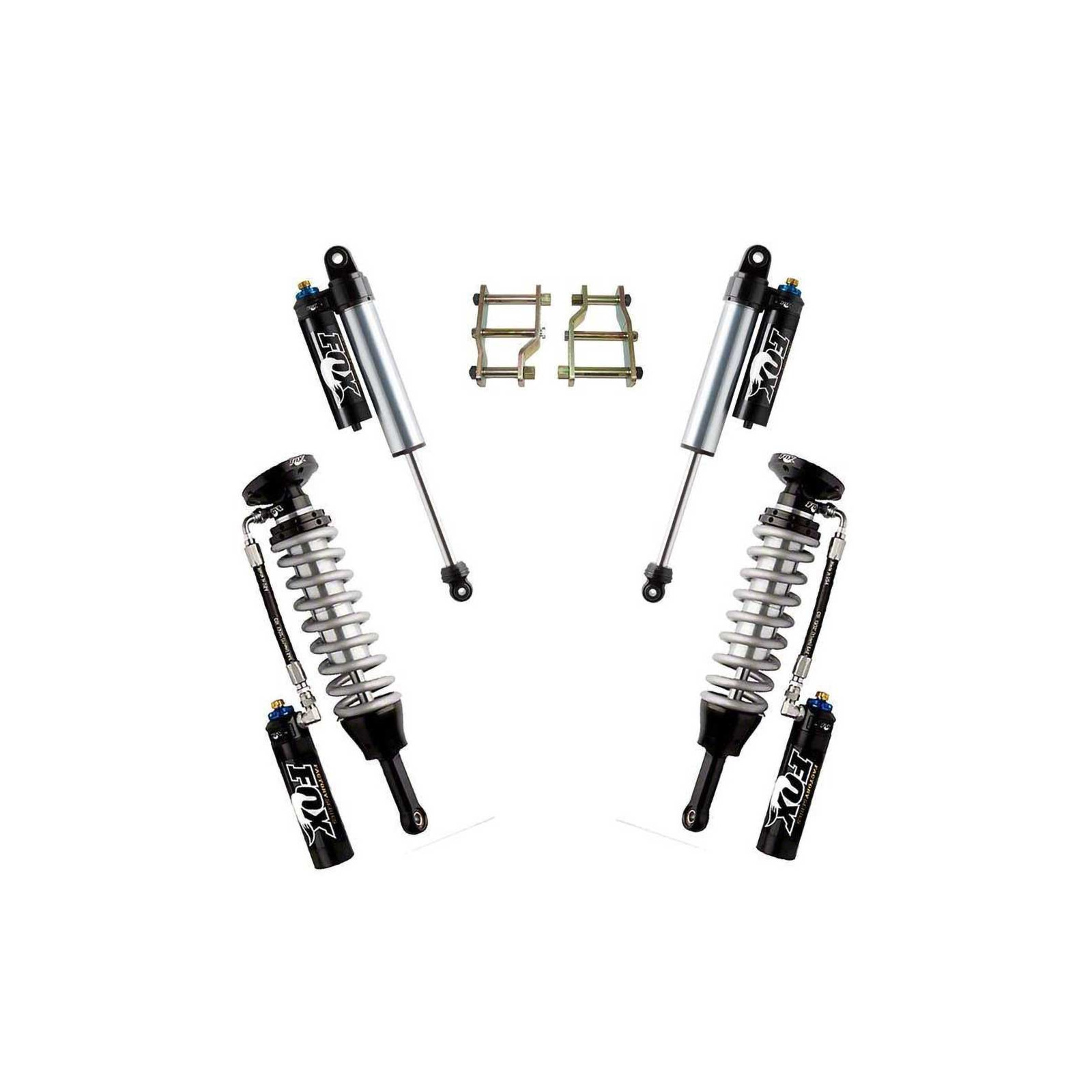

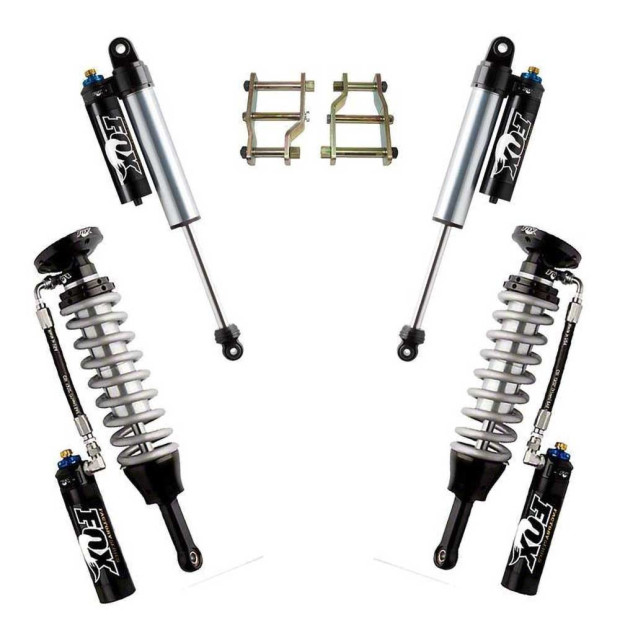

In the box:

• (2) Front Coilover shock absorbers
• (2) Rear shock absorbers

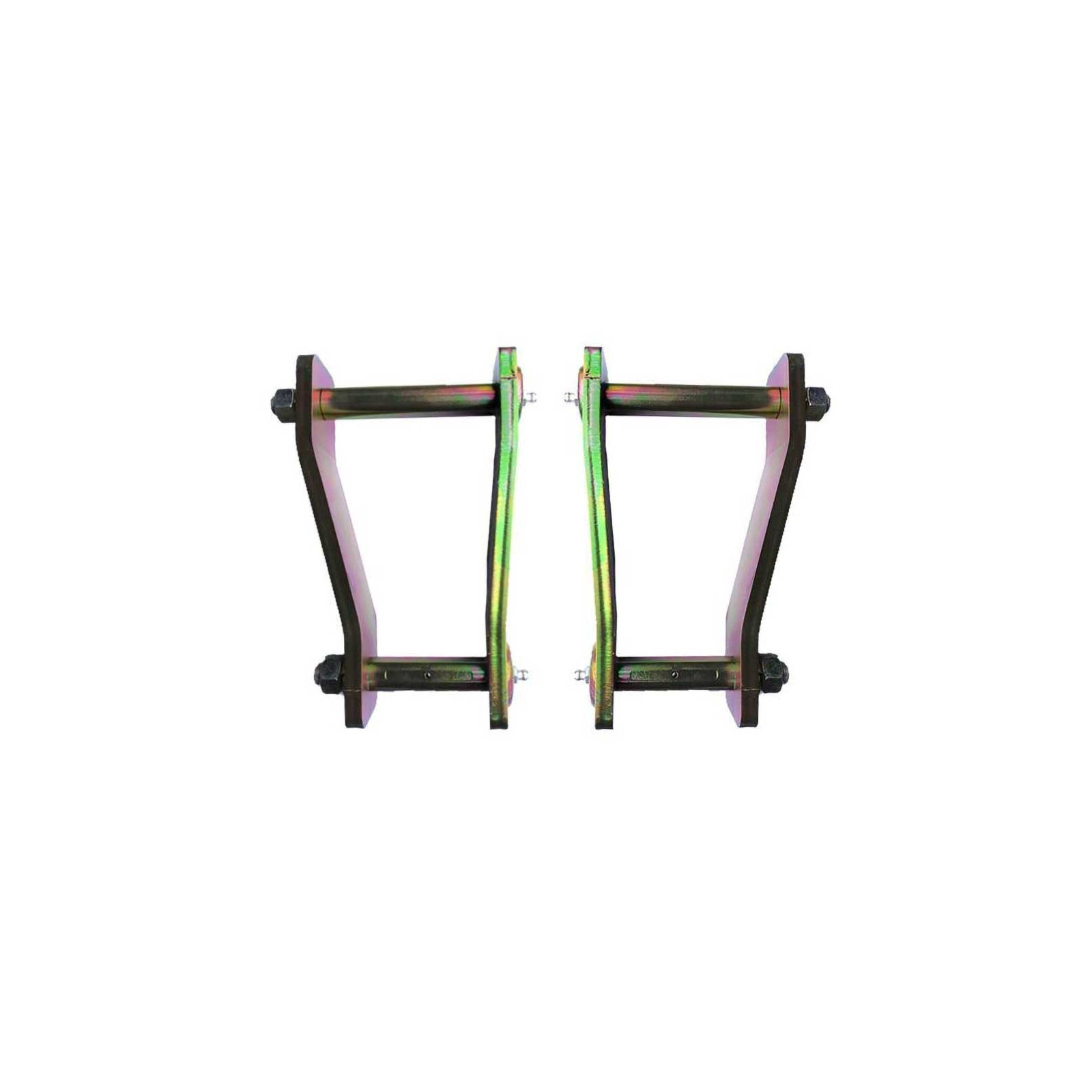

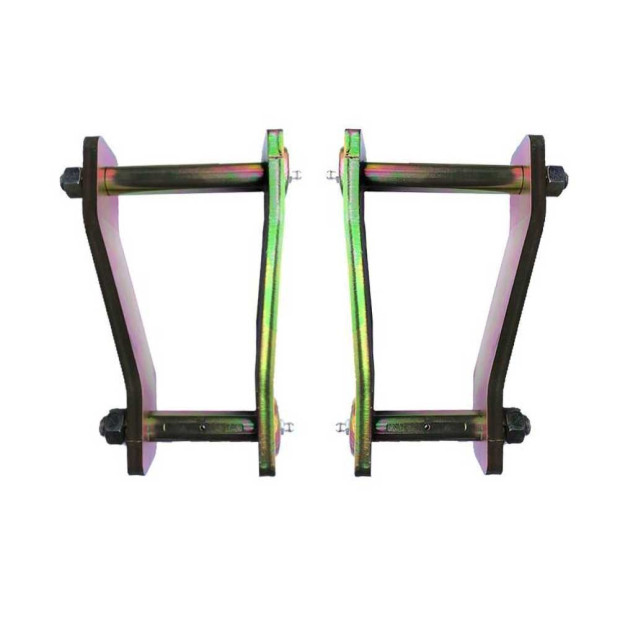

• Extended shackles

Notes:

• To eliminate vibration, the drive shaft should be lowered
