Kit suspension TeraFlex Alpine CT2 +2,5"

• Alpine's adjustable short control arms will balance wheel angles, toe-in and wheelbase for 0"-4.5" lifts
• Control arms made from 42mm x 4mm DOM tubing for maximum strength
• Mounts to factory control arm brackets
• Simple bolt-on installation - no welding required
• Front and rear progressive bump stops provide gradual compression during fast suspension movements.
• Reliable performance without worry
• Positive, responsive handling with reduced NVH
• High-quality, maintenance-free bushings provide excellent damping and ride quality
• Forged HD adjustable front tie rod improves steering response, centres the axle and reduces body roll
• Easily detachable front quick release control arms
• Full range of motion for flexibility and off-road performance

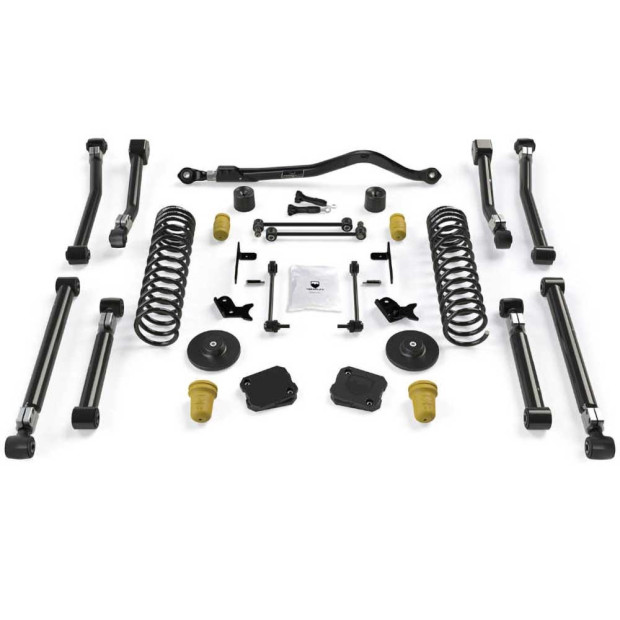

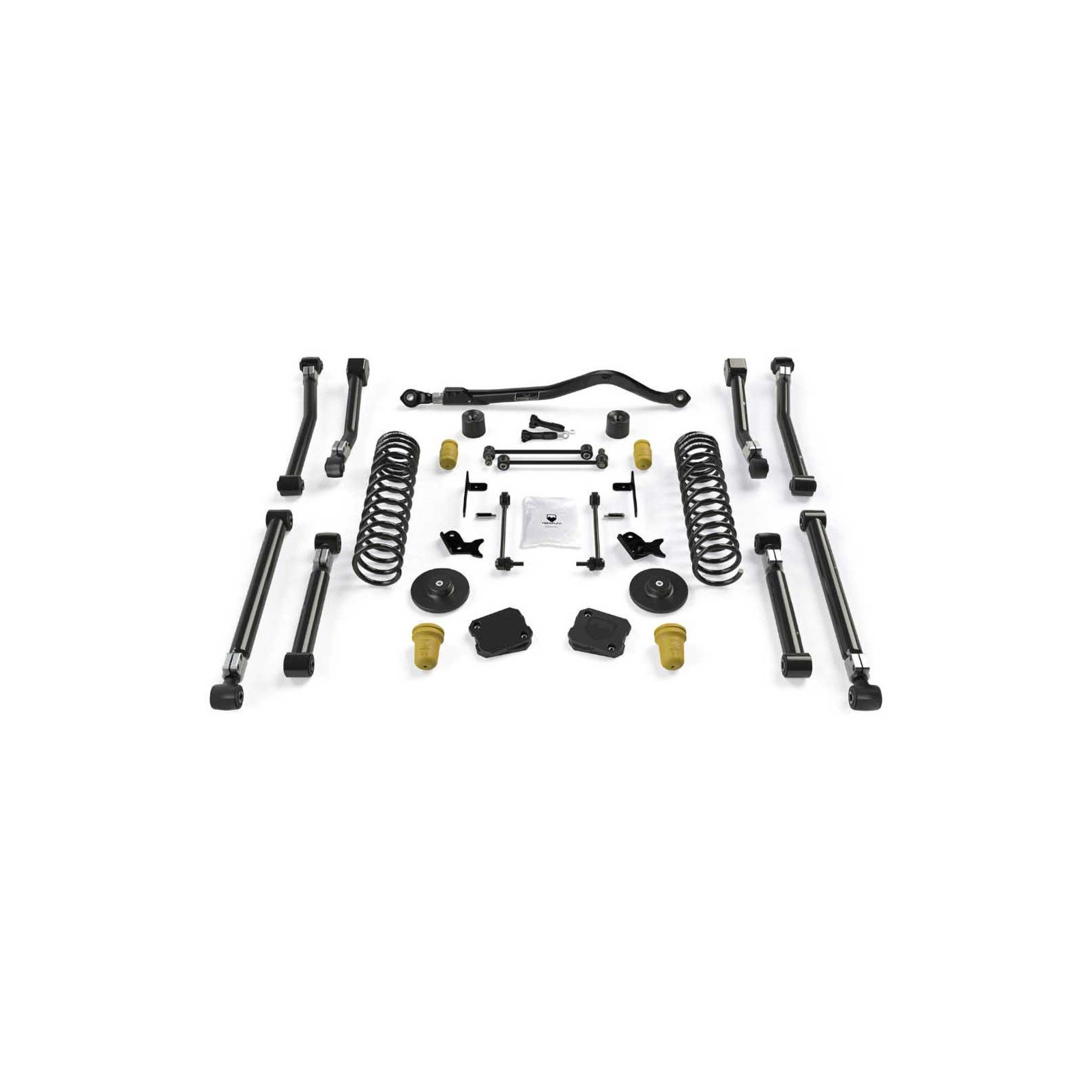

In the box:

• Front 2,5” Lift coil spring kit
• Front HD Forged adjustable track bar (0-6” Lift)
• (2) Front lower 2” bump stop strike pad extensions
• Front sway bar quick disconnect kit (0-4,5” Lift)
• Front brake line anchor kit
• (2) Rear 0,5” Lift coil spring spacers
• (2) Rear lower 0,5” bump stop strike pad shim kit
• Rear 13” sway bar link kit (2,5-4,5” Lift)
• Front & Rear progressive bump stop kit (0-4,5” Lift)
• Alpine short control arm kit 8-Arm (0-4,5” Lift)
• All necessary hardware

Notes:

• Shock absorbers (sold separately) required to be fitted
• 4.75" or smaller backspacing wheels or factory wheel spacers required (sold separately)
• Models with plastic bumpers require removal of cover to fit larger tyres
• Wheel alignment recommended after fitting
• Models with factory bumpers require bumper extensions (included)
• For diesel equipped vehicles, the lift height at the front will be 1" less, we recommend the use of TX1155100 spring washers (sold separately)
• Sport/Overland and Rubicon wings require 2" front and 1" rear Bump Stop/Strike Pad extensions/shims to fit 35" and 37" tyres respectively (included)
