Kit suspension TeraFlex with VSS 9550 Twin-Tube Shocks +3"

• Increased ground clearance
• Easy installation
• Gives aggressive look
• Max tyre diameter: 35"

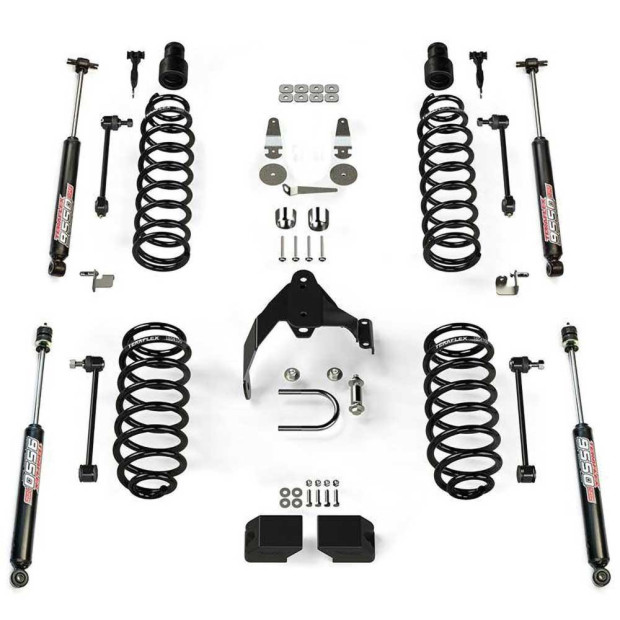

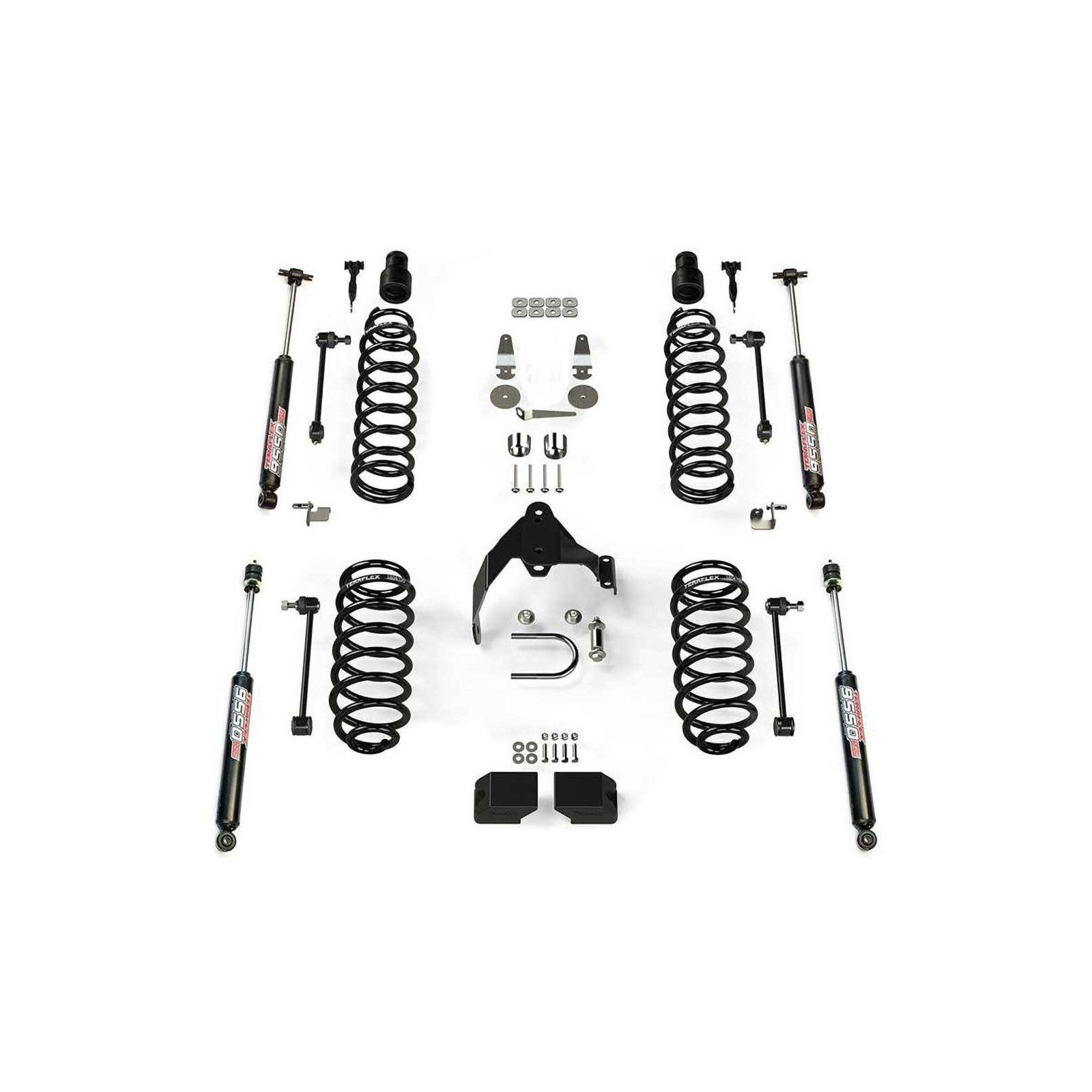

In the box:

• Front 3” lift coil springs
• Front sway bar disconnects
• Rear 3” lift coil springs
• Rear track bar bracket
• Rear sway bar links
• Bump stops
• 9550 VSS Twin-Tube Shocks
• All necessary hardware

Notes:

• Requires aftermarket wheels w/ 4,5” backspacing or less – or Offset Wheel Adapters for stock wheels (sold separately)
• 2012-2018 JK/JKU models require Exhaust Spacers TX2610000 or other exhaust modification for proper driveshaft clearance (sold separately)
• Driveshaft modifications are recommended with this suspension system, see the TeraFlex Rzeppa high angle CV kit TX1744014 (sold separately)
• 2007-2011 JK/JKU models will require extended length front brake lines TX4353300 (sold separately)
• Requires 2,5-4” Adjustable Alpine Flexarms TX1415610 or 3-6” Adjustable Alpine Long Flexarms TX1315010 and HD Forged Adjustable Front Track Bar TX1753418 to set correct suspension geometry including caster angle, pinion angle, roll center, & load tuning during re-alignment after installation (sold separately). Proper suspension geometry ensures all stability controls function within factory parameters
• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards in order to fit 35” tyres
