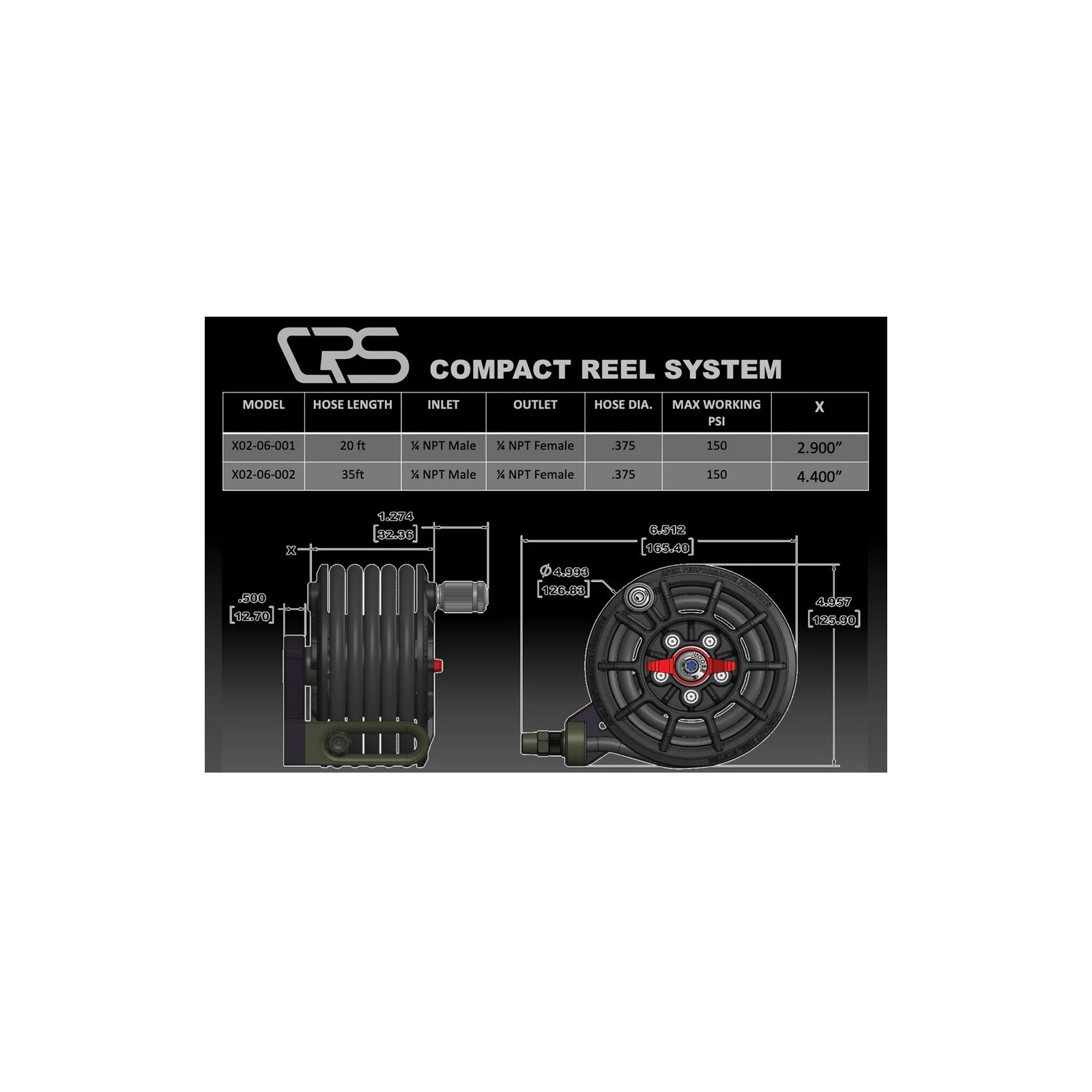

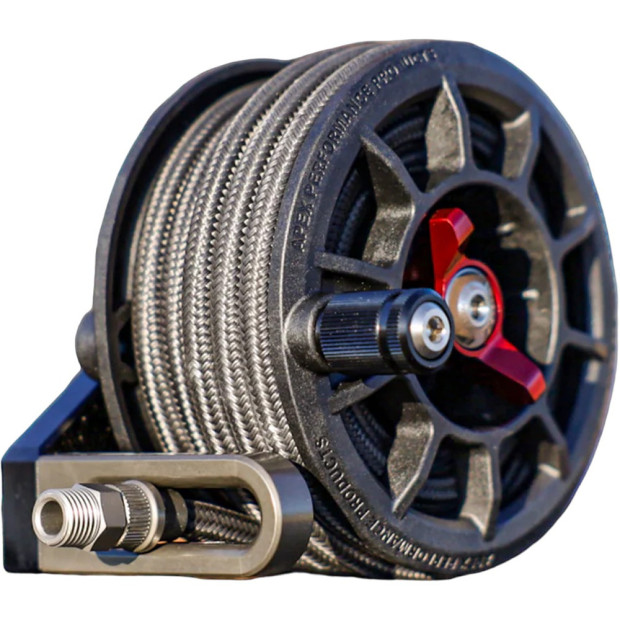

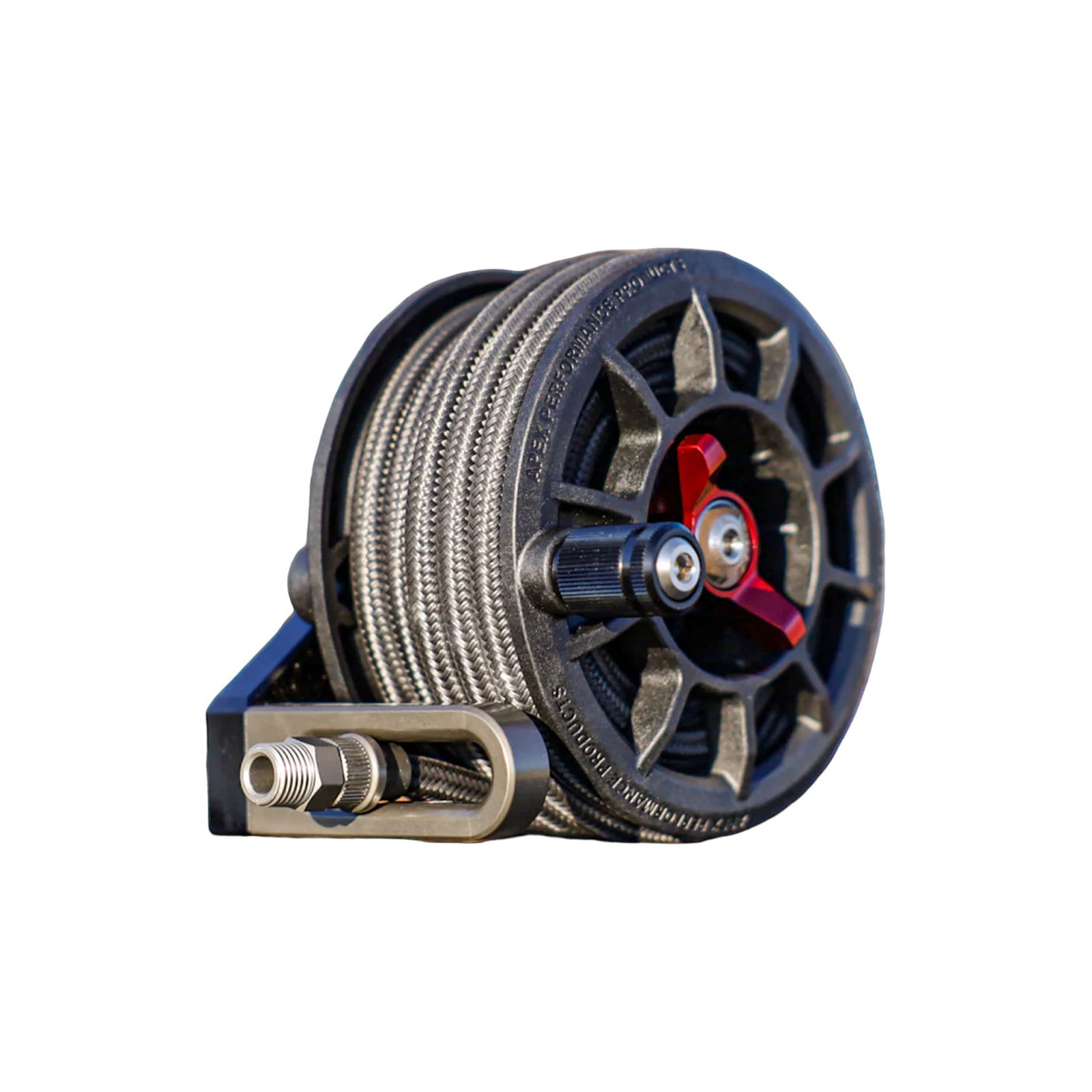

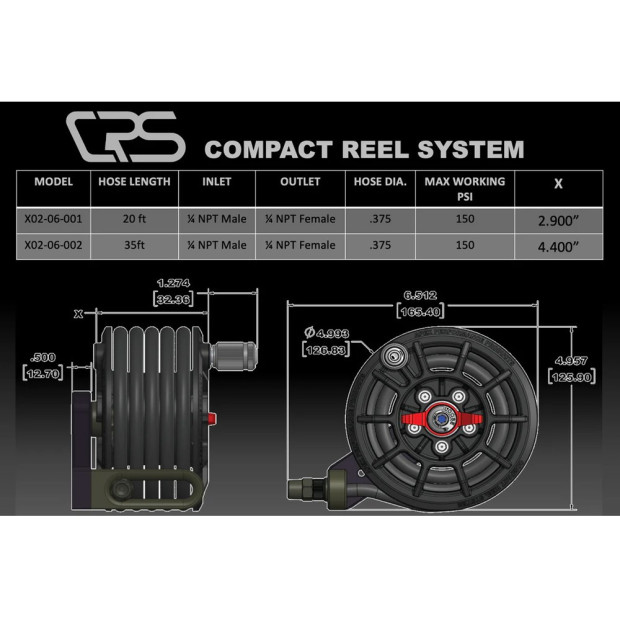

Compact Reel System Apex 6 meters

• High-impact DuPont glass-filled nylon 66 reel guide
• Highly resistant to UV exposure and chemicals
• 6061-T6 aluminum body with wear-resistant, fade-free hard anodized finish
• Hose diameter 0.95 cm / 0.375"
• Maximum pressure 10 bar / 150 PSI
• Viton seals for high-temperature and chemical resistance
• Nitrile hose with nylon overbraid for flexibility, abrasion resistance, and high burst pressure at 93 °C / 200 °F

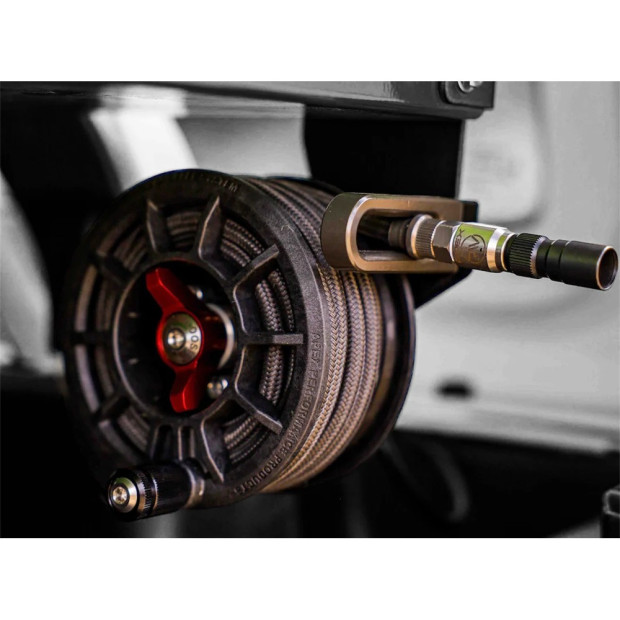

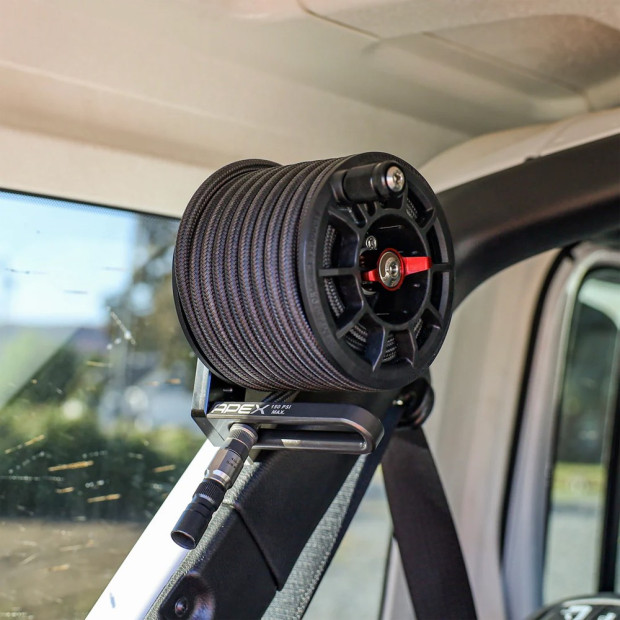

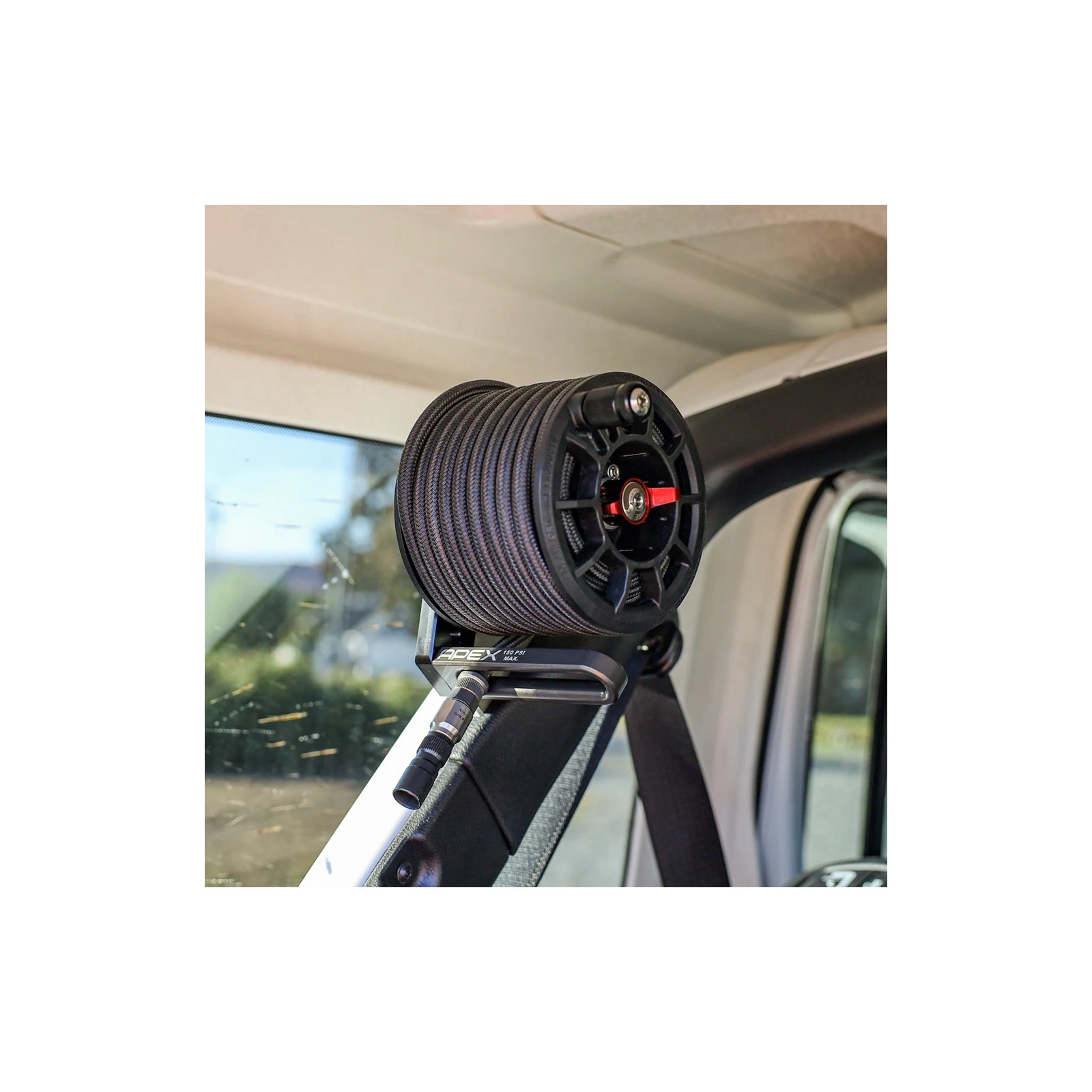

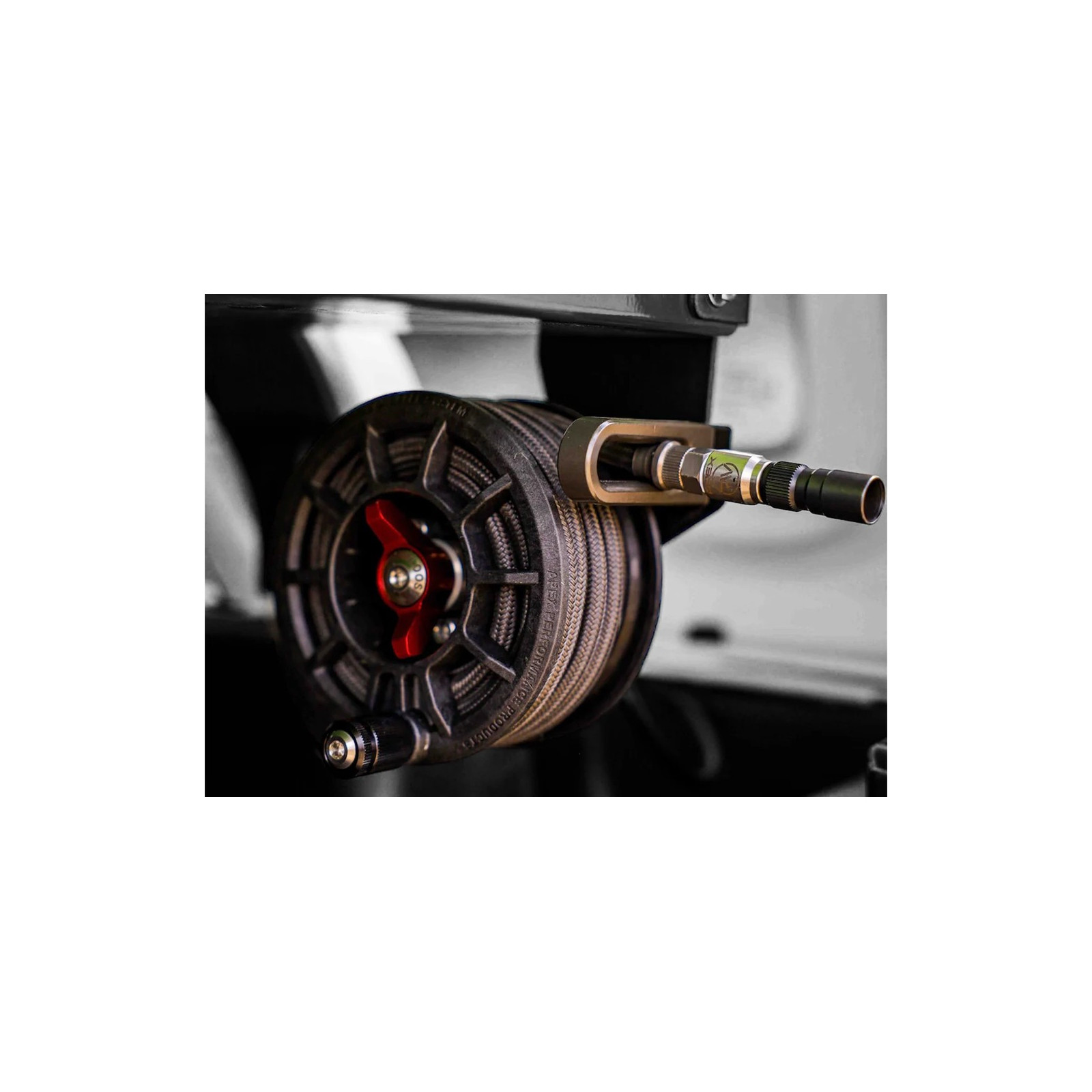

• Compact and universal mounting options
• Rattle-free operation
• Greased and sealed aluminum knob for smooth function
• Rebuildable design – hose can be cut and repaired in the field with a knife
• Flow-matched for high-flow Apex valves, providing minimal back pressure with onboard air systems

Notes:

• Mounting brackets and chucks are sold separately
• Do not disassemble the hose reel, as this may cause damage
