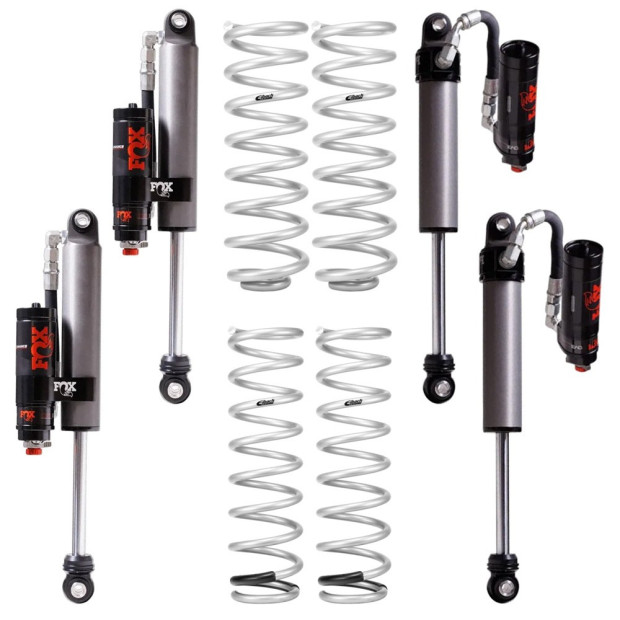

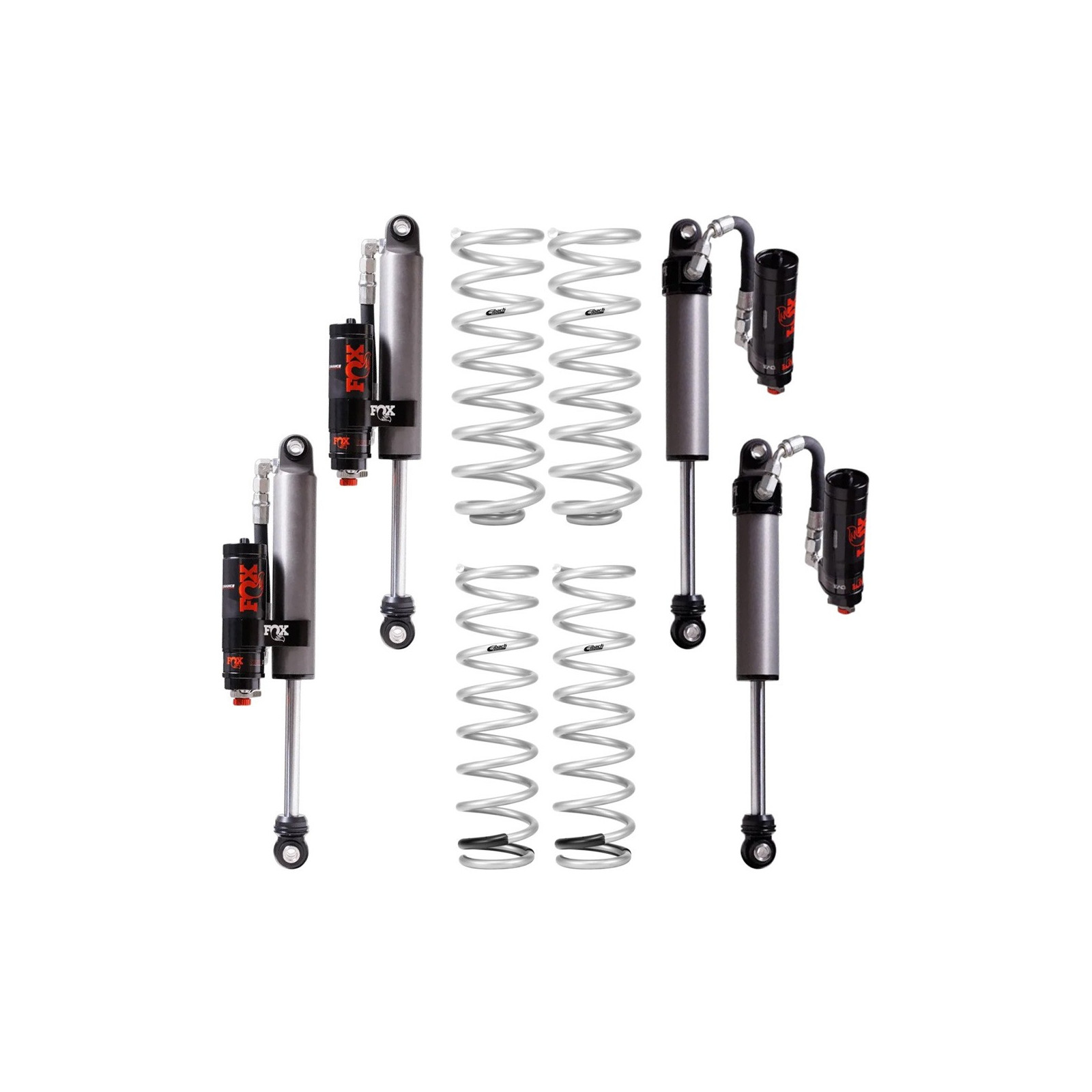

Suspension kit FOX Performance Elite 2.5 Reservoir Adjustable DSC EVO + Eibach springs Lift 2,5" / 1,2"

• Nitro shocks FOX Performance Elite 2.5 DSC EVO
  • DSC EVO - Dual Speed Compression with Variable Valve Control
  • 2,5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Hard-anodized for a durable finish
  •  Black-anodized, CNC-machined 6061-T6 billet aluminum
  • 7/8" hard chrome plated heat-treated alloy steel
  • Race-developed high-flow piston design
  • Redundant sealing pack system main seal, wiper seal, and scraper seal
  • PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
• Coil springs set Eibach Lift 2,5" / 1,2":
  • Lift front: 2,5"
  • Lift rear: 1,2"
  • Provides increased ground clearance for off-road adventures
  • Allows more fender clearance for larger wheels and tires
  • Precision-engineered for enhanced off-road capability
  • Maintains excellent stability and handling
  • Built with race technology

Dimensions:

• Front:
  • Extended: 23,22"
  • Compressed: 14,84"
  • Travel: 8,38"
• Rear:
  • Extended: 23,48"
  • Compressed: 14,90"
  • Travel: 8,58"

Mounts:

• Front:
  • Top mount: eyelet
  • Bottom mount: eyelet
• Rear:
  • Top mount: eyelet
  • Bottom mount: eyelet

In the box:

• (2) Front nitro shock FOX Performance 2.0 IFP Reservoir
• (2) Rear nitro shock FOX Performance 2.0 IFP Reservoir
• (2) Front Eibach spring
• (2) Rear Eibach spring

Notes:

• Includes reservoir mounting
• Fits both petrol and diesel engine models
• Tested with factory dampers
• Damage could occure to factory driveshaft with change of ride height. Check manual for proper installation
