Suspension kit FOX Performance 2.0 IFP Lift 2"

• Front nitro Coilover FOX Performance 2.0 IFP Lift 0-2":
  • Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • Body Plating: Clear-anodized for a durable finish
  • Internal IFP mono-tube design
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bearing: Large diameter, heavy-duty spherical
  • Adjustments: Ride height preload ring
• Rear nitro shock FOX Performance 2.0 IFP Lift 0-1,5":
  • 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • Clear-anodized for a durable finish
  • Internal IFP mono-tube design
  • Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel
  • Race-developed high-flow piston design
  • Application specific valving to maximize performance
  • Redundant sealing pack system main seal, wiper seal, scraper seal
  • JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Professional lift kit, designed to fit your car
• Ensures correct driving characteristics on the lift
• Adjusted to both on-road and off-road environments
• Improves the behavior of the lifted car
• Includes bushings and sleeves for easy install

Dimensions:

• Front:
  • Extended: 15.69"
  • Compressed: 11.50"
  • Travel: 4.19"
• Rear:
  • Extended: 23.72"
  • Compressed: 15.10"
  • Travel: 8.62"

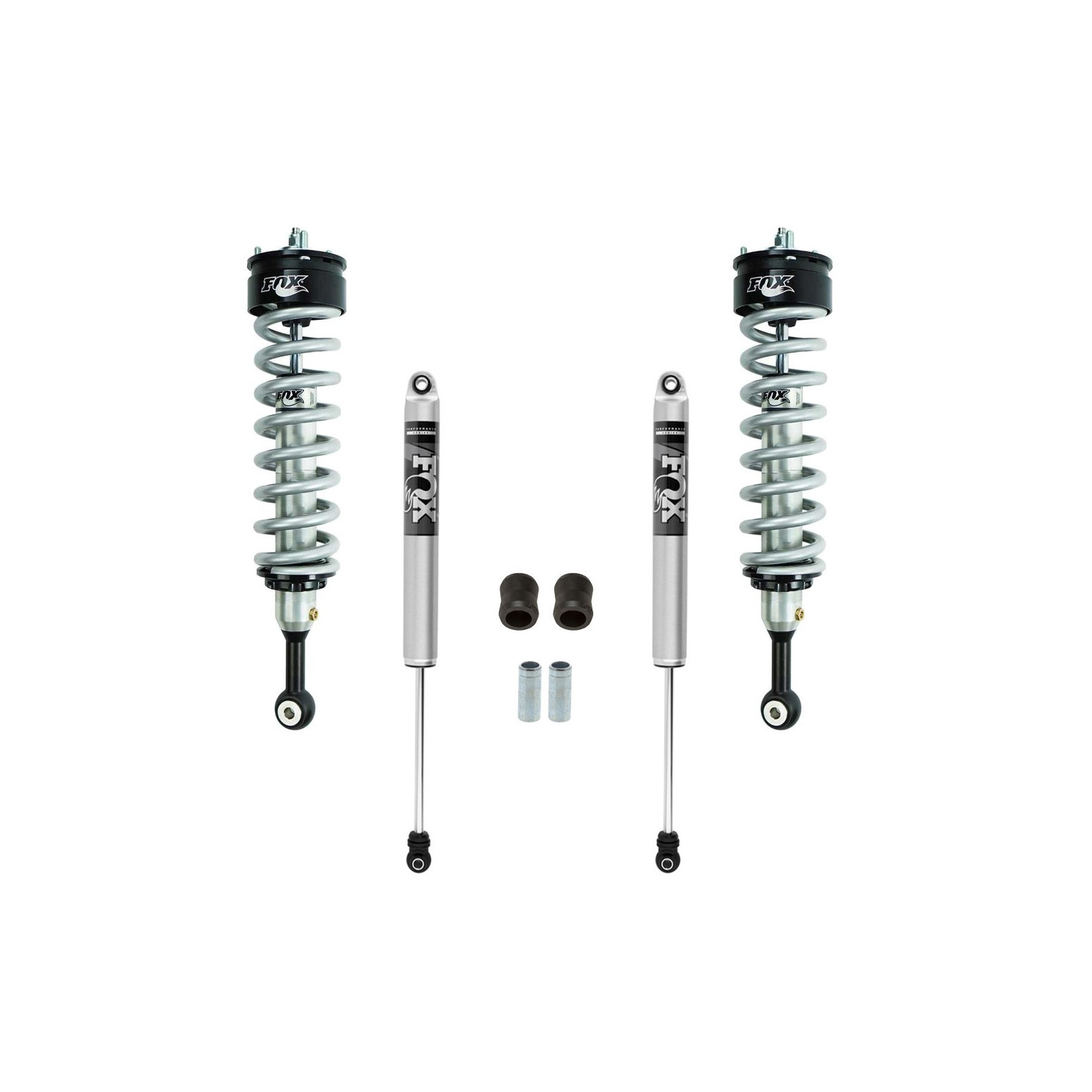

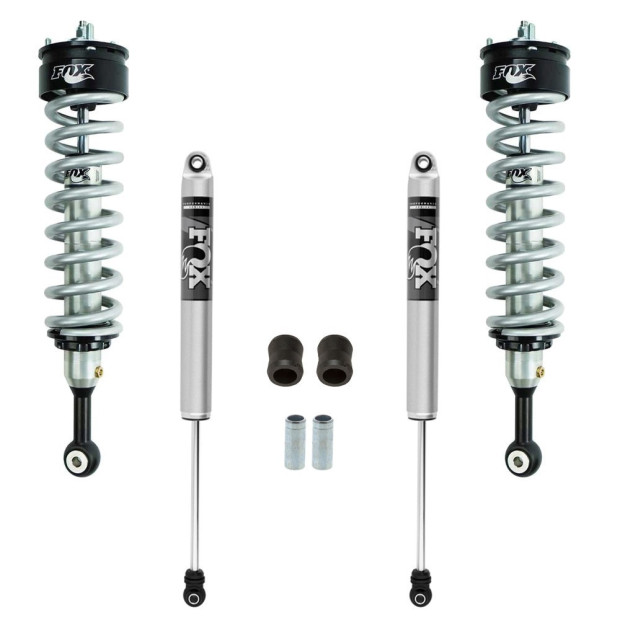

In the box:

• (2) Front Coilover FOX Performance 2.0 IFP
• (2) Rear nitro shock FOX Performance 2.0 IFP Lift
• (2) FOX Bushing Eyelet
• (2) FOX Sleeve

Notes:

• Rear shock absorbers require:
  • pressing the shock absorber sleeve into the mounting on the piston rod side - FOX213-27-003-B
  • replacing the sleeve on the shock absorber body side with - FOX014-11-003-A
• Lift is intended for installation in a professional workshop due to the required modifications to the shock absorbers
