Base kit Air Ride Revel Performance Lift 2,5"

• Lift height up to 2,5"

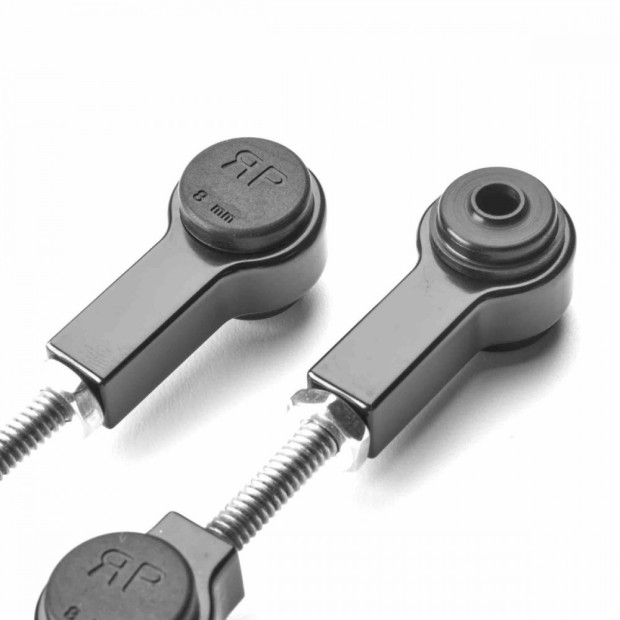

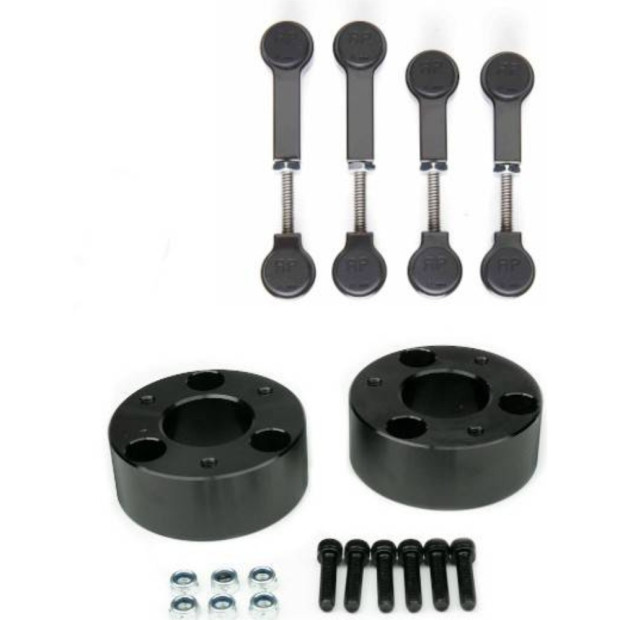

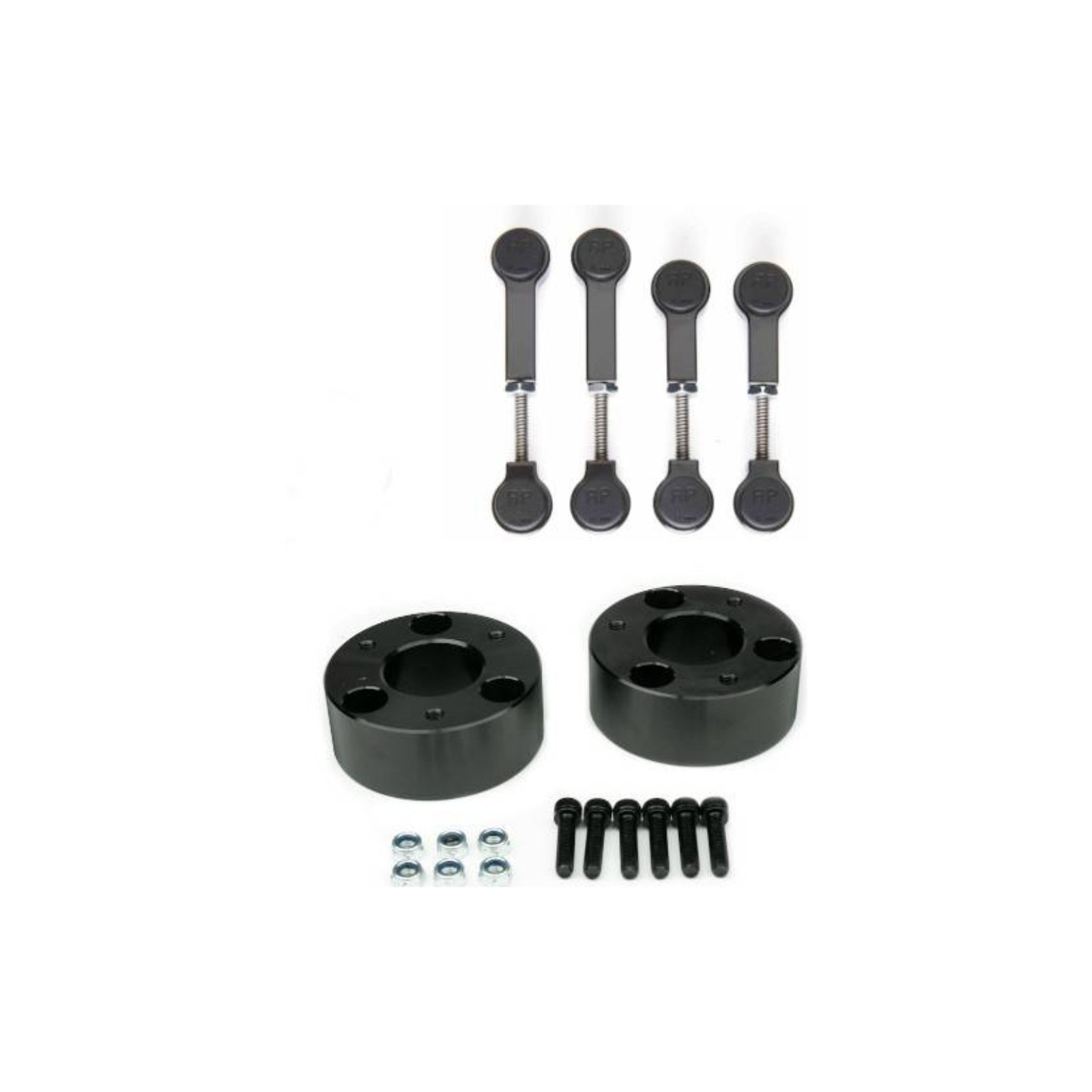

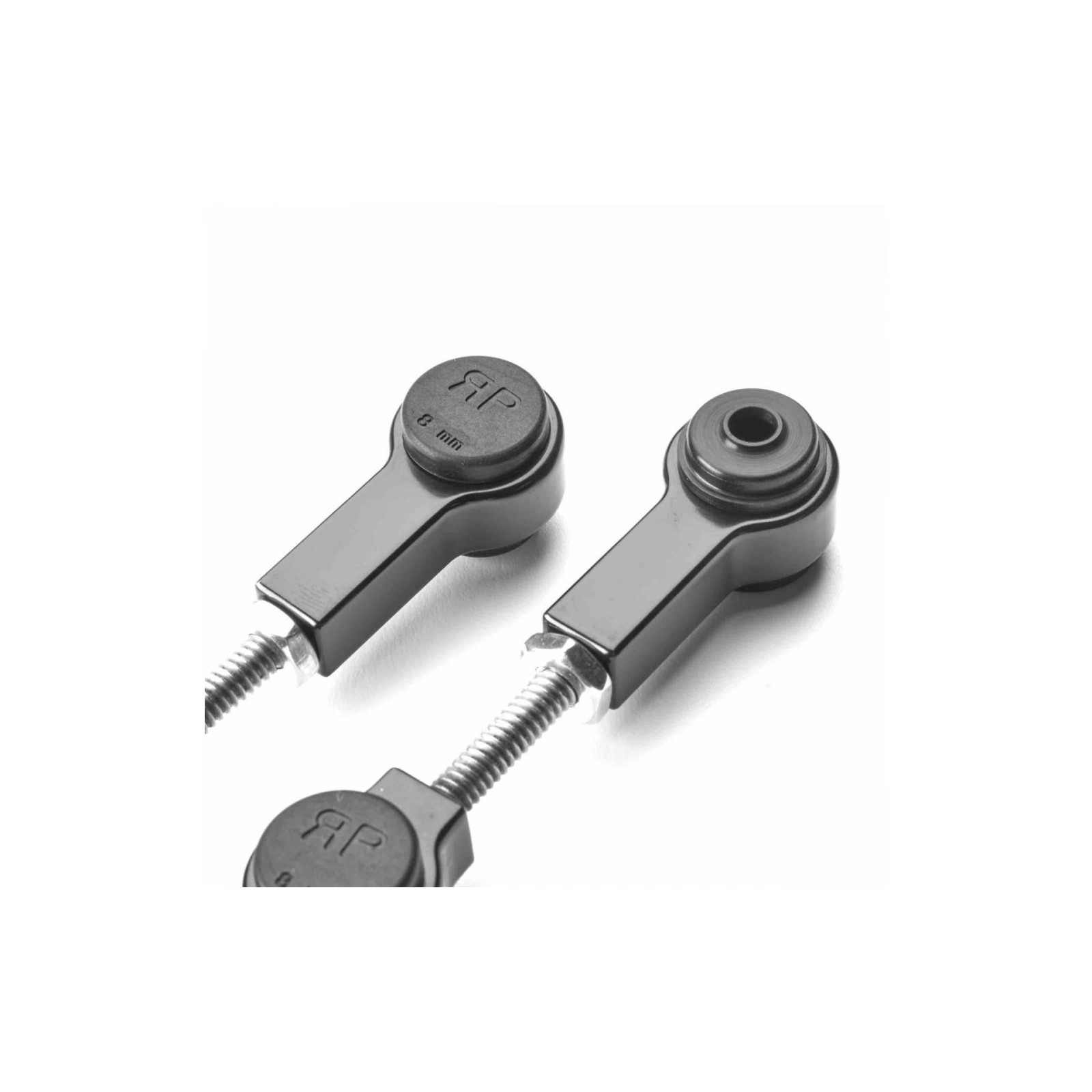

• Includes billet aluminum Revel Links with rubber couplers and front/rear adjustable fit
• Spacer engineered from high-density polyurethane or aluminum for durability
• No change to ride quality or load-carrying capacity
• Quick installation in 1–2 hours with basic tools

Notes:

• Fits only to models with Air Ride suspension
• The links are not pre-set:
  • Front links should be set so that they are slightly shorter than the original ones
  • Rear links should be set so that they are slightly longer than the original ones
• Shorter links from the set should be installed at the front of the vehicle, while longer ones should be installed at the rear.
• Maintains all Pre-Programmed ride heights on dash panel
• Fully Functional in areo mode
• Enables clearance for 35 12.50 R20 tires on factory 20-inch wheels (offset dependent)
• Retains all air ride functions (Aero, Entry/Exit, Normal, OR1, OR2) in Basic Package models only
• Lifting above 2.5” with Revel Links may result in a payload warning and restrict the use of the higher off road dash settings. An alignment may be required to maximize performance of the links while using OR2 as your normal ride height
• Revel Links trigger a change in voltage within Ram truck's factory air suspension system. When the length of links is shortened on the front and lengthened on the rear, the truck's onboard computer registers a ride height below factory settings and compensates by generating an additional 2.5" of lift. Sounds complicated, but it's actually really simple
• For Rebel Trucks or trucks with the factory off road package rear links may not be required and can be used for fine adjustments if needed
