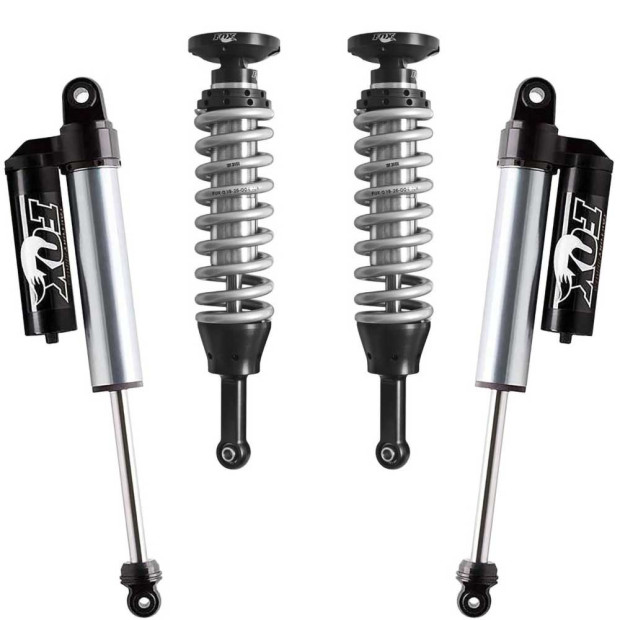

Shock absorbers kit Fox Factory Race 2.5 Lift 0-2"

• Better driving on- and off-road
• Adapted for roughest conditions
• Inspired by off-road motorsports
• Adds sporty touch

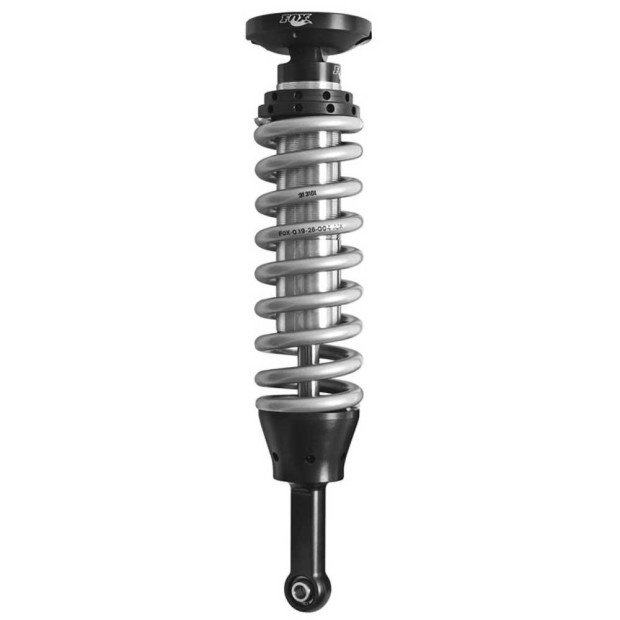

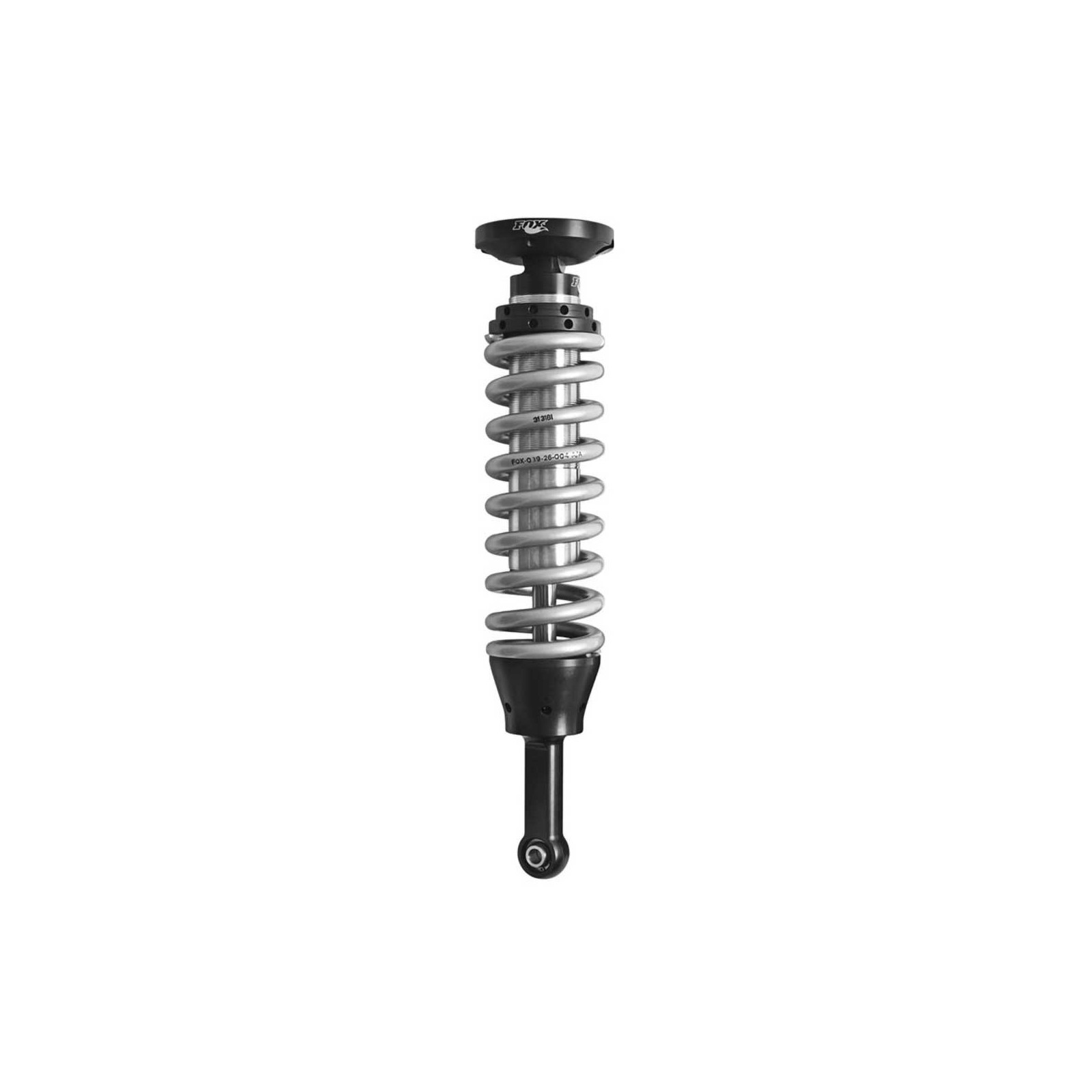

Front Coilover shock specs:

• Body: 2.5" smooth bore zinc plated seamless steel body
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hardened NitroSteel® Steel carbon shafts
• Piston: 6061-T6 hard-anodized, high flow aluminum piston
• Valving: Application specific valving to maximize performance
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: PTFE-lined, heat-treated, alloy steel spherical
• Adjuster: Ride height preload ring

Front shock dimensions:

• Extended: 22.59"
• Compressed: 18.04"
• Travel: 4.55"

Front shock mounts:

• Top mount: oem
• Bottom mount: eyelet

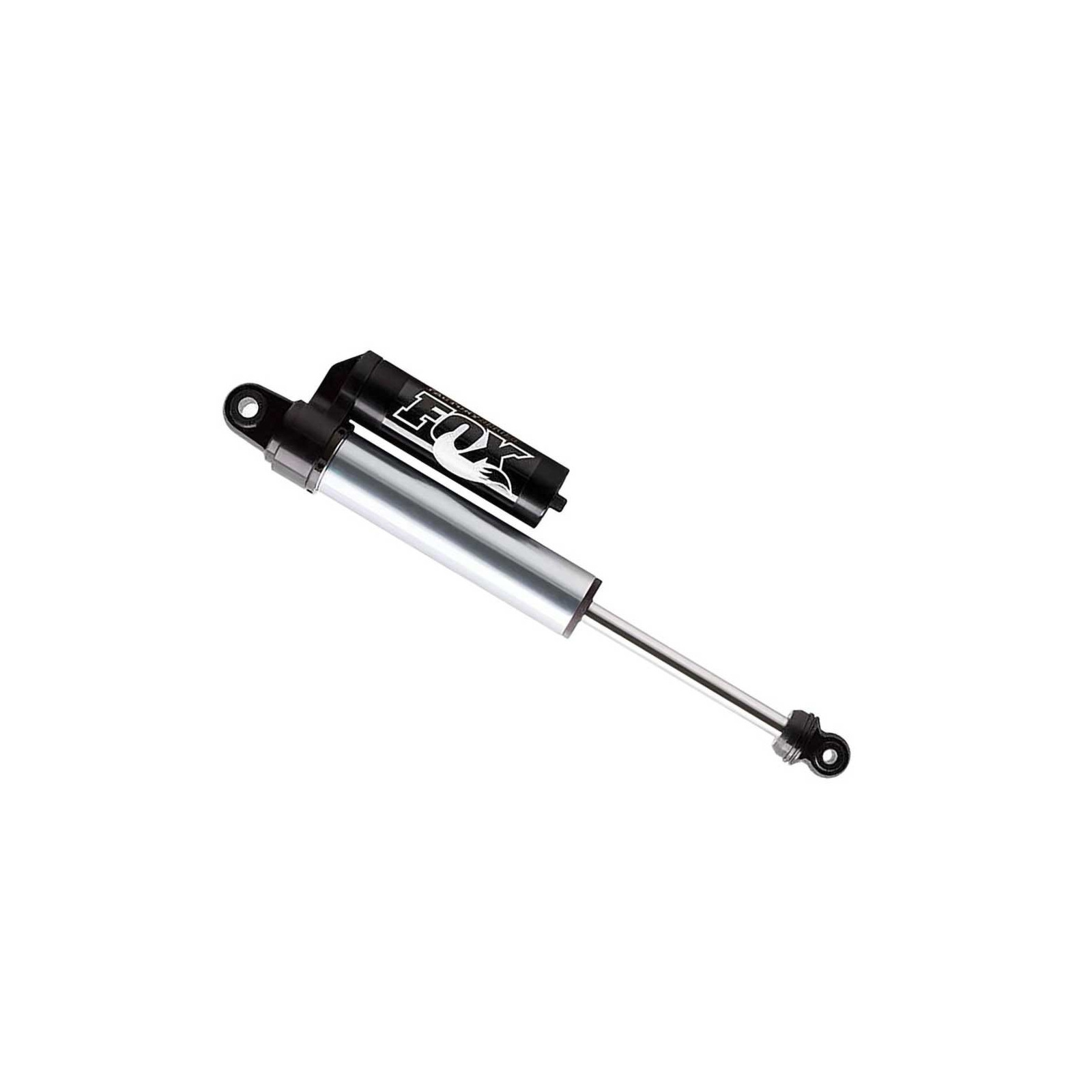

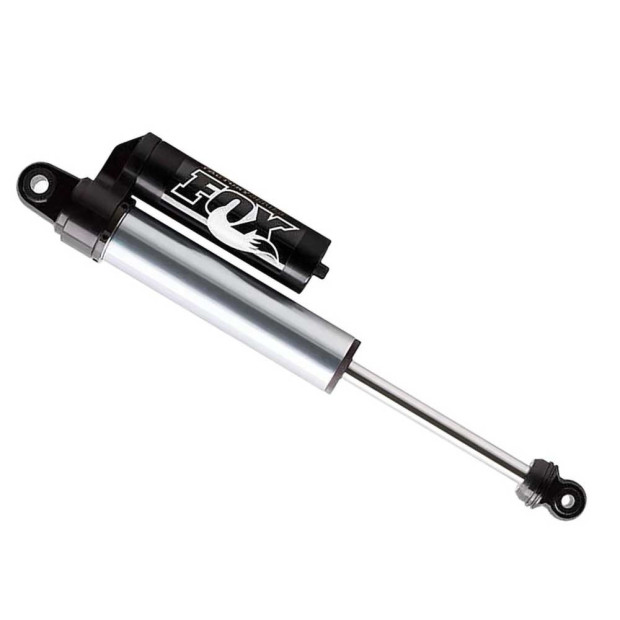

Rear shock specs:

• Body: 2.5" smooth bore zinc plated seamless steel body
• Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: PTFE-lined, heat-treated, alloy steel spherical

Rear shock dimensions:

• Extended: 23.95"
• Compressed: 15.19"
• Travel: 8.76"

Rear shock mounts:

• Top mount: stem
• Bottom mount: eyelet

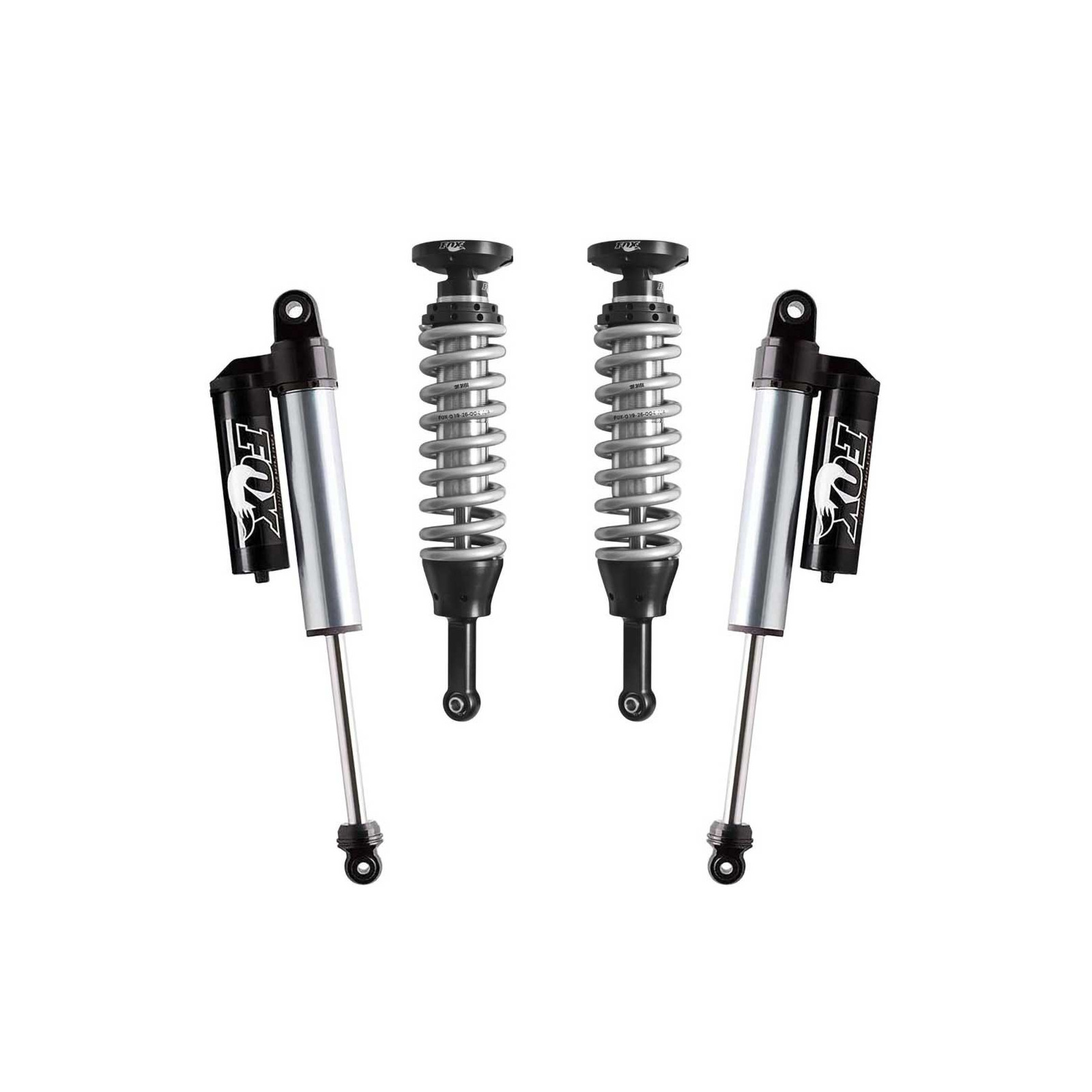

In the box:

• (2) Front Coilover Factory Race 2.5 shocks
• (2) Rear Factory Race 2.5 shocks
