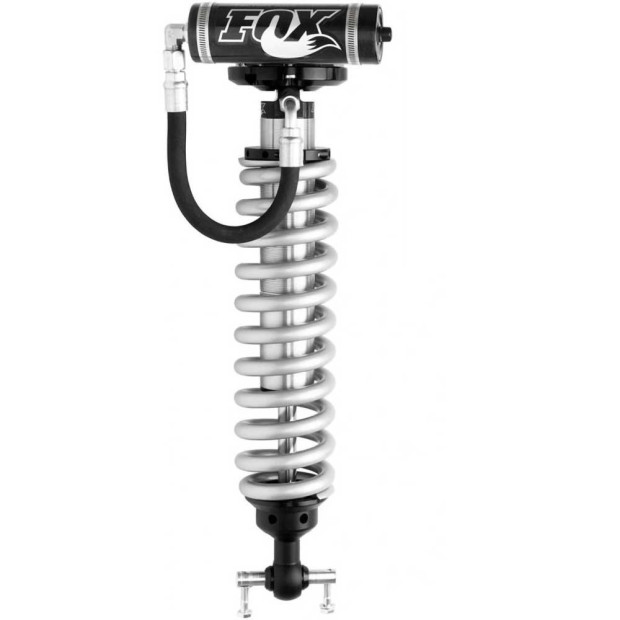

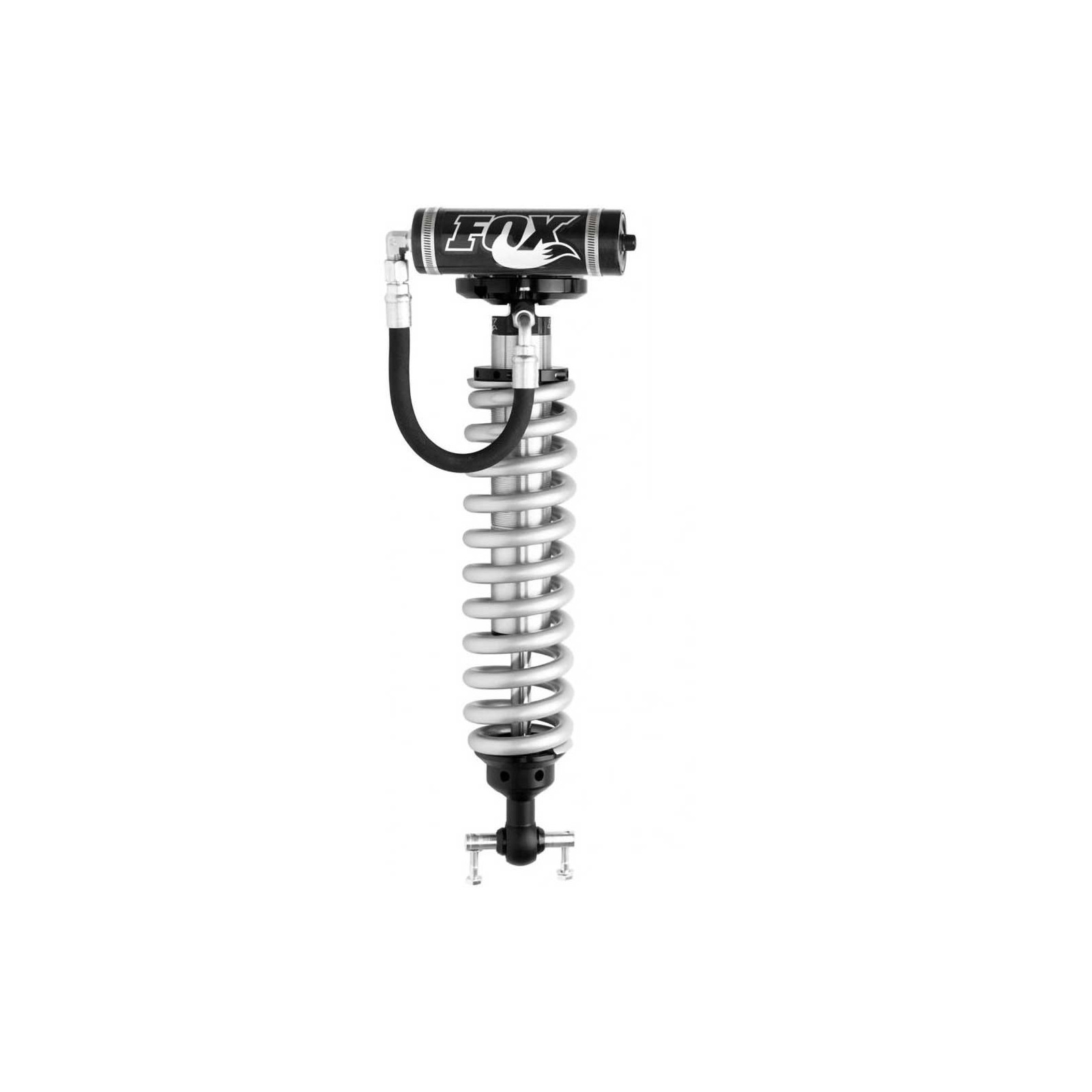

Front nitro Coilover Fox Factory Race 2.5 Reservoir Lift 3"

• Body: 2.5” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Reservoir: 2,5" Smooth bore and honed seamless alloy reservoir
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Spring: Application specific, adjustable 3.0 Eibach® racing springs
• Shaft: 7/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Bearing: PTFE-lined, heat-treated, alloy steel spherical
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Dimensions:

• Extended: 19.40"
• Compressed: 14.10"
• Travel: 5.30"

Mounts:

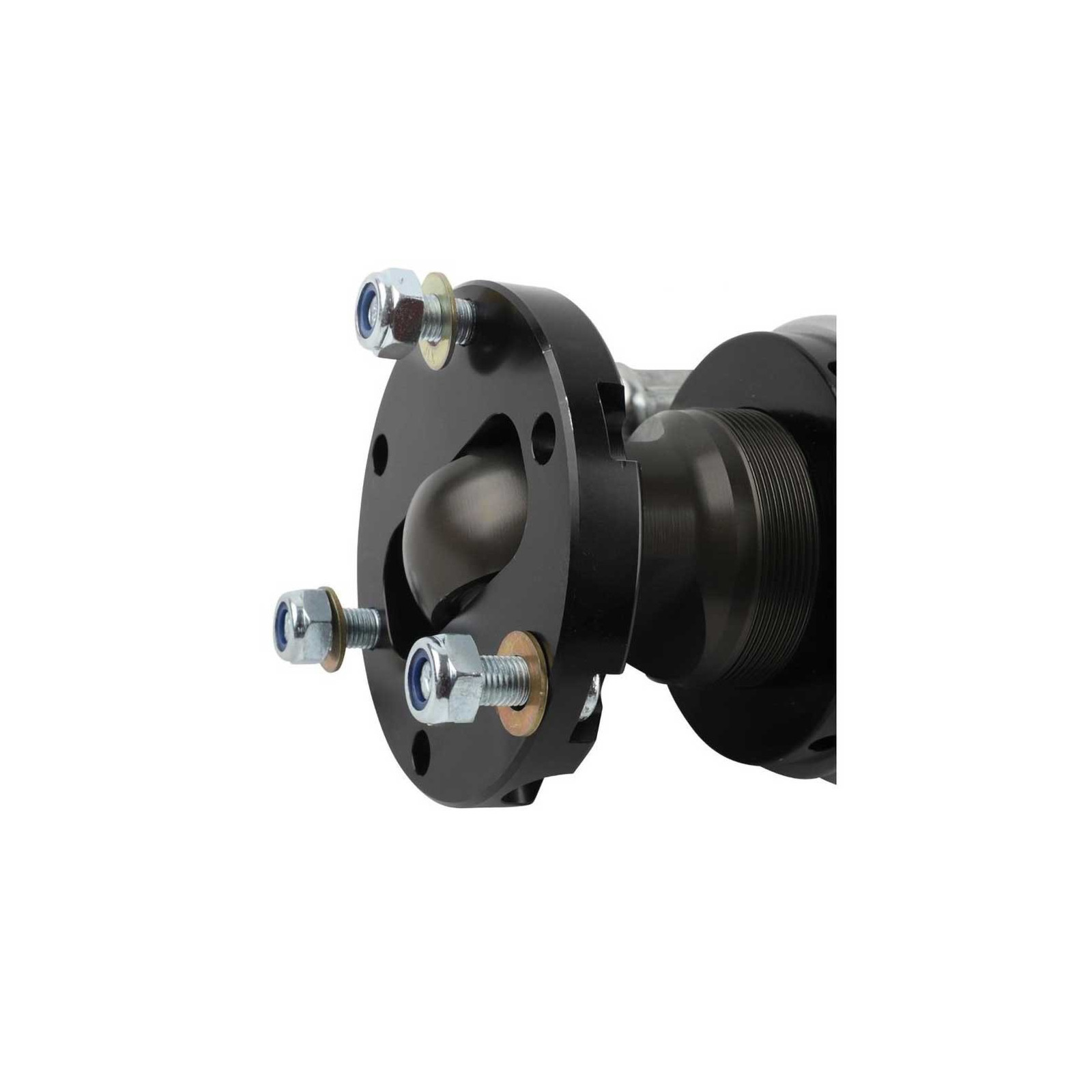

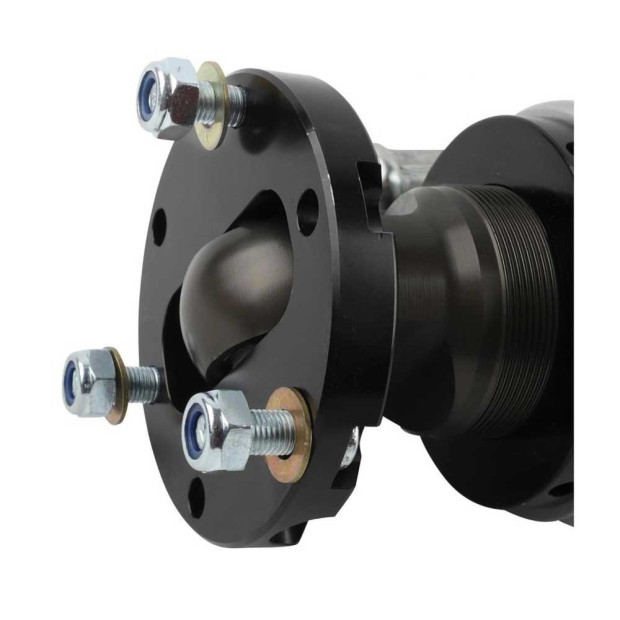

• Top mount: oem
• Bottom mount: bar pin

Notes:

• Requires upper control arm (sold separately)
• For GMC Sierra 1500 does NOT fit for models with magnetic suspension
