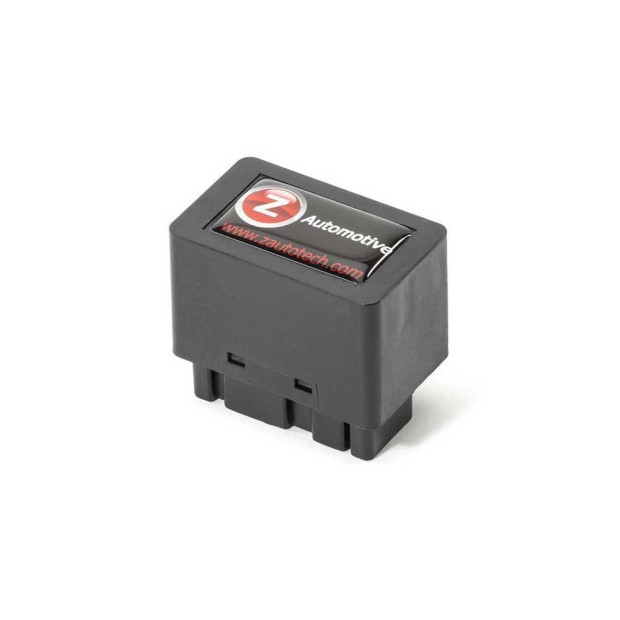

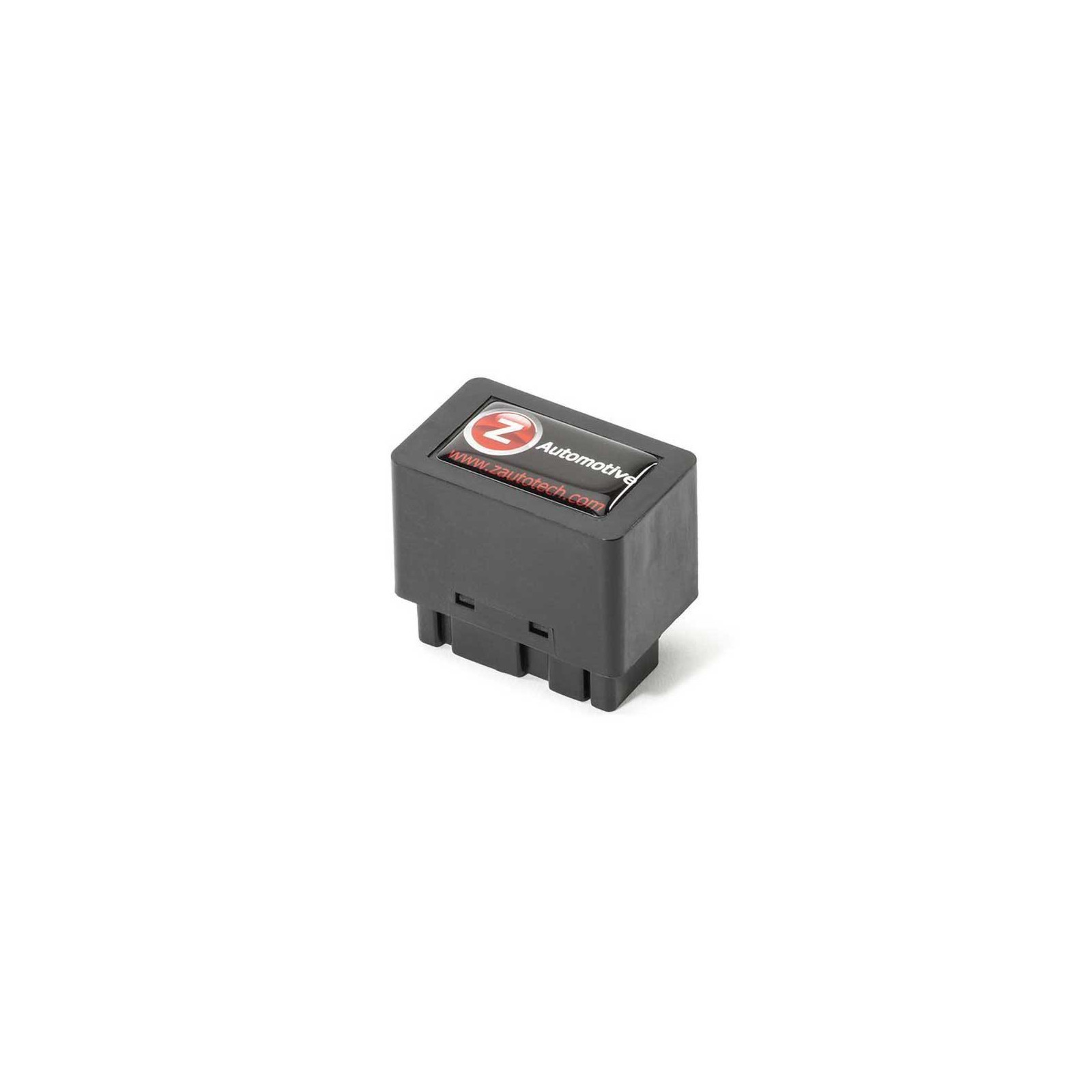

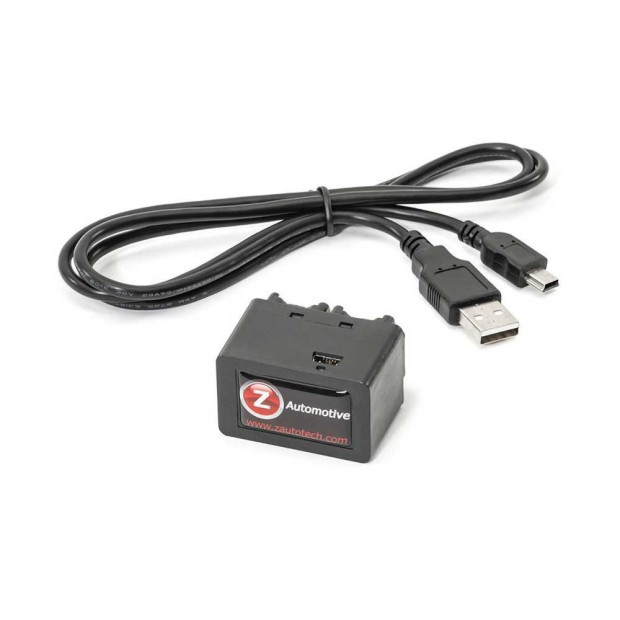

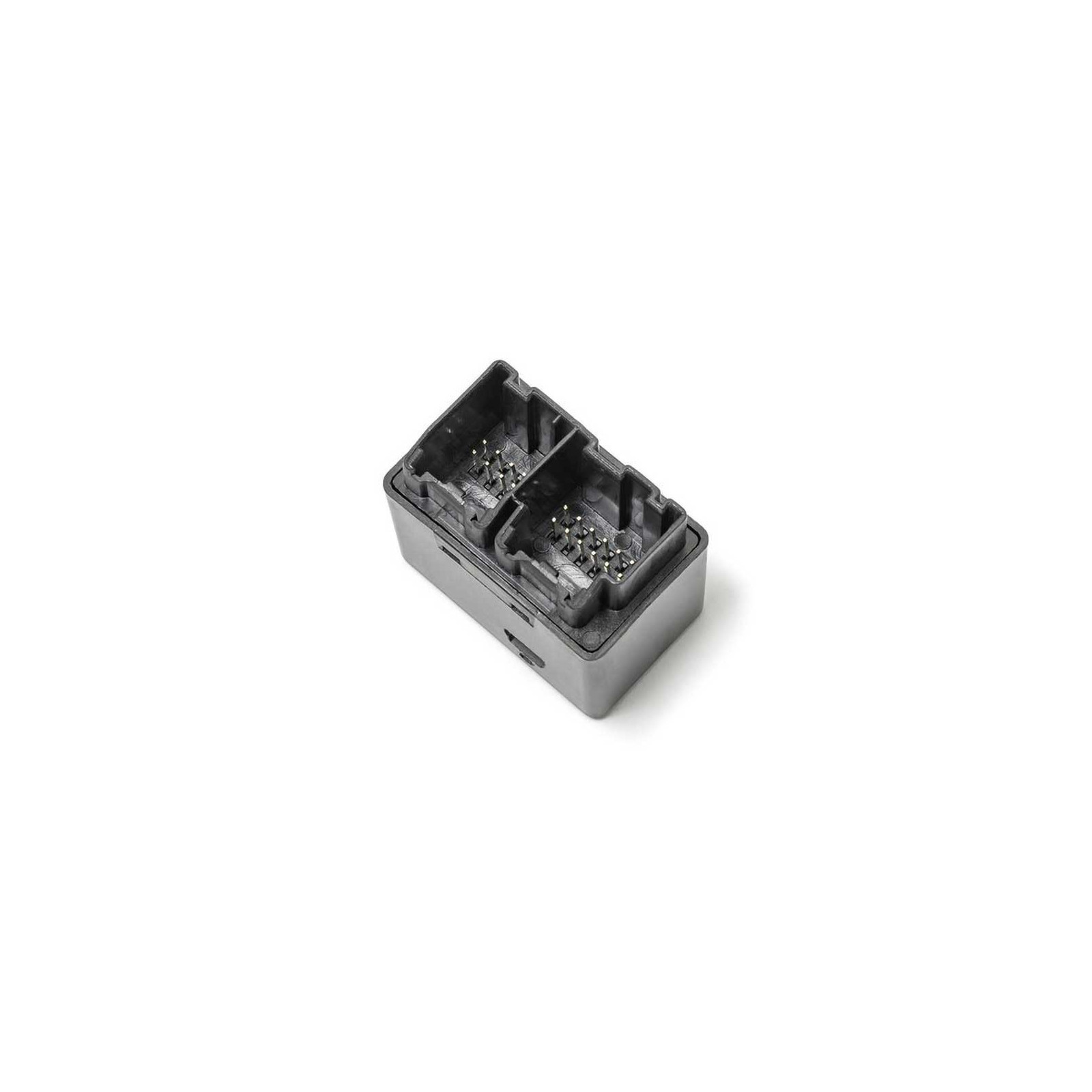

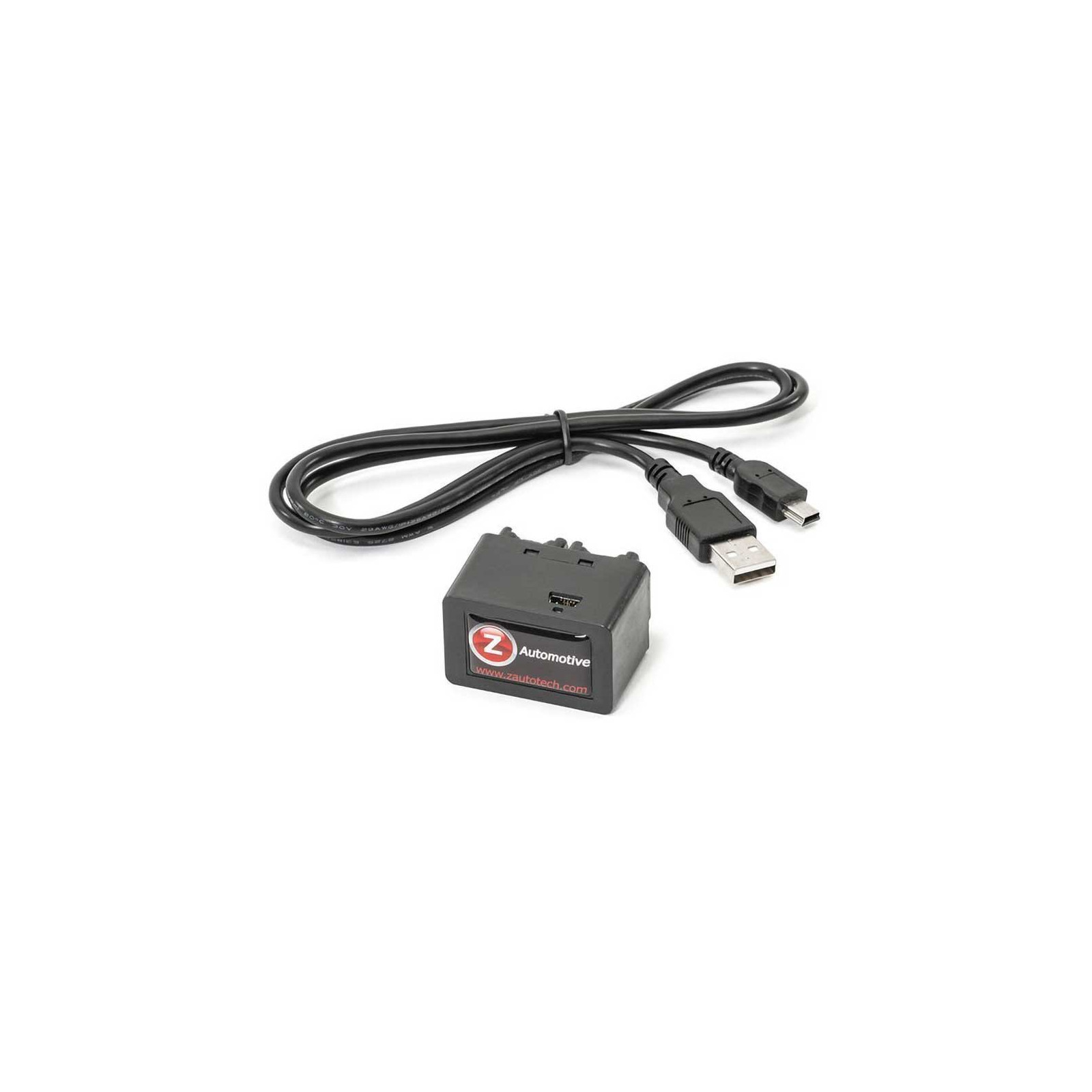

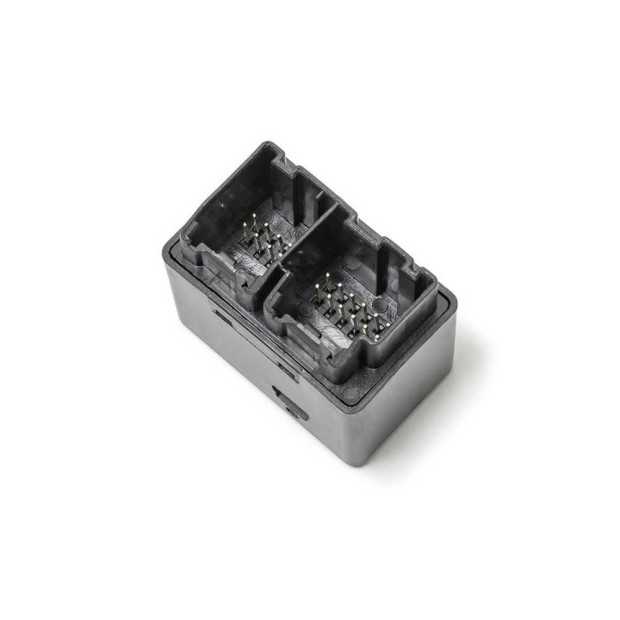

Programmer module Z Automotive Tazer JL Mini

• Changing vehicle settings permanently - changes made to the vehicle, will work even when the programmer is disconnected
• Changing vehicle settings live - changes are made live in real time and only work if the programmer is connected to the vehicle
• "Non-Menu" Live Functions are operations the Tazer Ram performs live, only while it is physically connected, and are not located in a menu. They are activated automatically or with button presses.

List of vehicle settings (engine off):

• Light show - 6 pre-programmed and 3 custom light shows that flash all exterior lights - ideal for car shows/first responders/off-road visibility - controlled from remote control (key fob) or steering wheel buttons -can be turned on in motion for use in parades or off-road
• Change tire size
• Change gear ratio (max 4.50 on 4XE)
• Change transfer case LOW ratio
• Enable/disable TPMS warnings (Tire Pressure Monitoring System)
• Set TPMS pressure warning limit, front and rear, between 25psi/1.7bar and 85psi/5.8bar
• Enable/disable backup camera
• Enable/disable Cargo Camera input (8.4 UConnect only)
• Enable/disable TravelLink/XM Traffic and weather
• Activate Offroad Pages (after upgrade to 8.4" radio)
• Change Daytime Running Lights (DRL) location
• Enable/disable DRL Dropout (DRL turn off while using blinker)
• Enable/disable factory fog lights
• Enable/disable Fog Light Dropout (when fogs shut off while using high beams)
• Enable/disable one-touch lane change
• Enable/disable factory halo lights
• Change headlight type (Std/LED)
• Change fog light type (Std/LED)
• Change tail light type (Std/LED)/delete sensor circuit for aftermarket lights
• Change front turn signal (std/LED)/delete sensor circuit for aftermarket lights
• Enable/disable factory auto hi-beam
• Enable/disable Trailer Tow setting
• Disable electronic sway bar (if removed from the vehicle)
• Disable electronic steering pump (after hydraulic steering conversions)
• Enable the trailer brake controller (primarily Gladiator)
• Disable front and rear lockers for axle swaps
• Disable front axle disconnect module for axle swaps
• Declare the presence of a Drivetrain Control Module (Rubicon Transfer Case)
• Enable/disable Aux Buttons
• Enable/disable Blind Spot Detection
• Delete the seat belt reminder chime
• Enable/disable/change ParkSense configuration
• Change cluster splash screen
• Enable HVAC dual-zone switch assembly when upgrading from 5" radio
• Enable HomeLink (if HomeLink visor and harness are installed)
• Enable/disable auto dimming mirror (if installed)
• Enable Proximity Entry (if handles and harnesses are installed)
• Enable pickup bed outlet (Gladiator)
• Enable/disable auto headlights after sensors are installed
• Enable/disable PANIC button on remote
• "Unmarry" function returns to stock

List of Live Functions (engine on):

• Activate Light Show
• Hold brakes at red light (excluding 4XE)Use Garage Door Opener after shutdown
• Enable navigation entry in-motion
• TurnCAM - activate backup camera while using turn signals (5", 7" and 8.4" UConnect)
• Kill3Honk - deactivate three honks after leaving running vehicle
• Toggle hood alarm
• Enable passenger side heat on remote start
• Flash third brake light when braking
• Customize third brake light flash pattern
• Define Winch Mode RPM between 1250 and 2000 RPM (excl. 4XE)
• Flash lights to indicate tire pressure while filling
• Dark Mode - turn off all exterior and interior lighting while parked with the engine running
• Activate and cycle through camera inputs
• Display Vacuum/Boost Gauge
• Activate 0-30 timer and 0-60 timer
• Force RWD (392 only)
• Display firmware version

"Non-Menu" Live Functions:

• AutoStopStart disable - Tazer JL Mini will remember your last settings
• AutoTracKill - Tazer JL Mini will remember your last TC settings
• Disconnect sway bar in 2WD up to 30mph or at any speed if mapped to a button
• License Plate Blanking (Gladiator) - automatically turn off license plate light when in reverse or using TurnCam to reduce glare
• Light Show (shortcut)
• Open windows using keyfob (experimental, may not work with all bypass types)
• Line Lock - lock front brakes for easy burnout
• Disable ESP/TC by holding ESP button
• Cycle camera outputs (shortcut)
• Cooldown Mode - turn on engine fans, even when engine is off
• Winch Mode - raise idle RPM to selected value
• Partial Reboot

Remarks:

• Can be used with one car only (lock)
