Kit suspension BDS +8,5"

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
• ProRide coil springs offer improved ride quality and more articulation
• Massive belly pan that incorporates the link mounts and is built to smash rocks
• Glideride leaf springs to provide full lift height and increased capacity
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Allows clearance for 35" tyres

Shocks specs:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Front shock mounts:

• Top mount: stem
• Bottom mount: eyelet

Rear shock mounts:

• Top mount: bar pin
• Bottom mount: eyelet

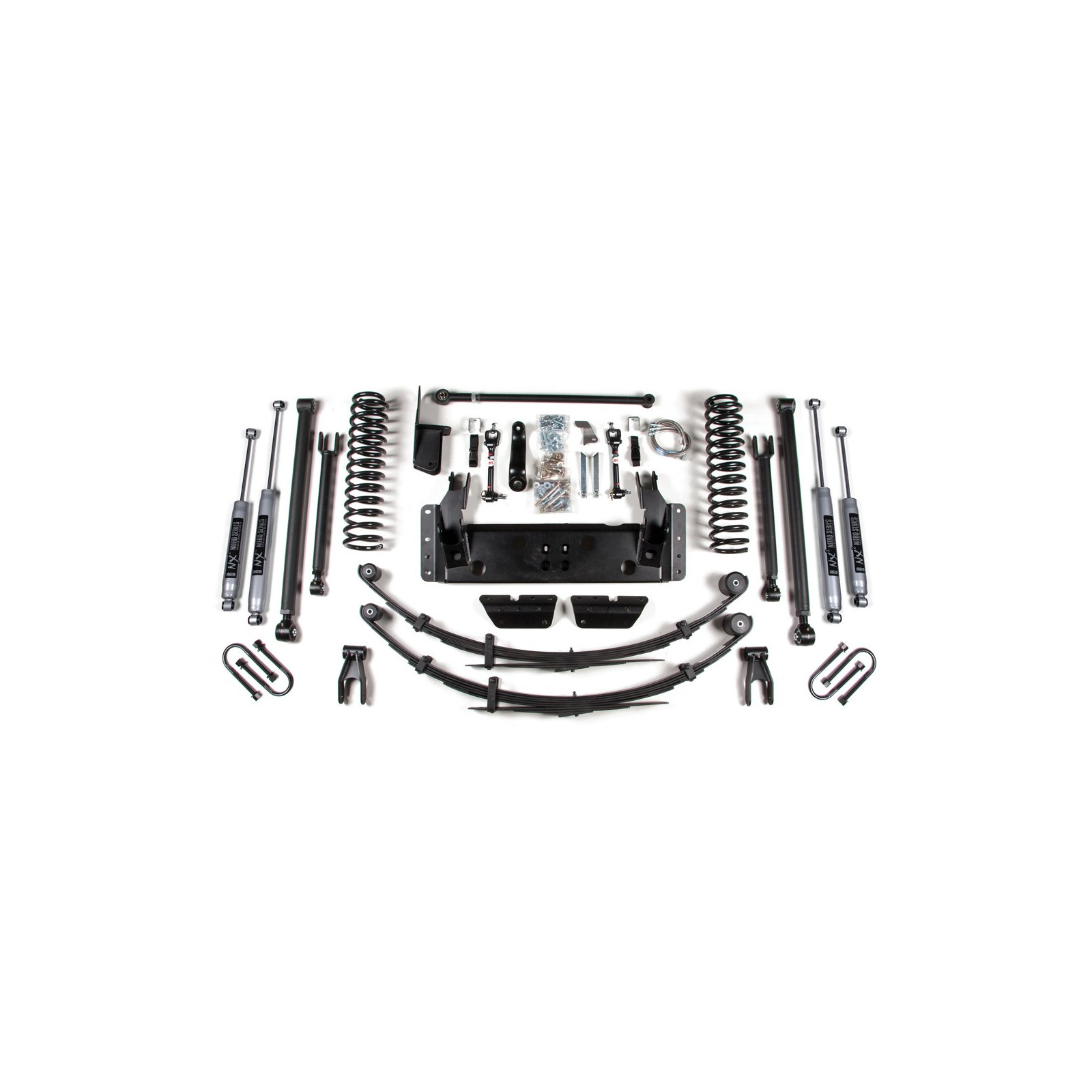

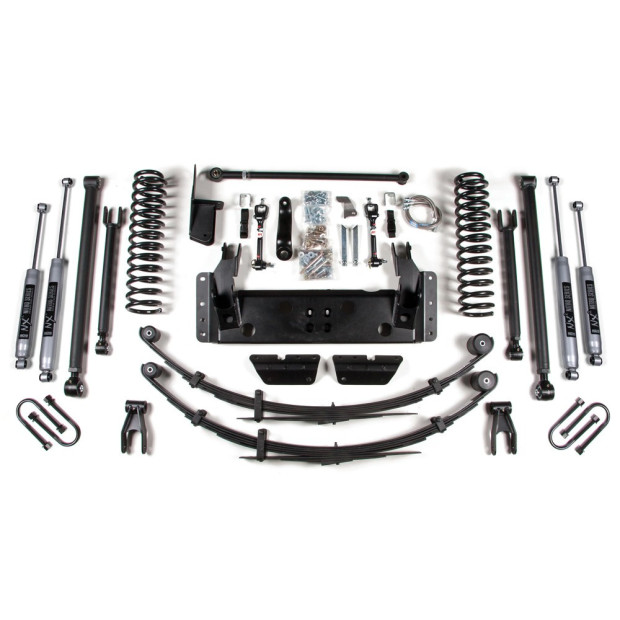

In the box:

• (2) Front coil spring
• (2) Front shock absorber NX2 Nitro Series
• (2) Front upper control arm
• (2) Front lower control arm
• (2) Front bump stop
• Front track bar
• Front track bar relocation bracket
• (2) Front disconnect sway bar link
• (2) Front brake line
• (2) Rear shock absorber NX2 Nitro Series
• Rear brake line
• (2) Leaf spring
• Pitman arm
• Crossmember
• Bump stops extensions
• (4) U-bolt
• (2) Shackle
• Hardware

Notes:

• Fits with Chrysler 8.25 drivetrain ONLY
• Fits with 4.0L engine and automatic transmission models ONLY
• We also offer suspension kit compatible with Dana 35 - please contact our sales department
• CV style rear driveshaft (not included) and slip yoke eliminator kit is required
• CV style front driveshaft rekomendujemy
• Required some welding, drilling and cutting
• '96 and earlier models may require a longer emergency brake cable
• Can be purchased as a set with FOX shocks
