Kit suspension BDS +3"

• Lift 3"
• Front and rear Pro-Ride coil springs
• NX2 Series shock absorbers
• Coils made from 5160 steel
• Front and rear track bar relocation brackets
• Front sway bar links included
• Maintains factory ride quality
• Increased ground clearance

Coil spring specs:

• Powder-coated with a flexible polyester-based paint, which increases corrosion protection
• Designed to withstand full coil bind
• Shotpeened for increased tensile strength
• The material used and the production technology guarantee the preservation of the physical properties of the product for many years

Shocks specs:

• Pressurized nitrogen charged twin-tube design
• Fluon banded piston 1-3/8"
• 14 mm hardened chrome shaft
• 2" bodied shock
• Vehicle specific valving for better control
• Durable metallic silver finish
• High-end performance at an affordable price
• Lightening fast dampening adaptive to terrain
• Large fluon banded piston with self lubricating seals

Front shock mounts:

• Top mount: stem
• Bottom mount: bar pin

Rear shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

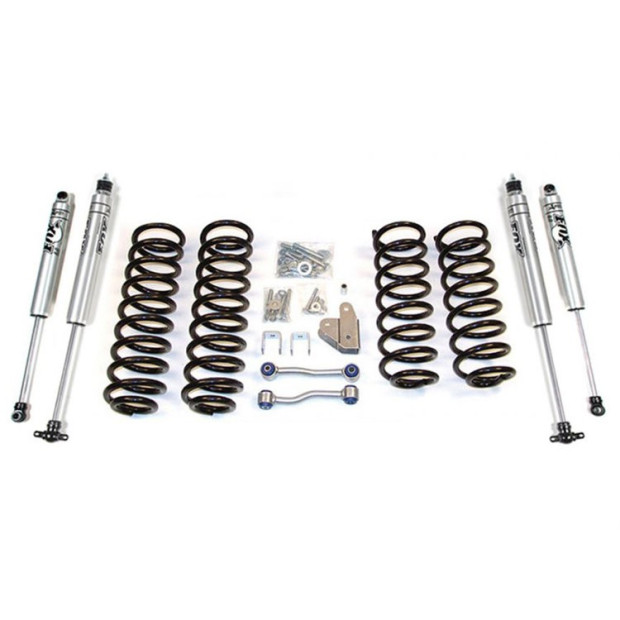

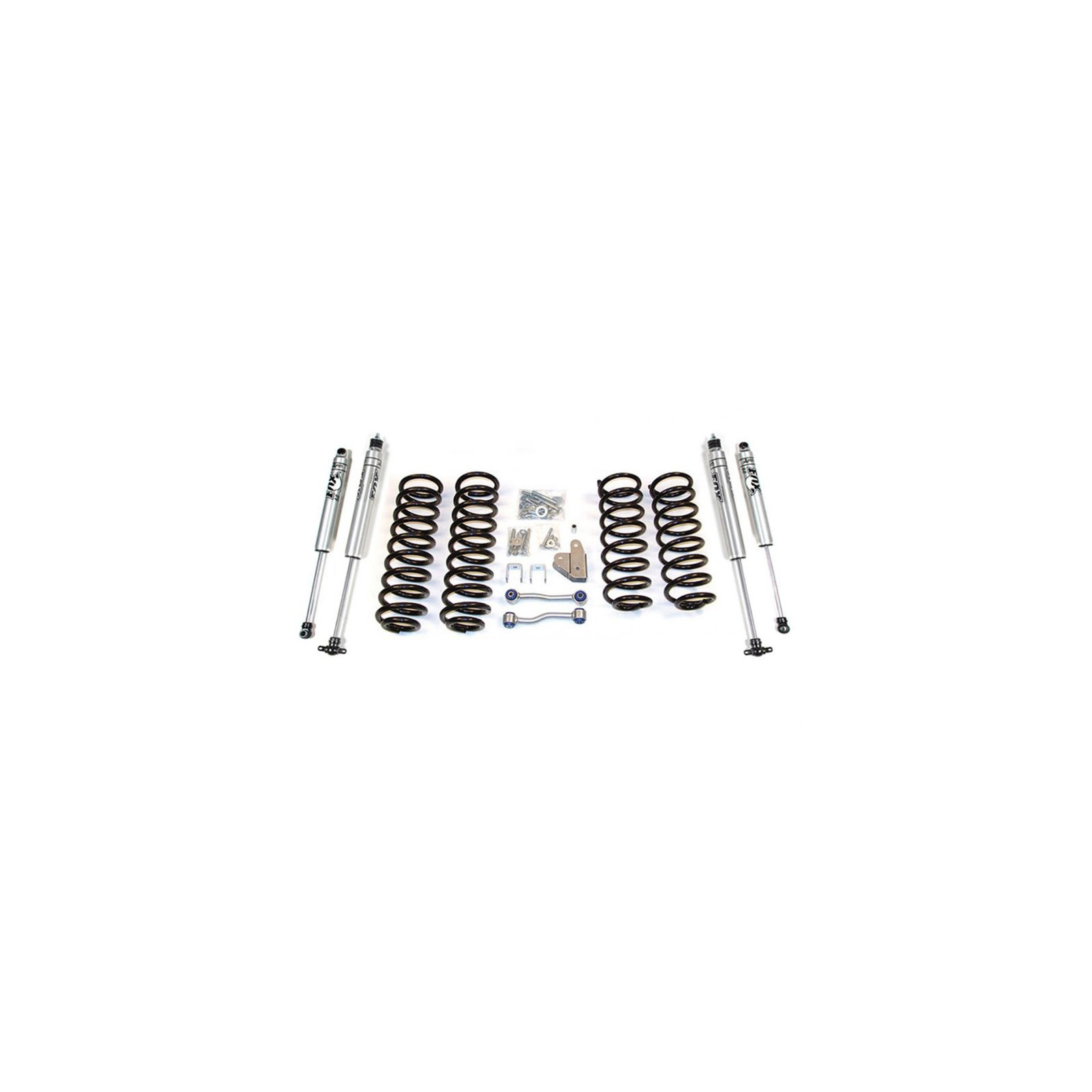

In the box:

• (2) Front coil spring
• (2) Front shock absorber NX2 Nitro Series
• (2) Rear shock absorber NX2 Nitro Series
• (2) Rear coil spring
• (2) Front anti-sway bar link
• Track bar relocation bracket front
• Track bar relocation bracket rear

Notes:

• Trimming may be required
• Models with V8 engine may not achieve specified lift height
