Kit suspension BDS +3-3,5"

• 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Clear-anodized for a durable finish
• Internal IFP mono-tube reservoir design
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• 5/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow piston design
• Application specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Quiet nitrile rubber allows for increased suspension articulation

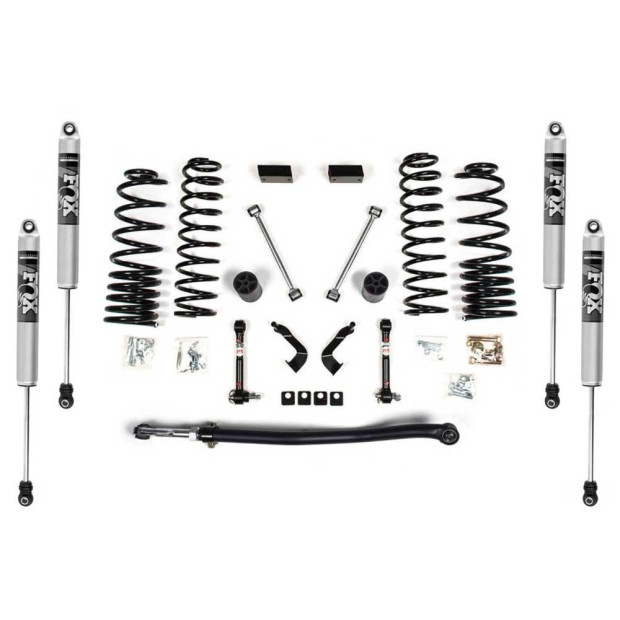

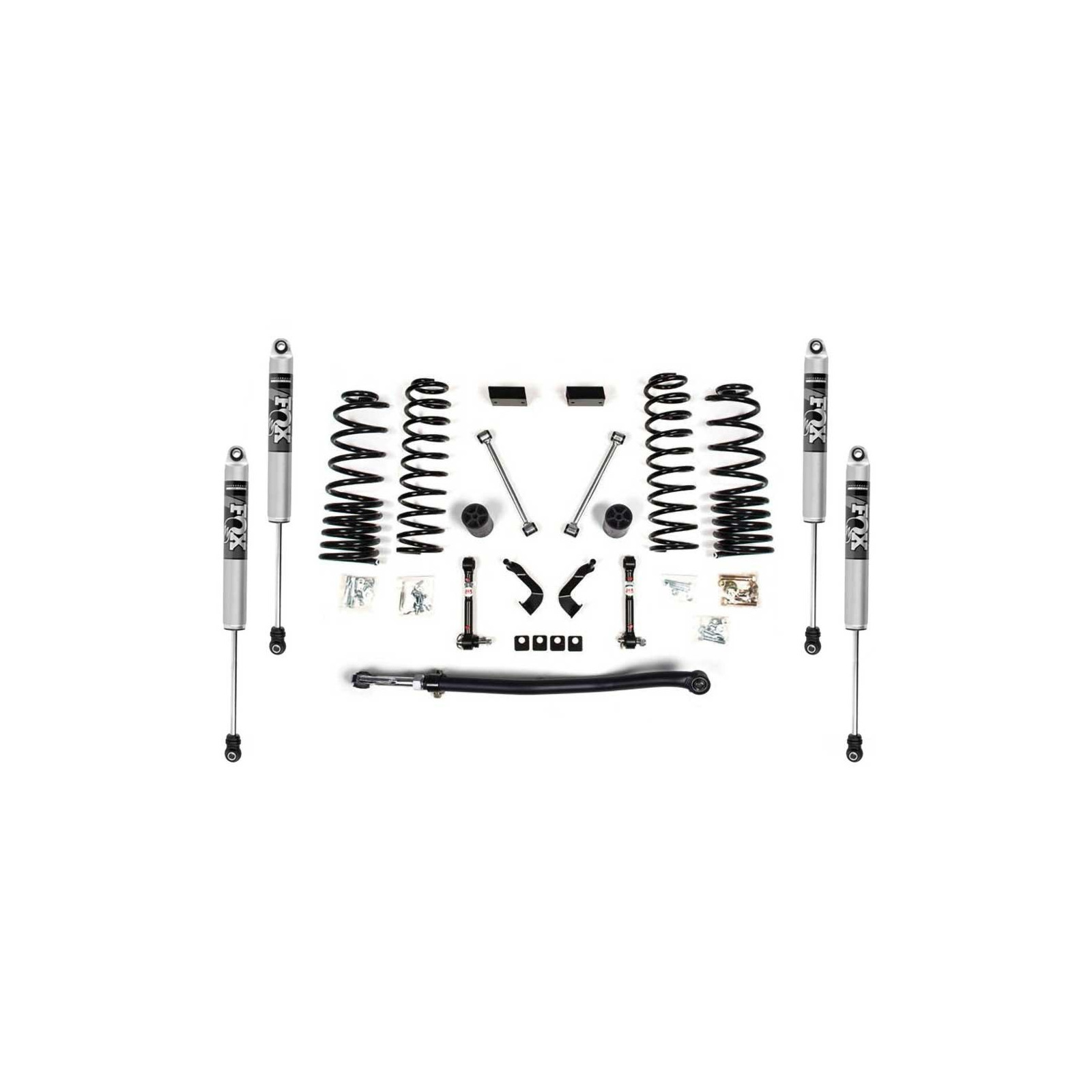

In the box:

• (2) Front nitro shock Fox Performance 2.0 IFP
• (2) Front coil spring
• (2) Front bump stop
• (2) Front sway bar
• Front adjustable track bar
• (2) Rear sway bar
• (2) Rear bump stop
• (2) Rear coil spring
• (2) Rear nitro shock Fox Performance 2.0 IFP
• (4) Bushing
• All necessary hardware

Max tyre diameter:

• 33x12,50 17x8 Stock Sport Model No Rubbing
• 35x12,50 17x8 4,5-5" Sport Model Rubbing under articulation
• 37x12,50 17x8 Stock Rubicon No Rubbing
• 37x12,50 17x8 4,5-5" Rubicon Rubbing under extreme articulation

Front nitro shock dimensions:

• Extended: 26.42"
• Compressed: 16.80"
• Travel: 9.62"

Rear nitro shock dimensions:

• Extended: 26.92"
• Compressed: 16.80"
• Travel: 10.12"

Notes:

• Does NOT fit with diesel models
• Does NOT fit with Mojave models
• Non-Rubicon comes from factory at lower ride height, will net slightly more lift final stance the same for all models
