Kit suspension BDS large bore with shocks NX2 +6"

• Levels the front with the rear of the vehicle
• Increased ground clearance
• Corrects suspension, steering, & driveline geometry

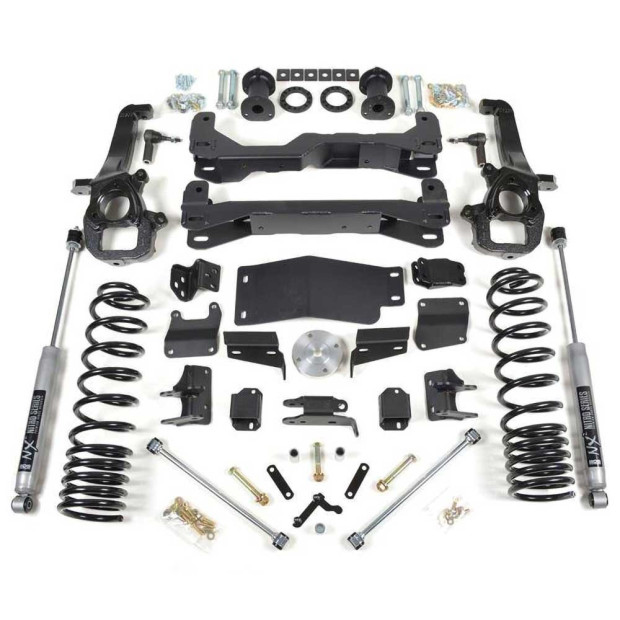

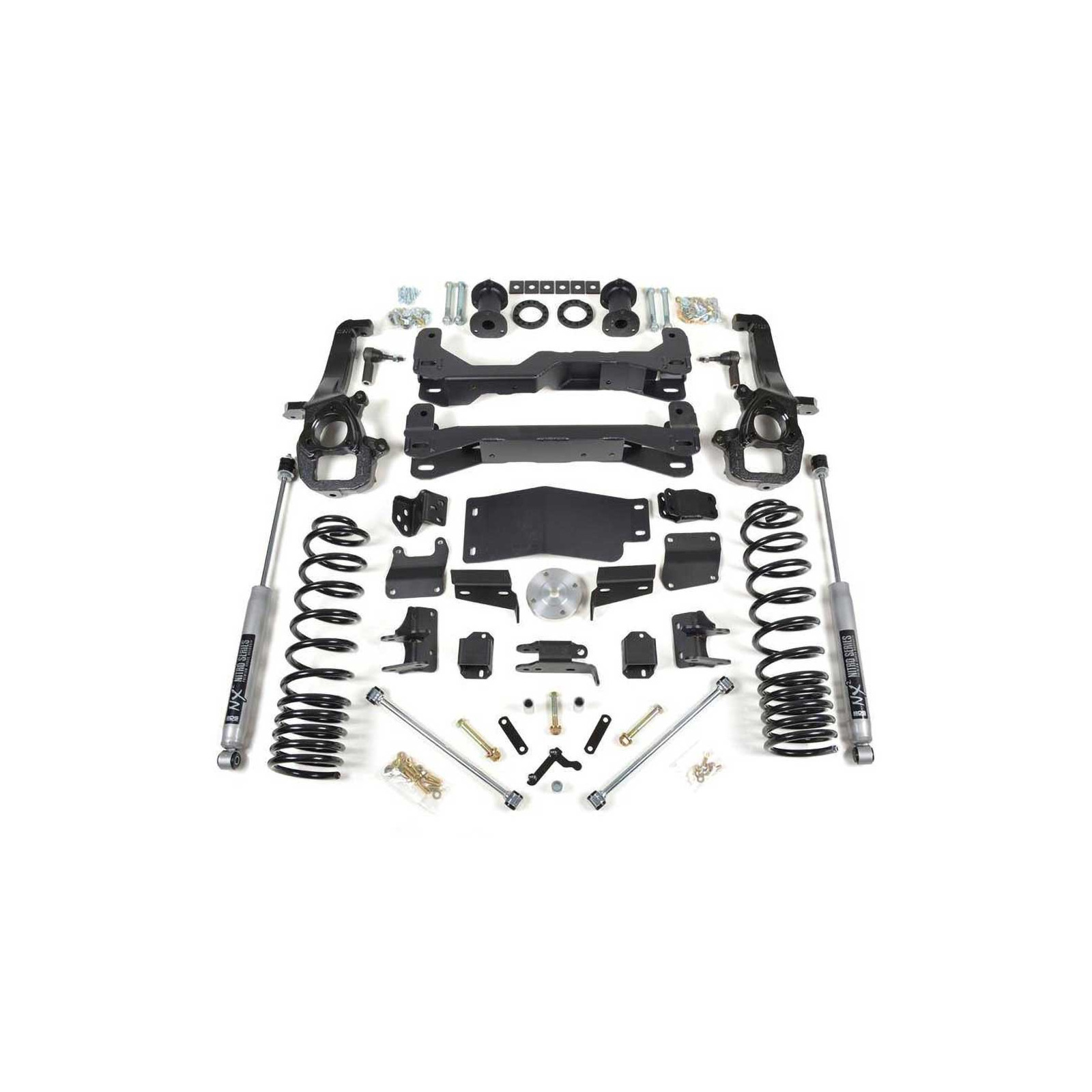

Lift consists of:

• Front Crossmember
• Front Brake Line
• Front Brake Line Brackes
• Front Steering Knuckles
• Tie Rod End w/Nut
• Skid Plate
• Differential drop brackets
• Sway bar drop brackets
• Drive Shaft Spacer
• Rear Crossmember
• Bump stop extension
• Relocation brackets
• Sway bar links
• Coil spring
• (2) shocks BDS NX2

Notes:

• Cutting required
• Does NOT fit diesel models
• Fits ONLY vehicles with LARGE hub bore
• Will NOT fit adjustable air suspension equipped models
• RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
• Stock 17" wheels cannot be reinstalled to to steering interference. Stock 20s can be reinstalled with factory tire size
• This system will NOT fit vehicles equipped with STANDARD hub bore
• If truck is equipped with STANDARD hub bore use lift with standard steering knuckles BDS1661H (NX2 shocks) or BDS1661F (FOX shocks), kit sold separately
