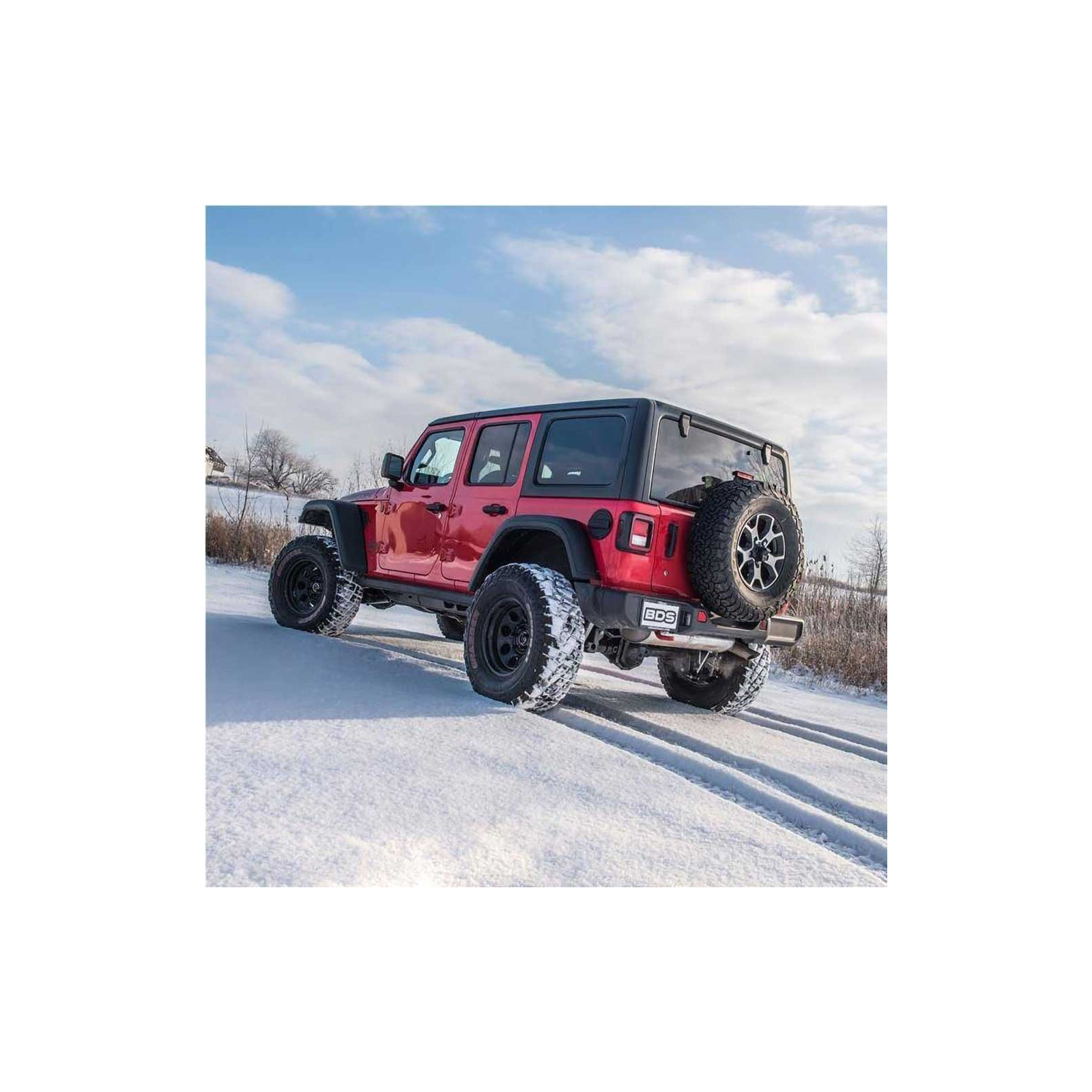

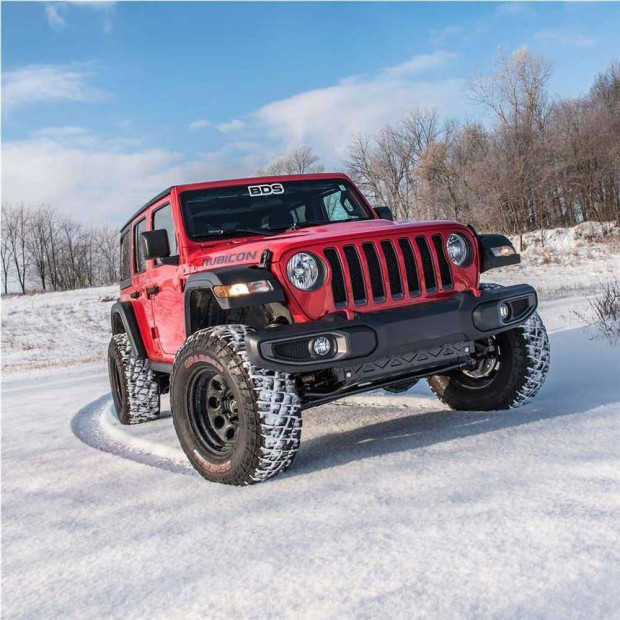

Kit suspension BDS +2"

• Lift 2"
• Maintains factory ride quality
• Increased ground clearance
• Easy install

Coil spring specs:

• Powder-coated with a flexible polyester-based paint, which increases corrosion protection
• The material used and the production technology guarantee the preservation of the physical properties of the product for many years

Shocks specs:

• Pressurized nitrogen charged twin-tube design
• Fluon banded piston 1-3/8"
• 14mm hardened chrome shaft
• 2" bodied shock
• Vehicle specific valving for better control
• Durable metallic silver finish
• High-end performance at an affordable price
• Lightening fast dampening adaptive to terrain
• Large fluon banded piston with self lubricating seals

Front shock dimensions:

• Extended: 26.20"
• Compressed: 15.67"
• Travel: 10.53"

Rear shock dimensions:

• Extended: 29.78"
• Compressed: 17.59"
• Travel: 12.19"

Front shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

Rear shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

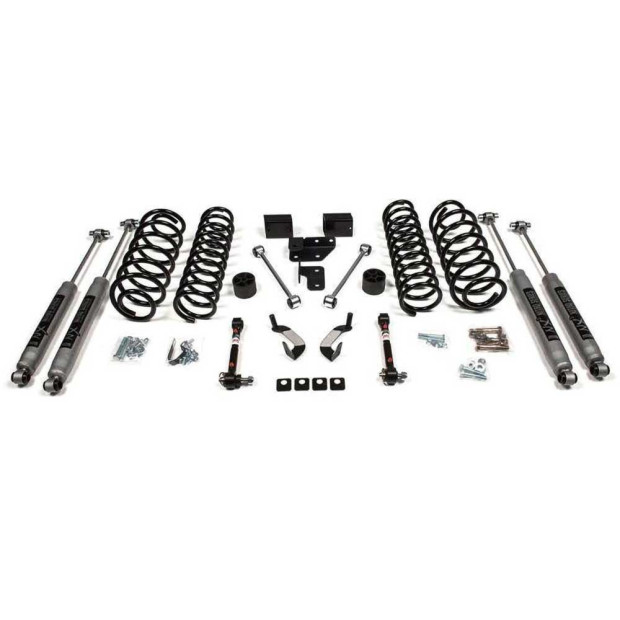

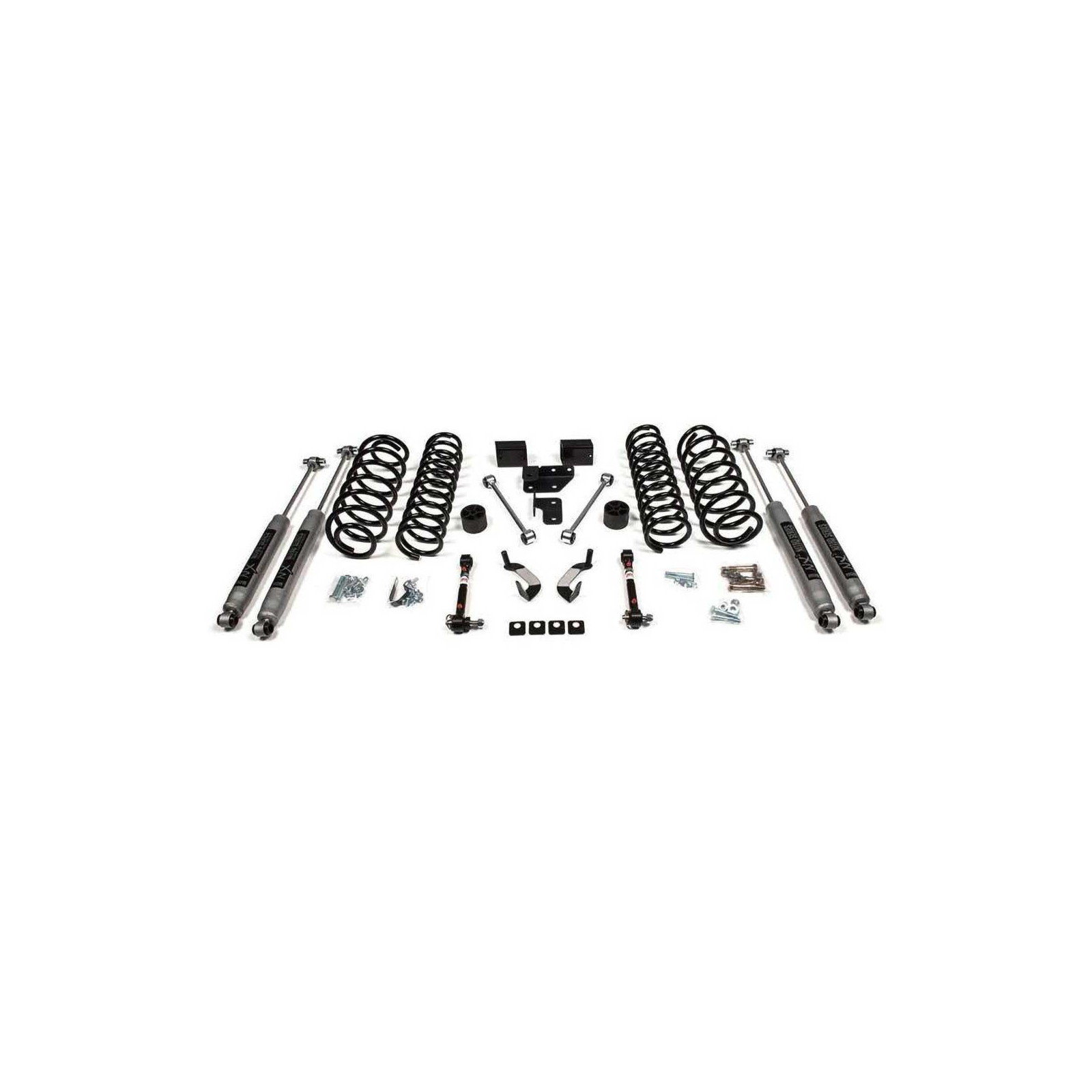

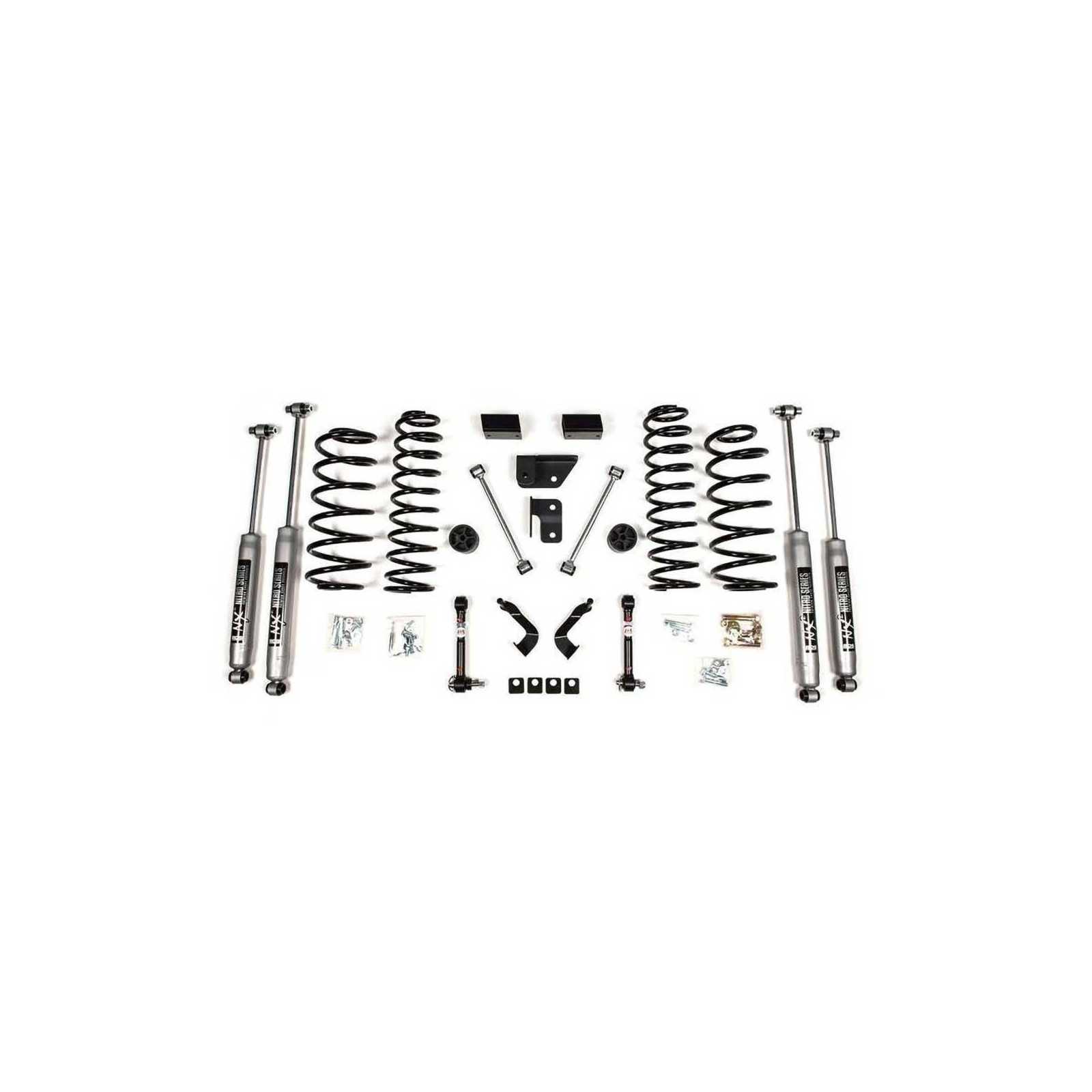

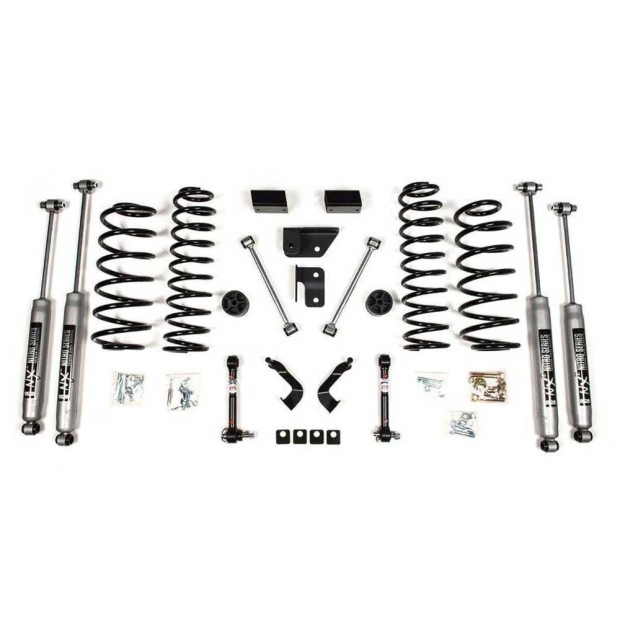

In the box:

• (2) Front coil spring
• (2) Front shock NX2 Nitro series
• (2) Front bump stop spacer
• (2) Front sway bar link disconnect
• (2) Rear coil spring
• Rear track bar bracket
• (2) Rear bump stop spacer
• (2) Rear sway bar link
• (2) Rear shock NX2 Nitro series
• Track bar bracket support

Notes:

• Non-Rubicon comes from factory at lower ride height, will net slightly over 2" - final stance the same for all models
• Stock wheels cannot be reinstalled without spacers due to rear sway bar interference
• Does NOT fit with diesel models
• Does NOT fit with Rubicon 392 models
• Does NOT fit with 4XE models
