Kit suspension BDS +4"

• Adapt suspension performance to both on-road and off-road conditions
• Improves handling
• Made of high quality materials

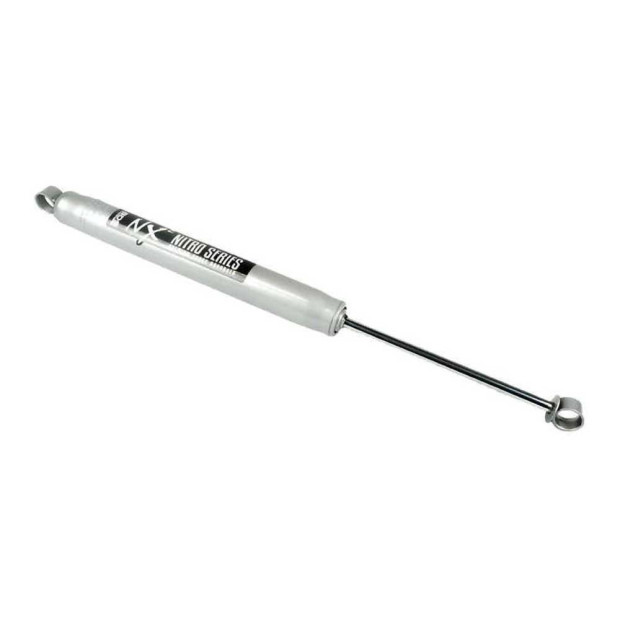

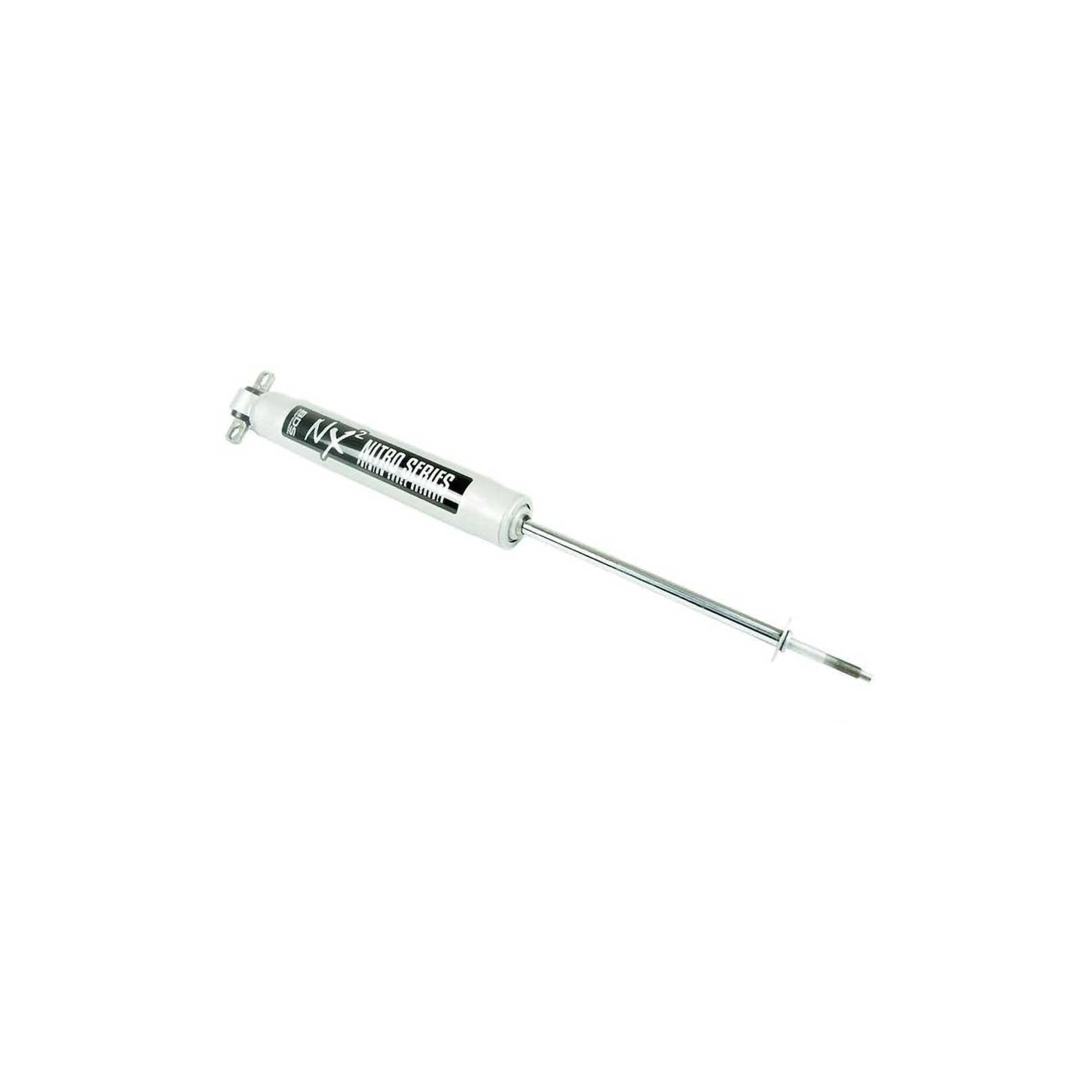

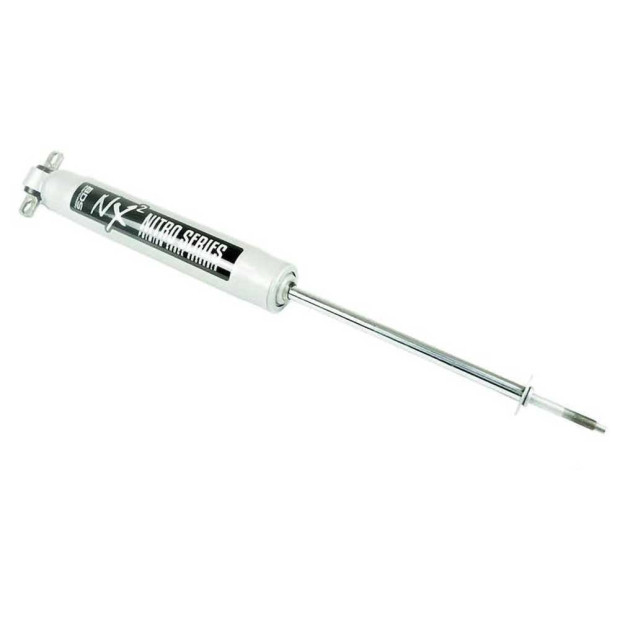

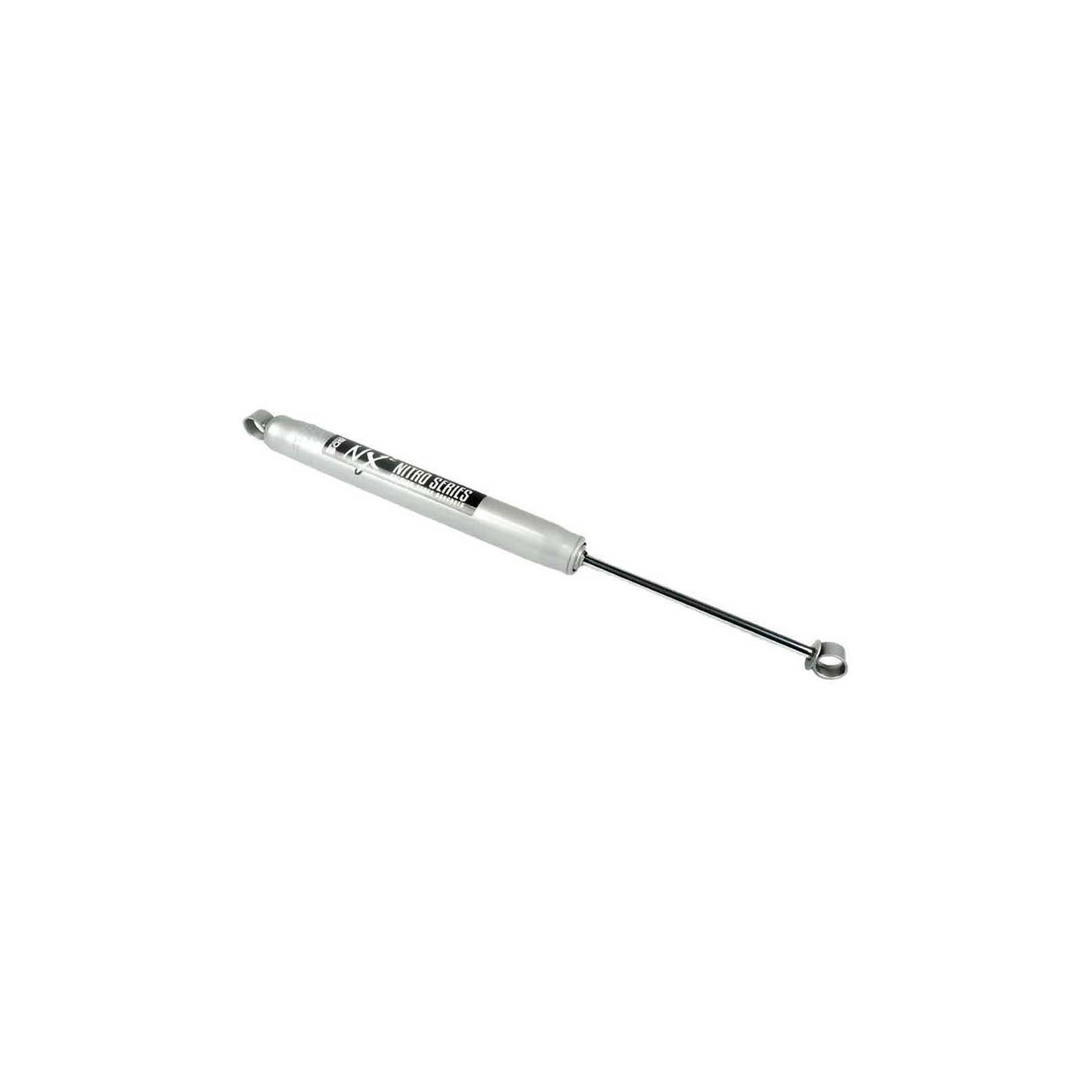

Shocks specs:

• Pressurized nitrogen charged twin-tube design
• Fluon banded piston 1-3/8"
• 14mm hardened chrome shaft
• 2" bodied shock
• Vehicle specific valving for better control
• Durable metallic silver finish
• High-end performance at an affordable price
• Lightening fast dampening adaptive to terrain
• Large fluon banded piston with self lubricating seals

Coil spring specs:

• Powder-coated with a flexible polyester-based paint, which increases corrosion protection
• The material used and the production technology guarantee the preservation of the physical properties of the product for many years
• Designed to withstand the increased load of the car (winch, steel bumper)

Front coil spring dimensions:

• Diameter: 0.625"
• Rate: 240 lbs
• Length: 18.25”

Rear coil spring dimensions:

• Diameter: 0.656"
• Rate: 240 lbs
• Length: 15.5"

Front shock dimensions:

• Extended: 24.68"
• Compressed: 14.81"
• Travel: 9,87"

Rear shock dimensions:

• Extended: 26.20"
• Compressed: 15.80"
• Travel: 10,40"

Front shock mounts:

• Top mount: stem
• Bottom mount: bar pin

Rear shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

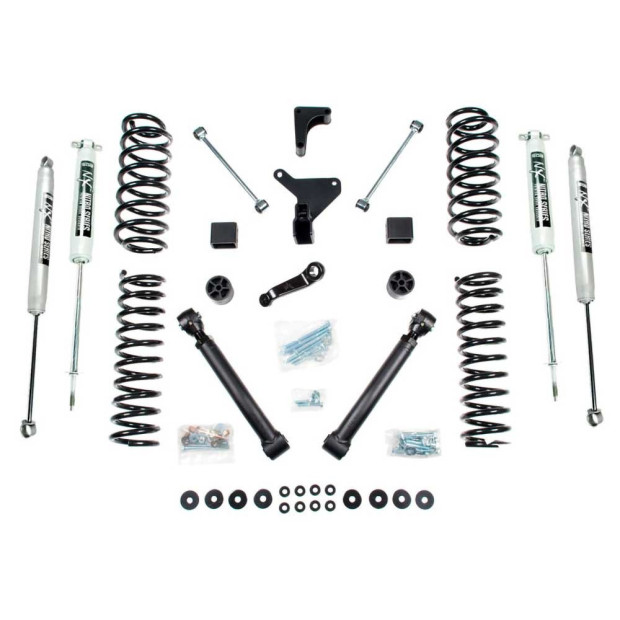

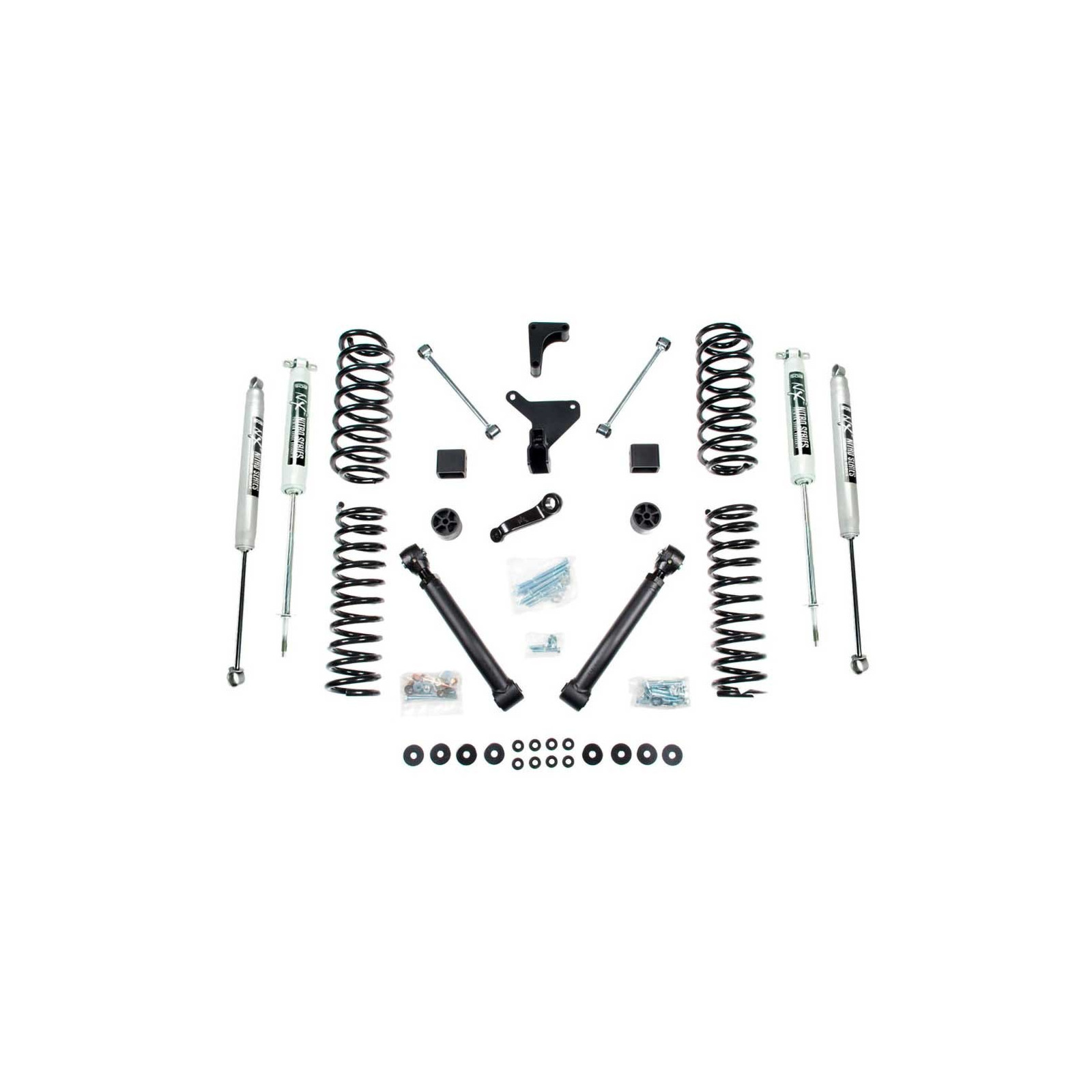

In the box:

• Front track bar relocation bracket
• (2) Front adjustable lower control arm with bushings & lubricators
• (2) Front NX2 Nitro series shock
• (2) Front coil spring
• (2) Front bumpstop
• (2) Rear NX2 Nitro series shock
• (2) Rear coil spring
• Rear sway-bar links with mounting kit
• Rear A-arm spacer block
• (2) Rear bumpstop
• Drop pitman arm
• Transfer case drop kit

Notes:

• Vehicles equipped with Diesel engine may not achieve stated lift height
• Front drive line modification may be required
