Kit suspension BDS +2"

• Adapt suspension performance to both on-road and off-road conditions
• Improves handling
• Made of high quality materials

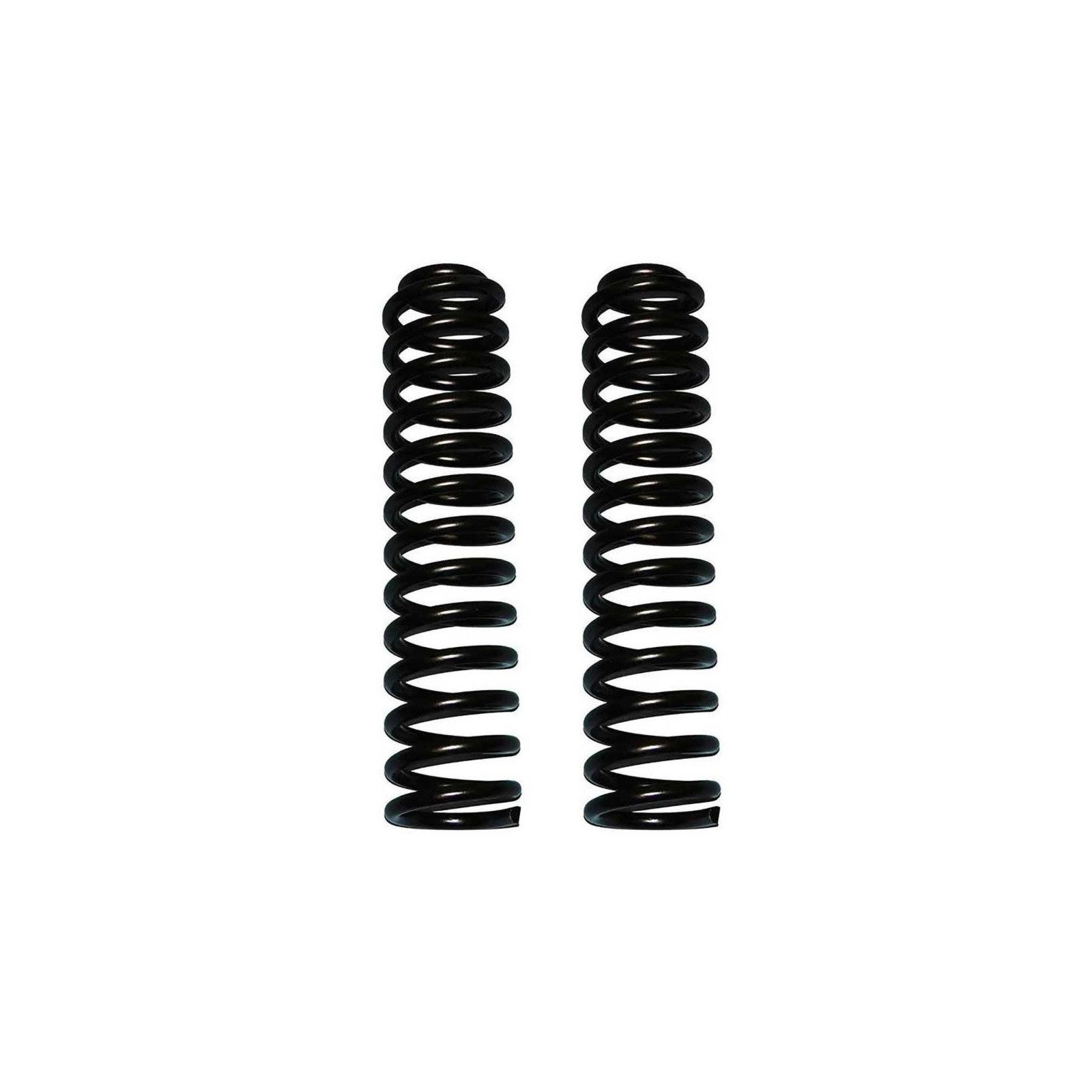

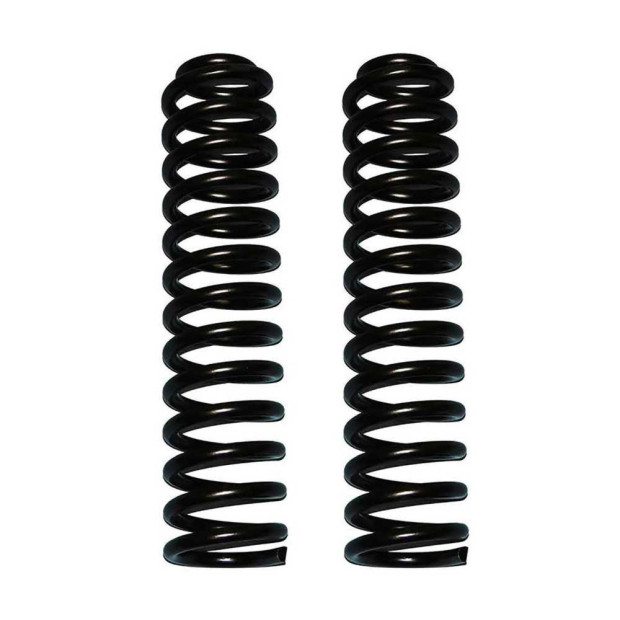

Coil spring specs:

• Powder-coated with a flexible polyester-based paint, which increases corrosion protection
• The material used and the production technology guarantee the preservation of the physical properties of the product for many years
• Designed to withstand the increased load of the car (winch, steel bumper)
• Diameter: 0.625"
• Rate: 240 lbs
• Length: 17.25”

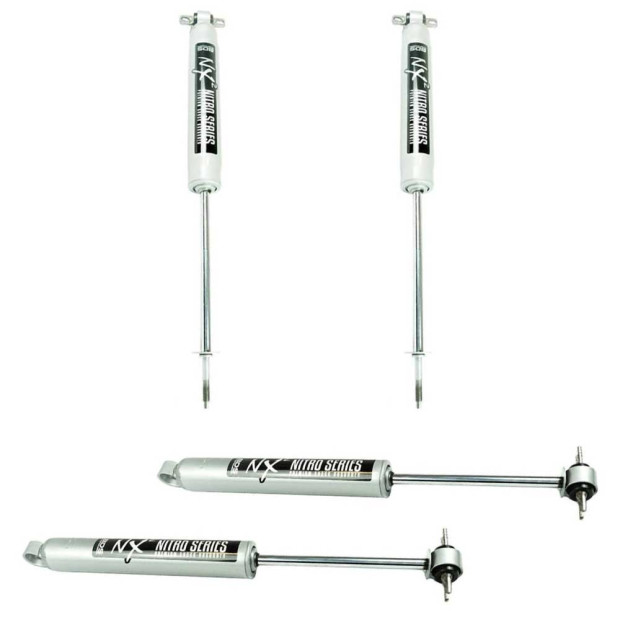

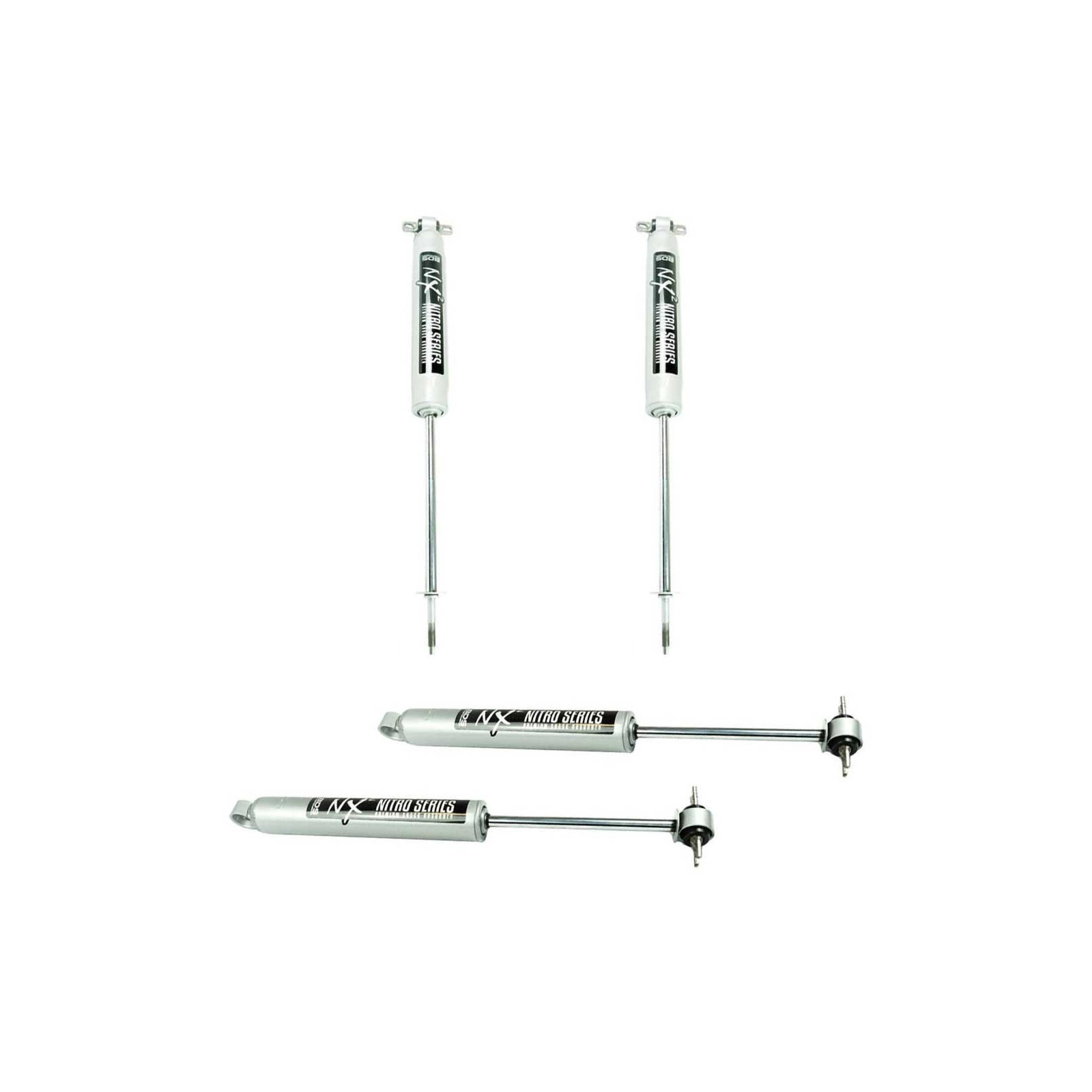

Shocks specs:

• Pressurized nitrogen charged twin-tube design
• Fluon banded piston 1-3/8"
• 14mm hardened chrome shaft
• 2" bodied shock
• Vehicle specific valving for better control
• Durable metallic silver finish
• High-end performance at an affordable price
• Lightening fast dampening adaptive to terrain
• Large fluon banded piston with self lubricating seals

Front shock dimensions:

• Extended: 22.92"
• Compressed: 13.92"
• Travel: 9"

Rear shock dimensions:

• Extended: 21.70"
• Compressed: 13.42"
• Travel: 8.28"

Front shock mounts:

• Top mount: stem
• Bottom mount: bar pin

Rear shock mounts:

• Top mount: bar pin
• Bottom mount: eyelet

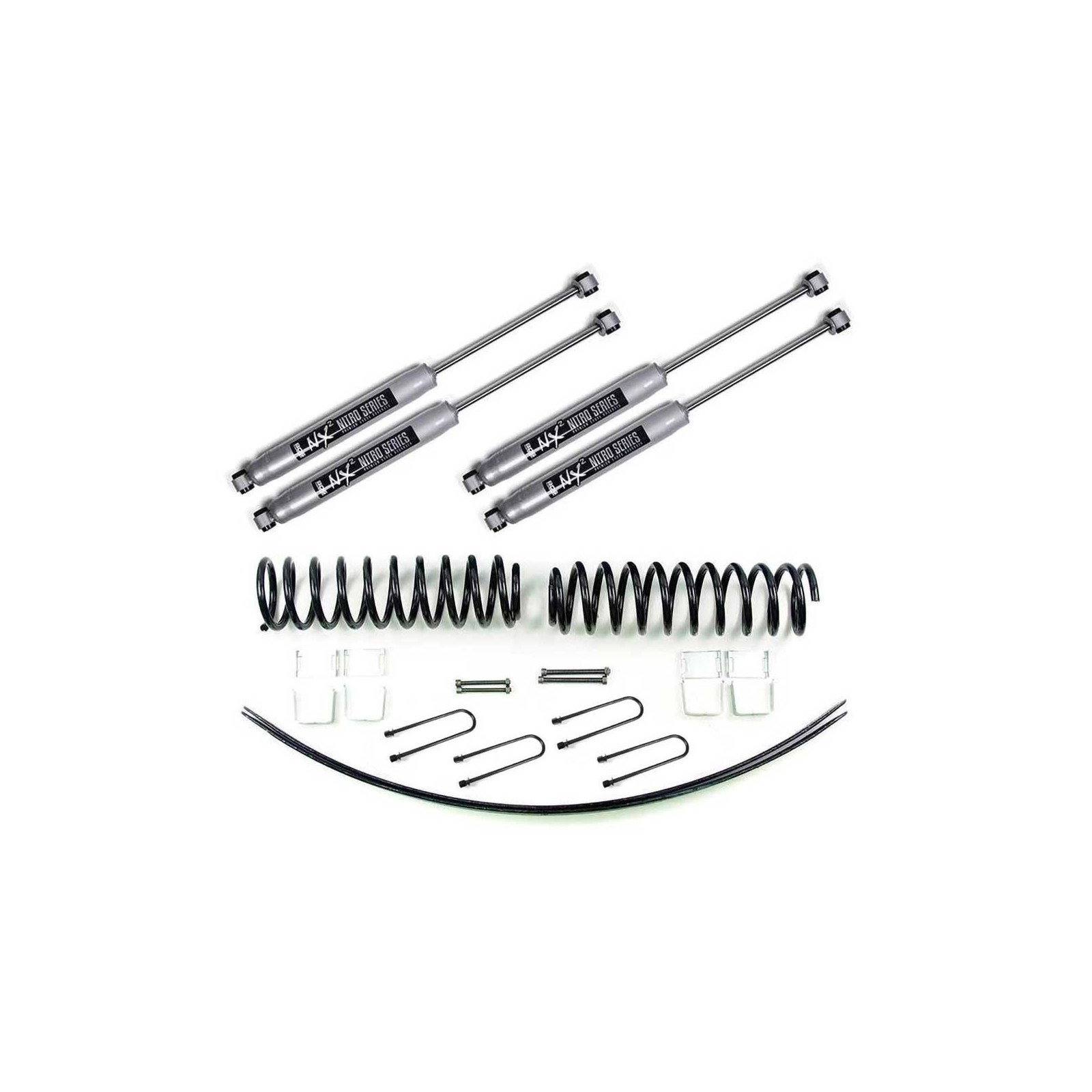

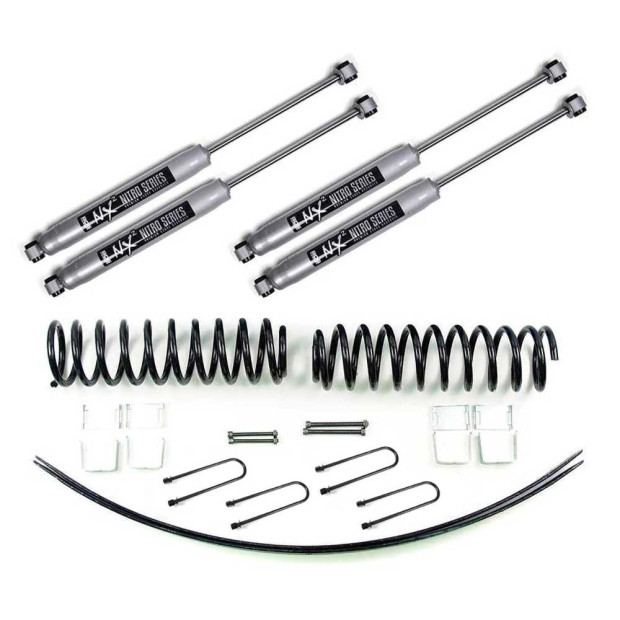

In the box:

• (2) Front coil spring
• (2) Front shock NX2 Nitro series
• (2) Rear shock NX2 Nitro series

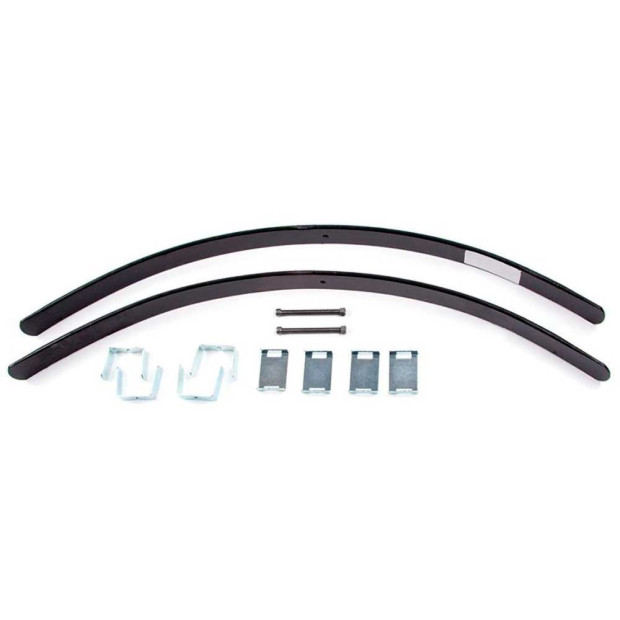

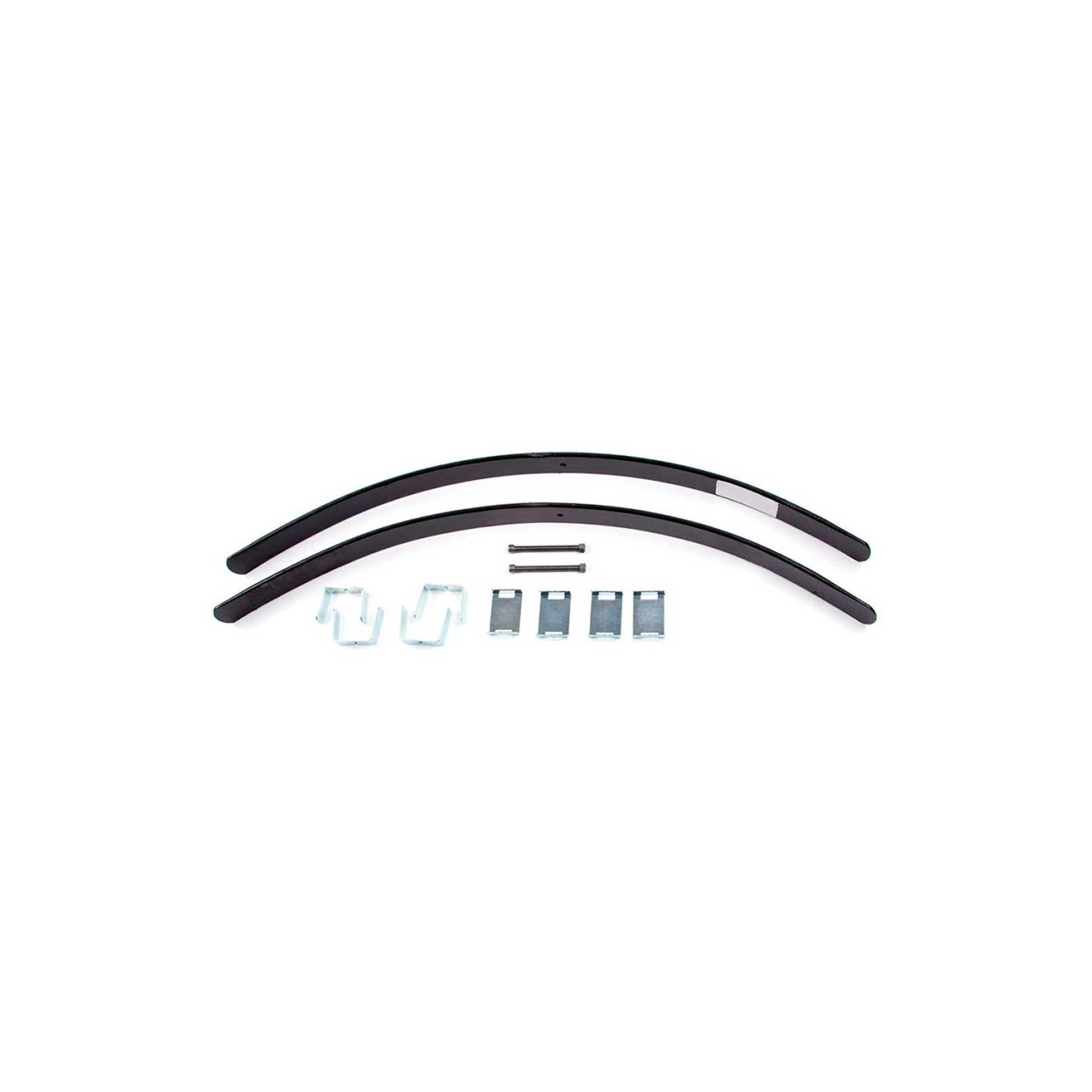

• (2) Add-a-leaf spring and hardware
• Extended u-bolts
