Kit suspension BDS +2"

• Increases ground clearance
• Allows larger tyres to be fitted
• Gives aggressive character

Coil spring specs:

• Powder-coated with a flexible polyester-based paint, which increases corrosion protection
• The material used and the production technology guarantee the preservation of the physical properties of the product for many years
• Designed to withstand the increased load of the car (winch, steel bumper)
• Dedicated to cars with a gasoline engine

Shocks specs:

• Durable metallic silver finish
• Vehicle specific valving for better control
• High-end performance at an affordable price
• Pressurized nitrogen charged twin-tube design
• Lightening fast dampening adaptive to terrain
• Large fluon banded piston with self lubricating seals

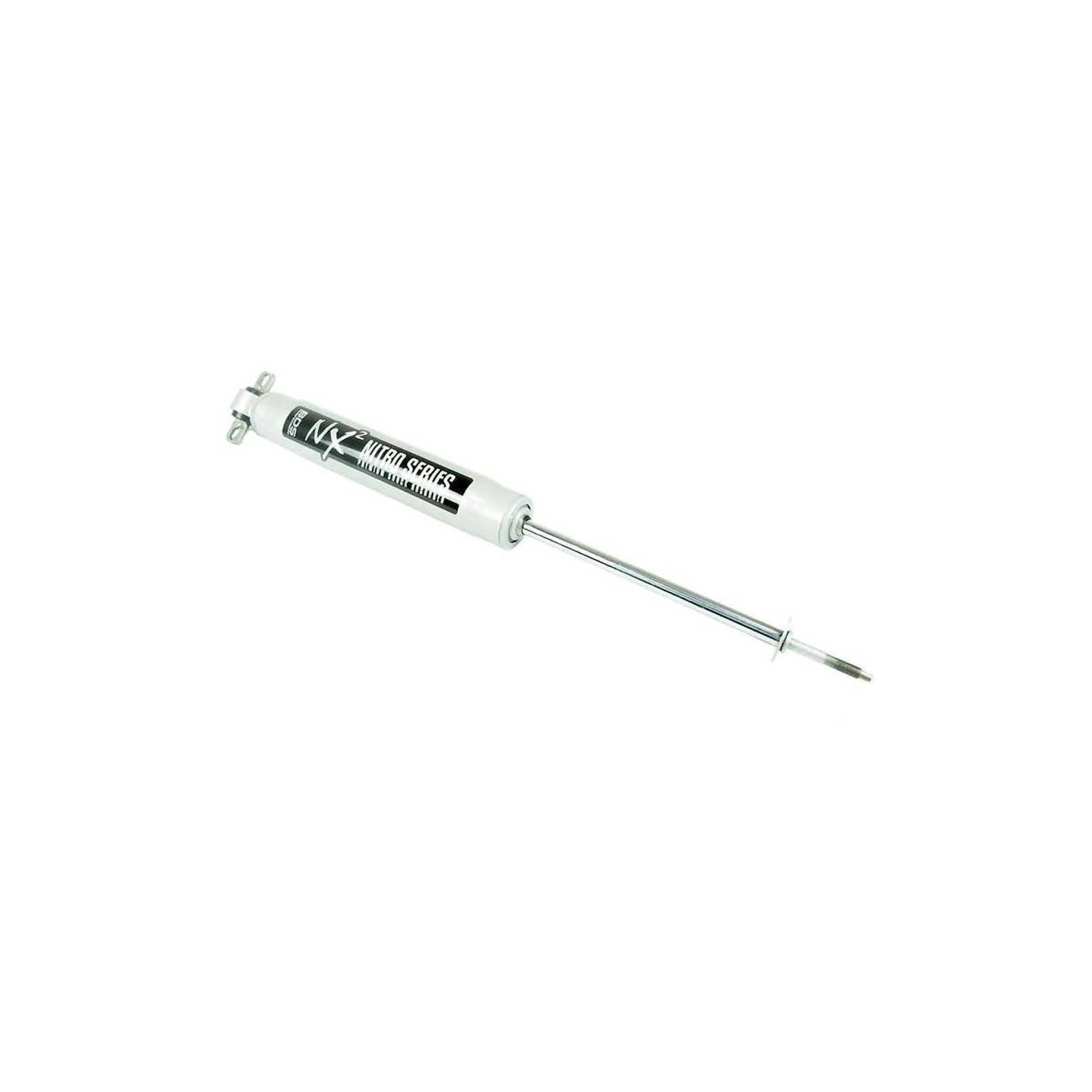

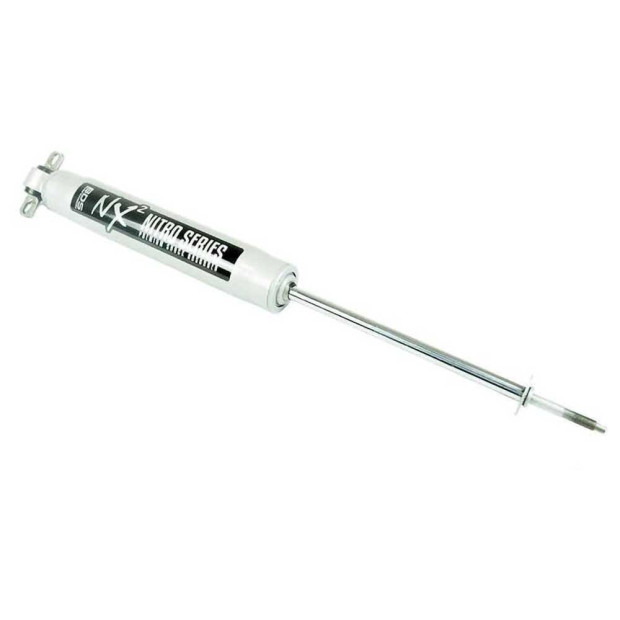

Front shock dimensions:

• Extended: 22.92"
• Compressed: 13.92"
• Travel: 9"

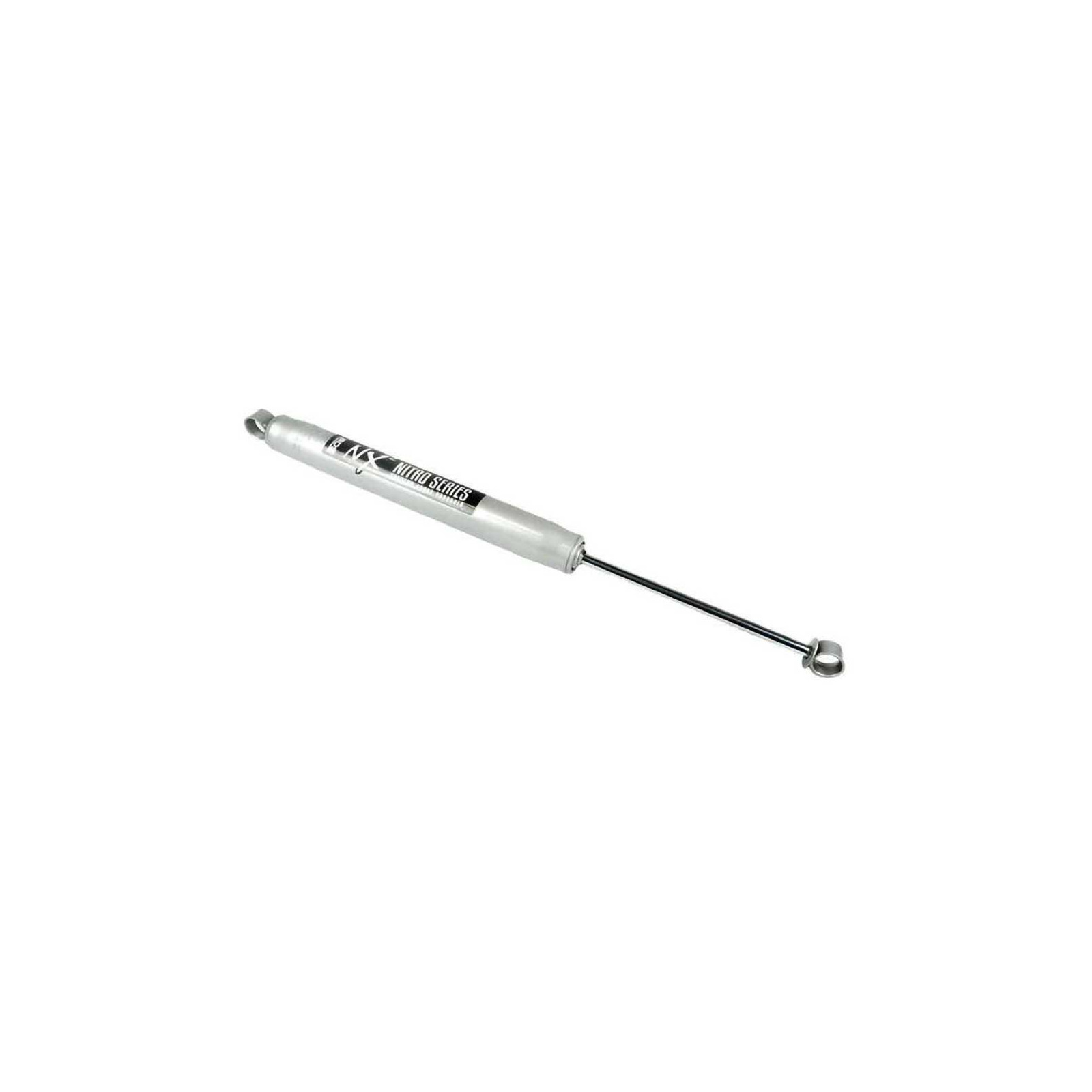

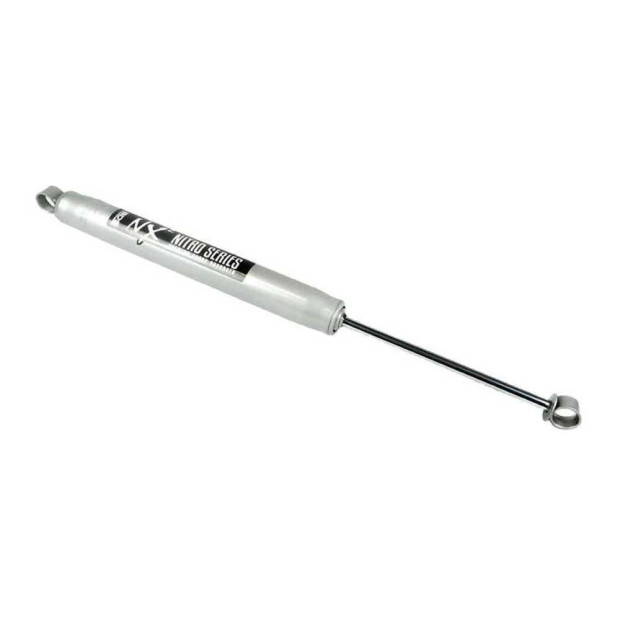

Rear shock dimensions:

• Extended: 22.95"
• Compressed: 14.67"
• Travel: 8.28"

Front shock mounts:

• Top mount: stem
• Bottom mount: bar pin

Rear shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

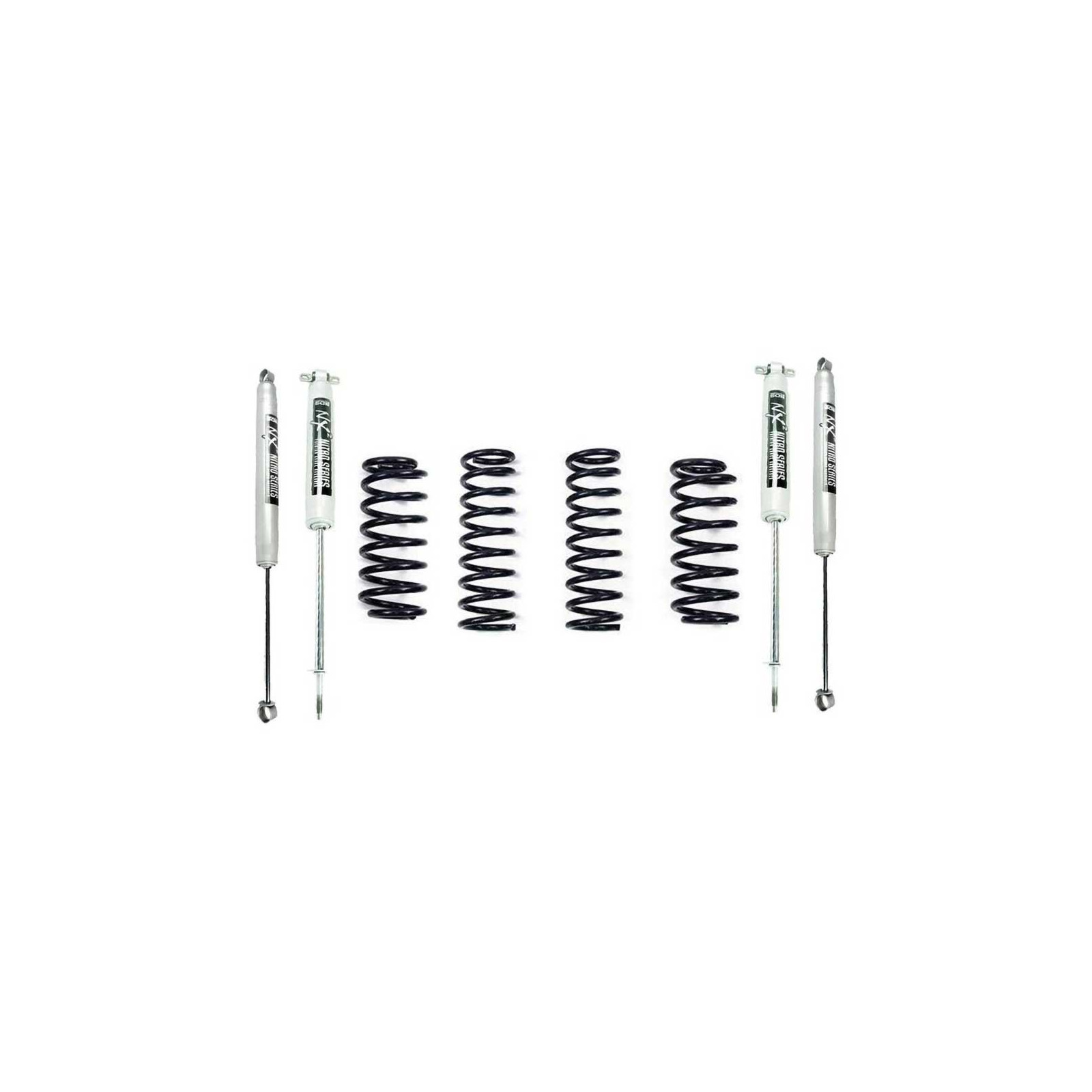

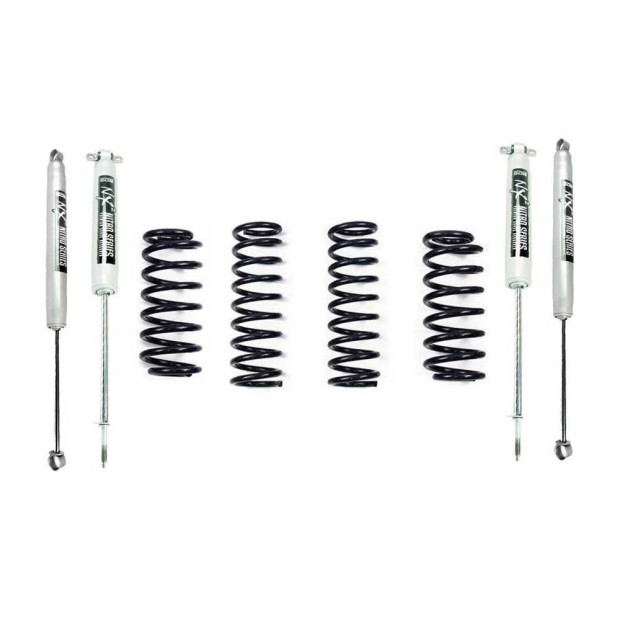

In the box:

• (2) Front coil spring
• (2) Front nitro shock NX2 Nitro series
• (2) Rear coil spring
• (2) Rear nitro shock NX2 Nitro series

Notes:

• Vehicles equipped with a Diesel engine may not achieve the stated heigh
