Suspension kit BDS with FOX 2.5 Performance Elite + 2.0 Performance Shocks Lift 6"

• FOX 2.5 Performance Elite DSC Coilovers with remote reservoirs for front lift
  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2,5" impact extruded aluminum body
  • Massive 7/8" hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Designed specifically for increased travel and the abilty to soak up the roughest terrain
  • DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs
• FOX 2.0 Performance IFP rear shocks
• 2" impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Long-lasting clear anodized finish
• Lift height 152,4 mm / 6"
• Compatible with larger tire sizes
• Engineered for comfort, control, and durability

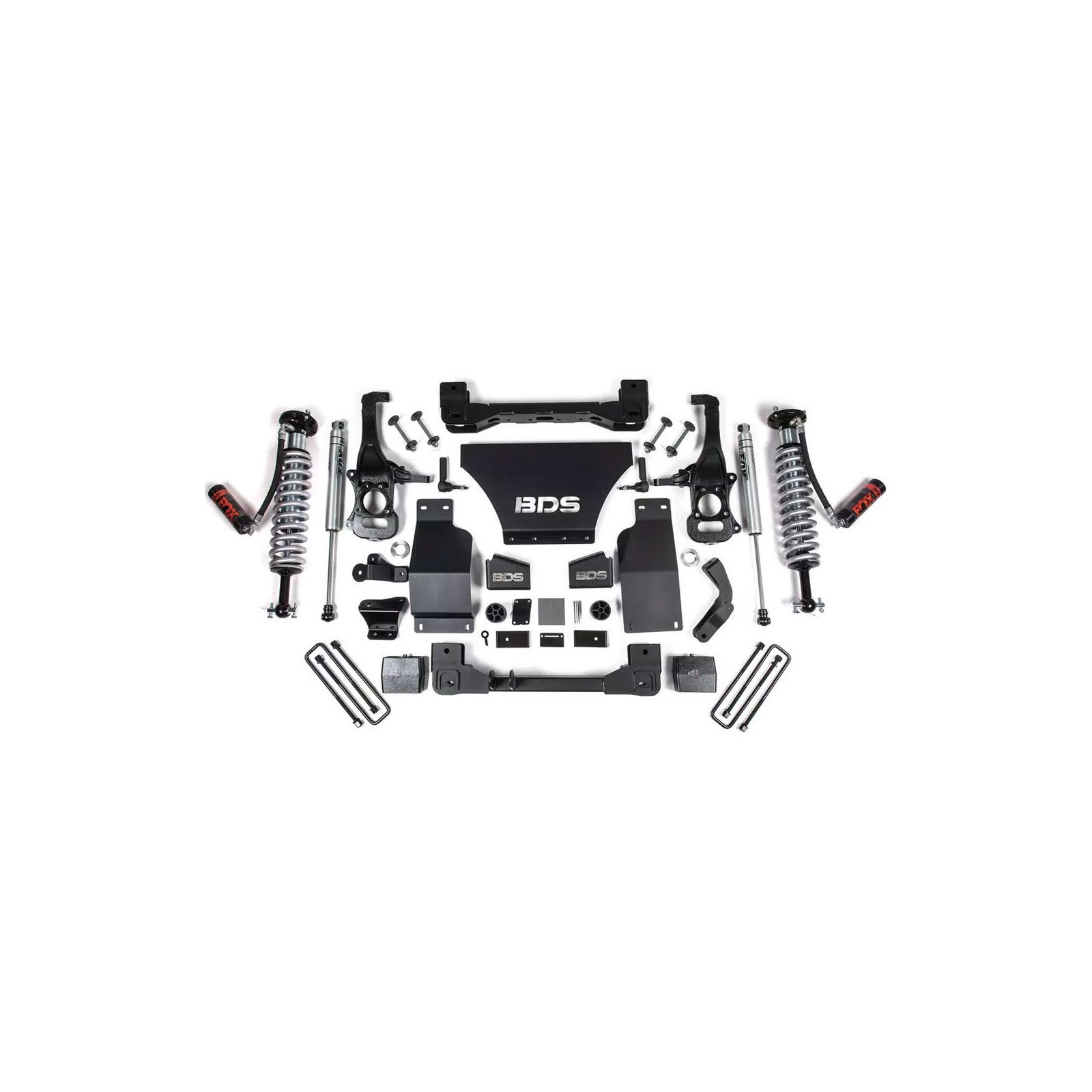

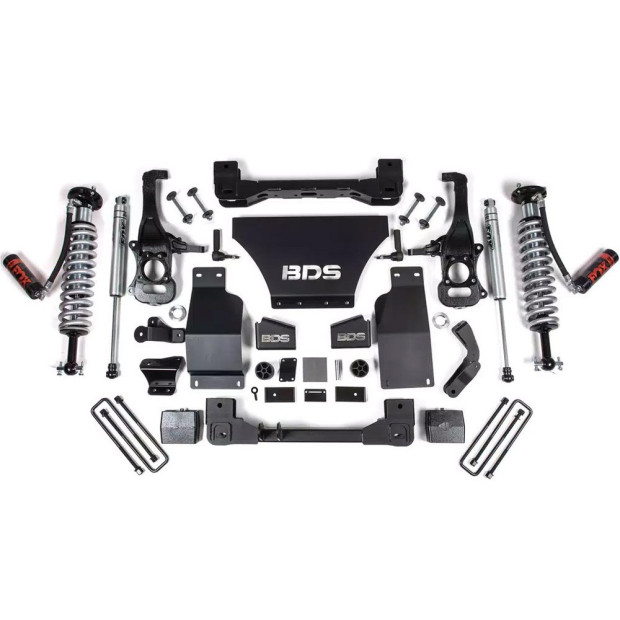

In the box:

• (2) FOX 2.5 Performance Elite DSC Coilover front
• (2) FOX 2.0 Performance Shock rear
• Rear box kit
• Coilover Reservoir Mounting Bracket Kit
• Front Box Kit
• Knuckle Box Kit
• Mounting hardware

Notes:

• Fits only to gas engines
• Requires frame bracket modification
• Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
• 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
• Actual ride height on coilover kits is closer to 6.5'' of lift
• If equipped with a mono-leaf rear spring please use part BDSUBT4064
• 2.7L Turbo models use Diesel  BDS1803FDSC kit for proper skid plate fitment
