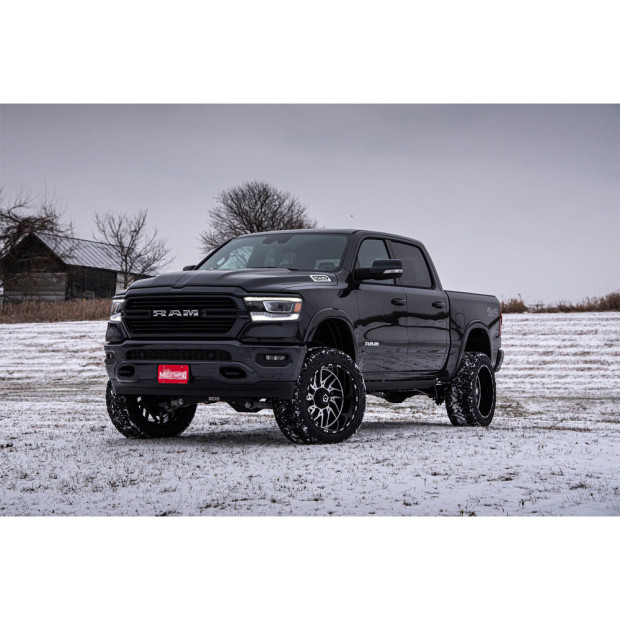

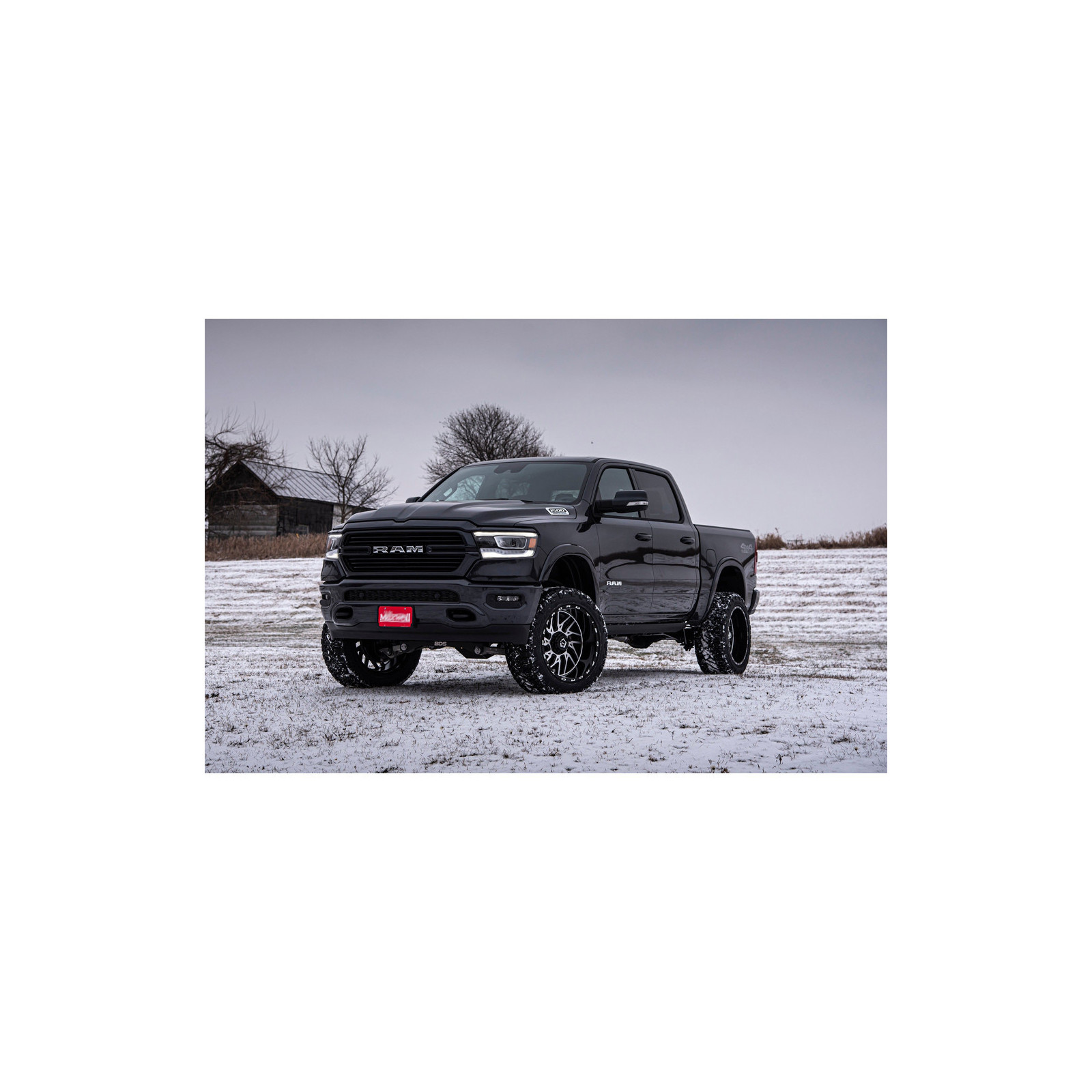

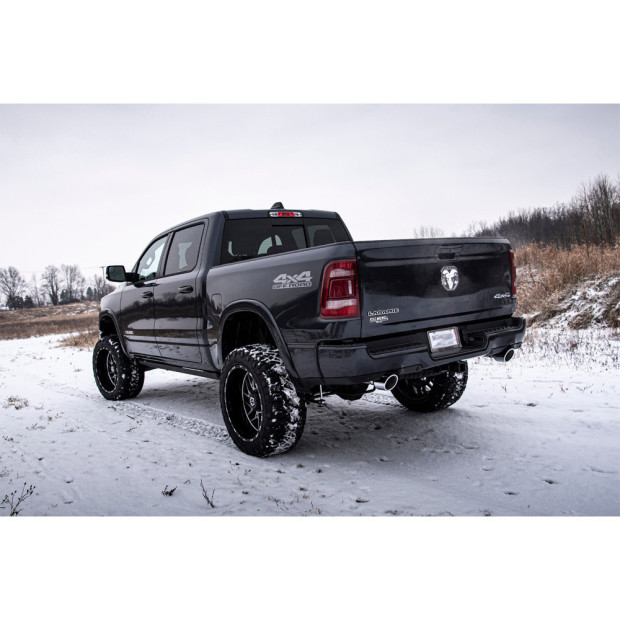

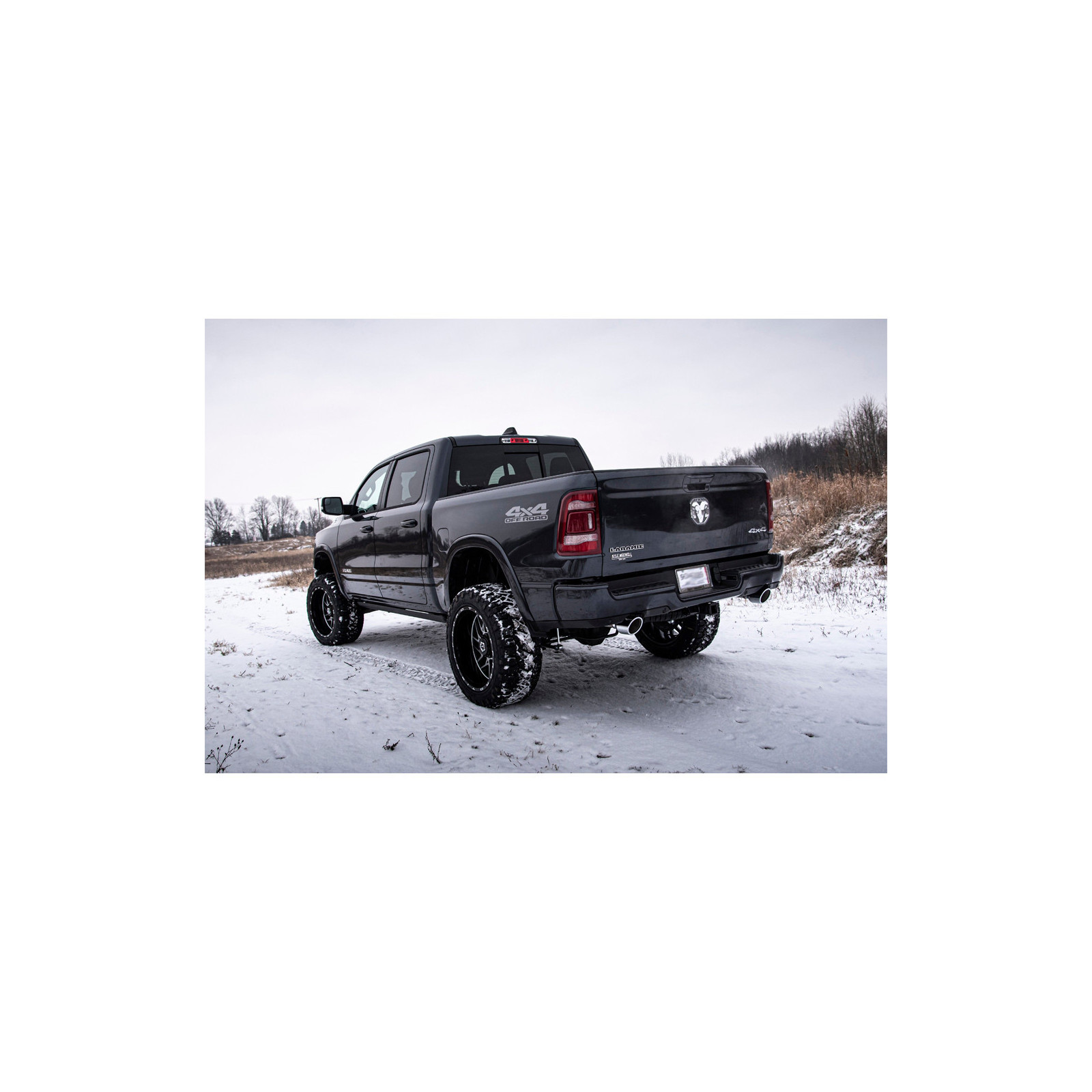

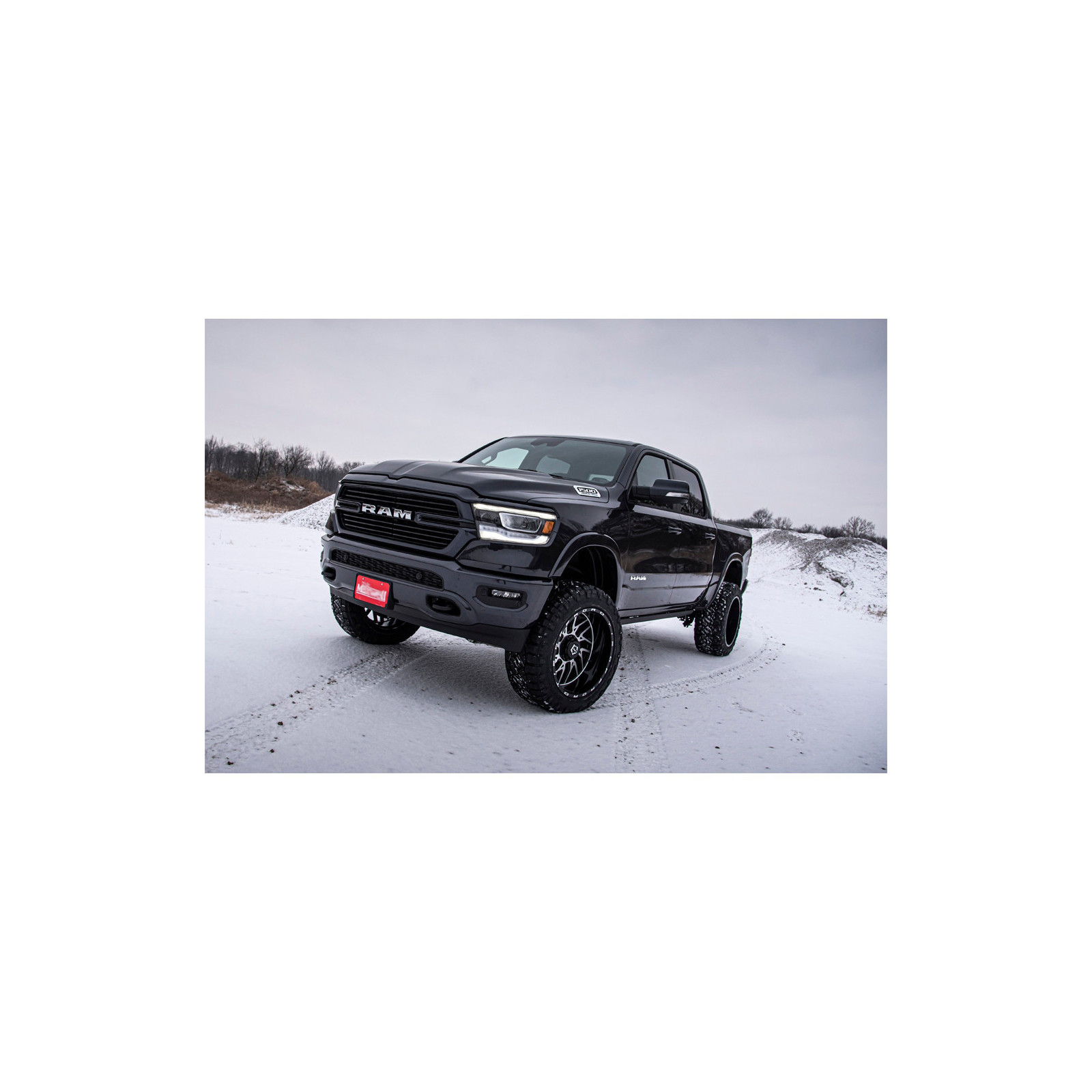

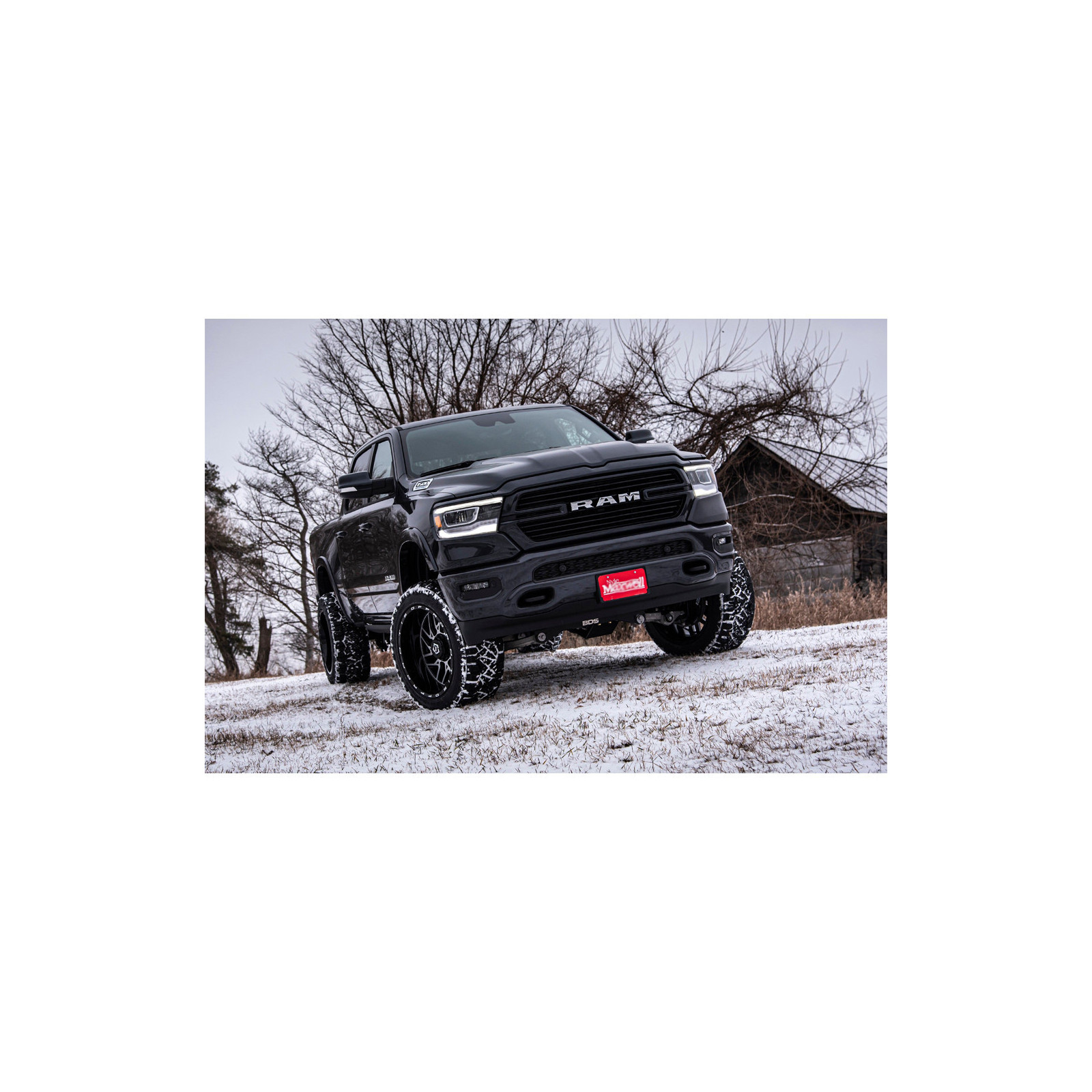

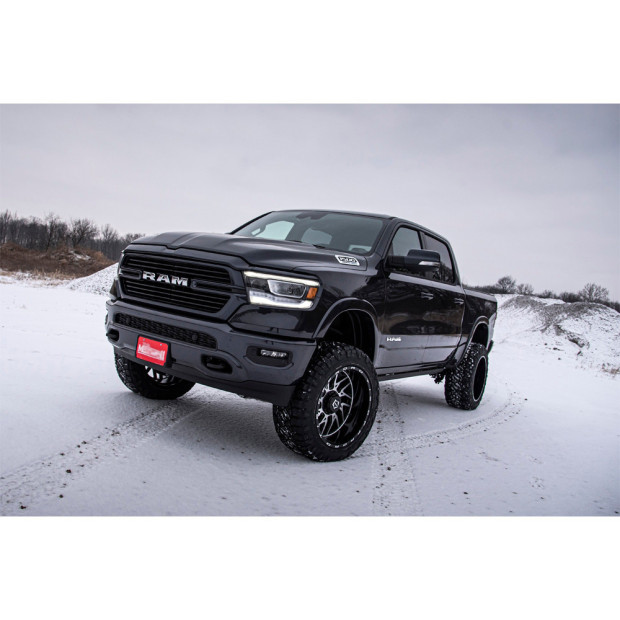

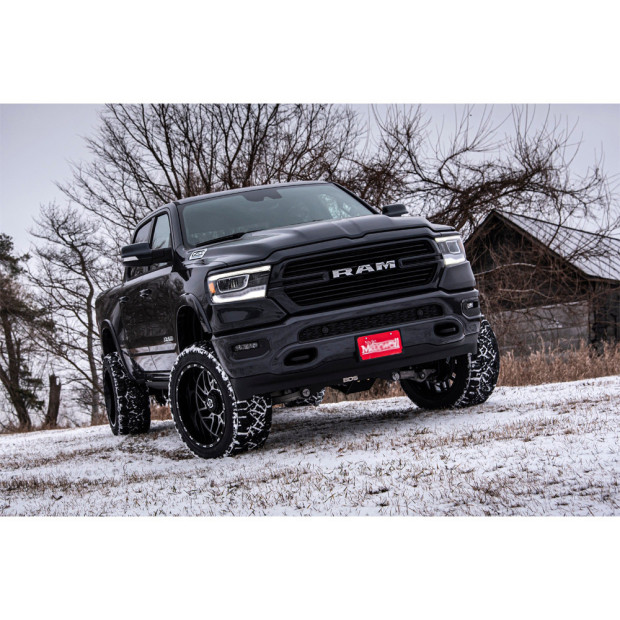

Suspension kit with FOX Performance 2.0 shocks BDS Lift 6" 4WD Standard Bore

• Provides a 6" lift for increased ground clearance
• Heavy-duty steel, 1/4" thick laser cut high clearance crossmembers
• Repositions lower control arms for better operating angles
• Heavy duty front skid plate system
• Taller and wider steering knuckles for optimal ride quality
• Relocation brackets for differentials, sway bars, and driveline components
• 5" ProRide dual rate coil springs for lifted and leveled stance
• Specially tuned FOX 2.0 Performance Series shocks:
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

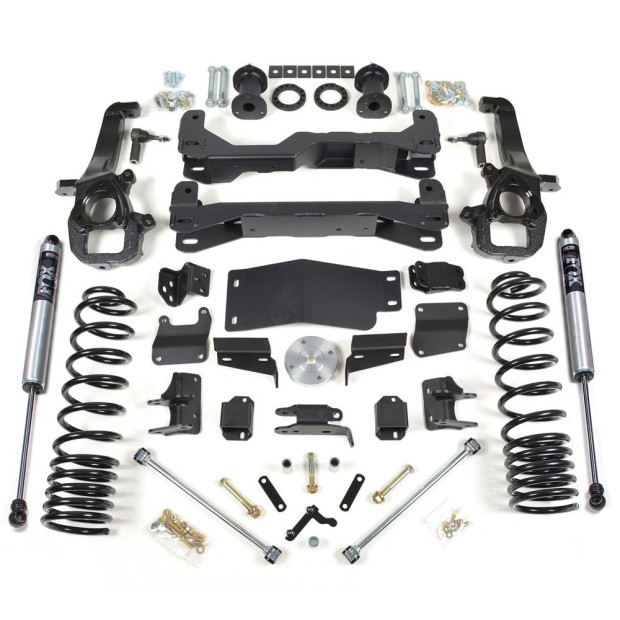

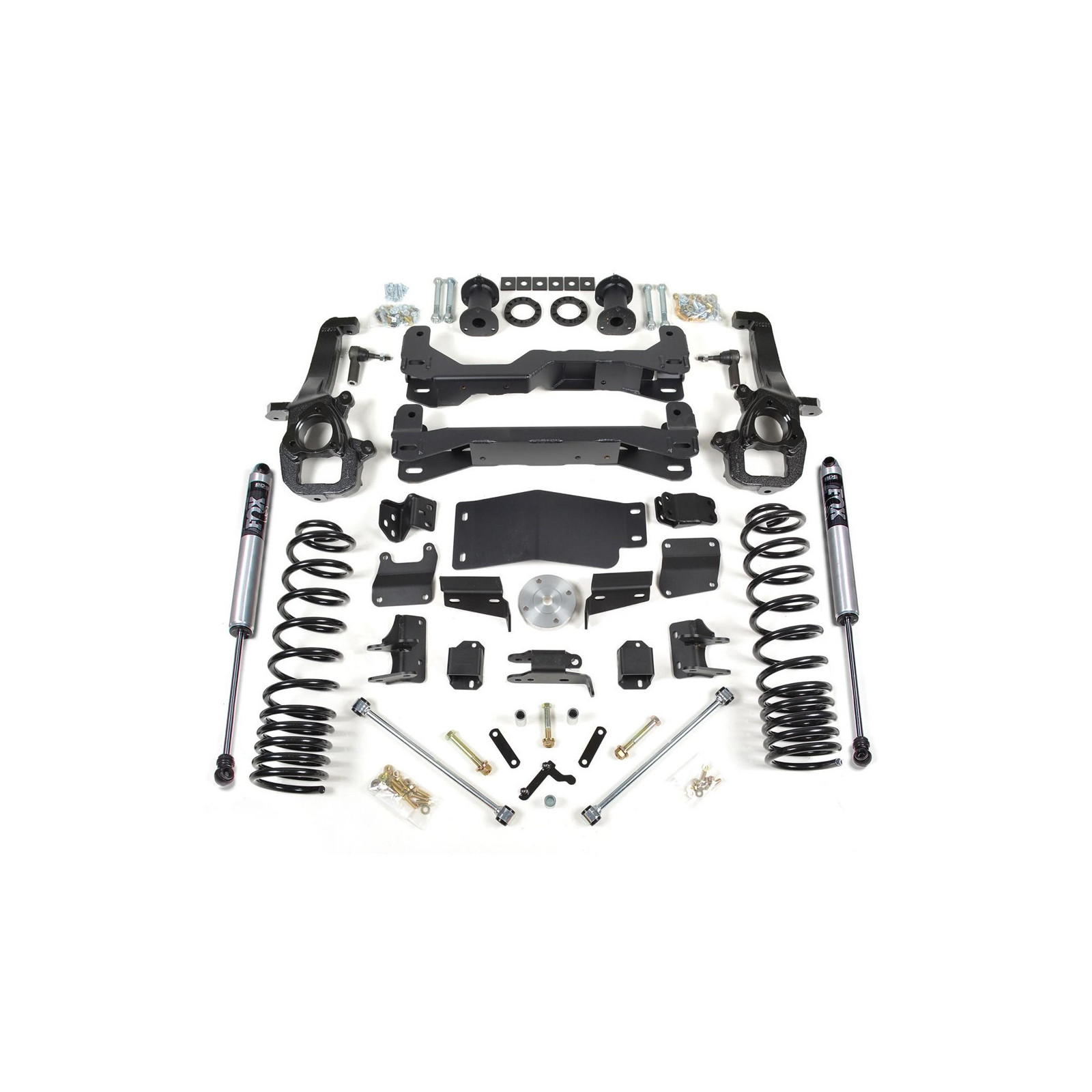

In the box:

• Front crossmember
• Front brake lines
• Front brake line brackets
• Front differential skid plate
• Break line drop brackets
• Steering knuckles
• Tie rod end
• Differential bracket mounting
• Driveshaft spacer
• Sway bar drop brackets
• Rear crossmember
• (2) Coil springs
• (2) Rear nitro shock Fox 2.0 Performance IFP

Note:

• Fits 4WD models only
• RAMs with factory 22" wheels require larger bore knuckles due to larger wheel bearing assembly
• Will not fit adjustable Air Ride suspension models
• If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
• Will not work on diesel models
• Will not fit 2019-2022 RAM 1500 Classic models
• Will not fit models equipped with the Thermal Axle option
• If using 18" wheels with maximum recommended backspacing, test fit wheels on wehicle before mounting tires, to ensure clearance
