Suspension kit BDS with FOX shocks Lift 6"

• Front FOX Performance Elite 2.5 DSC coil-over shocks for extended travel and best driving performance
• Rear FOX Performance 2.0 IFP shocks for extreme off-road capabilities
• DSC - Dual Speed Compression Adjuster comes standard
• Easily adjust your shock for terrain, load and speed
• High clearance crossmembers improve strength and offroad capability
• CNC-machined heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers for easy lift installation
• Differential skid plate for enhanced off-road protection
• Rear lift blocks and U-bolts for raised and levelled stance

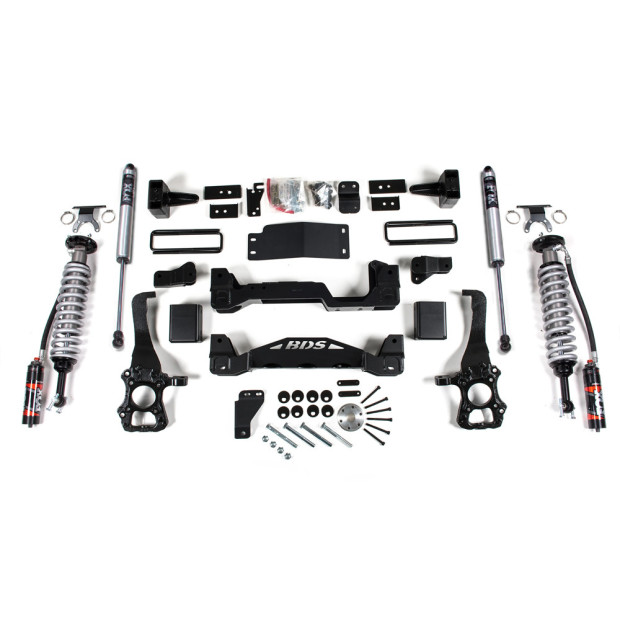

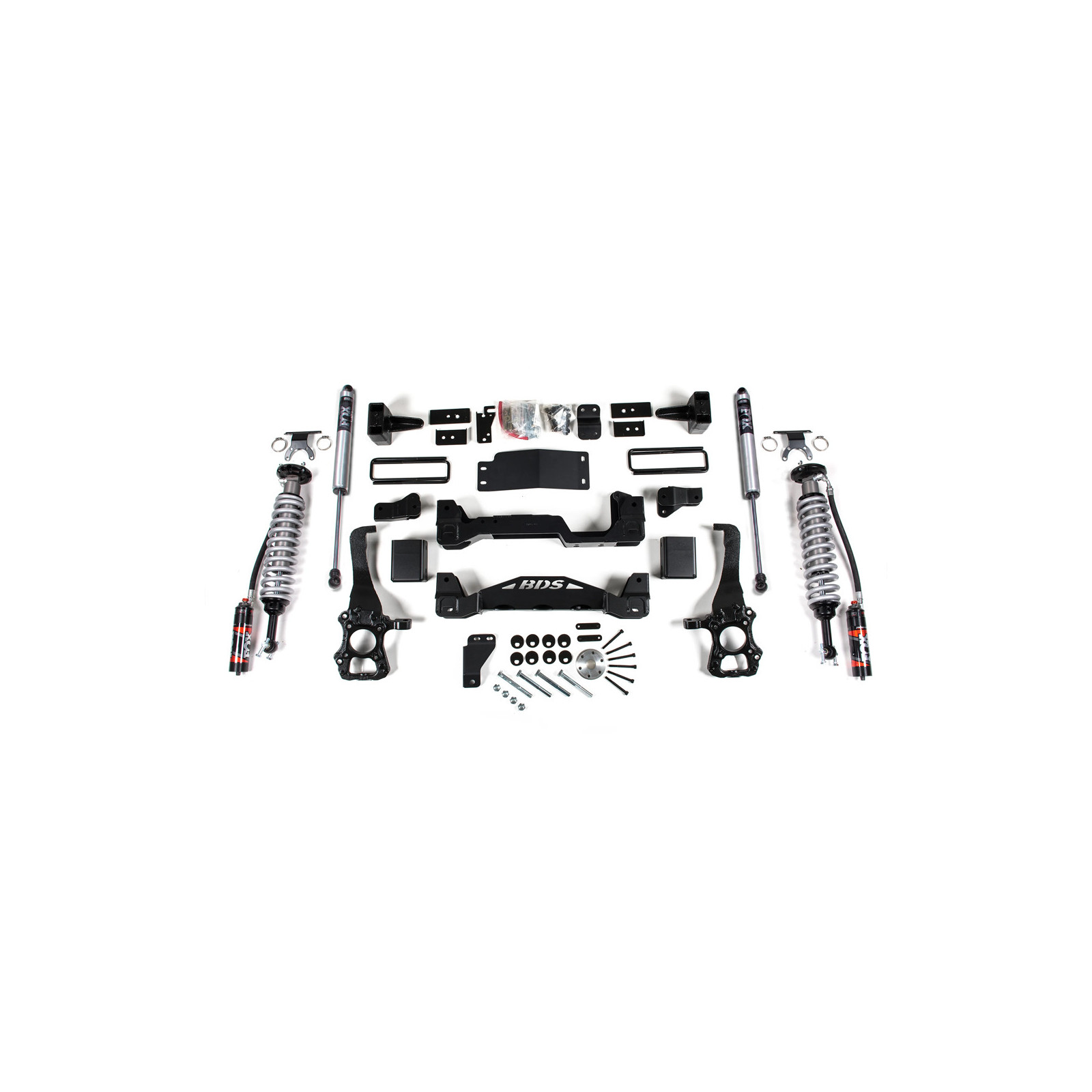

In the box:

• Front crossmember
• (2) Front coilover FOX 2.5 Performance Elite Series
• CNC-machined ductile iron steering knuckles
• Heavy duty replacement ball joints
• Multipoint differential relocation brackets
• Heavy duty differential skid plate
• Sway bar relocation brackets
• New alignment cam bolts
• Billet aluminum driveshaft spacer
• In the rear a 5" offset pin block kit recenters the rear axle in the wheelwell and replacing the factory 1.25'' block to eliminate stacking blocks
• Rear brake line extensions
• Rear crossmember
• (2) Rear nitro shock FOX 2.0 Performance IFP

Notes

• Fits to 4WD models ONLY
• Clearance for up to 37'' tyres to be installed
• Cutting required
• Will not fit HD models (7 lug)
• Requires frame bracket modification
• 18" wheels with 5-5,5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle
• 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tyres
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit
