Suspension kit Air Ride with FOX shocks BDS Lift 4" Large Bore

• Increased ground clearance
• Levels the front with the rear of the vehicle
• Gives an aggresive look

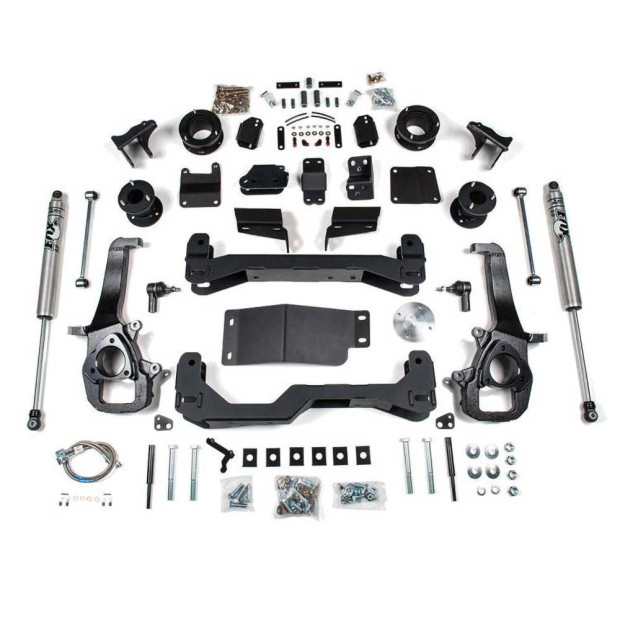

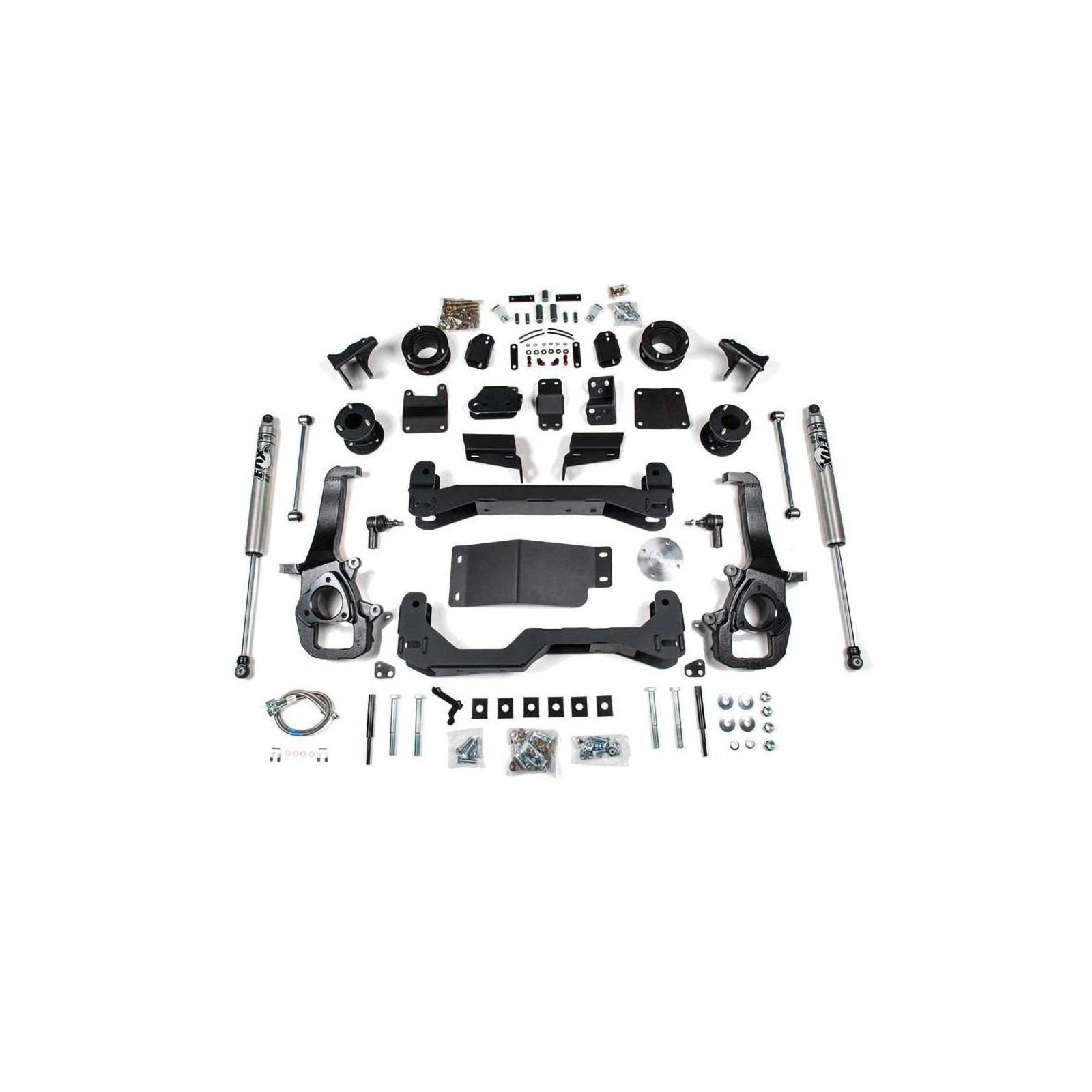

In the box:

• Front crossmember
• Front brake lines
• Front brake line brackets
• Front differential skid plate
• Break line drop brackets
• Steering knuckle
• Tie rod end
• Differential bracket mounting
• Driveshaft spacer
• Sway bar drop brackets
• Sway bar end link
• Rear crossmember
• Rear track bar bracket
• Bump stop extensions
• Upper control arms relocation brackets
• Strut spacers
• (2) FOX nitro shock Performance Series 2.0 IFP

Notes:

• Requires cutting
• Fits 4WD models ONLY
• Fits models with 3.0L Hurricane I6 engines and models with 3.6L V6 engines
• Fits vehicles equipped with Large Bore hubs ONLY
• If your vehicle has a standard hub bore, use the lift kit BDS2122FS(sold separately)
• Not compatible with diesel models
• Not compatible with models with air ride
• Standard 18" wheels cannot be refitted due to interference with the steering system
• Standard 20" and 22" wheels can be refitted with factory tyre size
• Recommended tyre and wheel size (may require trimming)
  • 35 x 12.5 with 20 x 9 and 5 inches backspacing
  • 35 x 12.5 with 18 x 9 and 4.5 inches backspacing
• Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance (sold separately)
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines mounted as circled in image below
