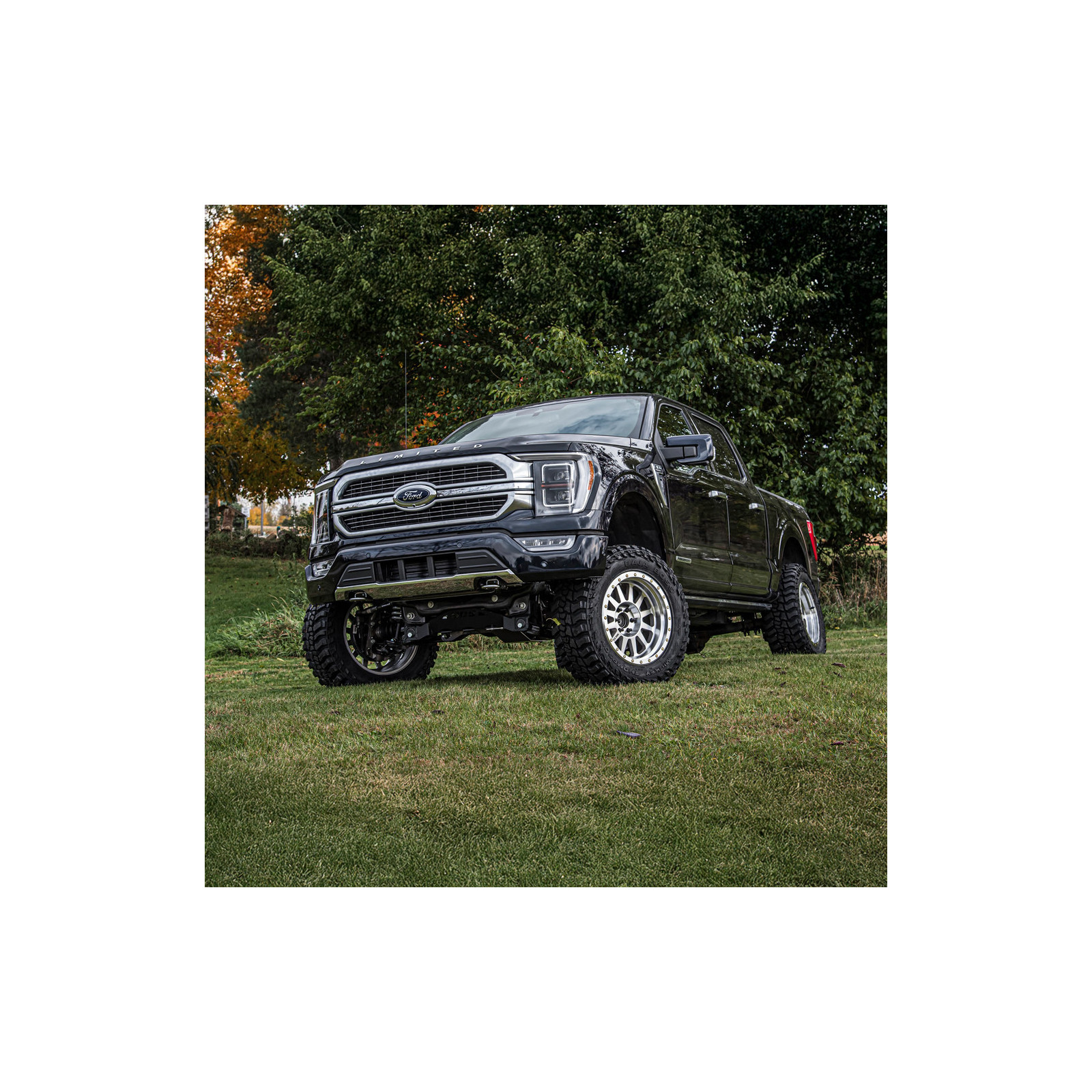

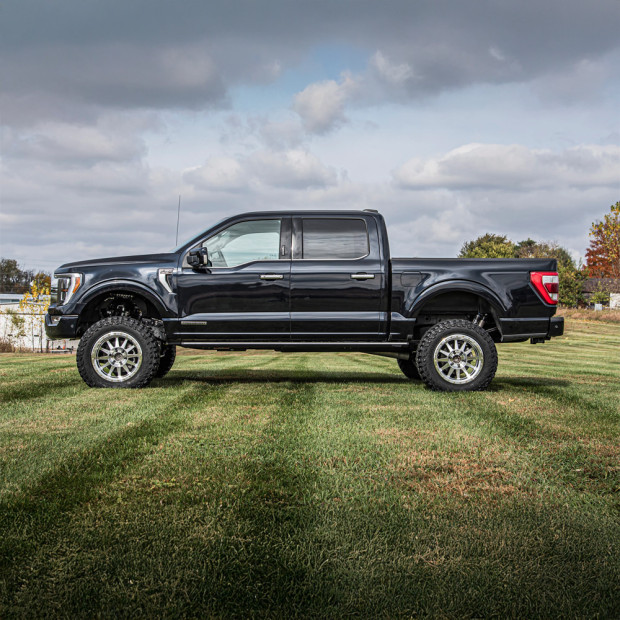

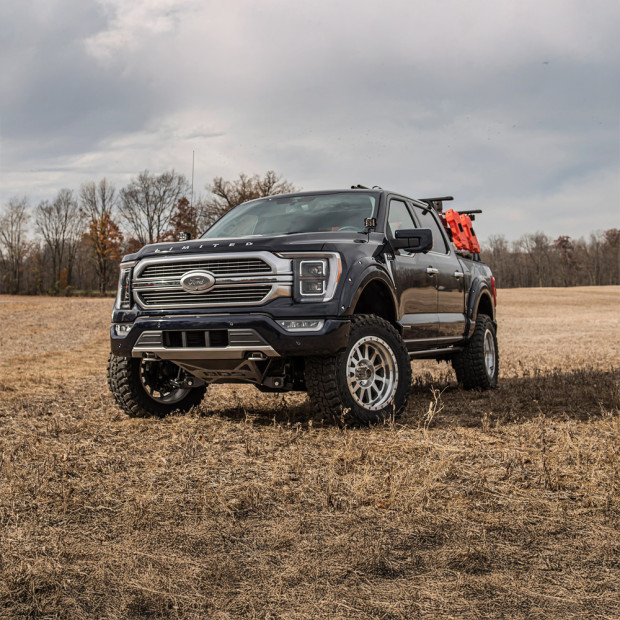

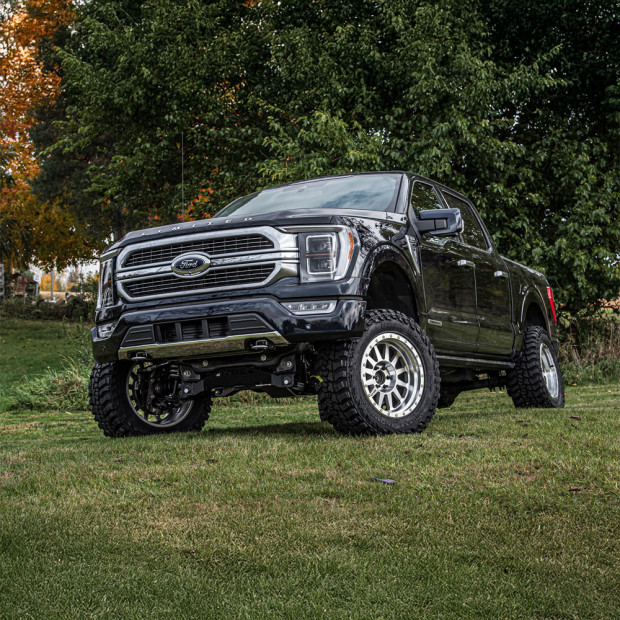

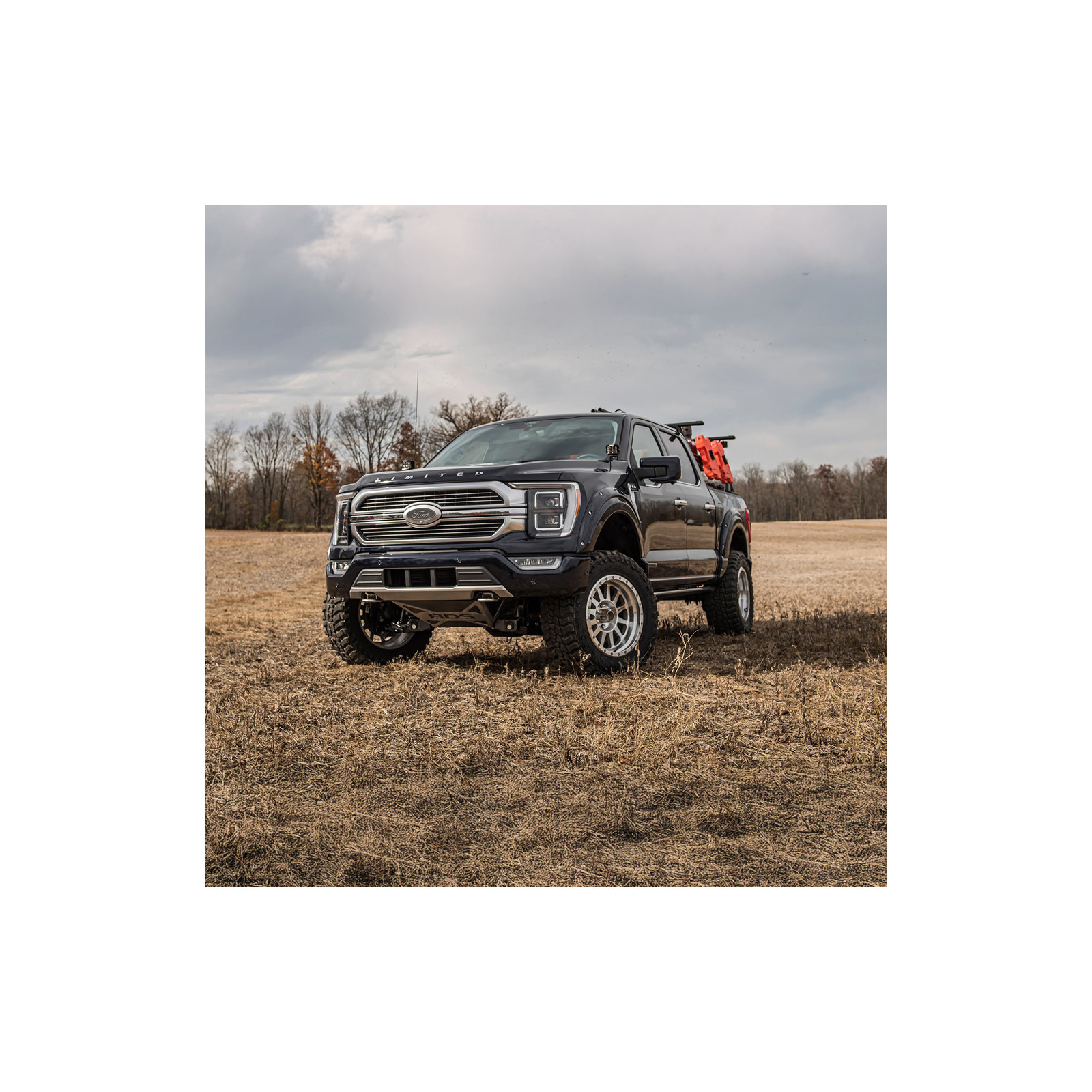

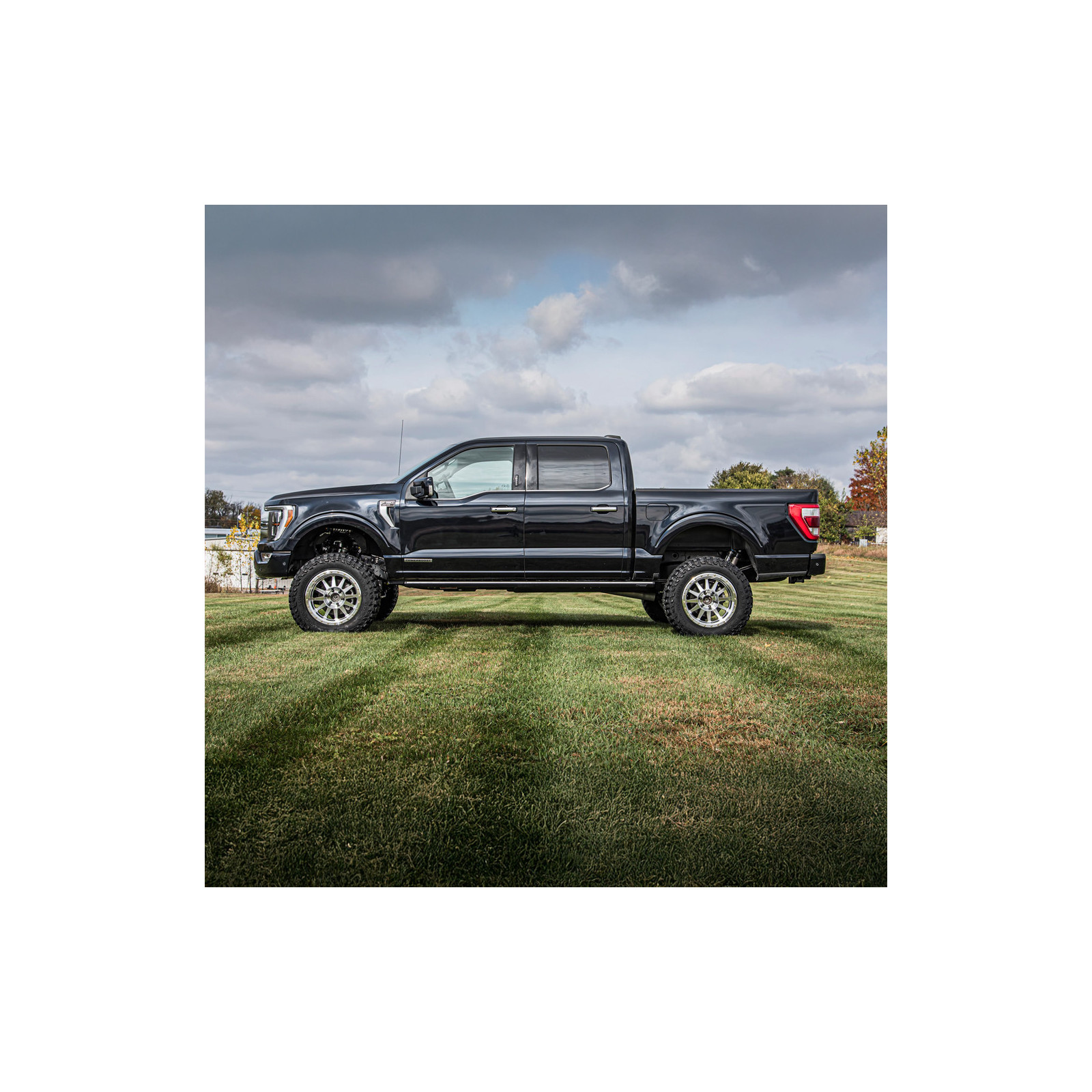

Suspension kit BDS Lift 6"

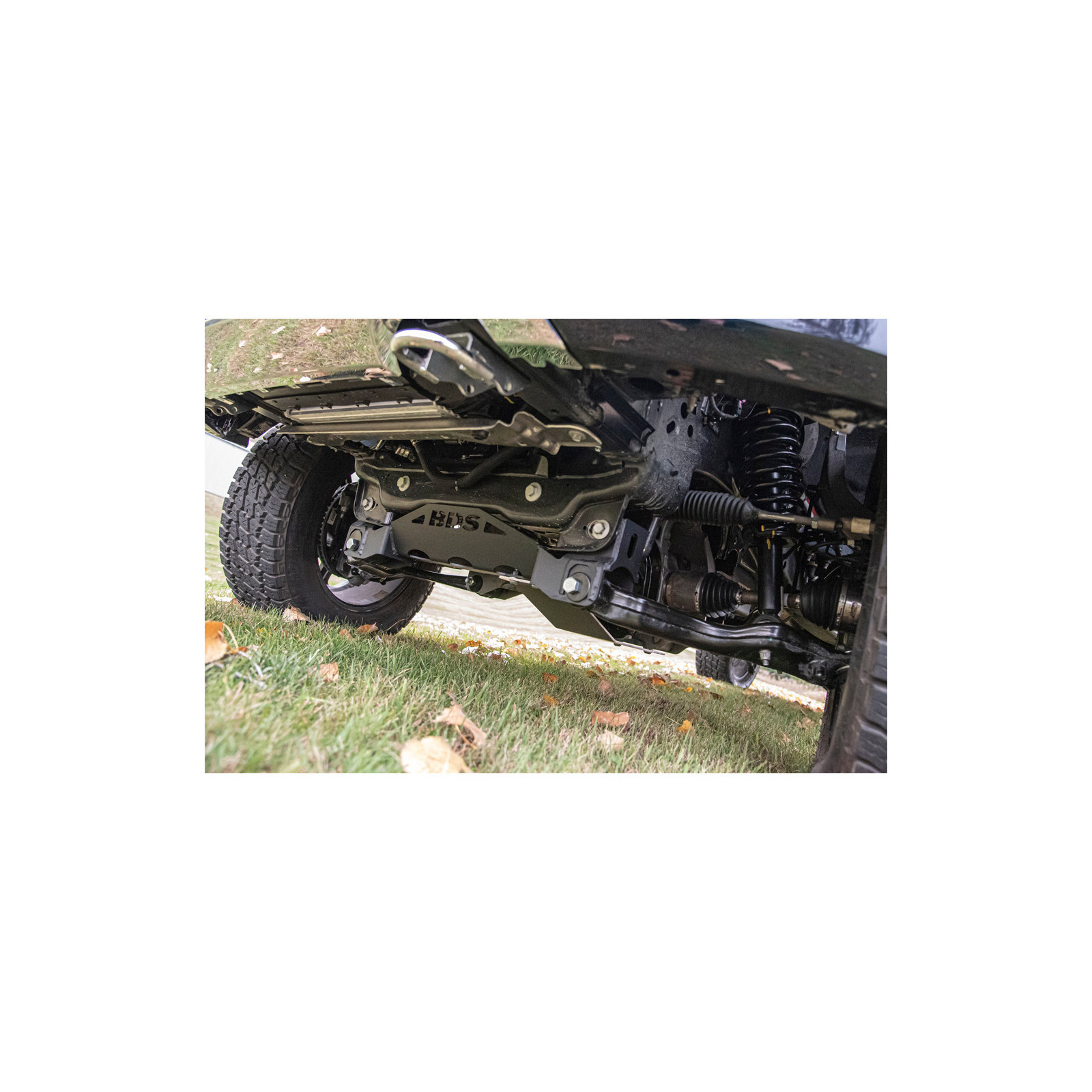

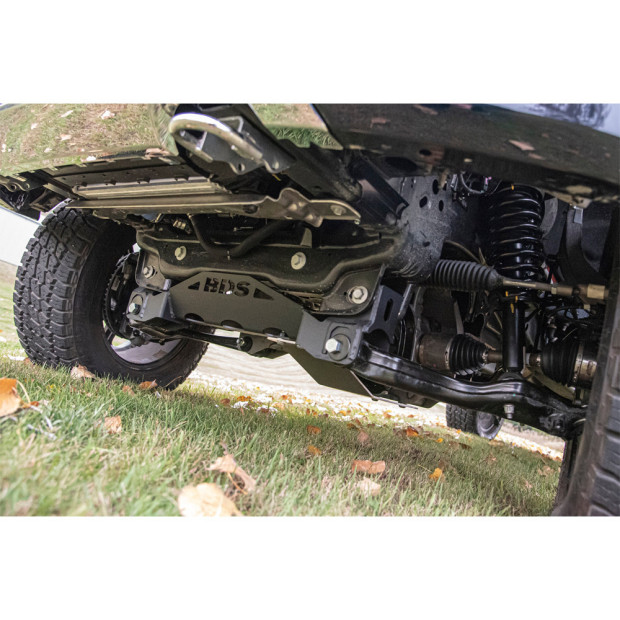

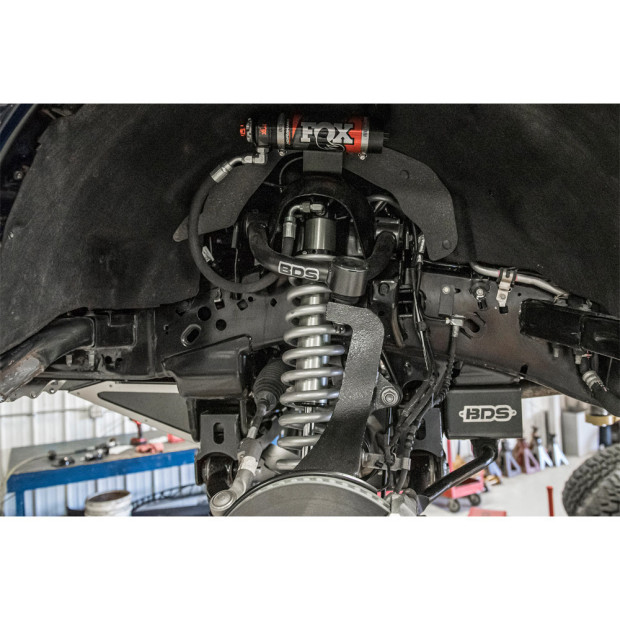

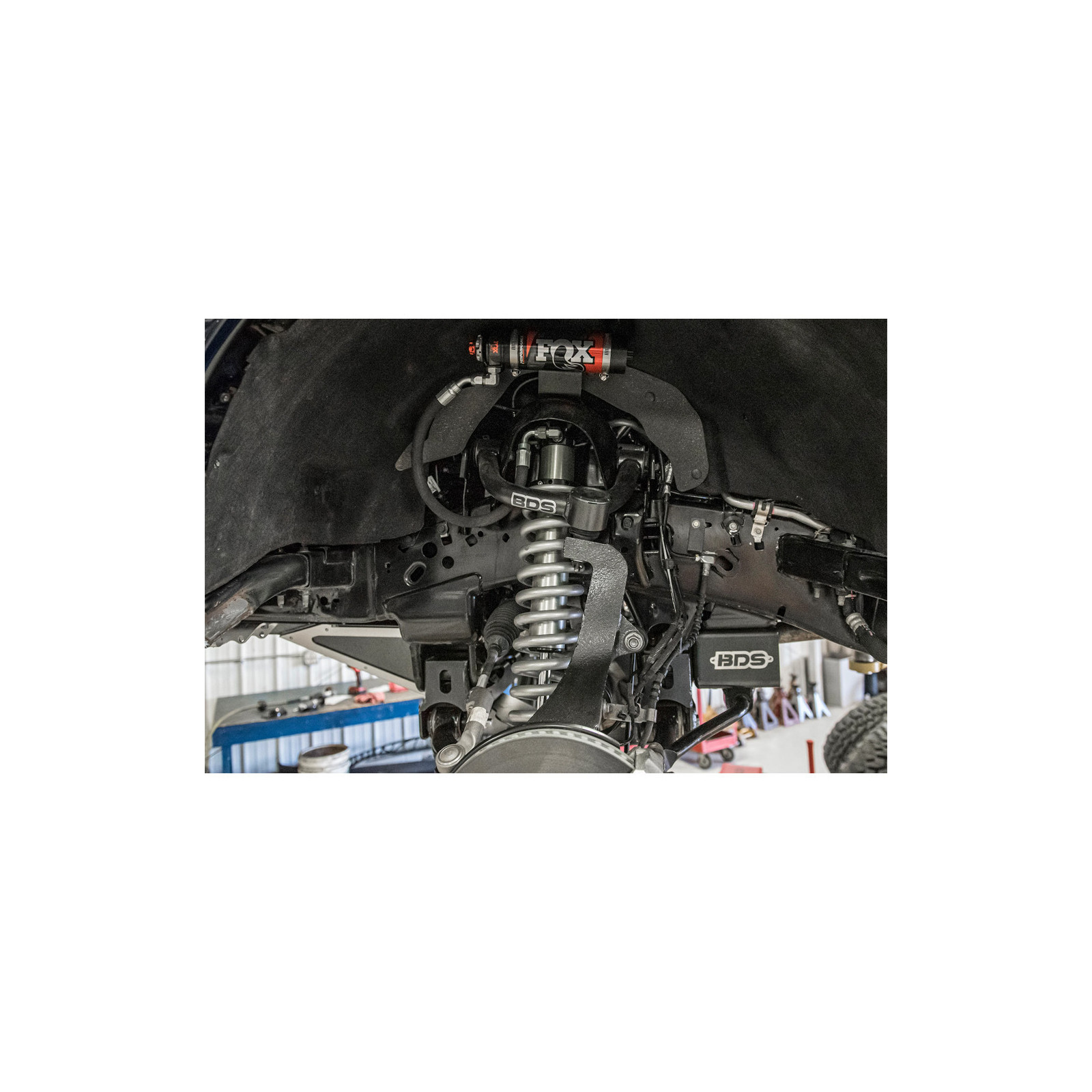

• Heavy-duty 1/4-inch steel crossmembers maximize ground clearance, improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• High-strength fabricated lift blocks and u-bolts ensure rear suspension durability and proper stance with tail high appearance

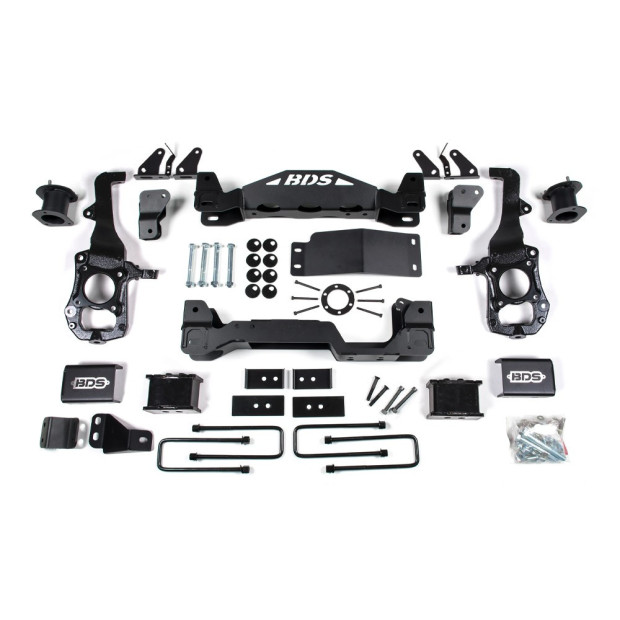

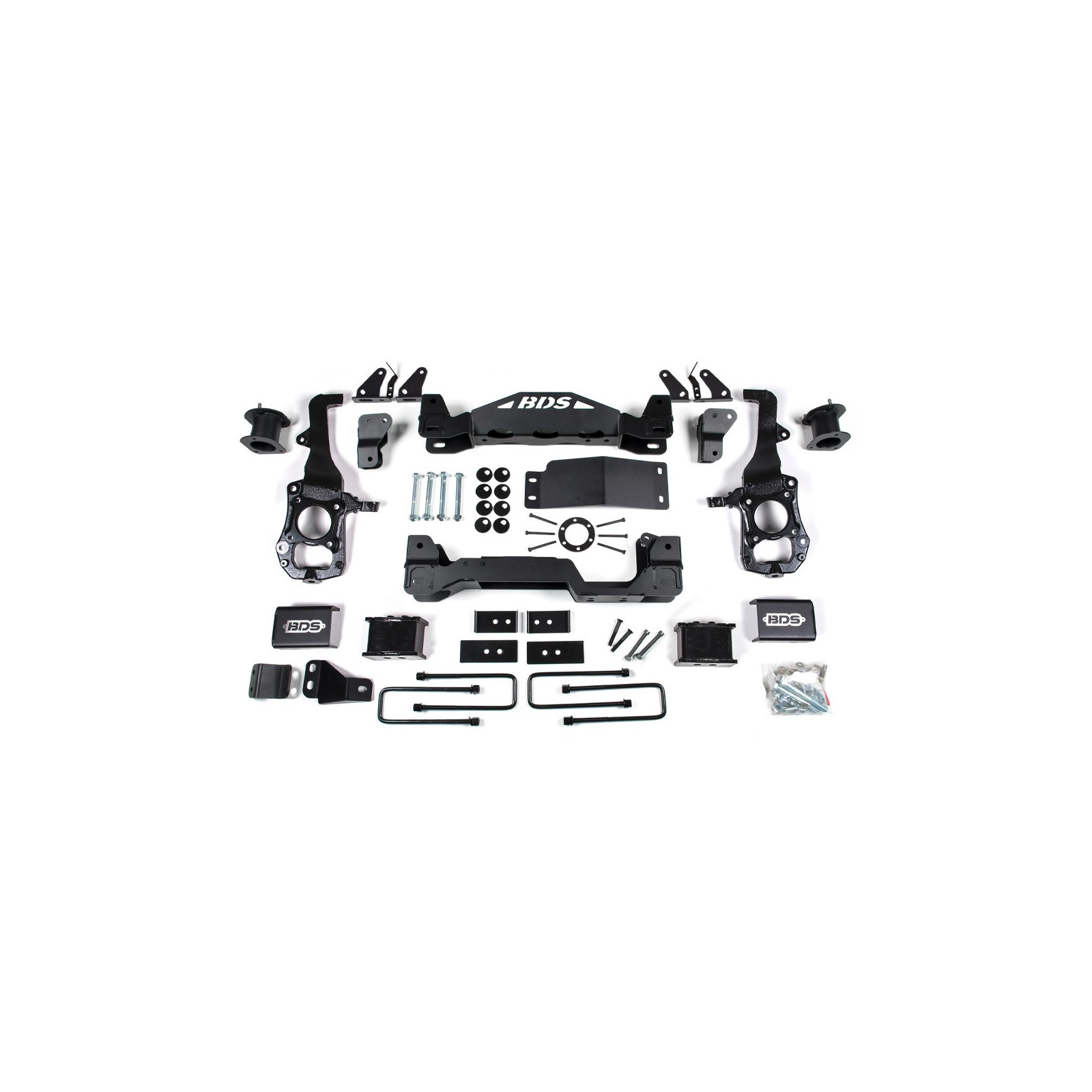

In the box:

• (2) Knuckle
• Front BDS crossmember
• (2) Sway bar drop
• Differential skid plate
• (2) Brake line bracket
• 1/4" drive shaft spacer
• Rear BDS crossmember
• (2) Differential drop bracket
• (2) Differential support bracket
• (2) 6" strut spacer
• (2) 5" rear block
• (2) Lower spring plate
• (2) Upper spring plate
• (4) U-Bolt
• Brake line relocation bracket
• Hardware

Notes:

• Fits only to models with CCD System
• Does NOT fit diesel models.
• Will not work with Tremor models.
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit BDS122406 (not included w/ kit)
• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
• 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire to frame crash bar clearance
• Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
• Max wheels size:
• 37 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
