Suspension kit with FOX 2.5 Performance Elite coilovers BDS Lift 4" 4WD Large Bore

• Increases ground clearance
• Improves on-road and off-road handling
• Levels the front with the rear of the vehicle
• Allows for the installation of oversized tires
• Gives an aggresive look
• Specifically tuned Fox Performance Elite Series 2.5 shocks:
  • Adjuster: DSC allows 10 separate low-speed and 12 high-speed compression levels
  • Aluminum Body Dissipates Heat Faster Than Steel
  • Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
  • Shaft: 7/8" hard chrome plated heat-treated alloy steel
  • Piston: 6061-T6 hard-anodized, high flow aluminum piston
  • Valving: Application specific valving to maximize performance
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

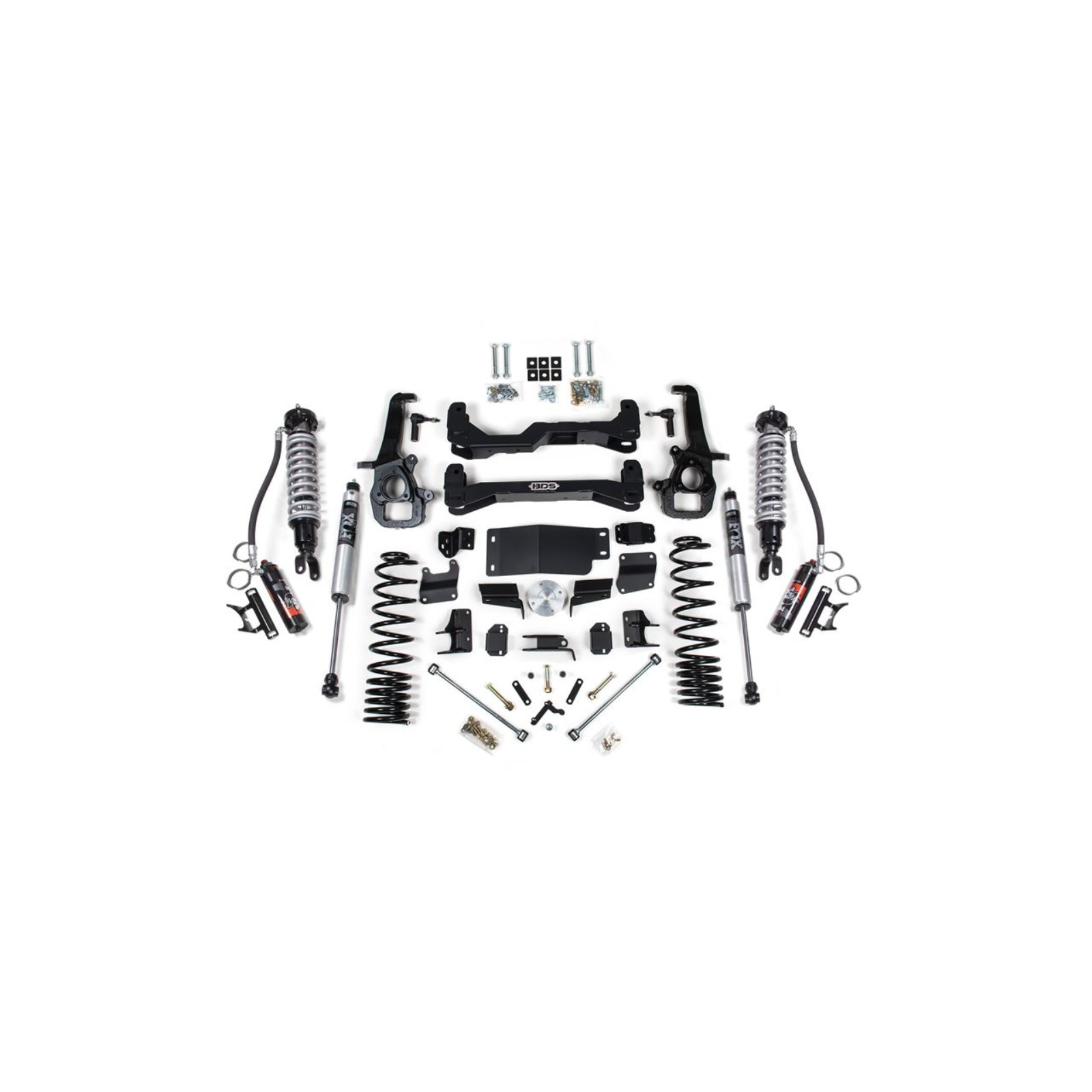

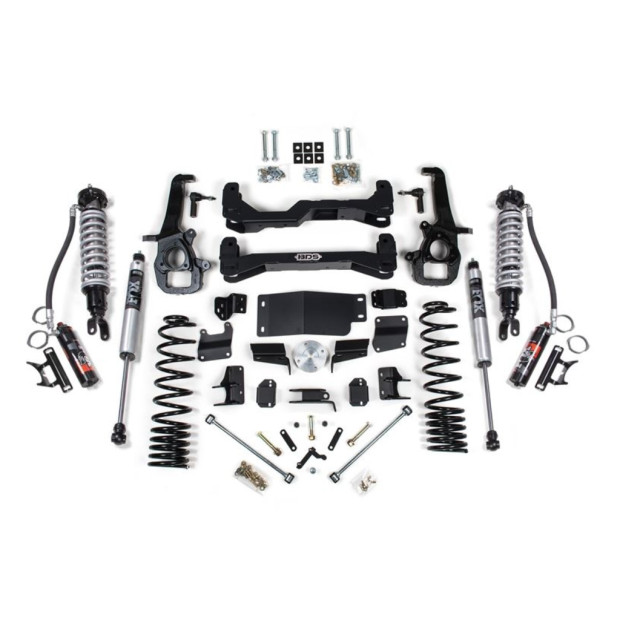

Lift kit consists of:

• (2) Front FOX Performance Elite 2.5 Reservoir coilover
• (2) Rear FOX Performance 2.0 shock
• (2) Front strut spacer
• Front crossmember
• (2) Front brake line
• (2) Front brake line bracket
• Front differential skid plate
• (2) Steering knuckle
• (2) Tie rod end
• (4) Differential bracket mounting
• Driveshaft spacer
• (2) Sway bar drop brackets
• Rear crossmember
• Mounting hardware

Note:

• Cutting required
• Does not fit diesel models
• Does not fit adjustable air suspension equipped models
• Fits only vehicles with LARGE hub bore
• Stock 17" wheels cannot be reinstalled to to steering interference. Stock 20's can be reinstalled with factory tire size
• If truck is equipped with STANDARD hub bore use lift with standard steering knuckles BDS1663FPE
