Suspension kit with FOX Coilovers Premium BDS Lift 6" Large Bore

• Increases ground clearance
• Improves on-road and off-road handling
• Levels the front with the rear of the vehicle
• Allows for the installation of oversized tires
• Gives an aggresive look
• Specially tuned FOX 2.5 Factory Race Series shocks:
  • 2,5" smooth bore zinc plated seamless steel body
  • 2,5" Smooth bore and honed seamless alloy reservoir
  • Zinc-plated and double-clear coated for long lasting finish
  • Black-anodized, CNC-machined 6061-T6 billet aluminum components
  • Application specific, adjustable 3.0 Eibach® racing springs
  • 7/8" hard chrome plated heat-treated alloy steel
  • Race-developed high-flow piston design
  • Redundant sealing pack system main seal, wiper seal, and scraper seal
  • PTFE-lined, heat-treated, alloy steel spherical

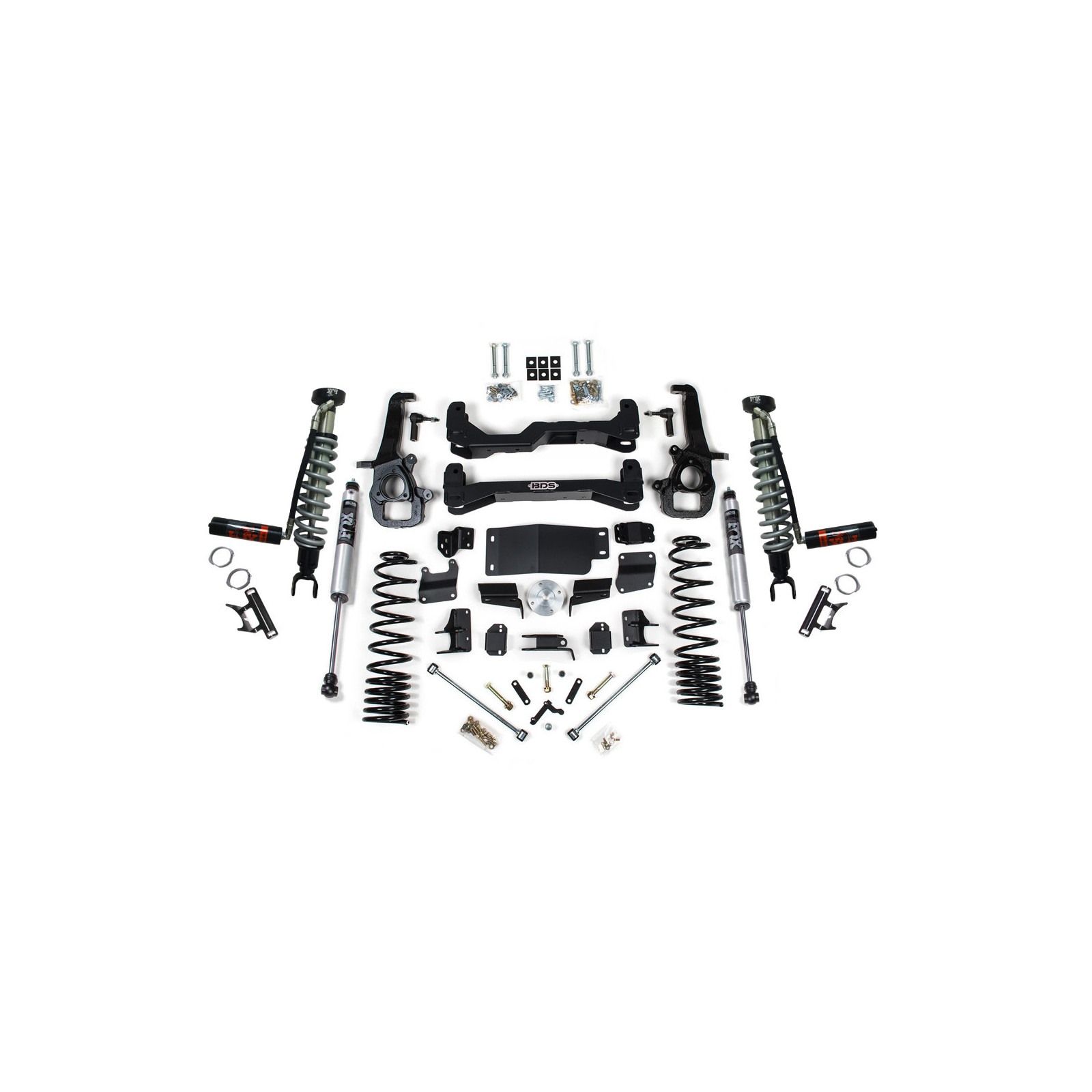

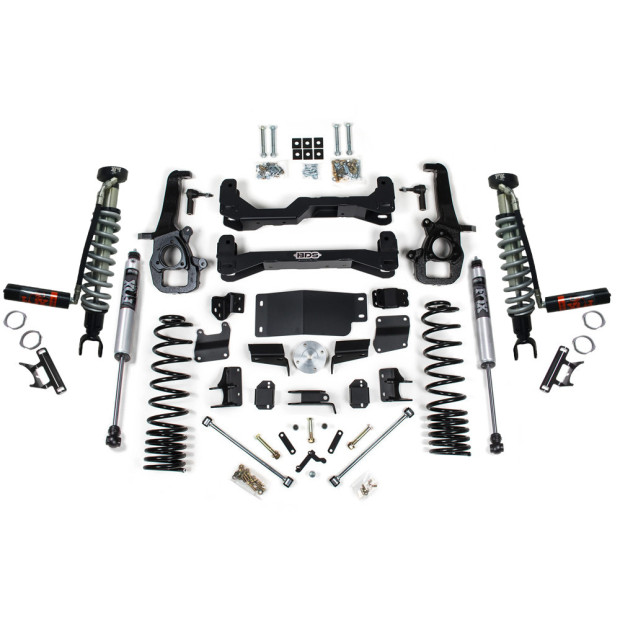

In the box:

• (2) Front nitro Coilover FOX Factory Race 2.5 Reservoir
• Front crossmember
• Front brake lines
• Front brake line brackets
• Front differential skid plate
• Break line drop brackets
• Steering knuckles
• Tie rod end
• Differential bracket mounting
• Driveshaft spacer
• Sway bar drop brackets
• Rear crossmember
• Strut spacers
• (2) Rear progressive coil spring
• (2) Rear nitro FOX Performance Series 2.0 IFP

Notes:

• Cutting required
• Does not fit diesel models
• For models with LARGE hub bore only
• Fits vehicles without factory Air Ride system
• Stock 17" wheels cannot be reinstalled to to steering interference. Stock 20" wheels can be reinstalled with factory tire size
• If truck is equipped with STANDARD hub bore use lift STANDARD - BDS1661FPEX
